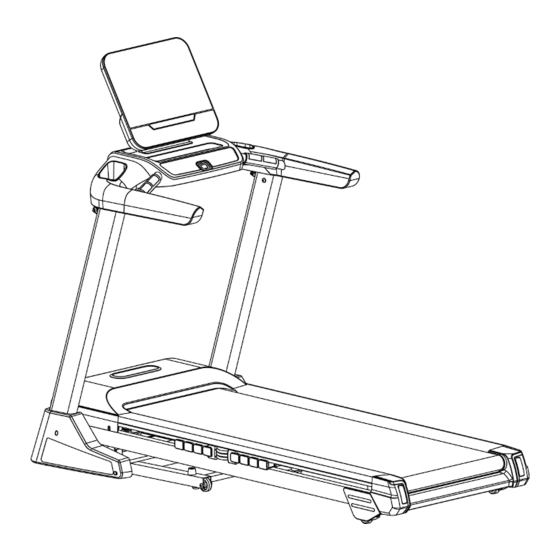

- Page 1 Assembly Manual For Motorized Treadmill T909 Please read all precautions and instructions in this manual in detail before using this equipment. Save this manual for future reference.
-
Page 2: Table Of Contents
CONTENTS Contents Safety Caution Assembly instruction Operation guide 7-14 How to fold and move Suggested stretches 16-17 Maintenance 18-19 Exploded drawing Part list 21-22 TROUBLE SHOOTING... -
Page 3: Safety Caution
SAFETY CAUTIONS When using this product, basic precautions should always be followed, including the following: Please read the instruction carefully before starting to use this product. Danger – To reduce the risk of electric shock： Always unplug this product from the electrical outlet immediately after using and before cleaning. - Page 4 SAFETY CAUTIONS GROUNDING INSTRUCTIONS The products must be grounded first. If malfunction or breakdown occurs, grounding will provide a path of least resistance for electric current to reduce the risk of electric shock. The product is equipped with a cord having an equipment-grounding conductor and a grounding plug.
-
Page 5: Assembly Instruction
ASSEMBLY INSTRUCTIONS OPEN THE BOX YOU CAN FIND THE ALL PARTS AS BELOW Part list Description Quantity Description Quantity Main Frame Bolt M5*12 Computer Screw M4*10 Connection cover Washer M10 Left Side cover Washer M8 Right side cover Safety Key Bolt M10*55 Silicon oil Bolt M10*20... - Page 6 ASSEMBLY INSTRUCTIONS STEP 1 1. Please note that this treadmill need at least 2 people to finish assembly. 2. Open the carton box, and take out all the protection foam and assembly parts. 3. As the photo shows, take out the running deck from the box, lay it on the flat floor, and then cut the belt.
- Page 7 ASSEMBLY INSTRUCTIONS STEP 4 1.Use the 6# wrench (17) to install the computer onto console with 2 pcs round head M8x15 bolts and 2 pcs M8 washer. 2. Connect the cable extent from console with the cable extent from computer. Pay attention to the connection of the cable, a wrong connection or rough operation would cause damage of the connector.
-
Page 8: Operation Guide
OPERATION GUIDE GENERAL SAFETY TIPS A. Practice mounting and dismounting your treadmill before beginning your workout. B. Attach the Safety Key to the Computer (the treadmill will not operate without the Safety Key). Clip the other end of the Safety Key to your clothing before exercising to ensure the treadmill will stop if the user accidentally walks off the Treadmill. - Page 9 OPERATION GUIDE GETTING STARTED NOTES: . Check to make sure nothing is on or will hinder the movement of the treadmill. 2. Plug in the power cord and turn the treadmill ON Stand on the foot rails of the treadmill. Attach the safety key clip to part of your clothing.
- Page 10 OPERATION GUIDE STEP 4: During the program you can adjust the speed and incline by pressing SPEED +/- and INCLINE+/- buttons, or QUICK SPEED and QUICK INCLINE buttons to jump directly to a setting. Press STOP button to stop your workout or pull safety key away from its position STEP 5: to shut down the computer.
- Page 11 OPERATION GUIDE USER PROGRAM This program is for user to edit a personal program; the speed and incline of each segment can be edited according as personal’s desire. There are 18 segments on this program for user to edit workout program. Once the program is set, it will be stored on the computer, the computer will proceed the program by pressing START/STOP button.
- Page 12 OPERATION GUIDE BODY FAT SCALE This function is to estimate your body fat according to the basic information of you body condition. This estimate is not exact and persons with medical conditions and/or a specific need for accurate body fat value should not rely on the estimations provided. STEP 1: Press PROGRAM button repeatedly, on the “11”...
- Page 13 OPERATION GUIDE PRESET PROGRAM CHART P1. WEIGHT LOST SPEED CHANGES Level 1 SPEED(KM/H) Level 2 SPEED(KM/H) Level 3 SPEED(KM/H) Level 4 SPEED(KM/H) Level 5 SPEED(KM/H) Level 6 SPEED(KM/H) Level 7 SPEED(KM/H) Level 8 SPEED(KM/H) P2. CARDIO TRAIN SPEED & INCLINE CHANGES Level 1 ELEVATION SPEED(KM/H)
- Page 14 OPERATION GUIDE P3. FAT BURN SPEED & INCLINE CHANGES Level 1 ELEVATION SPEED(KM/H) Level 2 ELEVATION SPEED(KM/H) Level 3 ELEVATION SPEED(KM/H) Level 4 ELEVATION SPEED(KM/H) Level 5 ELEVATION SPEED(KM/H) Level 6 ELEVATION SPEED(KM/H) Level 7 ELEVATION SPEED(KM/H) Level 8 ELEVATION SPEED(KM/H) P5.
- Page 15 OPERATION GUIDE P7. MOUNTAIN CLIMB SPEED & INCLINE CHANGES Level 1 ELEVATION SPEED(KM/H) Level 2 ELEVATION SPEED(KM/H) Level 3 ELEVATION SPEED(KM/H) Level 4 ELEVATION SPEED(KM/H) Level 5 ELEVATION SPEED(KM/H) Level 6 ELEVATION SPEED(KM/H) Level 7 ELEVATION SPEED(KM/H) Level 8 ELEVATION SPEED(KM/H) P8.
-
Page 16: How To Fold And Move
HOW TO FOLD AND MOVE HOW TO FOLD THE TREADMILL Before folding the treadmill, unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20kg) in order to raise, lower, or move the treadmill. 1. Hold the treadmill with your hands in the locations shownat the right. -
Page 17: Suggested Stretches
SUGGESTED STRETCHES A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down. Do the entire program at least two and preferably three times a week, resting for a day between workouts. After several months, you can increase your workouts to four or five times per week. - Page 18 SUGGESTED STRETCHES 4. Shoulder Lift Lift your right shoulder up toward your ear for one count. Then lift your left shoulder up for one count as you lower your right shoulder. 5. Toe Touch Slowly bend forward from your waist, letting your back and Shoulders relax as you stretch toward your toes.
-
Page 19: Maintenance
MAINTENANCE WARNING! Before performing any maintenance to your treadmill, always unplug the power cord from the surge protector. CLEANING: Routine cleaning of your TREADMILL will extend the life of your treadmill. WARNING! To prevent electrical shock, be sure the power to the treadmill is OFF and the unit is unplugged from the wall electrical outlet before attempting any cleaning or maintenance. - Page 20 MAINTENANCE Running belt tension adjustment The treadmill has been adjusted and passed QC inspection before leaving the factory. If there is phenomenon of bias running of the belt, the possible reasons might be: A. The frame is not stably laid B.
-
Page 21: Exploded Drawing
EXPLODED DRAWING... -
Page 22: Part List
PART LIST DESCRIPTION Q'TY DESCRIPTION Q'TY Base frame Flat washer Incline rack Flat washer Main frame Spring washer Left upright Front roller Right upright Rear roller Console rack Cylinder Computer rack Transport wheel cap Support tube Console upper cover Bolt M10*55 Console lower cover Bolt M10*40mm Computer upper cover... - Page 23 PART LIST Tube cap Audio cable Running board Speed sensor Running belt Handrail pulse Side rail fastener Console cable Cable grommet Upright cable Motor rubber cushion Cable clip Support tube cushion Quick key PCB Computer PCB Audio jack PCB Controller Key pad PCB DC Motor Quick key cable...
-
Page 24: Trouble Shooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSES CORRECTION Console has no 1. Power cord not plugged 1. Check power cord connection. display well. 2. Plug every connector well. 2. Defection on whole set 3. Reset overload protector. cable or not plug well. 3.
