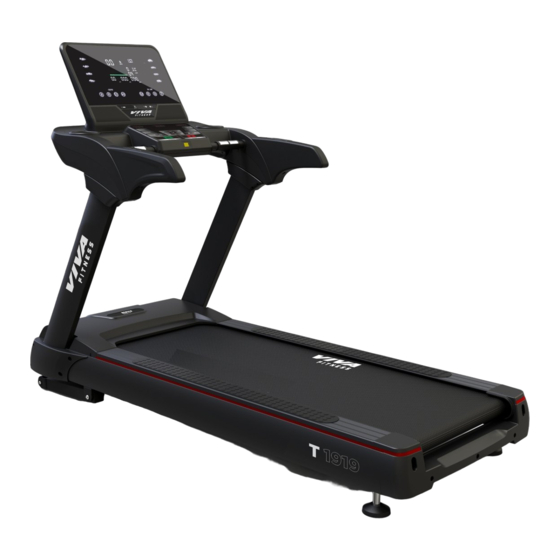

- Page 1 Assembly Manual For Motorized Treadmill T1919 Please read all precautions and instructions in this manual in detail before using this equipment. Save this manual for future reference.
-
Page 2: Table Of Contents
CONTENTS Contents Safety Caution Assembly Instruction Operation Guide 8-15 Suggested Stretches 16-17 Maintenance 18-19 Exploded Drawing Part List 21-22 TROUBLE SHOOTING... -
Page 3: Safety Caution
SAFETY CAUTIONS When using this product, basic precautions should always be followed, including the following: Please read the instruction carefully before starting to use this product. Danger – To reduce the risk of electric shock： Always unplug this product from the electrical outlet immediately after using and before cleaning. - Page 4 SAFETY CAUTIONS GROUNDING INSTRUCTIONS The products must be grounded first. If malfunction or breakdown occurs, grounding will provide a path of least resistance for electric current to reduce the risk of electric shock. The product is equipped with a cord having an equipment-grounding conductor and a grounding plug.
-
Page 5: Assembly Instruction
ASSEMBLY INSTRUCTIONS OPEN THE BOX YOU CAN FIND THE ALL PARTS AS BELOW, BE NOTED THAT THIS TREADMILL IS PACKED BY 2 CARTONS, ONE IS FOR MAIN FRAME, THE OTHER FOR CONSOLE Part list Description Quantity Description Quantity Main frame 1 set Bolt M8x35 3 pcs... - Page 6 ASSEMBLY INSTRUCTIONS STEP 1 1. Please note that this treadmill need at least 2 people to finish assembly. 2. Open the carton box, and take out all the protection foam and assembly parts. 3. Lay the main frame onto the floor. STEP 2 1.
- Page 7 ASSEMBLY INSTRUCTIONS STEP 4 1. As the photo shows, connect the cable extent from display with the cable extent from console. Pay attention to the connection of the cable, a wrong connection would caused damage of the connector. 2. Install the display onto console by using 3 pcs M8x35 bolt and 3 pcs M8 washer, fasten it by wrench 5#.
- Page 8 ASSEMBLY INSTRUCTIONS NOTE: For your safety and comfort, please check if all screws are fastened. Congratulation! A brand new motorized treadmill has been successful assembled!
-
Page 9: Operation Guide
OPERATION GUIDE GENERAL SAFETY TIPS A. Practice mounting and dismounting your treadmill before beginning your workout. B. Attach the Safety Key to the Computer (the treadmill will not operate without the Safety Key). Clip the other end of the Safety Key to your clothing before exercising to ensure the treadmill will stop if the user accidentally walks off the Treadmill. - Page 10 OPERATION GUIDE DISPLAY FUNCTION Accumulates total workout time from 0:00 to 99:59 minutes. TIME: When pulse single is detected by grasping both stainless steel pick-ups on front PULSE: handrails, it will display your current heart rate in beats per minute from 50 to 200.. Displays the current deck incline from starting at level 1 to 15.
- Page 11 OPERATION GUIDE MANUAL PROGRAMS OPERATION NOTES: Under this program, one of DISTANCE, CALORIE and TIME can be set count-down for your workout, the others will count up during your workout, after one count-down reach zero, program will be ended and stop the belt movement, if you need to continue, press the START button to begin belt movement after count-down.
- Page 12 OPERATION GUIDE the buttons on left handrail to adjust incline, the buttons on right handrail to adjust speed. However, the SPEED and INCLINE you adjust will only be effective on the ongoing segment, after the segment finished, the SPEED and INCLINE will process with preset values.
- Page 13 OPERATION GUIDE BUILD-IN MP3 PLAYER The computer have build-in MP3 player function, it can be operated with following instruction: Turn on the power of treadmill, attach the Safety key to wake display up, and then plug-in USB flash, then the build-in MP3 player will play the music file in the flash. CONNECT SMART PHONE If the treadmill have the bluetooth function, then connect the smart phone as follow steps:...
- Page 14 OPERATION GUIDE PRESET PROGRAM CHART P1. WEIGHT LOST SPEED CHANGES Level 1 SPEED(KM/H) Level 2 SPEED(KM/H) Level 3 SPEED(KM/H) Level 4 SPEED(KM/H) Level 5 SPEED(KM/H) Level 6 SPEED(KM/H) Level 7 SPEED(KM/H) Level 8 SPEED(KM/H) P2. CARDIO TRAIN SPEED & INCLINE CHANGES Level 1 ELEVATION SPEED(KM/H)
- Page 15 OPERATION GUIDE P3. FAT BURN SPEED & INCLINE CHANGES Level 1 ELEVATION SPEED(KM/H) Level 2 ELEVATION SPEED(KM/H) Level 3 ELEVATION SPEED(KM/H) Level 4 ELEVATION SPEED(KM/H) Level 5 ELEVATION SPEED(KM/H) Level 6 ELEVATION SPEED(KM/H) Level 7 ELEVATION SPEED(KM/H) Level 8 ELEVATION SPEED(KM/H) P4.
- Page 16 OPERATION GUIDE P6. ROLLING SPEED CHANGES Level 1 SPEED(KM/H) Level 2 SPEED(KM/H) Level 3 SPEED(KM/H) Level 4 SPEED(KM/H) Level 5 SPEED(KM/H) Level 6 SPEED(KM/H) Level 7 SPEED(KM/H) Level 8 SPEED(KM/H) 9 10 P7. MOUNTAIN CLIMB SPEED & INCLINE CHANGES Level 1 ELEVATION SPEED(KM/H) Level 2...
-
Page 17: Suggested Stretches
SUGGESTED STRETCHES A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down. Do the entire program at least two and preferably three times a week, resting for a day between workouts. After several months, you can increase your workouts to four or five times per week. - Page 18 SUGGESTED STRETCHES 4. Shoulder Lift Lift your right shoulder up toward your ear for one count. Then lift your left shoulder up for one count as you lower your right shoulder. 5. Toe Touch Slowly bend forward from your waist, letting your back and Shoulders relax as you stretch toward your toes.
-
Page 19: Maintenance
MAINTENANCE WARNING! Before performing any maintenance to your treadmill, always unplug the power cord from the surge protector. CLEANING: Routine cleaning of your TREADMILL will extend the life of your treadmill. WARNING! To prevent electrical shock, be sure the power to the treadmill is OFF and the unit is unplugged from the wall electrical outlet before attempting any cleaning or maintenance. - Page 20 MAINTENANCE Running belt tension adjustment The treadmill has been adjusted and passed QC inspection before leaving the factory. If there is phenomenon of bias running of the belt, the possible reasons might be: A. The frame is not stably laid B.
-
Page 21: Exploded Drawing
EXPLODED DRAWING... -
Page 22: Part List
PART LIST Description Description Incline frame Nut M10 Main frame Nut M5 Left upright Flat wahser Right upright Flat wahser Console rack Flat wahser Display rack Flat wahser Wooden deck support tube Flat wahser Bolt M12x85 Console plastic housing upper Bolt M10x55 Console plastic housing bottom Bolt M10x40... - Page 23 PART LIST Description Description Running deck AC motor Running belt Motor rubber base Side rail fastener Power code Rear leveling foot Power cord jack Moving wheel Power switch Plastic cushion Power cable 1 Speaker cover left Power cable 2 Speaker cover right Power cable 3 Axle Magnetic ring...
-
Page 24: Trouble Shooting
TROUBLE SHOOTING ERROR CODE SYMPTOM Cable connection problem, check cable connection on every end. Check motor cable. Check motor and controller. Check incline motor. Overload protection. Check controller and voltage stability on power supply. Safety key off, or safety key problem. PROBLEM POSSIBLE CAUSES CORRECTION...
