VIVA FITNESS
TREADMILL
OWNER'S MANUAL
ITEM NO. T131

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T131 and is the answer not in the manual?

Questions and answers

Related Manuals for VIVA FITNESS T131

Summary of Contents for VIVA FITNESS T131

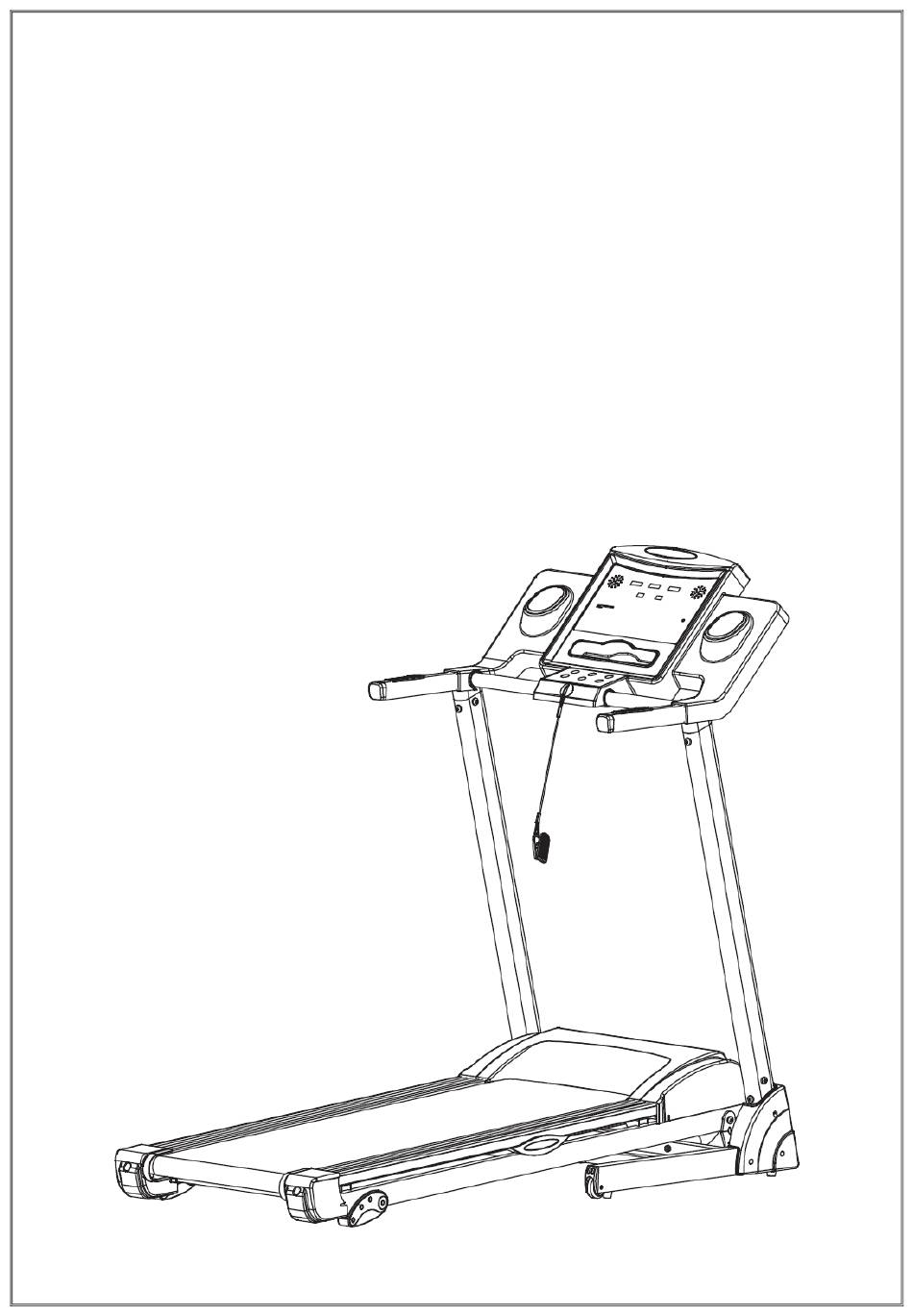

  • Page 1 VIVA FITNESS TREADMILL OWNER’S MANUAL ITEM NO. T131...
  • Page 2 WARNING Read all instruction carefully before use this product. Retain this owner’s manual for the future’s reference: ----When using this treadmill, keep attaching the safety pull pin rope to your clothes. ----When you are running, keep your hand swinging natural, stare frontward, never look adown at your feet.
  • Page 3 symptoms, please stop training and consult a doctor immediately. 15. Maximum weight of User: 110KGS. IMPORTANT SAFETY PRECAUSTION 1. Plug the power cord of the treadmill directly into a dedicated grounded circuit. This product must be grounded. If it has breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.
  • Page 4 particular age and condition. If you have any pain or tightness in your chest, an irregular heartbeat, shortness of breath, feel faint or have any discomfort while you exercise, STOP! Consult your physician before continuing. 16. If you observe any damage or wear on the mains plug or on any section of the mains lead then please have these replaced immediately by a qualified electrician –...

  • Page 5: Assembly Steps

    ASSEMBLY STEPS STEP 1: Open the package, take out all parts and place the main frame on the flat ground. (NOTE: Please don’t cut down the packing straps right now.) STEP 2: 1. Cut down the straps when the main frame was placed well. (Note: Don’t move it any more) 2.
  • Page 6 STEP 3: 1. First, connect the Computer connecting wire (50) with Extension wire (49) together, then lock the Computer frame (56) on the Upright tube (2, 3) with the Allen bolt (45) and Washer (18) as shown; 2. Lock the Allen bolt (45) on Upright tube (2, 3) and Bottom frame (4) tightly; 3.
  • Page 7 STEP 4: When you fold the machine: Put your hands on place A, lift up the machine, then push it to the direction of the arrow shown, stop it when you hear the Clip sound from the Cylinder (28). - 6 -...

  • Page 8: Grounding Methods

    STEP 5: When you unfold the machine: Grasp the place A by your hands, kick the place B of Cylinder (28) by your right foot, push the running board to the level of place C, then the running board will get down automatically.

  • Page 9: Technical Parameter

    installed and grounded in accordance with all local codes and ordinances. DANGER – Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded.

  • Page 10: Function Specifications

    1. Function specifications 1.1 Appearance of the electronic meter 1.2. Start Normal startup after 3s counting backwards. 1.3. Number of programs Manual, 9- Preset Programs, BODYFAT TEST, 3-Countdown Modes 1.4. Safety lock function Removing the safety lock, “---” will be immediately displayed, the treadmill will stop rapidly and alarm as “Bi-Bi-Bi”.

  • Page 11: Display Function

    1.5.2. Program key: “PROG” is the program key. In standby status, press “PROG” to select manual mode, auto program P1 – P9; manual mode is the default one under which the default speed is 0.8km/h and the maximum running speed is 12km/h. 1.5.3.

  • Page 12: Heart Rate Measurement Function

    1.7. Heart rate measurement function While the treadmill is connected to the power, hold the pulse tester for 5s and the heart rate value will be displayed. The initial value is the actually measured heart rate, and its display range is: 50-200 times/ minutes. In the heartbeat measurement process, there will be a heart shaped icon flashing.

  • Page 13: Preset Program

    1.9. Preset program Each program is divided into 10 sections; the operation time will be evenly distributed to each program section. Here below is the P1-P9 program running diagrams. Time section Set time / 10 = running time for each section Program SPEED SPEED...
  • Page 14 1.11. Others 1.11.1 After the operation completion of a countdown parameter, END will be displayed. The system will alarm for 0.5s at the interval of 2s until the steady stop of the treadmill. Then, the system will return back to the manual mode. 1.11.2.
  • Page 15 1.12. Meanings of error message codes Error Failure description Solutions code Stop the controller to enter failure state. It can not be started up. The electronic meter Communication displays the error code and the buzzer sounds for 3 times. abnormality: abnormal Possible reasons: The communication between the controller and the electronic communication meter is blocked;...

  • Page 16: Exercise Instructions

    EXERCISE INSTRUCTIONS 1. The Warm Up Phase This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below.

  • Page 17: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS WALKING BELT TENSION ADJUSTMENT AND CENTERING DO NOT OVERTIGHTEN the walking belt. This may cause reduced motor performance and excessive roller wear. TO CENTER WALKING BELT ● Place treadmill on a level surface ● Run treadmill at approximately 3.5 mph ●If the running belt is too far to the right side, use the supplied Allen wrench to turn the right tension bolt clockwise slowly, noticing the change of the deviating distance until the belt remains centered during use.
  • Page 18 WARNING: ALWAYS UNPLUG THE TREADMILL FROM THE ELECTRICAL OUTLET BEFORE CLEANING OR SERVICING THE UNIT. CLEANING General cleaning or the unit will greatly prolong the treadmill. Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of the walking belt and also the side rails. This reduces the build up of foreign material underneath the walking belt.

  • Page 19: Exploded Drawing

    EXPLODED DRAWING - 18 -...

  • Page 20: Parts List

    PARTS LIST Part No. Description Qty Part No. Description Main frame Moving roller Left upright tube Flat pad Right upright tube Cross Tapping Screw ST4*16 Bottom frame Power wire Running belt Allen bolt M10*30 Washer Φ10*1.2 Running board Hex socket Screw Allen bolt M8*15 M6*25 Nylon nut M6...
