VIVA FITNESS T752 Owner's Manual

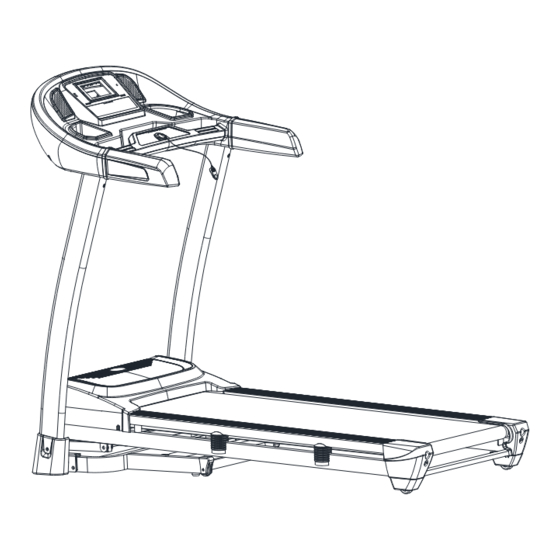

Motorized treadmill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner Manual For
Motorized Treadmill
Please read all precautions and instructions in this manual before in
detail before using this equipment. Save this manual for future
reference.
T752

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T752 and is the answer not in the manual?

Questions and answers

Related Manuals for VIVA FITNESS T752

Summary of Contents for VIVA FITNESS T752

  • Page 1 Owner Manual For Motorized Treadmill T752 Please read all precautions and instructions in this manual before in detail before using this equipment. Save this manual for future reference.

  • Page 2: Table Of Contents

    CONTENTS Contents Safety Caution Assembly Instruction Computer Operation 7-10 How to fold and move Suggested Stretches 12-13 Maintenance 14-15 Exploded Drawing Part List 17-18 Trouble shooting guides 19-20...

  • Page 3: Safety Caution

    SAFETY CAUTIONS When using this product, basic precautions should always be followed, including the following: Please read the instruction carefully before starting to use this product. Danger – To reduce the risk of electric shock： Always unplug this product from the electrical outlet immediately after using and before cleaning.
  • Page 4 SAFETY CAUTIONS GROUNDING INSTRUCTIONS The products must be grounded first. If malfunction or breakdown occurs, grounding will provide a path of least resistance for electric current to reduce the risk of electric shock. The product is equipped with a cord having an equipment-grounding conductor and a grounding plug.

  • Page 5: Assembly Instruction

    ASSEMBLY INSTRUCTIONS OPEN THE BOX YOU CAN FIND THE ALL PARTS AS BELOW. Name Specification Q’ty Name 规格 数量 Main Frame Bolt M8*45 Bolt M8*20 Bolt ST4.2*15 Washer ￠20*￠8.5*1 Washer ￠20*￠8.5*1 Base Cover Left Base Cover Right Safety Key Lubricant Oil MP3 Wire Wrench Wrench...
  • Page 6 ASSEMBLY INSTRUCTIONS STEP 1 Open the packing carton, put the main frame on the level ground. STEP 2 tool (96) bolt(14),washer(34) and bolt(15) into uprights and base frame.Don’t lock up firmly. STEP 3 Use a tool (96) to put bolt(15) and washer(34) into uprights and console frame.Don’t lock up firmly.
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 5 Hold one hand up to the arrow at A and hear the gas spring (11) sound. STEP 6 Hold one hand at A, kick the gas spring(11) with your foot, press the hand at A slightly harder down to the rear end of the armrest, let go of the rest of the arm, let go of the machine, and then you can automatically drop...

  • Page 8: Computer Operation

    COMPUTER OPERATION GENERAL SAFETY TIPS A. Practice mounting and dismounting your treadmill before beginning your workout. B. Attach the Safety Key to the Computer (the treadmill will not operate without the Safety Key). Clip the other end of the Safety Key to your clothing before exercising to ensure the treadmill will stop if the user accidentally walks off the Treadmill.
  • Page 9 COMPUTER OPERATION 2.KEYBOARD FUNCTION “PROGRAM”button：Select program and FAT while the machine is stop,manual mode-P1-P12-FAT.Default speed is 1.0KM/H. “MODE” button : Countdown mode selection key.Manual mode-Time countdown-Distance countdown-Calorie countdown.In FAT mode,choosing keys for FAT parameters under FAT mode. “START/STOP” button : When machine is sotp,press this button,it will be working after a three second count-down or program default speed.When machine is running,press this button,it will be reduced speed,then stop.
  • Page 10 COMPUTER OPERATION +/- button to adjust speed and incline when treadmill is moving, but when into next segment, it will automatically adjust to default value. Also, you can press STOP button or move safety key then the treadmill will resume to ready mode. Built-in workout program value as below: TIME Time set/10 intervals=running duration...
  • Page 11 COMPUTER OPERATION 5.Using the pluse function The Pulse Window on your Computer works in conjunction with the Pulse Sensors on both handrails. When you are ready to read your pulse: 5.1 Place both hands firmly on the Pulse Sensors. For the most accurate reading, it is important to use both hands.

  • Page 12: How To Fold And Move

    HOW TO FOLD AND MOVE HOW TO FOLD THE TREADMILL Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be permanently damaged. Next, unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20kg) in order to raise, lower, or move the treadmill.

  • Page 13: Suggested Stretches

    SUGGESTED STRETCHES A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down. Do the entire program at least two and preferably three times a week, resting for a day between workouts. After several months, you can increase your workouts to four or five times per week. Warming up is an important part of your workout, and should begin every session.
  • Page 14 SUGGESTED STRETCHES 4. Shoulder Lift Lift your right shoulder up toward your ear for one count. Then lift your left shoulder up for one count as you lower your right shoulder. 5. Toe Touch Slowly bend forward from your waist, letting your back and Shoulders relax as you stretch toward your toes.

  • Page 15: Maintenance

    MAINTENANCE WARNING! Before performing any maintenance to your treadmill, always unplug the power cord from the surge protector. CLEANING: Routine cleaning of your TREADMILL will extend the life of your treadmill. WARNING! To prevent electrical shock, be sure the power to the treadmill is OFF and the unit is unplugged from the wall electrical outlet before attempting any cleaning or maintenance.
  • Page 16 MAINTENANCE Running belt tension adjustment The treadmill has been adjusted and passed QC inspection before leaving the factory. If there is phenomenon of bias running of the belt ,the possible reasons might be: A. The frame is not stably laid B.

  • Page 17: Exploded Drawing

    EXPLODED DRAWING...

  • Page 18: Part List

    PART LIST Base frame Decorative ring left Incline frame Decorative ring right Main frame Moving wheel cover Upright left Balley pan Upright right Cushion Φ60*72 Console frame Running board 1200*635*18 480*2945*T1. Motor frame Running belt Front roller Side rail 80*33.5*1275 Rear roller Handrail foam left 295*65*100...
  • Page 19 handrail Bottom cover of handrail Filter optional Motor cover MP3 module optional End cap left USB module optional End cap right Speaker optional Base cover left Audio wire optional Base cover right Wrench Handrail cap left Wrench Handrail cap right Wrench 13 14 15...

  • Page 20: Trouble Shooting Guides

    TROUBLE SHOOTING ERROR CODE POSSIBLE CAUSES CORRECTION 1. Check if signal wire between console PCB and controller is normal.If not,change it. Poor communicaiton between 2. Check if communication on console console and controller PCB or controller is normal.If not,change console PCB or controller. 1.
  • Page 21 TROUBLE SHOOTING PROBLEM POSSIBLE CAUSES CORRECTION Treadmill will not 1. Not plugged in. 1. Tighten into suitable outlet. start 2. Safety key not attached 2. Insert safety pull pin. correctly. 3. Reset circuit breaker. 3. Treadmill circuit breaker 4. Turn on On/Off switch. tripped.
