Summary of Contents for KODU UH10966

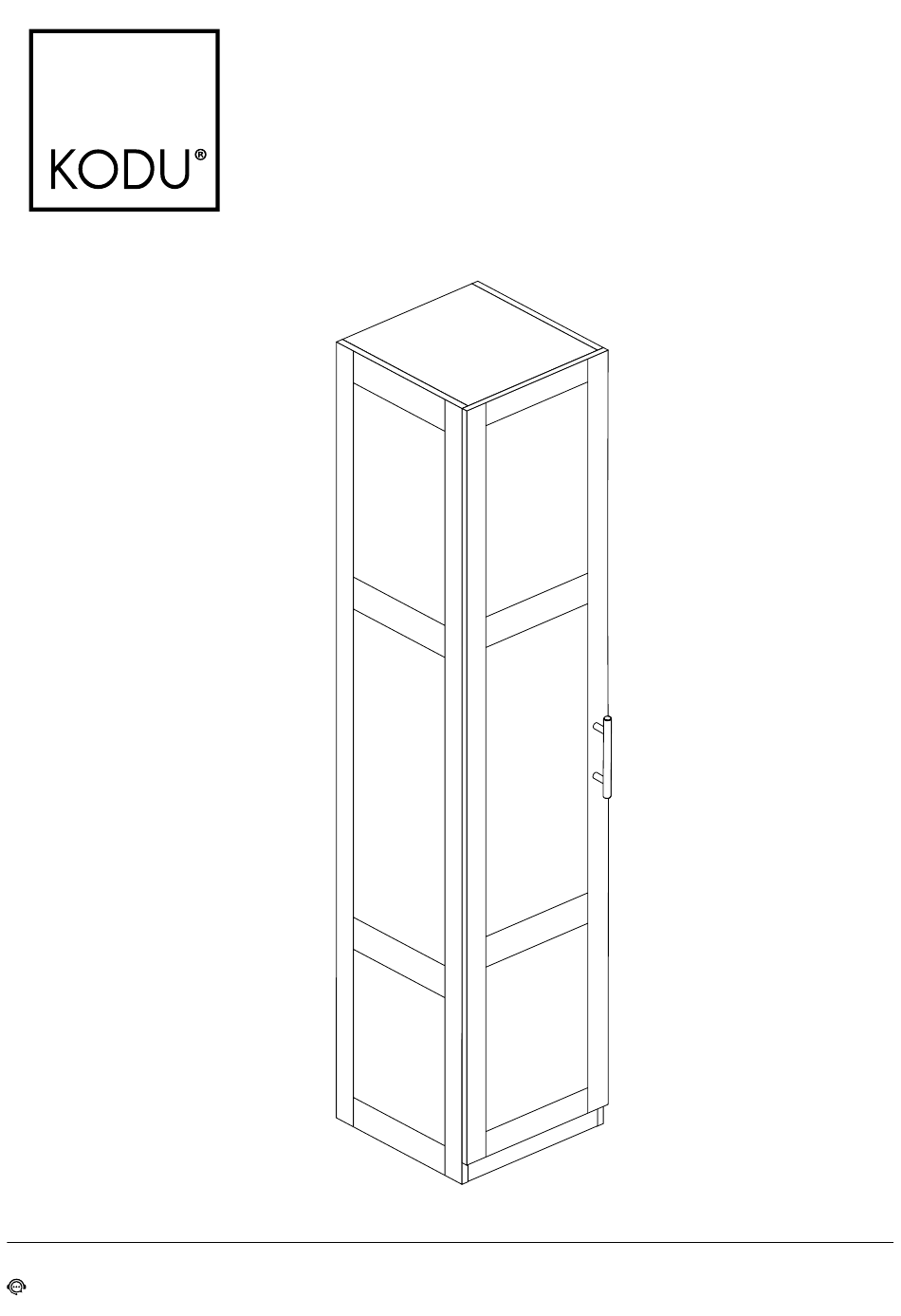

- Page 1 TALL CABINET 1 DOOR ASSEMBLY INSTRUCTIONS AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10966 UH11033 UH11119...
- Page 2 ASSEMBLY REQUIREMENTS Equipment: phillips head screwdriver, flat head screwdriver and hammer 2 x adults required 2m x 2m assembly space required 1.5 hour assembly time approx. 2 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10966 UH11033 UH11119...
- Page 3 Quickfit head should be in the centre of the cam lock when the two panels are joined. Turn cam lock clockwise to tighten. Cam lock should be inserted before quickfit. 3 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10966 UH11033 UH11119...
-
Page 4: Hardware List
24 x I 2 x J 2 x K 2 x L Nail Screw Wall Bracket Wall Plug 2 x M 2 x O Screw Screw 4 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10966 UH11033 UH11119... -
Page 5: Parts List
PARTS LIST 1 PC 1 PC 1 PC 1 PC 2 PCS 1 PC 3 PCS 1 PC 1 PC 1 PC 5 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10966 UH11033 UH11119... - Page 6 STEP 1 Insert wooden dowels (C) to parts 5. C x 4 Fix parts 5 to part 4 using screws (G), as shown. G x 4 6 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10966 UH11033 UH11119...
- Page 7 Attach part 2 to parts 3, 4, 5, 6 and 9, as shown. C x 8 Turn cam locks clockwise to tighten. A A A A A A 7 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10966 UH11033 UH11119...
- Page 8 Attach part 1 to parts 3, 4, 5, 6 and 9, as shown. C x 8 Turn cam locks clockwise to tighten. C C C A A A A A A 8 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10966 UH11033 UH11119...
- Page 9 ASSEMBLY INSTRUCTIONS STEP 4 Fix part 10 to assembled unit using nails (I) I x 24 and screws (J), as shown. J x 2 9 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10966 UH11033 UH11119...
- Page 10 Fix handle (E) to part 8 using screws (M). E x 1 Fix hinges (H) to part 8 using screws (F), as shown. F x 6 H x 3 M x 2 10 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10966 UH11033 UH11119...
- Page 11 ASSEMBLY INSTRUCTIONS STEP 6 Insert shelf pins (D) to parts 1 and 2. D x 12 Put parts 7 on the shelf pins (D), as shown. 11 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10966 UH11033 UH11119...
- Page 12 To adjust the gap from the door to the main frame turn the screw clockwise or anti-clockwise as needed. 12 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10966 UH11033 UH11119...
- Page 13 ASSEMBLY INSTRUCTIONS STEP 8 Fix wall brackets (K) to part 3 using screws (O), as shown. K x 2 O x 2 13 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10966 UH11033 UH11119...
- Page 14 Should you choose not to affix the product to the wall, serious injury may be caused if the product tips over. Please consider the wall mounting & fixing guide when securing your cabinet. WALL 14 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10966 UH11033 UH11119...
- Page 15 ASSEMBLY INSTRUCTIONS STEP 10 Maximum recommended weight is 5kg per shelf. Your Tall Cabinet 1 Door is ready for use. 15 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10966 UH11033 UH11119...
- Page 16 TV & HiFi than the plasterboard. Always check the speakers and satellite dishes, etc. fixing is secure to the retaining wall. 16 of 16 AFTER SALES SUPPORT ASSEMBLY INSTRUCTIONS 1300 777 137 UH10966 UH11033 UH11119...
