- Page 1 International registered trademark n. 2.777.971 SURF 115V Electromechanical swing gate operator SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 Phone:++1-305.594.1151 Fax: ++1-305.594.7325 Toll Free: 800.689.4716 67410720 Rev. 04 - 06/2014...
- Page 2 SURF International registered trademark n. 2.777.971 Details General An appliance shall be provided with an instruction manual. The instruction manual shall give instructions for the installation, operation, and user maintenance of the appliance. The installation instructions shall specify the need for a grounding-type receptacle for connection to the supply and shall stress the importance of proper grounding.
- Page 3 SURF International registered trademark n. 2.777.971 g) The Stop and/or Reset button must be located in the line-of-sight of the gate. Activation of the reset control shall not cause the operator to start. h) A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily visible. i) For gate operators utilizing a non-contact sensor: 1) See instructions on the placement of non-contact sensors for each Type of application, 2) Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle, trips the sensor while the gate is...
- Page 4 SURF International registered trademark n. 2.777.971 PERIODICAL MAINTENANCE Check the solidity and the stability of the gate, especially the points of support and/or rotation of the gate Annual (pivots). Annual Check the release function Annual Check and grease the fixing pivots and the endless screw Annual Check the integrity of the connection cables Annual...
- Page 5 (fig. 5). Important: For a higher security, SEA advices to install infrared photocells. - Do not Install the front bracket in a weak part of the gate Fig.

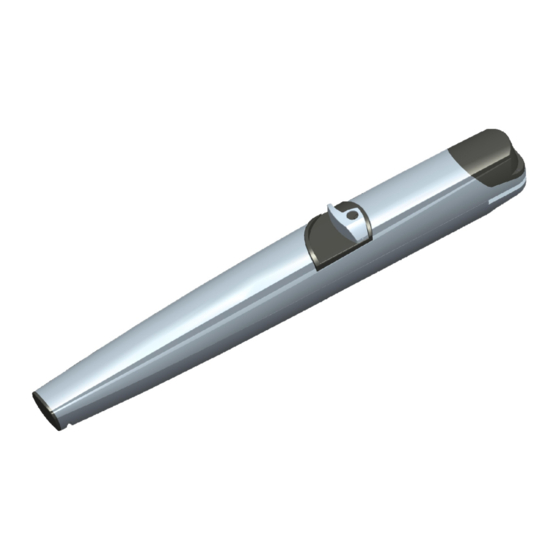

- Page 6 SURF International registered trademark n. 2.777.971 CHARACTERISTICS AND SPECIFICATIONS SURF is an irreversible, strong and safe, easy to install electromechanical swing gate operator, for leaf lengths up to max. 11,48 feet. The SURF operator has a release system with key, which in case of emergency or black out, allows the manual of the leaf.
- Page 7 SURF International registered trademark n. 2.777.971 MECHANICAL INSTALLATION Fig. 8 67410720 Rev. 04 - 06/2014...
- Page 8 SURF International registered trademark n. 2.777.971 MECHANICAL INSTALLATION STANDARD INSTALLATION Model SURF 115V EXIT ENTRY 1) The Surf unit 2) Mechanical stop Fig. 9 3) Electronic control unit 4) Flashing lamp 5) Photocell Dx 6) Differential switch 16A - 0,03A 7) Photocell Sx 8) Start - stop push button with key 9) Antenna...
-
Page 9: Fig. 12
SURF International registered trademark n. 2.777.971 MECHANICAL INSTALLATION GATE ARRANGEMENT You must do some checks on the gate to see if fitting a SURF system is possible: A.(Make sure that) the fixed and moving parts of the gate are strong and non-deformable; B.The length of each gate leaf must not exceed 11,48 feet for SURF 350/350 24V, always respecting the graph;... - Page 10 SURF International registered trademark n. 2.777.971 MECHANICAL INSTALLATION INSIDE OPENING INSTALLATION Total stroke 15.74 inches - max. recommended stroke 14,96 inches Max. Stroke Max. Outside Opening Stroke for 90° (inches) (inches) (inches) (inches) Angle (inches) (inches) 8,26 6,30 5,90 24,80 105°...
-
Page 11: Fig. 16
SURF International registered trademark n. 2.777.971 MECHANICAL INSTALLATION INSTALLATION ON MASONRY PILLARS, MAKING A NICHE 7,87 2,36 3,14 Min. 1078 6,10 Min. WARNING: During installation, make sure that the cables do not interfere with the niche. If you have to make a niche observe the dimensions shown in fig.15. -
Page 12: Fig. 19
SURF International registered trademark n. 2.777.971 NOTE: To avoid the oscillation of the operator during operating phase, it is recommended to adjust the nut (1) being careful not to block the rotation of the operator on the fitting. Nut (1) Fig. - Page 13 SURF International registered trademark n. 2.777.971 MECHANICAL INSTALLATION Fig. 22 Front fixation Warning: in case of screwed front fixation, the front fixation DOES NOT HAVE TO INCLINE like showed in fig.22 when it reaches the limit stop, otherwise it can cause damages to electronical limit switches. NOTE: When placing the front fixation on the gate, consider the shift in comparison to the central axle of the operator (Fig.23).
- Page 14 SURF International registered trademark n. 2.777.971 CONNECTIONS 24V With mechanical and limit switch ATTENTION: The limit switches must be used only for the connection to the control units and n o t d i r e c t l y connected to the electric motor.
- Page 15 These instructions are part of the device and must be kept in a well known place.The installer shall follow the provided intructions thoroughly. SEA USA Inc. products must only be used to automise doors, gates and lwings. Any initiative taken without SEA USA Inc.
- Page 16 SURF ® Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 International registered trademark n. 2.777.971 To the attention of users and technicians INSIDE RELEASE SYSTEM WITH Push and PLASTIC KEY 90° turn To release operate as follows: Turn counter- clockwise the lock protection door (fig.
- Page 17 SEA. Recognized defects, whatever their nature, will not produce any responsibility and/or damage claims to SEA USA Inc and SEA s.r.l. Warranty shall not cover any required labor activities. Warranty will in no case be recognized if alterations and any other changes will be found on products. Warranty will not cover damages caused by carriers, expendable materials and faults due to improper use with the products specifications.
- Page 20 ® ELECTRONIC O P E N I N G S Y S T E M S International registered trademark n. 2.777.971 SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 Phone:++1-305.594.1151 Fax: ++1-305.594.7325 Toll Free: 800.689.4716 web site: www.sea-usa.com...
