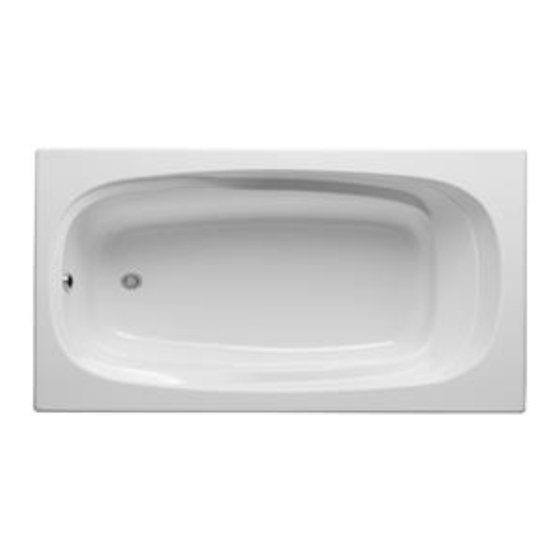

JASON Hydrotherapy Integrity K3060SR Owner's Manual
Hide thumbs
Also See for Integrity K3060SR:
- Owner's manual (10 pages) ,
- Installation, operation and maintenance manual (9 pages)
Table of Contents
Advertisement
Quick Links
"TO BE REMOVED FOR USE BY THE OCCUPANT."
Jason Hydrotherapy
8328 MacArthur Drive
North Little Rock, AR 72118-2029
www.jasonhydrotherapy.com
INSTALLATION, OPERATION, AND MAINTENANCE
If the carton shows sign of damage,
inspect the product before accepting
and describe the problem on the Bill
of Lading.
INSPECTION
Inspect the unit prior to installation. In the event of a
problem, DO NOT install the unit.
All components are factory assembled to the bath and the
unit is water tested and inspected prior to leaving Jason
Hydrotherapy.
If the carton shows sign of damage, inspect the product
before accepting and describe the problem on the Bill of
Lading.
NOTE: Transportation and insurance from Jason's
factory are the buyer's responsibility.
Damage sustained in transit is the responsibility of
the carrier. If damage is discovered, the carrier must
be immediately notifi ed in writing with a request for a
representative to inspect the unit. Failure of the carrier
to respond should be reported to the seller and carrier.
Always fi le a freight claim promptly.
The installer is responsible for ensuring that the unit is
free from defects or shipping damage. In the event of a
problem, DO NOT install the unit.
Jason Hydrotherapy is not responsible for damage that
might have been avoided by inspection or testing prior to
installation.
OWNER'S RECORD
Dealer:
Date Purchased:
Date Installed:
Installer:
®
© 2018 Jason
Hydrotherapy • tech@jasonhydrotherapy.com
OWNER'S MANUAL
Integrity
Collection Baths
®
Damage to the unit during installation will not be covered
by warranty and is the responsibility of the installer.
ALL WARRANTY CLAIMS ON ACRYLIC SURFACE
DAMAGE MUST BE MADE PRIOR TO INSTALLATION.
Inspect plumbing and bath surface for missing or damaged
components. Alert your dealer of any discrepancies.
To protect the unit from damage keep the bath in the
carton until ready for installation.
EQUIPMENT ACCESS
In accordance with Building Codes, service access to
all hydrotherapy bath equipment, controls and electrical
connections must be provided during installation
(Recommended minimum 28" x 17" [71 x 43 cm]).
Insufficient access will hinder repair and maintenance.
Warranty service will not cover costs of providing
equipment access.
Jason offers an optional removable lateral skirt for all
rectangular baths. The skirts are available in matching
acrylic colors and provide convenient access to bath
equipment, as well as an excellent fi nished appearance.
The Specifi cation Sheet for this bath contains additional
technical information. This sheet can be provided by your
dealer or accessed online at www.jasonhydrotherapy.com.
PLACE SERIAL NUMBER CARD WITH
PRODUCT CONFIGURATION IN THIS BOX
Page 1 of 16
49-1013-004
Date
Customer Service : 800.255.5766
06/18
Advertisement
Table of Contents
Related Manuals for JASON Hydrotherapy Integrity K3060SR
Summary of Contents for JASON Hydrotherapy Integrity K3060SR
- Page 1 In the event of a problem, DO NOT install the unit. Jason Hydrotherapy is not responsible for damage that might have been avoided by inspection or testing prior to installation.
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS INSTRUCTIONS PERTAINING TO THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS. This manual contains information and instructions for proper operation and maintenance of your therapy bath. Failure to follow these instructions could result in personal injury, electrical shock, or fi re. WARNING: When using this unit, basic precautions should always be followed, including the following: READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY DANGER: TO REDUCE THE RISK OF INJURY FOLLOW THESE PRECAUTIONS:... -
Page 3: Consignes De Sécurité Importantes
CONSIGNES DE SÉCURITÉ IMPORTANTES INSTRUCTIONS RELATIVES AU RISQUE DE FEU, CHOC ÉLECTRIQUE, OU DE BLESSURE. Ce manuel contient des informations et des instructions pour le bon fonctionnement et l’entretien de votre bain thérapeutique. Ne pas suivre ces instructions cela pourrait entraîner des blessures corporelles, un choc électrique ou un incendie. AVERTISSEMENT: Lors de l’utilisation de cet appareil, des précautions de base doivent toujours être suivies, y compris les suivantes: LIRE ET SUIVRE TOUTES LES INSTRUCTIONS ATTENTIVEMENT... - Page 4 Cautionary Warnings (English/French) ATTENTION: la temperature ambiante sous la baignoire où CAUTION: Ambient temperature under the bath where equip- l’équipement est installé ne doit pas dépasser 50°C. ment is installed must not exceed 122°F (50°C). AVERTISSEMENT : Toute modification de l’équipement n’est WARNING: Any modification to the equipment is not recom- pas recommandé...
- Page 5 FEATURES, CONTROLS AND OPERATING INSTRUCTIONS INTRODUCTION FEATURES Jason offers the fi nest in soaking hydrotherapy baths but also offers the option for more hydrotherapy choices with a This manual contains all of the information needed for Jason MicroSilk ® , AirMasseur ®...
- Page 6 FEATURES, CONTROLS AND OPERATING INSTRUCTIONS (cont.) AIRMASSEUR FEATURES WHIRLPOOL FEATURES ® Jason’s AirMasseur hydrotherapy bath fi lls the bath with Jason’s Whirlpool hydrotherapy bath utilizes Perfect millions of warm air bubbles to create a blanket of rolling Pressure/Perfect Flow jets that are directed at key muscle movement, gently massaging your skin.
-
Page 7: User Maintenance Instructions
USER MAINTENANCE INSTRUCTIONS HUMIDITY SURFACE MAINTENANCE Area with minor scratches or dull surfaces can be restored WARNING: Avoid high humidity levels in your home. by applying commercially available plastic polish (i.e. Mold, mildew, fungi and bacteria which may be Novus Plastic Polish No. 2, available at your Jason dealer), harmful to health thrive in areas with continued high followed by an application of acrylic paste wax. -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS INSTALLATION 2. AirMasseur Ventilation (AM baths) ® A minimum ventilation opening of 2” x 4” [5x10cm] for the 1. Finish Frame AirMasseur blower is required. It should be designed to draw in indoor ambient air at a minimum of 72°F [22°C]. A fi nish frame under the shell rim should always be constructed to support the bath deck and ensure proper drainage toward the bath well. - Page 9 INSTALLATION INSTRUCTIONS (cont.) 6. Integral Tile Lip Alcove Installation Note: If you use a tile fl ange kit, modify the framing to support the bath lip as shown in Figure 6. After the bath has been leveled, confi rm the height measurement of the underside of the fl ange deck in order OPTIONAL to install a 1”x2”...
- Page 10 INSTALLATION INSTRUCTIONS (cont.) REMOTE MOUNTING OF AIR BLOWER FIELD INSTALLATION OF THE WHIRLPOOL PUMP ASSEMBLY ® The Jason AirMasseur system has been factory installed following ETL/UL Standard safety guidelines. During The Jason Whirlpool system has been factory installed installation, if remote mounting of the air blower is desired following ETL/UL Standard safety guidelines.
-
Page 11: Electrical Installation
INSTALLATION INSTRUCTIONS (cont.) ELECTRICAL INSTALLATION These instructions are written assuming 60Hz, 120V The pumps are supplied with an electrical bonding lug power supply. Verify the electrical requirements of the bath to allow connection of a solid copper bonding conductor unit before installation. Refer to the equipment labels for between the unit and other electrical equipment and voltage and frequency requirements. -
Page 12: Equipment Connections
INSTALLATION INSTRUCTIONS (cont.) EQUIPMENT CONNECTIONS All power cords must be connected into the proper 20 amp 120VAC GFCI dedicated circuit for the system. All controls should be located to permit access for inspection and servicing. Depending on the options ordered on the bath, more than one outlet may be required. - Page 13 INSTALLATION INSTRUCTIONS (cont.) AIRMASSEUR® [AM] SYSTEM This AirMasseur bath is provided with an Air On/Off switch and control box. The control box and tubing is temporarily secured to the bath’s plumbing for shipping. The tubing should be fi rmly attached to the bath’s air switch actuator and the air switch control box.
- Page 14 INSTALLATION INSTRUCTIONS (cont.) WHIRLPOOL [WP] SYSTEM This Whirlpool bath is provided with an Air On/Off switch. The tubing should be fi rmly attached to the bath’s air switch actuator and the pump air switch connection. A small bead of silicone may be added to the air tubing connections to help prevent the tubing from disengaging.
-
Page 15: Troubleshooting Guide
TROUBLE SHOOTING GUIDE If you believe the unit to be within the warranty period, you must contact Jason Customer Service: 1-800-255-5766 with the bath’s Product and Serial numbers before work is started. These numbers can be found on the label on the front page of this manual and also adhered to the underside of the bath above the equipment. - Page 16 WARRANTY REGISTRATION: Register your product’s warranty online at www.jasonhydrotherapy.com. JASON HYDROTHERAPY LIMITED WARRANTY The Company warrants the products of its own manufacture to be free from To obtain warranty service, you must contact the retailer from which the defects in workmanship and material for a period of twelve (12) months from date merchandise was purchased or Company’s distributor in your area.
