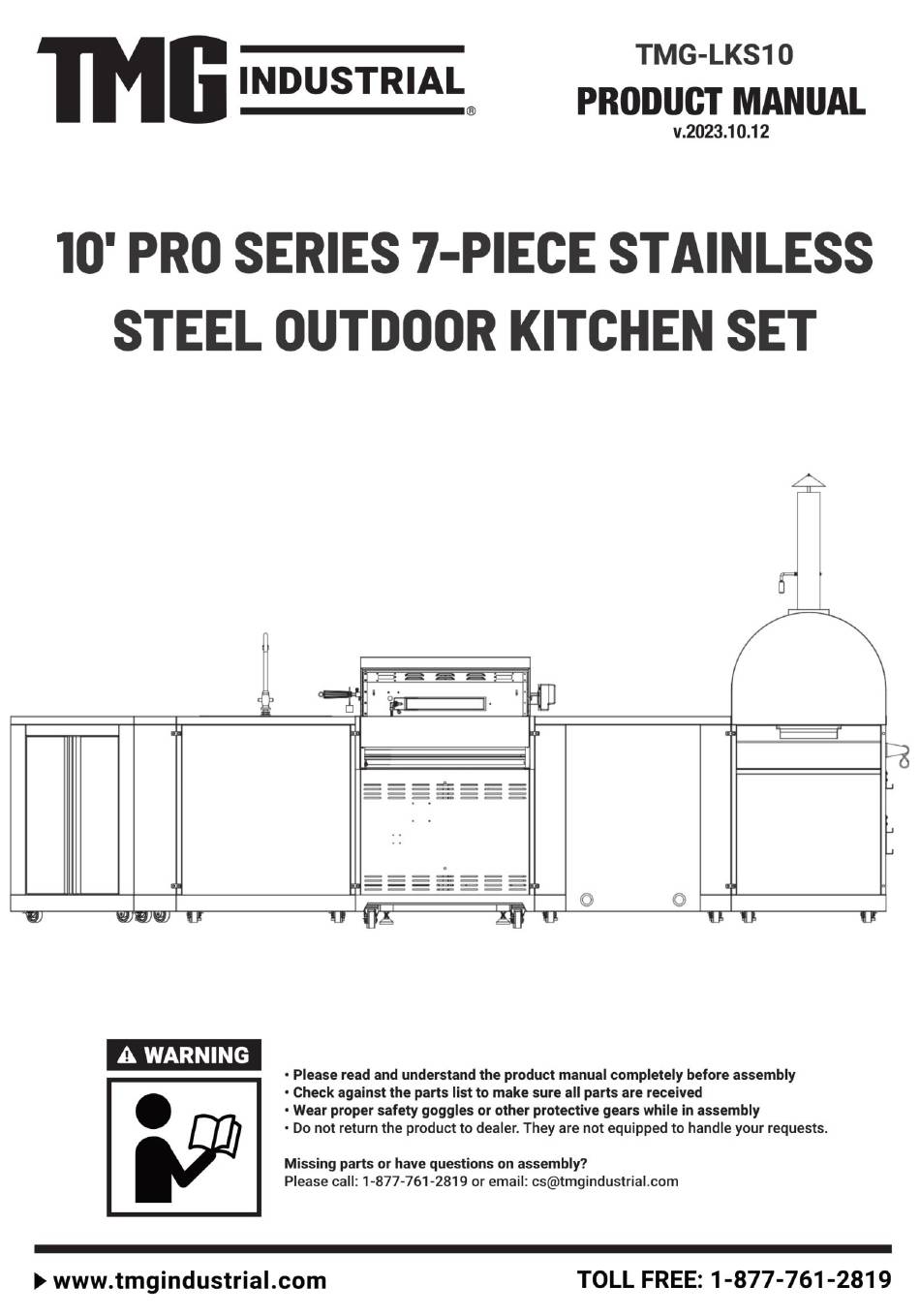

TMG PRO Series Product Manual

10' 7-piece stainless steel outdoor kitchen set
Hide thumbs Also See for PRO Series:
Table of Contents

Advertisement

Quick Links

Download this manual
www.tmgindustrial.com
0/118
TOLL FREE:1-877-761-2819
►

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TMG PRO Series

Summary of Contents for TMG PRO Series

  • Page 1 www.tmgindustrial.com 0/118 TOLL FREE:1-877-761-2819 ►...
  • Page 2 IMPORTANT: Save for electrical inspector's use. Installer: Leave installation instructions with the homeowner. Homeowner: Keep installation instructions for future reference Welcome Thank you for purchasing our outdoor kitchen appliance! We appreciate your business and we recommend that you read this entire User’s Manual before operating your new appliance for the first time. This manual contains instructions on how to properly install and set up your new range, as well as insights into the unique features that our product offers.
  • Page 3 SINK CABINET MODEL: TMG-LKS10-1 Instructions for use and installation www.tmgindustrial.com 2/118 TOLL FREE:1-877-761-2819 ►...
  • Page 4 PARTS EXPLOSIVE PICTURES Our door Kitchen Sink Cabinet Parts lists and Explosive Picture www.tmgindustrial.com 3/118 TOLL FREE:1-877-761-2819 ►...

  • Page 5: Parts List

    PARTS LIST Explosive# Part Name Quantity Part# 20.01.008067-000-A0 Countertop welding assembly 05.99.008008-000-A1 Water sink 05.19.008004-000-A0 Drainpipe with anti-overflow 20.01.008089-000-A00 Left side panel welding assembly Decoration 5.99.008008-000-A1 Decoration panel welding assembly 20.01.001044-000-A0 Condiment holder welding assembly 04.01.008033-000-A0 Bottle opener 20.01.001040-000-A1 Beam welding assembly 22.99.009182-000-A0 Left door welding assembly 22.99.009181-000-A0...

  • Page 6: Product Dimension

    PRODUCT DIMENSION www.tmgindustrial.com 5/118 TOLL FREE:1-877-761-2819 ►...
  • Page 7 www.tmgindustrial.com 6/118 TOLL FREE:1-877-761-2819 ►...

  • Page 8: Cabinet Installation

    CABINET INSTALLATION Step 1 1. Connect 2 pcs supporting leg (Part # 11) to bottom welding part, and tighten two legs; 2.Connect 2 pcs Fixed caster (Part # 12) and 2 pcs universal caster with brake(Part # 13) with 16 pcs ¼” Philips thumb head screw with anti-slip design(Part # 21) to bottom welding part (Part # 14) www.tmgindustrial.com 7/118...
  • Page 9 Step 2 1. Reverse back Bottom panel welding assembly (Part # 14). Install 2 pcs Gasket (Part # 16) to Part # 14, and then use 2 pcs Philips thumb head screw (Part # 22) to install Door barrier strip (Part # 15) to Part # 14; }.
  • Page 10 Step 3 1. Use 4 pcs Part # 21 to connect Beam welding assembly (Part # 7) with Part #3 and #17; 2. Use 4 Part # 21 to connect Decoration panel welding assembly (Part # 4) with Part #3 and #17; 3.
  • Page 11 Step 4 1. Use 2 pcs Part # 21 to connect Condiment holder welding assembly (Part # 5) with Part #4; 2. Use 2 pcs Philips thumb head screw (Part # 22) to connect bottle opener (Part # 6) with Part #4; 3.
  • Page 12 Step 5 1. Use 4 pcs Part # 21 to install Countertop welding assembly with Part # 3 and # 17, making sure the connection is smooth. www.tmgindustrial.com 11/118 TOLL FREE:1-877-761-2819 ►...
  • Page 13 Step 6 The Product without faucet and water pipe will be looking like below picture. www.tmgindustrial.com 12/118 TOLL FREE:1-877-761-2819 ►...
  • Page 14 Step 7 1. Install Faucet (Part # 20) to Water sink (Part # 2), then put 2 pcs water inlet pipe (part of # 18) into the bottom of Part # 20; 2. Put Drain pipe with anti-overflow (Part # 2.1) to the bottom of Part # 2, then use specialized screw ~/|” screw within Part # 2.1 to lock Anti-overflow connector (already installed from the manufacturer), connect anti-flow connector to the side of drain pipe;...
  • Page 15 4. For detailed installation information of faucet, see below picture www.tmgindustrial.com 14/118 TOLL FREE:1-877-761-2819 ►...
  • Page 16 Step 8 1. Put Part # 2 on top of Part # 1 and make sure the connection is tight. www.tmgindustrial.com 15/118 TOLL FREE:1-877-761-2819 ►...
  • Page 17 www.tmgindustrial.com 16/118 TOLL FREE:1-877-761-2819 ►...
  • Page 18 www.tmgindustrial.com 17/118 TOLL FREE:1-877-761-2819 ►...
  • Page 19 REFRIGERATOR CABINET MODEL: TMG-LKS10-2 Instructions for use and installation www.tmgindustrial.com 18/118 TOLL FREE:1-877-761-2819 ►...
  • Page 20 PARTS EXPLOSIVE PICTURES www.tmgindustrial.com 19/118 TOLL FREE:1-877-761-2819 ►...

  • Page 21: Parts List

    PARTS LIST PART NAME QUANTITY EXPLOSIVE PART # 20.01.008041-000-A0 Countertop welding assembly 20.01.001030-000-A0 Left side panel welding assembly 20.01.001031-000-A0 Right side panel welding assembly 20.01.001032-000-A0 Back panel welding assembly 20.01.001033-000-A0 Beam welding assembly 20.01.008042-000-A0 Right bottom panel welding assembly 20.01.008043-000-A0 Left bottom panel welding assembly 05.10.000123-000-A0 Universal caster with brake...

  • Page 22: Product Dimension

    PRODUCT DIMENSION www.tmgindustrial.com 21/118 TOLL FREE:1-877-761-2819 ►...
  • Page 23 www.tmgindustrial.com 22/118 TOLL FREE:1-877-761-2819 ►...

  • Page 24: Cabinet Installation

    CABINET INSTALLATION Step 1 1. Install 2 pcs Supporting Leg (Part # 10) to bottom right welding assembly (Part # 6) and bottom left welding assembly (Part # 7). Use hand to adjust the supporting leg to the suitable position; }.
  • Page 25 Step 2 1. Reverse back Bottom panel welding assembly (Part # 14). Install 2 pcs Gasket (Part # 16) to Part # 14, and then use 2 pcs Philips thumb head screw (Part # 22) to install Door barrier strip (Part # 15) to Part # 14; |.
  • Page 26 Step 3 1. Install 2 pcs rubber gaskets (Part # 11) to Back Panel (Part # 4); }. Use  pcs ¼” flat Philip’s head screws (Part # |}) to connect Part # to Part #} and #; ~. Use  pcs ¼” flat Philip’s head screws (Part # |}) to connect Part # to Part #~ and #‚; 4.
  • Page 27 Step 4 |. Use } pcs ¼” flat Philip’s screw head (Part # |}) to connect beam welding assembly (Part # €) to Part #} and #3; 2. Make sure the connection is smooth. Do not over-tighten all the screws until parts are lined up. www.tmgindustrial.com 26/118 TOLL FREE:1-877-761-2819...
  • Page 28 Step 5 1. Use 4 pcs Part # 21 to install Countertop welding assembly with Part # 3 and # 17, making sure the connection is smooth. |. Use |} pcs ¼” flat Philip’s screw head (Part # |}) to connect top cover board (Part # |) with Part #}, #~, #4 and #5 2.
  • Page 29 Step 6 The Product without faucet and water pipe will be looking like below picture. www.tmgindustrial.com 28/118 TOLL FREE:1-877-761-2819 ►...
  • Page 30 www.tmgindustrial.com 29/118 TOLL FREE:1-877-761-2819 ►...
  • Page 31 www.tmgindustrial.com 30/118 TOLL FREE:1-877-761-2819 ►...
  • Page 32 Outdoor Appliance Cabinet is compatible with below Outdoor Appliances. Please Your Your Outdoor Appliance Cabinet is compatible with below Outdoor Appliances. Please contact your dealer for product inquiries. Model # TRF2401U (Outdoor Two-drawer under cabinet refrigerator) www.tmgindustrial.com 31/118 TOLL FREE:1-877-761-2819 ►...
  • Page 33 Model #TWC2401DO (Outdoor Wine Cooler) www.tmgindustrial.com 32/118 TOLL FREE:1-877-761-2819 ►...
  • Page 34 BBQ CABINET MODEL: TMG-LKS10-3 Instructions for use and installation www.tmgindustrial.com 33/118 TOLL FREE:1-877-761-2819 ►...

  • Page 35: What To Do If You Smell Gas

    WARNINGS These are the most critical warnings summarized below. *** WVARNING *** If the instructions in this manual are not followed exactly, a fire or explosionmay result, causing property  damage, personal injury or death. Do not store or use gasoline or other flammable substances and liquids near this or other appliance, ...
  • Page 36 PARTS EXPLOSIVE PICTURES www.tmgindustrial.com 35/118 TOLL FREE:1-877-761-2819 ►...
  • Page 37 www.tmgindustrial.com 36/118 TOLL FREE:1-877-761-2819 ►...
  • Page 38 PARTS LIST EXPLOSIVE # PART NAME QUANTITY PART # 20.01.008012-000-A5 Grill Top Cover 05.99.008024-000-A0 Thermometer 12.02.000070-000-A0 Left handle holder 13.99.008002-000-A0 Top warming rack 05.99.008011-000-A0 Rotisserie Grill Cavity 06.07.008002-000-A1 Top cover rotary pin 07.14.008004-000-A0 Motor 04.01.008057-000-A0 Motor holder 04.03.008002-000-A1 Bumer valve holding plate 11.02.008001-000-A1 Main manifold 07.07.008003-000-A0...
  • Page 39 EXPLOSIVE # PART NAME QUANTITY PART # 20.01.008086-000-A0 Clapboard welding part 20.01.008082-000-A1 Left side panel A welding assembly 20.01.008087-000-A0 Beam welding assembly 20.01.008079-000-A1 Tank bottom welding assembly 20.01.008079-000-A1 Slide way 05.14.008001-000-A022.9 Drawer assembly 52.1 22.99.009199-000-A0 9.009199-000-A0 Drawer front panel welding plate 52.2 20.01.008051-000-A0 Drawer front panel lining...

  • Page 40: Product Dimension

    PRODUCT DIMENSION MK04SS304-W BBQ CABINET www.tmgindustrial.com 39/118 TOLL FREE:1-877-761-2819 ►...
  • Page 41 MK03SS304 -W for Outdoor Grill Cabinet Outdoor Grill + Cabinet www.tmgindustrial.com 40/118 TOLL FREE:1-877-761-2819 ►...

  • Page 42: Cabinet Installation

    CABINET INSTALLATION Step 1 1. Flip the bottom base welding assembly (Part #49) so in order to install legs and casters 2. Use 16 pcs 1/4” x14 Philips thumb head screw with anti-slip design (Part #71) to install 2 pcs supporting legs (Part #55), 2 pcs fixed casters (Part #56) and 2 pcs universal casters with brake (Part#57) www.tmgindustrial.com 41/118...
  • Page 43 Step 2 1. Flip back the bottom base after casters and legs are installed; }. Use  pcs €/~}”x8 flat head screw (Part # 72) to connect Tank bottom support (Part # 59) to bottom base welding assembly (Part # 49); 3.
  • Page 44 Step 3 1. Use 6 pcs ¼”x14 Philips thumb head screw with anti-slip design (Part #71) to Left side panel A welding assembly (Part #46) and Right-side panel A welding assembly (Part # 61) to bottom base welding assembly (Part #49); 2.
  • Page 45 Step 5 |. Use ~ pcs |/“x14 Philips thumb head screw with anti-slip design (Part #71) to install Back panel A welding assembly (Part # 63) to bottom base welding assembly (Part # 49); }.Use ~ pcs |/“x14 Philips thumb head screw with anti-slip design (Part #71) to connect Back panel A welding assembly (Part # 63) with Part # 46 and # 61 www.tmgindustrial.com 44/118...
  • Page 46 Step 6 1. Use € pcs |/“x14 Philips thumb head screw with anti-slip design (Part #71) to connect Clapboard welding part (Part # 45) with Part #49 and #63; www.tmgindustrial.com 45/118 TOLL FREE:1-877-761-2819 ►...
  • Page 47 Step 7 1. Use  pcs |/“x14 Philips thumb head screw with anti-slip design (Part #71) to connect Beam welding assembly (Part # 47) with Part #46 and #61. www.tmgindustrial.com 46/118 TOLL FREE:1-877-761-2819 ►...
  • Page 48 Step 8 1. Check the edge of the middle plate of the drawer assembly (Part #52) and make sure the side with edge is facing up; otherwise you will get to wrong folding direction (see the picture below with wrong folding direction with “x”).
  • Page 49 Step 9 1. Insert 2 pcs drawer assemblies (Part #52) into cabinet body; }. Divide the two parts from door hinge (Part #) and use €/~}” *ƒ flat head screw (Part #‚}) to install them to right side panel (Part #61) and cabinet door (Part #53) 3.
  • Page 50 Step 10 1. Use 2 pcs 5/32"*8 flat head screw (Part # 72) to install laminate board (Part #65) to Left side panel A welding assembly (Part #46); 2. Use 2 pcs 5/32" x 8 flat head screw (Part # 72) to install gas tank heat shield (Part #64) to Right side panel A welding assembly (Part #61) 3.
  • Page 51 OUTDOOR GRILL INSTALLATION Step 1 1. Open the Grill cover. Remove All 3 pcs cooking racks (Part ## 29) for the main burners to avoid potential damage; }. Use } pcs ¼” x 14 Philips thumb head screw (Part #71) with anti-slip design (Part #71) to install motor holder (Part #12) to Grill cavity (Part #9);...
  • Page 52 Step 2 1. Put Motor (Part ##11) on top of motor support (Part #12) and insert sharp side of Rotisserie (Part #8)to motor (Part ##11), and the other side on top of Rotisserie holder (Part # 32) Step 3 www.tmgindustrial.com 51/118 TOLL FREE:1-877-761-2819 ►...
  • Page 53 |. Use  pcs ¼” x 14 Philips thumb head screw with anti-slip design (Part #71) to Connect Grill body with Cabinet body (For Gas Leak Test, please refer to Use Manual) www.tmgindustrial.com 52/118 TOLL FREE:1-877-761-2819 ►...
  • Page 54 www.tmgindustrial.com 53/118 TOLL FREE:1-877-761-2819 ►...
  • Page 55 www.tmgindustrial.com 54/118 TOLL FREE:1-877-761-2819 ►...
  • Page 56 www.tmgindustrial.com 55/118 TOLL FREE:1-877-761-2819 ►...
  • Page 57 4-BURNER GAS GRILL MODEL: TMG-LKS10-4 Instructions for use and installation www.tmgindustrial.com 56/118 TOLL FREE:1-877-761-2819 ►...
  • Page 58 Read this installation and User Care Guide carefully and completely before using your built-in grill to reduce the risk of fire, burn hazard and other injuries. The installa on must conform with local codes or, in the absence of local codes, with either the Na onal Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installa on Code, CSA B149.1, or the Propane Storage and Handling Code, CSA B149.2 The outdoor cooking gas appliance, when installed, must be electrically grounded in accordance with local...
  • Page 59 OUTDOOR GRILL SAFETY *Maximum Temperature of Outdoor BBQ Grill Cavity is 600 F. www.tmgindustrial.com 58/118 TOLL FREE:1-877-761-2819 ►...

  • Page 60: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire, electrical shock,  This model is designed for use with a standard 10KG Liquid injury to persons, or damage when using the outdoor cooking Petroleum Gas tank. gas appliance, follow basic precautions, including the A 10kg Tank of approximately 305mm in diameter by 393mm high following: - provided with a listed overfilling prevention device...

  • Page 61: Installation Requirement

    INSTALLATION REQUIREMENT Location Requirements TooIs and Parts Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. Explosion Hazard Tools Needed Do not store fuel tank in a garage or indoors ...

  • Page 62: Product Dimensions

    BUILT-IN OUTDOOR GRILL SPEC Fire Hazard Do not install grill on or near combustible materials without an insulated jacket. Doing so can result in death or fire This built-in outdoor grill is only for installation in a built-in enclosure constructed only of noncombustible materials.
  • Page 63 MK04SS304-W Outdoor Grill + Cabinet Grill Cabinet Internal Dimension for MK04SS304-W Before putting the propane tank into the tank tray, fasten the tank tray with 4 locking screws (size 5/32*8) The appliance is only for installation in a built-in enclosure constructed of non-combustible materials.

  • Page 64: Lp Gas Connection

    LP GAS CONNECTION Gas Pressure Regulator The gas pressure regulator supplied with this grill must be used. The inlet (supplied) pressure to the regulator should be as follows for proper opera on. Connect Regulator with hose to your LP Gas Tank ...
  • Page 65 Install propane tank (LP Tank Installation Layout) 1. This grill is equipped with a propane tank (not supplied). A gas pressure regulator / hose assembly is supplied 2. Grill tank tray is compatible with most of the propane tank in the market. The propane tank must be mounted and secured.

  • Page 66: Electrical Safety

    Electrical Safety Electrical equipment provided with the outdoor cooking gas appliance shall have the following in the instructions: a) To protect against electric shock, do not immerse cord or plugs in water or other liquid; b) Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts;...

  • Page 67: Control Panel

    GRILL INSTRUCTIONS The grill you have purchased may have some or all the feature listed below. The lo cations and appearances of the features shown here may not match what you are having on your model. Control panel A. electric ignition control knob D.
  • Page 68 www.tmgindustrial.com 67/118 TOLL FREE:1-877-761-2819 ►...
  • Page 69 www.tmgindustrial.com 68/118 TOLL FREE:1-877-761-2819 ►...
  • Page 70 www.tmgindustrial.com 69/118 TOLL FREE:1-877-761-2819 ►...
  • Page 71 www.tmgindustrial.com 70/118 TOLL FREE:1-877-761-2819 ►...
  • Page 72 www.tmgindustrial.com 71/118 TOLL FREE:1-877-761-2819 ►...
  • Page 73 www.tmgindustrial.com 72/118 TOLL FREE:1-877-761-2819 ►...
  • Page 74 www.tmgindustrial.com 73/118 TOLL FREE:1-877-761-2819 ►...
  • Page 75 www.tmgindustrial.com 74/118 TOLL FREE:1-877-761-2819 ►...
  • Page 76 SIDE BURNER CABINET MODEL: TMG-LKS10-5 Instructions for use and installation www.tmgindustrial.com 75/118 TOLL FREE:1-877-761-2819 ►...
  • Page 77 Welcome Thank you for purchasing our outdoor kitchen appliance! We appreciate your business and we recommend that you read this entire User’s Manual before operating your new appliance for the first time. This manual contains instructions on how to properly install and set up your new range, as well as insights into the unique features that our product offers.
  • Page 78 OUTDOOR GRILL SAFETY Explosion Hazard Securely tighten all gas connections. Have a qualified technician make sure that gas pressure does not exceed rated gas pressure. Examples of a qualified technician included: Licensed heating personnel, Authorized gas company personnel, and authorized service personnel.
  • Page 79 ENARAL SAFETY INSTRUCTIONS 1. For Outdoor Use Only. Side burners are only intended for residential use and are not intended for commercial use, where anyone other than the original purchaser (homeowner) would be using and maintaining the side burner. 2. NEVER use indoors or in any type of enclosed area, such as a garage, shed or breezeway. Keep clear of trees and shrubs.
  • Page 80 12. Burn Hazard: When using the side burner, do not touch the side burner rack, burner grate, or immediate surroundings as these areas become extremely hot and can cause burns. Always use a covered/gloved hand when opening the side burner hood and only do so slowly to allow heat and steam to escape. 13.
  • Page 81 used. Replacement pressure regulators and hose assemblies must be those specified by the outdoor cooking gas appliance manufacturer. 1) Do not store a spare LP gas cylinder under or near this appliance. 2) Never fill the cylinder above 80 percent full; and 3) If the information in Clause 1) and Clause 2) is not followed exactly, a fire causing death or serious injury may occur.

  • Page 82: Pre-Operation Leak Testing

    Less than 1/2 psi {3.5 kPa}. Rotate the knob to the "HIGH" position for about 20 seconds to allow the air in the system to purge before attempting to light the burners. Pre-Operation Leak Testing Never attempt to attach this side burner to the self-contained LP gas system. Do not use the side burner until leak testing has been completed.
  • Page 83 6. Completely open LP tank valve by turning cylinder valve knob counterclockwise (right to left). If you hear a rushing sound, turn gas off immediately. There is a major leak at the connection. 7. If no rushing sound, brush soapy solution onto areas where bubbles are shown in LP tank (see picture).
  • Page 84 LP Tank Exchange - Exchange your Type 1 cylinder for OPD safety feature-equipped replacement tank ONLY. - Always keep new and exchanged LP tanks in upright position during use, transit or storage. Leak test new and exchanged LP tanks BEFORE connecting to side burner. Never connect the side burner to an unregulated gas supply.

  • Page 85: Cooking Grates

    1. Open the canopy. 2. Select the burner that you want to ignite. Push and rotate the knob corresponding to that burner counterclockwise to the "High" position. ~. At “High” position, the spring inside the valve will build up energy to create the spark. Once you hear a click, the igniter has fired the spark for that burner.

  • Page 86: Explosion Diagram

    Stainless Steel Care and Maintenance It is a common misconception that stainless steel will maintain its original factory shine without extra protection from the consumer. Stainless steel will not stain, discolor, corrode or rust as fast as other types of steel, but it is not fully staining or weather-proof.

  • Page 87: Part List

    PART LIST EXPLOSIVE # PART NAME QUANTITY PART # Grill 13.99.008001-000-A1 Side panel left 20.01.008060-000-40 Bottom Panel 04.01.008032-000-41 Control Panel 19.07.008003-000-A0 Knob 14.01.008001-000-A0 Igniter 07.07.008006-000-A0 07.06.008007-000-A0 Ignition wire Button 07.02008012-000-A0 Knob lamp wire 07.06.008009-000-A0 Clapboard 20.01.008065-000-A0 Door frame 20.01.001053-000-42 Door 22.99.009217-000-40 Drawer 22.99.009199-000-40...

  • Page 88: Warranty And Service

    WARRANTY AND SERVICE Your Outdoor Side Burner Cabinet (MK05SS304) will be having a 2-year parts warranty starting from your date of purchase for your product’ s. An invoice or proof of purchase is needed for any warranty service parts claim. Disclaims all express warranties except for the following: This warranty applies to products purchased and located in the United States.

  • Page 89: Warranty And Product Registration

    Whenever you call our customer service at TMG for technical information and parts sales in the United States or to request service for your appliance, please have your complete model number and serial number ready.
  • Page 90 S CORNER CABINET MODEL: TMG-LKS10-6 Instructions for use and installation www.tmgindustrial.com 89/118 TOLL FREE:1-877-761-2819 ►...
  • Page 91 PARTS EXPLOSIVE PICTURES PART LIST EXPLOSIVE # PART NAME QUANTITY PART # 20.01.008054-000-A0 Countertop welding assembly 20.01.001063-000-40 Laminate welding assembly 22.99.009228-000-A0 Door welding assembly 20.01.001059-000-A0 Left side panel A welding assembly 20.01.001060-000-A0 Left side panel B welding assembly 20.01.001064-000-A0 Front panel welding assembly 20.01.008077-000-A0 Bottom panel welding assembly 05.01.008004-000-A0...

  • Page 92: Product Dimension

    Product Dimension www.tmgindustrial.com 91/118 TOLL FREE:1-877-761-2819 ►...

  • Page 93: Cabinet Installation

    Cabinet Installation Step 1 1. Reverse the bottom welding part (Part # 7) and put 1 pc supporting leg (Part # 8) to Part # 7. Use hand to adjust the leg to the suitable position; 2. Use | pcs ¼” flat Philip’s head screw (Part #|‚) to connect } pcs fixed casters (Part # 9) and 2 pcs universal casters with brake (Part # 10) to Part #7;...
  • Page 94 Step 2 |. Use ~ pcs ¼” flat Philip’s head screw (Part # |‚) to connect left side panel A (Part # 4) to Part # 5; }. Use ~ pcs ¼” flat Philip’s head screw (Part # |‚) to connect right side panel a (Part # 12) to Part # 11; 3.
  • Page 95 Step 3 |. Use  pcs ¼” flat Philip’s head screw (Part # 15) to connect front panel (Part # 6) to Part #5 and #11. Do not over-tighten all the screws until parts are lined up. www.tmgindustrial.com 94/118 TOLL FREE:1-877-761-2819 ►...
  • Page 96 Step 4 1. Use 4 pcs Philips thumb head screw with anti-slip design (Part # 17) to connect Left side panel A welding assembly (Part # 4) and Left side panel B welding assembly (Part # 5) to Bottom panel welding assembly (Part # 7);...
  • Page 97 Step 5 1. Use 4 pcs Part # 17 to connect Beam welding assembly (Part # 14) to Part # 4 and Part # 12. Do not over-tighten all the screws until parts are lined up. www.tmgindustrial.com 96/118 TOLL FREE:1-877-761-2819 ►...
  • Page 98 Step 6 1. Install 2 pcs Laminate welding holder (Part # 15) to Part # 4 and Part # 12, and then install Laminate welding assembly (Part # 2) on the top; 2. Use 16 pcs flat head screw (Part # 19) to install Door welding assembly (Part # 3) to Part # 4 and Part # 3.
  • Page 99 Step 7 1. Make sure Part # 2 is installed inside the cabinet first; 2. Use 10 pcs Part # 17 to Connect Countertop welding assembly (Part # 1) with Part # 4, # 5, # 6, # 11 and # 12.
  • Page 100 www.tmgindustrial.com 99/118 TOLL FREE:1-877-761-2819 ►...
  • Page 101 www.tmgindustrial.com 100/118 TOLL FREE:1-877-761-2819 ►...
  • Page 102 PIZZA OVEN MODEL: TMG-LKS10-7 Instructions for use and installation www.tmgindustrial.com 101/118 TOLL FREE:1-877-761-2819 ►...
  • Page 103 www.tmgindustrial.com 102/118 TOLL FREE:1-877-761-2819 ►...
  • Page 104 Part list EXPLOSIVE # PART NAME QUANTITY PART # Chimney coping 05.99.000119-000-A0 Chimney supporting rod 05.19.008003-000-A0 Chimney pipe assemblyg 22.99.009241-000-A0 Pizza oven cavity 22.99.009239-000-A0 Thermometer 05.99.008024-000-A0 Mica plate 1 06.04.000377-000-A0 Pizza oven door handle assembly 22.99.009243-000-A0 Pizza oven door assembly 20.01.008025-000-A1 Beam w elding assembly 20.01.008022-000-A1...
  • Page 105 Product Dimension www.tmgindustrial.com 104/118 TOLL FREE:1-877-761-2819 ►...
  • Page 106 Cabinet Installation Step 1 1. Install 2 pcs supporting legs (Part # 18) to bottom welding part (Part # 21)and adjustthe supporting legs to suitable position;}. Use | pcs %” flat Philip's screw head (Part # ~‚) to connect } pcs fixedcasters (Part # 19) and 2 pcs universal casters with brake (Part # 20) to Part#21;...
  • Page 107 Step 2 1. Use 2 pcs Philips thumb head screw (Part # 38) to install Kick panel plate(Part # 17) to Part # 21; 2. Use 3 pcs 1/4” flat Philip's screw head (Part # 37) to connect left side pane (Part # 10) to Part # 21; 3.
  • Page 108 Step 3 1. Use 4 pcs Part # 37 to connect beam welding part (Part # 24) to Part # 10and Part # 25; 2. Use 4 pcs Part # 37 to connecttop cover welding part (Part # 15) to Part #10 and Part # 25; www.tmgindustrial.com 107/118 TOLL FREE:1-877-761-2819...
  • Page 109 Step 4 1. Make sure all the connections are smooth and the design is looking like below picture. www.tmgindustrial.com 108/118 TOLL FREE:1-877-761-2819 ►...
  • Page 110 Step 5 1. Use 2 pcs 1/4” |” screw (Part # ~‚) to go through the two holes on Pizza oven door handle assembly (Part # 67), then go through 4 pcs mica plates(Part # ), } pcs %” flat gasket (Part # ~), } pcs 1/4" spring gasket (Part # 44),and 2 pcs % hexagon nut (Part #40) to install Part # 7 to Pizza oven door assembly (Part # 8).
  • Page 111 Step 6 1. Use 4 pcs 1/4” Philips thumb head screw with anti-slip design (Part # 37) to put 2 pcs ash pan holder (Part # 32) to the back of Pizza oven cavity (Part #4); 2. One part # 32 are installed, install ash pan welding assembly (Part # 27). www.tmgindustrial.com 110/118 TOLL FREE:1-877-761-2819...
  • Page 112 Step 7 1. Use 1 pcs 1/4” nut (Part # {) and | pcs 1/4” flat gasket (Part # ~) to connect chimney coping (Part # |) to chimney supporting rod (Part # 2) 2. Install Part # 1 and # 2 to the top of Chimney Pipe Assembly (Part # 3); ~.
  • Page 113 Step 8 1. Put 4 pcs Cordierite Brick B (Part # 28), 2 pcs Cordierite Brick A (Part # 29) and 1 pc net cover (Part # 30) inside Pizza oven Cavity (Part # 4) 2. Insert Pizza oven door assembly (Part #8) into designated position on Part # 3.
  • Page 114 Step 9 1. Use 6 pcs % Philips thumb head screw with anti-slip design (Part # 37) toinstall Pizza oven cavity (Part # 4) to Cabinet left side panel (Part # 10) andCabinet right panel (Part # 25). Make sure the connection is smooth;...
  • Page 115 Step 10 1. Use 2 pcs Part # 37 to connect condiment storage welding assembly (Part #16) to front panel assembly (Part # 15); 2. Use 24 pcs Parts # 39 to install door hinge (Part # 31) Part # 22 with Part # 10, and Part # 23 with Part # 3.
  • Page 116 Detailed Installation Pictures for Door hinge is shown below: www.tmgindustrial.com 115/118 TOLL FREE:1-877-761-2819 ►...
  • Page 117 Step 11 1. Use 4 pcs Part # 37 to connect Left handle welding assembly (Part # 11) to Left side panel (Part # 10), then put S-shape pothook (Part # 12) on Part #11; 2. Use 8 pcs Part # 37 to connect side panel hook 1 (Part # 13) and side panel hook 2 (Part # 14) to the left panel (Part # 10);...
  • Page 118 www.tmgindustrial.com 117/118 TOLL FREE:1-877-761-2819 ►...
  • Page 119 www.tmgindustrial.com 118/118 TOLL FREE:1-877-761-2819 ►...
