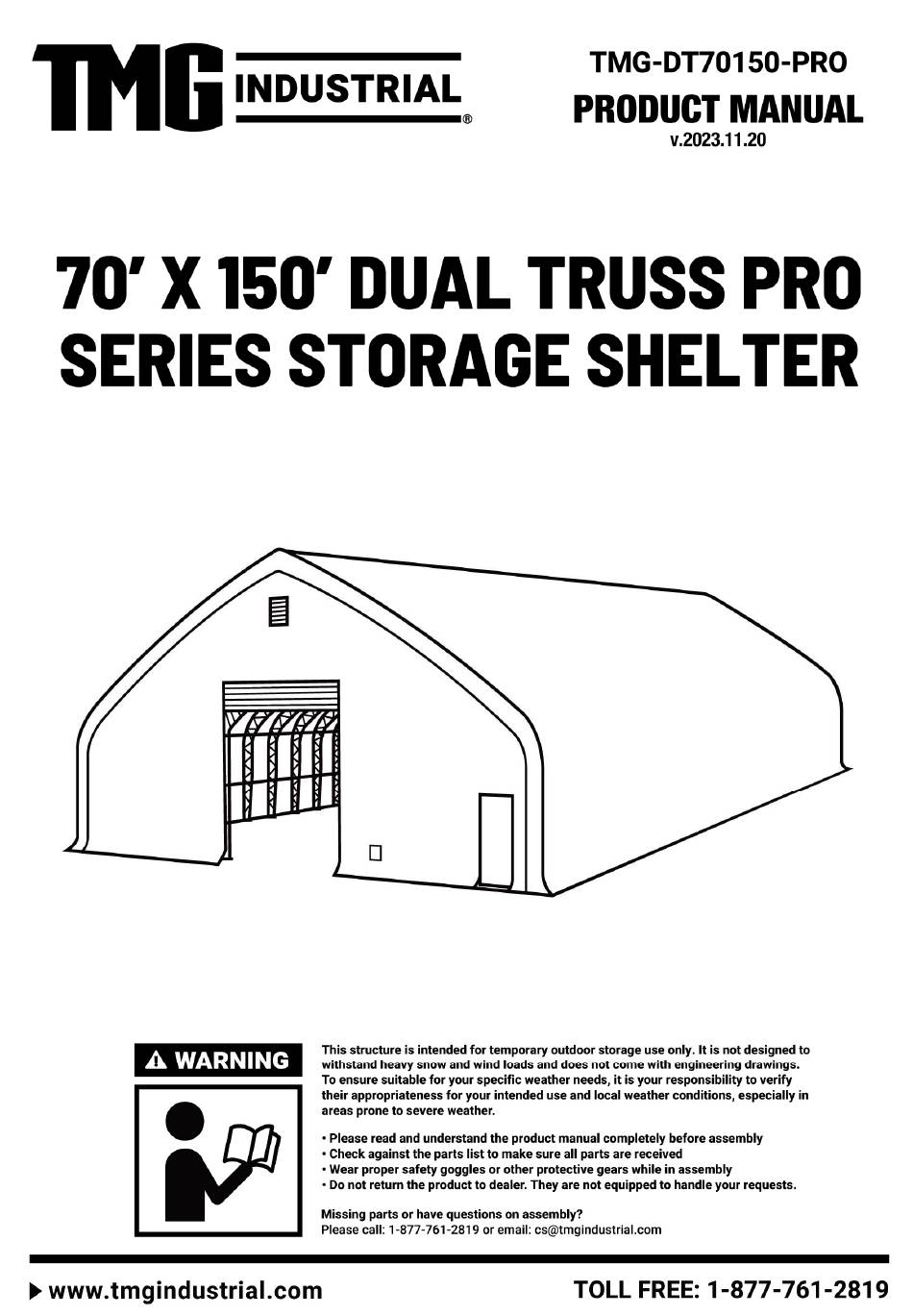

TMG Pro Series Product Manual

70' x 150' dual truss storage shelter
Hide thumbs Also See for Pro Series:

Advertisement

Table of Contents

www.tmgindustrial.com
0/42
TOLL FREE:1-877-761-2819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro Series and is the answer not in the manual?

Questions and answers

Related Manuals for TMG Pro Series

Summary of Contents for TMG Pro Series

  • Page 1 www.tmgindustrial.com 0/42 TOLL FREE:1-877-761-2819...

  • Page 2: Main Specifications

    MAIN SPECIFICATIONS : Assembly size: W21.35x L46xH8.5 (m) /70 x151 x 27.9 (ft)  Outside width:21.35m / 70ft, inside width: 20.3m / 66.6ft, length: 46m / 151ft  Ridge peak height: 8.5m / 27.9ft  Peak clearance height:8m / 26.2ft ...
  • Page 3 The layout of foundation (two).  Note: the ground anchor is installed on the cement block. Depth of cement Unit: mm (ft) www.tmgindustrial.com 2/42 TOLL FREE:1-877-761-2819...
  • Page 4 Baseplate layout.  (#6)×21×2 (9.65') 2941mm (9.03') 2752mm (7.5') 2288mm 60mm(2.4'') (18') 5500mm (7.5') 2288mm (9.03') 2752mm (9.65') 2941mm 2000mm(6.56') 22000mm(72.18') 2000x23=46000mm(150.9') 46280mm(151.8') PRIOR TO ASSEMBLY Please go through the whole instruction manual completely. It is very important to follow your local safety regulations and industry standards during installation.
  • Page 5 FRAME STRUCTURE DIAGRAM. www.tmgindustrial.com 4/42 TOLL FREE:1-877-761-2819...
  • Page 6 TMG-DT70150-PRO PART LIST PARTS GRAPHICAL DESCRIPTION LENGTH LENGTH CODE Peak arch tube A/13 L3193mm L3193mm (for middle trusses) Peak arch tube L3193mm L3193mm (for front and rear trusses) L/25 Upper and down rafter K/25 L3104mm L3104mm tube(for middle trusses) F/25...
  • Page 7 Diagonal bracing tube L2540mm L2540mm Support tube L2820mm L2820mm Support tube L2820mm L2820mm Baseplate for front and W280xL480mm W280xL480mm rear truss left corners Baseplate for front and W280xL480mm W280xL480mm rear truss right corners Baseplates W280xL430mm W280xL430mm Left column baseplate W200xL410mm W200xL410mm Right column baseplate W200xL410mm...
  • Page 8 Front and rear vertical door L1300mm L1300mm rail(left side upper part) Front and rear vertical door L1300mm L1300mm rail(right side upper part) Column baseplate W200xL410mm W200xL410mm Front and rear vertical door L2800mm L2800mm rail(left side middle part) Front and rear vertical door L2800mm L2800mm rail(right side middle part)
  • Page 9 Upper cross tubes L2702mm L2702mm (left and right) Door hand winch crossing L2244mm L2244mm tube Side door left tube L2200mm L2200mm Side door right tube L2200mm L2200mm Side door upper tube L920mm L920mm Side door W925xL2005 2005mm Bottom tension bar L2460mm L2460mm (front and rear truss)
  • Page 10 Wire rope for front and rear L25m L25m door hand winch Front and rear vertical door L240mm L240mm rail connection plate Front and rear vertical door rail end plate (floatable to L215mm L215mm keep door rail straight) Tube clamps 76mm φ76mm Tube clamps φ58mm...
  • Page 11 Front and rear truss W8.9xL21.3 21.3m cover panel Front and rear roll up W5.4xL xL5.5m door cover panel Front and rear fabric L150mm tarp secure pin Plastic hose 25mmxL4m φ25mm Connector 25mm φ25mm (for connection #36) Scratch resistant tape Pressing plate L2000m 2000mm Pressing plate...
  • Page 12 STEP 1 : BASEPLATE POSITIONING AND INSTALLATION. POSITIONING AND INSTALLATION. (#6)×21×2 (9.65') 2941mm (9.03') 2752mm (7.5') 2288mm 60mm(2.4'') 60mm(2.4'') (18') 5500mm (7.5') 2288mm (9.03') 2752mm (9.65') 2941mm 2000mm(6.56') 22000mm(72.18') 22000mm(72.18') 2000x23=46000mm(150.9') 46280mm(151.8') Installation diagram of expansion bolt Installation diagram of expansion bolt. ...
  • Page 13 STEP 2 : INSTALLATION OF FRONT AND STEP 2 : INSTALLATION OF FRONT AND REAR 2GROUPTRUSSES. PART PART PART 40x2 www.tmgindustrial.com www.tmgindustrial.com 12/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 14 STEP 3 :INSTALLATION OF MIDDLE 22GROUP GROUP TRUSS. PART PART 1x22 2x22 4x22 2x22 2x22 40x22 www.tmgindustrial.com www.tmgindustrial.com 13/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 15 STEP 4 : WRAP (#37) AROUND THE SHARP POINTS OF THE JOINT TO AVOID FRICTION BETWEEN THE FABRIC AND STEP 4 : WRAP (#37) AROUND THE SHARP POINTS OF THE JOINT TO AVOID FRICTION BETWEEN THE FABRIC AND STEP 4 : WRAP (#37) AROUND THE SHARP POINTS OF THE JOINT TO AVOID FRICTION BETWEEN THE FABRIC AND THE INTERFACE.
  • Page 16 STEP 5 : PUT UP THE FRONT TRUSS (IT IS SUGGESTED TO USE CRANE FOR HOISTING). PART www.tmgindustrial.com 15/42 TOLL FREE:1-877-761-2819...
  • Page 17 STEP 6 : PUT UP THE2ND TRUSS, AND CONNECT ALL PURLINS (#5) BETWEEN 1ST AND 2ND. STEP 6 : PUT UP THE2ND TRUSS, AND CONNECT ALL PURLINS (#5) BETWEEN 1ST AND 2ND. STEP 6 : PUT UP THE2ND TRUSS, AND CONNECT ALL PURLINS (#5) BETWEEN 1ST AND 2ND. PART www.tmgindustrial.com www.tmgindustrial.com...
  • Page 18 STEP 7 : REPEAT ABOVE STEP TO PUT UP ALL OTHER TRUSSES, AND CONNECT ALL PURLINS. STEP 7 : REPEAT ABOVE STEP TO PUT UP ALL OTHER TRUSSES, AND CONNECT ALL PURLINS. STEP 7 : REPEAT ABOVE STEP TO PUT UP ALL OTHER TRUSSES, AND CONNECT ALL PURLINS. PART www.tmgindustrial.com www.tmgindustrial.com...
  • Page 19 STEP 8 : INSTALLATION OF DIAGONAL PURLINS (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). STEP 8 : INSTALLATION OF DIAGONAL PURLINS (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). STEP 8 : INSTALLATION OF DIAGONAL PURLINS (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART www.tmgindustrial.com www.tmgindustrial.com...
  • Page 20 STEP 9 :TENSION CABLE INSTALLATION, ALL CABLES ARE DIAGONALLY INSTALLED ON EACH. STEP 9 :TENSION CABLE INSTALLATION, ALL CABLES ARE DIAGONALLY INSTALLED ON EACH. STEP 9 :TENSION CABLE INSTALLATION, ALL CABLES ARE DIAGONALLY INSTALLED ON EACH. PART www.tmgindustrial.com www.tmgindustrial.com 19/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 21 STEP10 :DOOR COLUMN INSTALLATION STEP10 :DOOR COLUMN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART PART www.tmgindustrial.com www.tmgindustrial.com 20/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 22 STEP11-1 :DOOR SUPPORT PIPE INSTALLATION INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART PART www.tmgindustrial.com www.tmgindustrial.com 21/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 23 STEP11-2 :DOOR SUPPORT PIPE INSTALLATION SUPPORT PIPE INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART PART PART www.tmgindustrial.com www.tmgindustrial.com 22/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...

  • Page 24: Step11-3 : Side Door Installation

    STEP11-3 : SIDE DOOR INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART PART www.tmgindustrial.com www.tmgindustrial.com 23/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 25 STEP12 :INSTALL THE WATERPROOF PLUG :INSTALL THE WATERPROOF PLUG (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART www.tmgindustrial.com www.tmgindustrial.com 24/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 26 STEP13 : INSTALL VERTICAL DIAGONAL SUPPORT PIPE (#5 INSTALL VERTICAL DIAGONAL SUPPORT PIPE (#5B, #5C) (THE FRONT AND REAR MOUNTING METHODS (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART www.tmgindustrial.com www.tmgindustrial.com 25/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 27 STEP14 :INSTALL THE DOOR COVERING CLOTH :INSTALL THE DOOR COVERING CLOTH (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART www.tmgindustrial.com www.tmgindustrial.com 26/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 28 STEP15 :INSTALL THE FRONT DOOR METAL STRIP (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART www.tmgindustrial.com 27/42 TOLL FREE:1-877-761-2819...
  • Page 29 STEP 16 : DOOR CURTAIN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). DOOR CURTAIN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). DOOR CURTAIN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART www.tmgindustrial.com www.tmgindustrial.com 28/42...
  • Page 30 STEP 16 : DOOR CURTAIN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS DOOR CURTAIN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). ARE THE SAME). PART www.tmgindustrial.com www.tmgindustrial.com 29/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 31 STEP16 : DOOR CURTAIN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). DOOR CURTAIN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). DOOR CURTAIN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART www.tmgindustrial.com www.tmgindustrial.com 30/42 TOLL FREE:1...
  • Page 32 STEP17 : INSTALL THE TOP COVER A( #32 ). PART www.tmgindustrial.com www.tmgindustrial.com 31/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 33 STEP17 : INSTALL THE TOP COVER A( #32 ). PART www.tmgindustrial.com www.tmgindustrial.com 32/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 34 STEP17 : INSTALL THE TOP COVER A( #32 ). PART www.tmgindustrial.com www.tmgindustrial.com 33/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 35 STEP17 : INSTALL THE TOP COVER A( #32 ). PART www.tmgindustrial.com www.tmgindustrial.com 34/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 36 STEP18 : INSTALL THE TOP COVER B( #33 ). PART www.tmgindustrial.com www.tmgindustrial.com 35/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 37 STEP18 : INSTALL THE TOP COVER B( #33 ). PART www.tmgindustrial.com www.tmgindustrial.com 36/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 38 STEP18 : INSTALL THE TOP COVER B( #33 ). PART www.tmgindustrial.com www.tmgindustrial.com 37/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 39 STEP18 : INSTALL THE TOP COVER B( #33 ). PART www.tmgindustrial.com www.tmgindustrial.com 38/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 40 STEP18 : INSTALL THE TOP COVER B( #33 ). PART www.tmgindustrial.com www.tmgindustrial.com 39/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 41 STEP19 :TENSION BOTH SIDES OF THE TOP CLOTH WITH THE TENSION DEVICE :TENSION BOTH SIDES OF THE TOP CLOTH WITH THE TENSION DEVICE. PART www.tmgindustrial.com www.tmgindustrial.com 40/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 42 STEP20 :TIE THE ROPE. PART www.tmgindustrial.com www.tmgindustrial.com 41/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...

  • Page 43: After The Installation

    AFTER THE INSTALLATION Walk around and inspect the building periodically to make sure all components are still firmly secured and the whole building is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.
