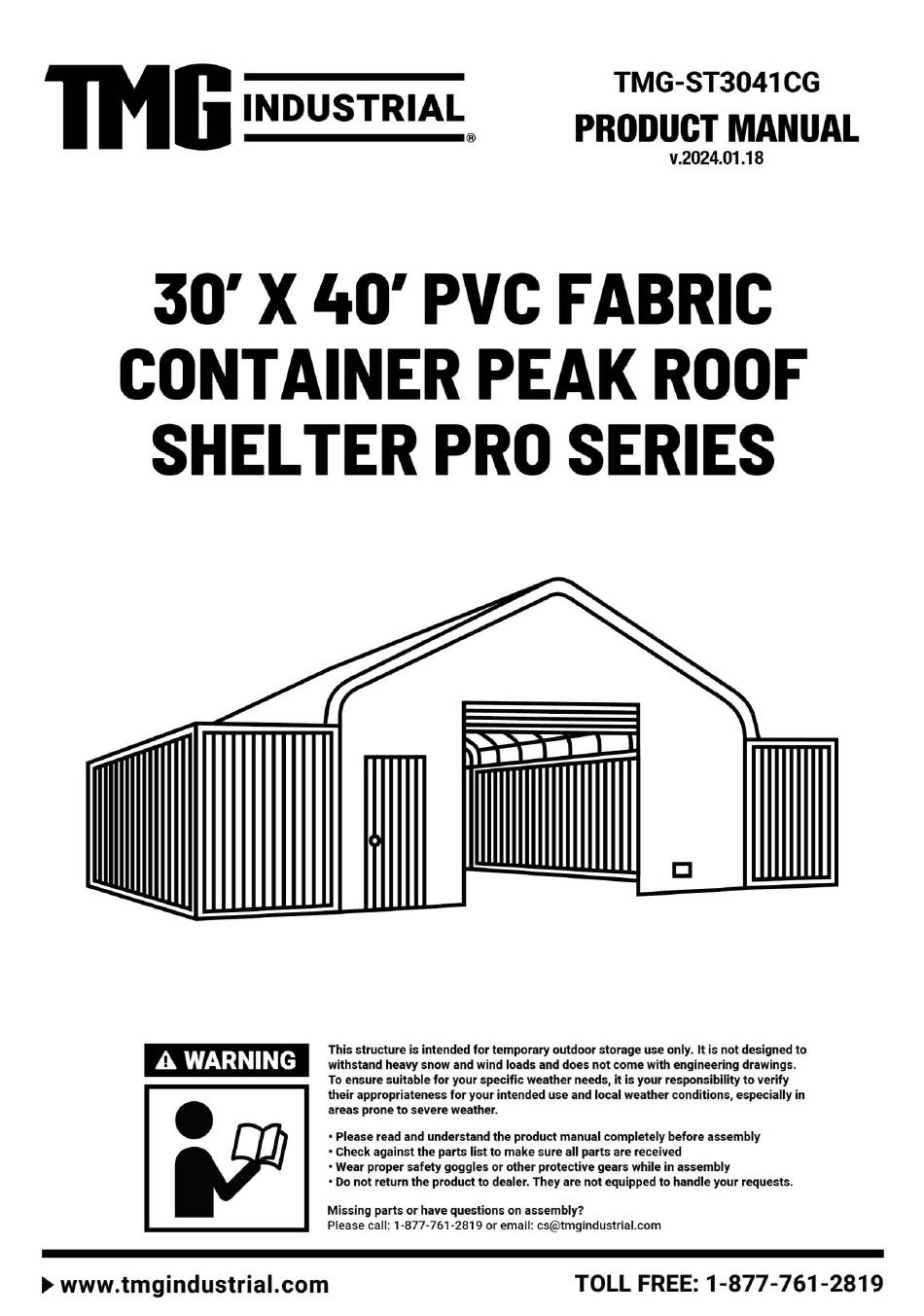

TMG PRO Series Product Manual

30' x 40' pvc fabric container peak roof shelter
Hide thumbs Also See for PRO Series:

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO Series and is the answer not in the manual?

Questions and answers

Ken Rich
January 29, 2025

Can you get this to fit a 53-foot extra-high extra wide containers?

0
1 comments:
Mr. Anderson
February 10, 2025

The TMG Industrial 30' x 40' Container Peak Roof Shelter Pro Series is designed for installation on standard 40-foot high-cube (HC) containers. The provided details do not mention compatibility with a 53-foot extra-high extra-wide container. Therefore, it is unclear if it will fit such a container.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for TMG PRO Series

Summary of Contents for TMG PRO Series

  • Page 2 ST3041CV PVC FABRIC CONTAINER PEAK ROOF SHELTER PRO SERIES MAIN SPECIFICATIONS : • Overall assembled size : W9.15 x L12 x H3 (m) / 30 x 39.3x 9.84(ft) • Ridge Peak Height : 3 m / 9.84ft + container height www.tmgindustrial.com...

  • Page 3: Structure Diagram

    PRIOR TO ASSEMBLY Please read the instructions carefully before installation. It is very important to follow your local safety regulations and industry standards during installation. Regulations may include but are not limited t o : • Safety helmets, protective eyewear, and clothing. •...
  • Page 4 TMG-ST3041CV PART LIST PICTURE DESCRIPTION LENGTH Peak arch tube L1734mm Middle rafter tube L2890mm Shoulder tube L1784mm Shoulder tube L1784mm Middle truss baseplate W150xL200mm Left corner baseplate W150xL200mm (front and rear trusses) Right corner baseplate W150xL200mm (front and rear trusses)
  • Page 5 Top cover tension tube L490mm Self locking bolt and nuts M8x60mm M8x70mm Self locking bolt and nuts Hex bolt and nuts M10x30mm Top cover W12130xL12620mm Braided rope φ8x80m Scratch resistant tape Water plug φ32 www.tmgindustrial.com 4/31 TOLL FREE:1-877-761-2819...

  • Page 6: Installation Steps

    INSTALLATION STEPS STEP 1 : REVIEW THE WHOLE STRUCTURE AND CHOOSE THE PROPER INSTALLATION SITE. • Place the containers making sure they are parallel and the correct width apart. The center point of the round pipe of the base is the reference point, and the diagonal X and Y must be equal. The base plate shall be welded to the top of the container on the same horizontal plane to ensure that the welding is firm and reliable.
  • Page 7 STEP 2 : CONNECT ALL TRUSSES. • Front and rear trusses (4 trusses). PART PART www.tmgindustrial.com 6/31 TOLL FREE:1-877-761-2819...
  • Page 8 • Middle trusses (6 trusses). PART PART www.tmgindustrial.com 7/31 TOLL FREE:1-877-761-2819...
  • Page 9 • Lay down all (10) trusses on the ground when the assembly is all completed and before moving to next step, and then wrap (#15) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage.
  • Page 10 STEP 3 : PUT UP ALL TRUSSES. • Install each truss on the base tube. Use hex bolt (#11) to secure the truss to the base tube firmly. We recommend to use a crane or forklift to lift the truss and have 2 to 3 people on site to work together. Please make sure it is safe and secure when installation is proceeding.
  • Page 11 STEP 4 : INSTALL CROSS TUBES AND WIRE ROPES. PART PART www.tmgindustrial.com 10/31 TOLL FREE:1-877-761-2819...
  • Page 12 OVERALL STRUCTURAL INSPECTION. Check all components and trusses to ensure the entire structure is rectangular as specified in (picture1). All trusses must be 90 degrees straight up from the container. Secure and tighten all bolts and nuts on this step. But do not over tie! Otherwise you might damage the tubes or components.
  • Page 13 PART ROPE SHEAR SIZE 15000mm www.tmgindustrial.com 12/31 TOLL FREE:1-877-761-2819...
  • Page 14 STEP 6 : TENSION THE COVER ON THE STRUCTURE FROM BOTH SIDES. • Insert tension tubes (#9) slowly into the bottom groove pocket on both long sides. Add the water plug (#16) on the first tension tube to avoid tearing the fabric and add one to the end of last tube as well. •...
  • Page 15 STEP 7 : INSTALL RATCHET STRAPS. • Stretch and adjust the cover from left and right, back and forth, to make sure it is square and centered. Cut the groove pocket where it aligns with ratchet (#7A), and use strap (#7B) to pull tension tube (#9) toward the ratchet and secure it.

  • Page 16: Main Specifications

    ST30FW9V 4OHQ FRONT OF CONTAINER MECHANICAL DOOR MAIN SPECIFICATIONS : Assembly size : W9.15 x H5.9 (m) / 30 x 19.4 (ft)  Width : W9.15 (m) / 30 (ft)  Height : H5.9 (m) / 19.4 (ft)  door : 4x 4 (m) / 13.1 x 13.1 (ft) ...
  • Page 17 ST30FW9V PART LIST PARTS GRAPHICAL DESCRIPTION LENGTH CODE Base plate W150xL200mm Base plate W150xL200mm Self-tapping screws #12x25mm Vertical tube L590mm Cross-draw tube L2059mm Cross-draw tube L1987mm Tube clamp φ58 Front lower columns L1904mm Front upper columns L1364mm Front lower columns L1904mm Door frame horizontal tube L2506mm...
  • Page 18 Roll up door dropping tubes L1998mm (to connect #17A) Roll up door dropping tubes L2111mm (to connect #17) Vertical door rail end plate (floatable to keep door rail L220mm straight) Vertical door rail connection L240mm plate Right pulley system for doors L150mm Left pulley system for doors L150mm...
  • Page 19 STEP 1 : BASEPLATE POSIT INSTALLATION. Installation diagram of expansion bolt.  PART PART www.tmgindustrial.com 18/31 TOLL FREE:1-877-761-2819...
  • Page 20 STEP 2 : MECHANICAL DOOR INSTALLATION. PART PART www.tmgindustrial.com 19/31 TOLL FREE:1-877-761-2819...
  • Page 21 STEP 3 : INSTALL SMALL SIDE DOORS. PART PART www.tmgindustrial.com 20/31 TOLL FREE:1-877-761-2819...
  • Page 22 STEP 4 : INSTALL FRONT COVER PANEL. WHAT YOU SEE IN THIS PICTURE IS THE INSIDE! Lift up (#26) cover panels, starting from the center point of the frame (highest ridge point) use ropes (#23)  through the grommets to tie the panel to the truss firmly. All grommets need to be tied to the frame. PART ROPE SHEAR SIZE 1.5m...
  • Page 23 STEP 5 : INSTALL THE BATTEN. WHAT YOU SEE IN THIS PICTURE IS THE EXTERNAL! PART www.tmgindustrial.com 22/31 TOLL FREE:1-877-761-2819...
  • Page 24 STEP 6 : MANUAL LIFT DOOR. Slide the bottom dropping tube (#17,#17A) into the bottom horizontal fabric pocket on door cover (#26A).  Then slide the other six upper dropping tubes (#17,#17A) into other horizontal pockets. PART www.tmgindustrial.com 23/31 TOLL FREE:1-877-761-2819...
  • Page 25 Components include : one hand winch (#29) and steel cables (#29A). The hand winch comes with a shorter  cable, we call it cable B. From the bottom door rails (#15L,#15R), slowly put the first dropping tube (#17,#17A) into the rail, then put the ...
  • Page 26 Now the door can be opened or closed by operating the winch assembly. Run the door up and down a few  times to make sure all dropping tubes are moving smooth. Use lubricant oil if needed. PART PART www.tmgindustrial.com 25/31 TOLL FREE:1-877-761-2819...
  • Page 27 ST30BW9V 4OHQ CONTAINER BACKWALL MAIN SPECIFICATIONS : Assembly size : W9.15 x H5.9 (m) / 30 x 19.4 (ft)  Ridge height : 5.9m / 19.4 ft  www.tmgindustrial.com 26/31 TOLL FREE:1-877-761-2819...
  • Page 28 TMG-ST30BW9V PART LIST PARTS GRAPHICAL DESCRIPTION LENGTH CODE Base plate W150xL200mm Base plate W150xL200mm Tube clamp φ42 Tube clamp φ58 Rear lower columns L2775mm Rear upper columns L2085mm Rear columns L2506mm Rear upper columns L1364mm Front and rear lower columns...
  • Page 29 STEP 1 : BASEPLATE POSIT INSTALLATION. Installation diagram of expansion bolt.  PART PART www.tmgindustrial.com 28/31 TOLL FREE:1-877-761-2819...
  • Page 30 STEP 2 : WALL FRAME INSTALLATION. PART PART www.tmgindustrial.com 29/31 TOLL FREE:1-877-761-2819...
  • Page 31 STEP 3 : INSTALL REAR COVER PANEL. WHAT YOU SEE IN THIS PICTURE IS THE INSIDE! Lift up (#27) cover panels, starting from the center point of the frame (highest ridge point) use ropes (#23)  through the grommets to tie the panel to the truss firmly. All grommets need to be tied to the frame. PART ROPE SHEAR SIZE www.tmgindustrial.com...

  • Page 32: After Installation

    AFTER INSTALLATION Walk around and inspect the building periodically to make sure the parts are firmly fixed and the whole building is well supported. Check all bolts and hardware connectors to make sure they are in place and tightened. Check the base plates, adjust the ropes if necessary and clean the cover regularly.
