Main specifications
Overall assembled size : W4.88 x L7.5x H3.05 (m) / 16 x 24 x 10
(ft)
Front door : W3.6 x H2.0 (m) / 11.8 x 6.56 (ft)
Side door: W0.9 x H2.0 (m) / 2.95 x 5.56 (ft)
Prior to assembly
Please read the instructions carefully before installation. It is very
important to follow your local safety regulations and industry
standards during installation. Regulations may include but are not
limited to:
Safety helmets, protective eyewear, and clothing
-
Safety harnesses for all elevated workers
-
Proper ladder, cage, and safety operation
-
Check all components and parts before installation. All parts are marked with
a part number, please refer to the parts list to make sure you have all parts.
Choose a day with low or no wind to install, assembly is hard in heavy wind.
Do not make any alterations to the structure. Do not hang any weights on the
frame during installation, including parts. We are not responsible for any
www.tmgindustrial.com
►
P0 / 18
Toll Free:1-877-761-2819
Advertisement
Related Manuals for TMG TMG-LPG11
Summary of Contents for TMG TMG-LPG11
- Page 1 Main specifications Overall assembled size : W4.88 x L7.5x H3.05 (m) / 16 x 24 x 10 (ft) Front door : W3.6 x H2.0 (m) / 11.8 x 6.56 (ft) Side door: W0.9 x H2.0 (m) / 2.95 x 5.56 (ft) Prior to assembly Please read the instructions carefully before installation.

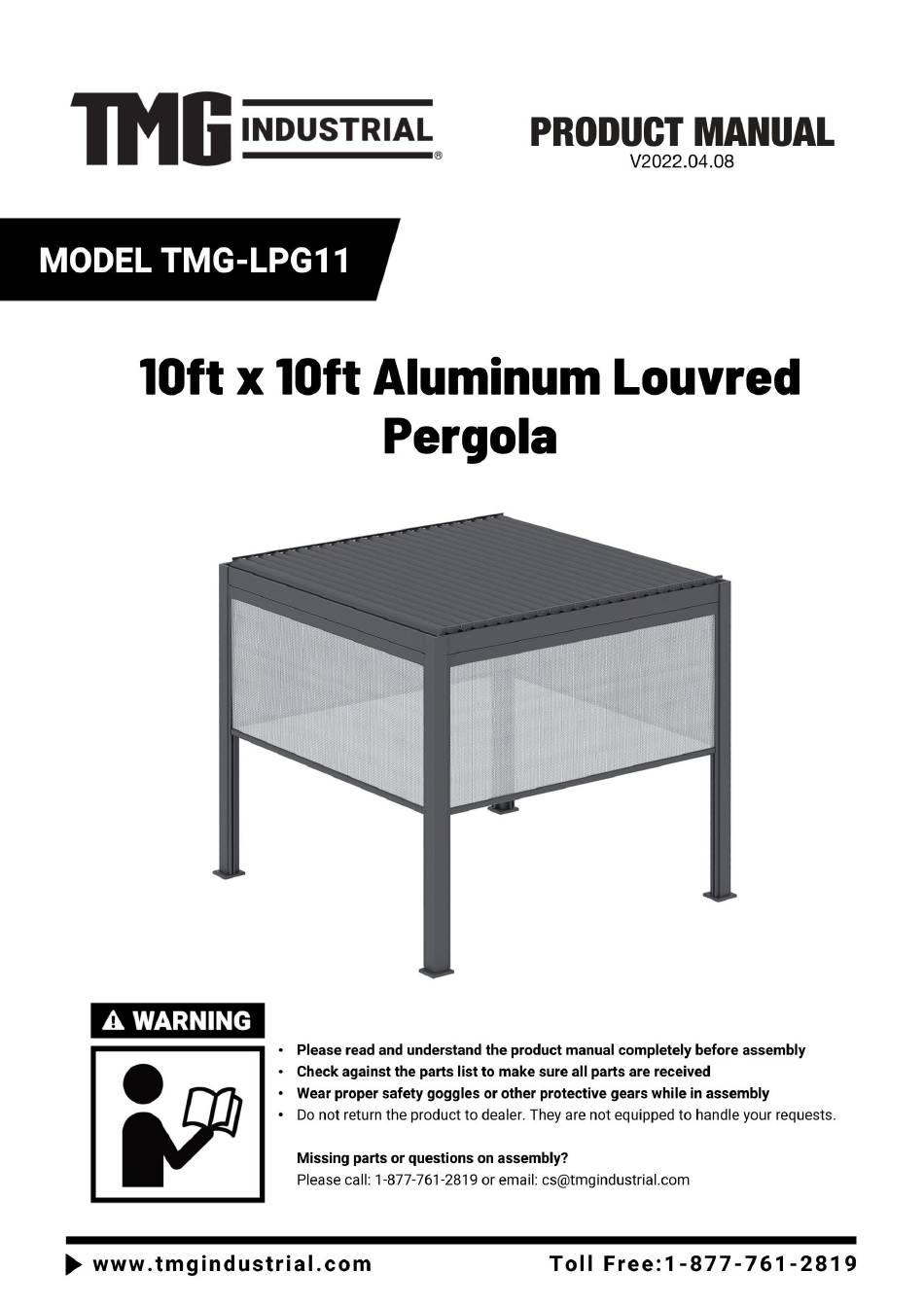

- Page 2 Main Specifications: Assembly size : W2.95 x L2.95 x H2.5 (m) / 10ft x 10ft x 8ft Wind proof roller shutter : W2.73 x H2.325 (m) fabric density : 5％ Prior to assembly Please go through the whole instruction manual completely. It is very important to follow your local safety regulations and industry standards during installation.
- Page 3 TMG-LPG11 Part List Parts Graphical Description length code Post 110X110mm Base cover 190X190mm Base footing plate 170X170mm Base footing screw 4X35mm Expansion bolt M8X7mm Post cover 110X110mm Post cover screw 4X16mm Small cover 18X18X2 Beam B1-Beam 80X140mm Beam B1-Beam 80X140mm...
- Page 4 Letters 6*8*8mm L shape aluminum plate 25*15mm R-shape pin 1.8*35mm Front breakwater 65*15mm Front breakwater screw 4*16mm Hexagon spanner Pergola remote control Small rubber hammer 26*6*2mm Cross head 65mm Auger 3.4mm 5M Power line Silicon sealant 120ml Residual circuit breaker 125w Orbital left seal 49*38mm...
- Page 5 Left side rubber tape 32*2219mm P1-2 Left side orbital cover 49*38*2219mm P1-3 Screw for side orbital 5*8mm cover Screw for Side orbital 4.2*38mm Orbital right seal 49*38mm Right side orbital 49*38mm*2219mm P2-1 Right side rubber tape 32*2219mm P2-2 Right side orbital cover 49*38*2219mm P2-3 Front cover...
- Page 6 Step 1 : Install base footing plate and beam Lay the post A1 flat, install base cover A2 and base footing plate A3 on all post A1, and drilling base footing screw A4. The step applies to the two post on the right ...
- Page 7 Step 2 : Install Beam B4 Connect electric wire first， the main line passes through the bottom of post A1 and links the power plug of B1 and B4. Install beam B4 on post A1 as shown. ► www.tmgindustrial.com P6 / 18 Toll Free:1-877-761-2819...
- Page 8 Step 3 : Install Beam B2 Connect power plug of B1-B2 and B2-B3. Fix beam B2 to post A1. ► www.tmgindustrial.com P7 / 18 Toll Free:1-877-761-2819...
- Page 9 Step 4 : Install Base footing plate A3. Measuring base distance，make the parallel distances and the diagonal distances equal. Secure the base footing plate A3 with expansion bolt A5. Parts Graphical code ► www.tmgindustrial.com P8 / 18 Toll Free:1-877-761-2819...
- Page 10 Step 5 : Install the Blade C1-C21. Install the blades C1--C21 in sequence, and drill the sliding pin screw B7 into sliding pin B6 to fix it. Connect all the blades with L shape aluminum D1 & D2, and plug R-shape pin E as shown.
- Page 11 Step 6: Install Front breakwater F1 and Rear breakwater G1 Parts Graphical code ► www.tmgindustrial.com P10 / 18 Toll Free:1-877-761-2819...
- Page 12 Step 7: Install post cover A6 Parts Graphical code ► www.tmgindustrial.com P11 / 18 Toll Free:1-877-761-2819...
- Page 13 Step 8: Separate Front cover Q1 Remove the screws and open the Front cover Q1 2.Unscrew the two ends of Rolling fabric and motor Q3 and take Rolling fabric and motor Q3 out. Parts Graphical code www.tmgindustrial.com P12 / 18 Toll Free:1-877-761-2819 ►...
- Page 14 Step 9: Install Rear cover Q2 Install Rear cover Q2 and screw the screw on the Beam. (PS: please pay attention to installation direction, please make sure the protruding side of the iron is on the outside） Parts Graphical code ►...
- Page 15 Step 10:Install Left & Right side orbital P1-1 & P2-1. Left & Right side orbital P1-1 & P2-1 are mounted on protruding iron blocks on both sides of the Rear cover Q2. Left & Right side orbital P1-1 & P2-1 screw 3pcs Screw for side orbital P4 in Post A1. Parts Graphical code...
- Page 16 Step 11: Install Orbital Left & Right seal P1 & P2 and Left & Right side rubber tape P1-2 & P2-2. Install Orbital Left & Right seal with Screw for side orbital P4. Install Left & Right side rubber tape P1-2 & P2-2 on Left & Right side Orbital P1-1 & P2-1.
- Page 17 Step 12: Install Rolling fabric and motor Q3. Install Rolling fabric and motor Q3， The fabric faces inward; Clip the fabric into Left & Right side rubber tape P1-2 & P2-2. Screw left and right sides of Rolling fabric and motor Q3. Parts Graphical code...
- Page 18 Step 13:Install Left & Right side orbital cover P1-3 & P2-3 and Front cover Q1. Install the Left & Right side orbital cover P1-3 & P2-3 , tap it with a small plastic hammer J; Secure with Screw for side orbital cover P3. ...
- Page 19 Step 14:Connect electric wire. ► www.tmgindustrial.com P18 / 18 Toll Free:1-877-761-2819...
