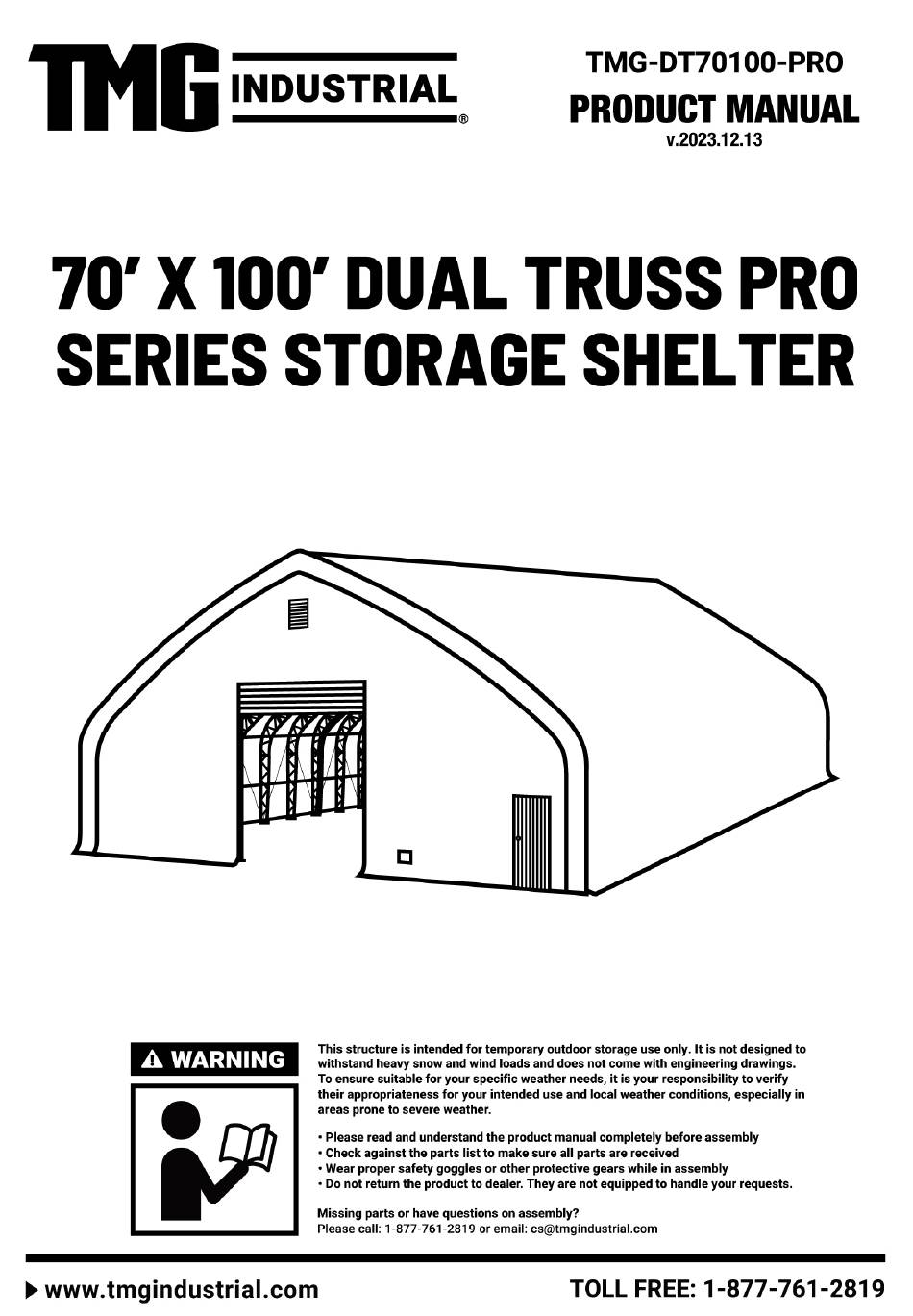

TMG Pro Series Product Manual

70' x 100' dual truss storage shelter
Hide thumbs Also See for Pro Series:

Advertisement

Quick Links

Download this manual
www.tmgindustrial.com
0/42
TOLL FREE:1-877-761-2819

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pro Series and is the answer not in the manual?

Questions and answers

Related Manuals for TMG Pro Series

Summary of Contents for TMG Pro Series

  • Page 1 www.tmgindustrial.com 0/42 TOLL FREE:1-877-761-2819...

  • Page 2: Main Specifications

    MAIN SPECIFICATIONS : Assembly size : W21.35 x L30 x H8.5 (m) / 69.9ft x 98.4ft x 27.9ft  Outside width : 21.35m / 70ft, inside width : 20.3m / 66.6ft, length : 30m / 98.4ft  Ridge peak height : 8.5m / 27.9ft ...
  • Page 3 The layout of foundation (two).  Note : the ground anchor is installed on the cement block. Depth of cement Unit: mm (ft) www.tmgindustrial.com 2/42 TOLL FREE:1-877-761-2819...
  • Page 4 Baseplatelayout.  PRIOR TO ASSEMBLY Please go through the whole instruction manual completely. It is very important to follow your local safety regulations and industry standards during installation. Regulations may include but are not limited to : Safety helmets, protective eyewear, and clothing. ...
  • Page 5 FRAME STRUCTURE DIAGRAM. www.tmgindustrial.com 4/42 TOLL FREE:1-877-761-2819...
  • Page 6 TMG-DT70100-PRO PART LIST PARTS GRAPHICAL DESCRIPTION LENGTH LENGTH CODE Peak arch tube L3193mm L3193mm (for middle trusses) Peak arch tube L3193mm L3193mm (for front and rear trusses) Cx20 Upper and down rafter L3104mm L3104mm Dx20 tube(for middle trusses) Ex16 Upper rafter tube...
  • Page 7 Support tube L2820mm L2820mm Support tube L2820mm L2820mm Baseplate for front and W280xL480mm W280xL480mm rear truss left corners Baseplate for front and W280xL480mm W280xL480mm rear truss right corners Baseplates W280xL430mm W280xL430mm Left column baseplate W200xL410mm W200xL410mm Right column baseplate W200xL410mm W200xL410mm Baseplates W280xL430mm...
  • Page 8 Front and rear vertical door L1300mm L1300mm rail (left side upper part) Front and rear vertical door L1300mm L1300mm rail (right side upper part) Column baseplate W200xL410mm W200xL410mm Front and rear vertical door L2800mm L2800mm rail (left side middle part) Front and rear vertical door L2800mm L2800mm...
  • Page 9 Door center vertical L2564mm L2564mm supporting rod for cross beam Upper cross tubes L2702mm L2702mm (left and right) Door hand winch crossing L2244mm L2244mm tube Side door left tube L2200mm L2200mm Side door right tube L2200mm L2200mm Side door upper tube L920mm L920mm Side door...
  • Page 10 Roll up door hand winch Wire rope for front and rear L25m L25m door hand winch Front and rear vertical door L240mm L240mm rail connection plate Front and rear vertical door rail end plate (floatable to L215mm L215mm keep door rail straight) Tube clamps 76mm φ76mm...
  • Page 11 Top cover B W17xL xL31.2m Front and rear truss W8.9xL xL21.3m cover panel Front and rear roll up W5.4xL xL5.5m door cover panel Front and rear fabric L150 150mm tarp secure pin Plastic hose 25mmxL4m φ25mm Connector 25mm φ25mm (for connection #36) Scratch resistant tape Pressing plate L2000m...
  • Page 12 STEP 1 : BASEPLATE POSITIONING AND INSTALLATION. 1 : BASEPLATE POSITIONING AND INSTALLATION.  Installation diagram of expansion bolt Installation diagram of expansion bolt. PART PART PART www.tmgindustrial.com www.tmgindustrial.com 11/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 13 STEP 2 : INSTALLATION OF FRONT AND REAR 2 STEP 2 : INSTALLATION OF FRONT AND REAR 2 GROUP TRUSSES. PART PART PART 40x2 www.tmgindustrial.com www.tmgindustrial.com 12/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 14 STEP 3 : INSTALLATION OF MIDDLE 14 GROUP TRUSS. PART PART 1x14 2x14 4x14 2x14 2x14 40x14 www.tmgindustrial.com www.tmgindustrial.com 13/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 15 STEP 4 : WRAP (#37) AROUND THE SHARP POINTS OF THE JOINT TO AVOID FRICTION BETWEEN THE FABRIC AND STEP 4 : WRAP (#37) AROUND THE SHARP POINTS OF THE JOINT TO AVOID FRICTION BETWEEN THE FABRIC AND STEP 4 : WRAP (#37) AROUND THE SHARP POINTS OF THE JOINT TO AVOID FRICTION BETWEEN THE FABRIC AND THE INTERFACE.
  • Page 16 STEP 5 : PUT UP THE FRONT TRUSS (IT IS SUGGESTED TO USE CRANE FOR HOISTING). PART www.tmgindustrial.com 15/42 TOLL FREE:1-877-761-2819...
  • Page 17 STEP 6 : PUT UP THE 2ND TRUSS, AND CONNECT ALL PURLINS (#5) BETWEEN 1ST AND 2ND. STEP 6 : PUT UP THE 2ND TRUSS, AND CONNECT ALL PURLINS (#5) BETWEEN 1ST AND 2ND. STEP 6 : PUT UP THE 2ND TRUSS, AND CONNECT ALL PURLINS (#5) BETWEEN 1ST AND 2ND. PART www.tmgindustrial.com www.tmgindustrial.com...
  • Page 18 STEP 7 : REPEAT ABOVE STEP TO PUT UP ALL OTHER TRUSSES, AND CONNECT ALL PURLINS. STEP 7 : REPEAT ABOVE STEP TO PUT UP ALL OTHER TRUSSES, AND CONNECT ALL PURLINS. STEP 7 : REPEAT ABOVE STEP TO PUT UP ALL OTHER TRUSSES, AND CONNECT ALL PURLINS. PART www.tmgindustrial.com www.tmgindustrial.com...
  • Page 19 STEP 8 : INSTALLATION OF DIAGONAL PURLINS (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). STEP 8 : INSTALLATION OF DIAGONAL PURLINS (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). STEP 8 : INSTALLATION OF DIAGONAL PURLINS (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART www.tmgindustrial.com www.tmgindustrial.com...
  • Page 20 STEP 9 : TENSION CABLE INSTALLATION, ALL CABLES ARE DIAGONALLY INSTALLED ON EACH. TENSION CABLE INSTALLATION, ALL CABLES ARE DIAGONALLY INSTALLED ON EACH. TENSION CABLE INSTALLATION, ALL CABLES ARE DIAGONALLY INSTALLED ON EACH. PART www.tmgindustrial.com www.tmgindustrial.com 19/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 21 STEP 10 : DOOR COLUMN INSTALLATION DOOR COLUMN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART PART www.tmgindustrial.com www.tmgindustrial.com 20/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 22 STEP 11-1 : DOOR SUPPORT PIPE INSTALLATION OOR SUPPORT PIPE INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART PART www.tmgindustrial.com www.tmgindustrial.com 21/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 23 STEP 11-2 : DOOR SUPPORT PIPE INSTALLATION INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART PART PART www.tmgindustrial.com www.tmgindustrial.com 22/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 24 STEP 11-3 : SIDE DOOR INSTALLATION OOR INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART PART www.tmgindustrial.com www.tmgindustrial.com 23/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 25 STEP 12 : INSTALL THE WATERPROOF PLUG INSTALL THE WATERPROOF PLUG (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART www.tmgindustrial.com www.tmgindustrial.com 24/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 26 STEP 13 : INSTALL VERTICAL DIAGONAL SUPPORT PIPE (#5 INSTALL VERTICAL DIAGONAL SUPPORT PIPE (#5B, #5C) (THE FRONT AND REAR MOUNTING METHODS (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART www.tmgindustrial.com www.tmgindustrial.com 25/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 27 STEP 14 : INSTALL THE DOOR COVERING CLOTH INSTALL THE DOOR COVERING CLOTH (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART www.tmgindustrial.com www.tmgindustrial.com 26/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 28 STEP 15 : INSTALL THE FRONT DOOR METAL STRIP (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART www.tmgindustrial.com 27/42 TOLL FREE:1-877-761-2819...
  • Page 29 STEP 16 : DOOR CURTAIN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). DOOR CURTAIN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). DOOR CURTAIN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART www.tmgindustrial.com www.tmgindustrial.com 28/42...
  • Page 30 STEP 16 : DOOR CURTAIN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART www.tmgindustrial.com www.tmgindustrial.com 29/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 31 STEP 16 : DOOR CURTAIN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). DOOR CURTAIN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). DOOR CURTAIN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PART www.tmgindustrial.com www.tmgindustrial.com 30/42...
  • Page 32 STEP 17 : INSTALL THE TOP COVER A ( #32 ) PART www.tmgindustrial.com www.tmgindustrial.com 31/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 33 STEP 17 : INSTALL THE TOP COVER A ( #32 ) PART www.tmgindustrial.com www.tmgindustrial.com 32/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 34 STEP 17 : INSTALL THE TOP COVER A ( #32 ) PART www.tmgindustrial.com www.tmgindustrial.com 33/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 35 STEP 17 : INSTALL THE TOP COVER A ( #32 ) PART www.tmgindustrial.com www.tmgindustrial.com 34/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 36 STEP 18 : INSTALL THE TOP COVER B ( #33 ) PART www.tmgindustrial.com www.tmgindustrial.com 35/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 37 STEP 18 : INSTALL THE TOP COVER B ( #33 ) PART www.tmgindustrial.com www.tmgindustrial.com 36/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 38 STEP 18 : INSTALL THE TOP COVER B ( #33 ) PART www.tmgindustrial.com www.tmgindustrial.com 37/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 39 STEP 18 : INSTALL THE TOP COVER B ( #33 ) PART www.tmgindustrial.com www.tmgindustrial.com 38/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 40 STEP 18 : INSTALL THE TOP COVER B ( #33 ) PART www.tmgindustrial.com www.tmgindustrial.com 39/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 41 STEP 19 : TENSION BOTH SIDES OF THE TOP CLOTH WITH THE TENSION DEVICE TENSION BOTH SIDES OF THE TOP CLOTH WITH THE TENSION DEVICE. PART www.tmgindustrial.com www.tmgindustrial.com 40/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 42 STEP 20 : TIE THE ROPE. PART www.tmgindustrial.com www.tmgindustrial.com 41/42 TOLL FREE:1 TOLL FREE:1-877-761-2819...

  • Page 43: After The Installation

    AFTER THE INSTALLATION Walk around and inspect the building periodically to make sure all components are still firmly secured and the whole building is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.
