Summary of Contents for TMG TMG-DT3380

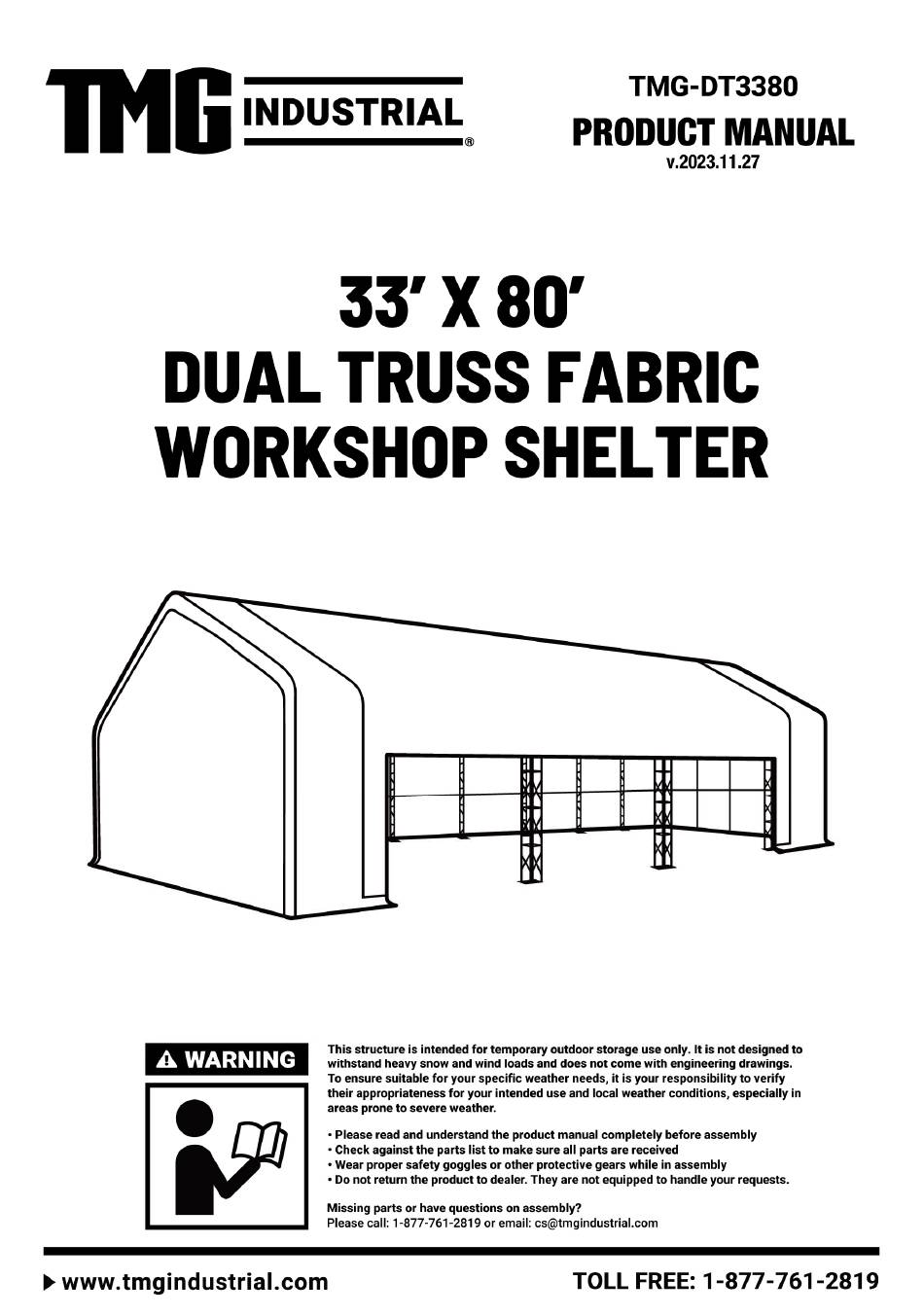

- Page 1 www.tmgindustrial.com 0/21 Toll Free:1-877-761-2819...
-
Page 2: Main Specifications
MAIN SPECIFICATIONS : Assembly size : W10 x L24 x H6 (m) / 32.8 x 78.7 x 19.7 (ft) Ridge height : 6m / 19.7ft Peak clearance : 5.4m / 17.7 ft Door : 5.7x 2.68 (m) / 18.7 x 8.8 (ft) ... - Page 3 The layout of foundation(two). Note: the ground anchor is installed on the cement block. Depth of cement Unit: mm (ft) www.tmgindustrial.com 2/21 Toll Free:1-877-761-2819...
- Page 4 Baseplate layout. PRIOR TO ASSEMBLY Please go through the whole instruction manual completely. It is very important to follow your local safety regulations and industry standards during installation. Regulations may include but are not limited to : Safety helmets, protective eyewear, and clothing. ...
- Page 5 FRAME STRUCTURE DIAGRAM. www.tmgindustrial.com 4/21 Toll Free:1-877-761-2819...
- Page 6 DT3380 PART LIST PARTS GRAPHICAL DESCRIPTION LENGTH CODE Peak arch tube 2570mm (for 7 middle trusses ) Peak arch tube 2570mm (for front and rear trusses) Upper rafter tube 3390mm (for middle trusses) Upper rafter tube 3390mm (for front and rear trusses) Shoulder tube 1757mm (for middle trusses)
- Page 7 Baseplate for front and rear W260xL520mm W260xL520mm truss right corners Baseplate W150xL200mm W150xL200mm Baseplates for middle truss W260xL480mm W260xL480mm Ratchets (3T) Expansion bolts φ16xL150mm Middle upper vertical tubes L2555mm φ48xL2555mm Lower vertical tubes L2896mm φ48xL2896mm Left and right upper L1588mm φ48xL1588mm vertical tubes Middle horizontal tube...
- Page 8 Ridge steel tension cables 3130mm φ6xL3130mm (front and rear trusses) Middle truss crossing steel 3990mm φ6xL3990mm tension cables Tie down straps W38xL800mm W38xL800mm (for #7A) Cable connection plate 91mm Tension tube end water plug (φ32) Tube clamps (φ48) Scratch resistant tape Self locking bolt M10x70mm M10x70mm...
- Page 9 STEP 1 : BASEPLATE POSIT INSTALLATION. BASEPLATE POSIT INSTALLATION. Installation diagram of expansion bolt Installation diagram of expansion bolt. PART PART PART www.tmgindustrial.com www.tmgindustrial.com 8/21 Toll Free:1 Toll Free:1-877-761-2819...
- Page 10 STEP 2 : INSTALLING THE DOOR FRAME. INSTALLING THE DOOR FRAME. Install the door frame according to the base plate datum in Install the door frame according to the base plate datum in step 1. PART PART PART www.tmgindustrial.com www.tmgindustrial.com 9/21 Toll Free:1...
- Page 11 STEP 3 : ASSEMBLE ALL TRUSSES. Front and rear trusses. PART PART 24x2 www.tmgindustrial.com 10/21 Toll Free:1-877-761-2819...
- Page 12 Middle trusses. (7 trusses) PART PART 20x7 www.tmgindustrial.com www.tmgindustrial.com 11/21 Toll Free:1 Toll Free:1-877-761-2819...
- Page 13 Lay down all (9) trusses on the ground when the assembly is ) trusses on the ground when the assembly is all completed and before moving to next step, all completed and before moving to next step, and then wrap (#22) around the sharp points of the joint to avoid friction between the fabric and the interface, ) around the sharp points of the joint to avoid friction between the fabric and the interface, ) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage.
- Page 14 STEP 4 : PUT UP THE FRONT TRUSS. (IT IS SUGGESTED TO USE CRANE FOR HOISTING) PART www.tmgindustrial.com 13/21 Toll Free:1-877-761-2819...
- Page 15 STEP 5 : PUT UP THE REST TRUSSES Refer to step 4 to put up the rest trusses, connect all purlins (#5) with to put up the rest trusses, connect all purlins (#5) with bolt (#28) and secure all bolts firmly on and secure all bolts firmly on ...
- Page 16 Repeat above step to put up all other trusses (from 3rd to Repeat above step to put up all other trusses (from 3rd to 9th truss), and connect all purlins. th truss), and connect all purlins. PART PART www.tmgindustrial.com www.tmgindustrial.com 15/21 Toll Free:1...
- Page 17 Tension cable installation . All cables All cables are diagonally installed on each side of the interval are diagonally installed on each side of the interval. PART PART www.tmgindustrial.com www.tmgindustrial.com 16/21 Toll Free:1 Toll Free:1-877-761-2819...
- Page 18 STEP 6 : FRONT AND REAR TRUSSES TO COMPLETE. : FRONT AND REAR TRUSSES TO COMPLETE. PART PART 21x2 www.tmgindustrial.com www.tmgindustrial.com 17/21 Toll Free:1 Toll Free:1-877-761-2819...
- Page 19 STEP 7 : INSTALL FRONT AND REAR COVER PANELS. Lift up (#30) cover panel, starting from the center point of the frame (highest ridge point) use ropes (#28) through the grommets to tie the panel to the truss firmly. All grommets need to be tied to the frame as shown. PART ROPE SHEAR SIZE 19000mm...
- Page 20 STEP 8 : INSTALL ROOF COVER. NOTE: The cover must be installed on a windless day. DO NOT attempt to install the cover during windy NOTE: The cover must be installed on a windless day. DO NOT attempt to install the cover during windy NOTE: The cover must be installed on a windless day.
- Page 21 After the cover is installed on the roof, insert the plastic pipe (#3 After the cover is installed on the roof, insert the plastic pipe (#31) slowly into the grooves on two ends of the ) slowly into the grooves on two ends of the ...
-
Page 22: After The Installation
AFTER THE INSTALLATION Walk around and inspect the building periodically to make sure all components are still firmly secured and the whole building is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.
