Mastech MS2006B User Manual

High Sensitivity
Ac Leakage Clamp Meter
User's Manual
LEAKAGE CLAMP METER
High Sensitivity
Ac Leakage Clamp Meter
1. Safety information
The clamp leaker has been designed according to IEC
1010 -1 and IEC1010 - 2 - 032 concerning safety
requirements for electrical measuring instruments and
current clamps with double insulation overvoltage
category 600V CAT III and pollution 2.
2. Symbols
Note-Important safety information, refer to the
instruction manual.
Application around and removal from UNINSULATED
HAZARDOUS LIVE conductors is permitted.
Caution, possibility of electric shock
Earth (ground) TERMINAL
Alternating current
CAT III: MEASUREMENT CATEGORY III is applicable to
test and measuring circuits connected to the distribution
part of the building's low-voltage MAINS installation.
3. Description

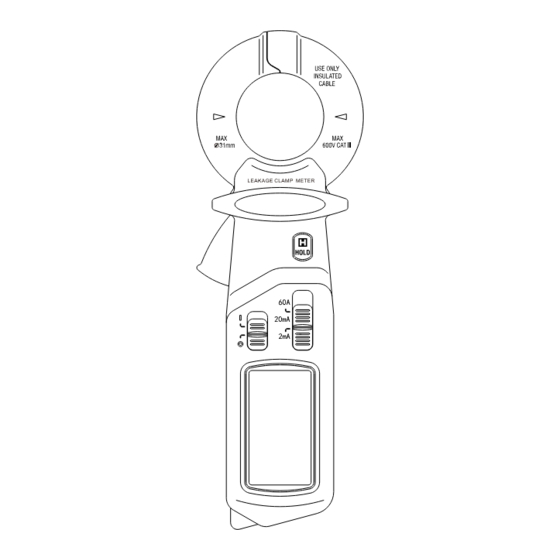

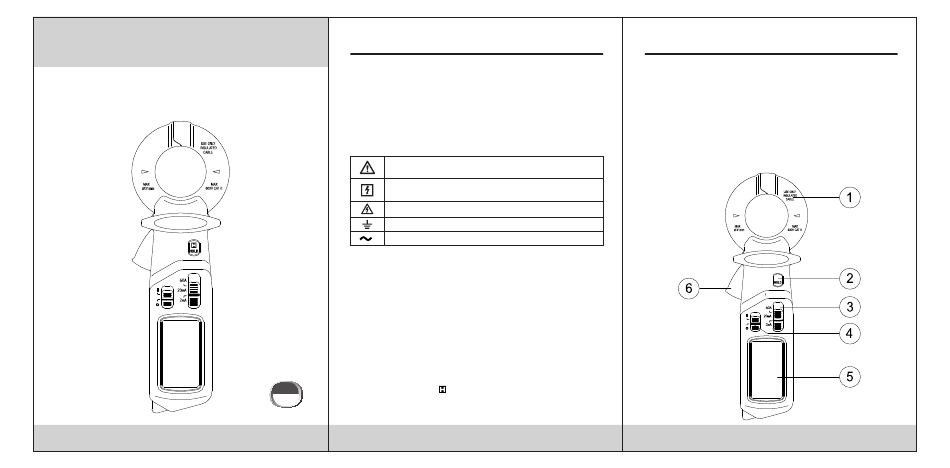

This is a Clamp Leaker meter. Refer to the figure and to
the following steps to familiarize you with the clamp
leaker.
1. Transformer jaws
Pick up the AC current flowing through the conductor.
2. Hold Button
When this button is pushed, the display will keep the
last reading and " " symbol will
CAT III
appear on the LCD until pushing it again.
600 V
High Sensitivity
Ac Leakage Clamp Meter
3. Slip Key (select range)
The key is used to select measuring range.
4. Slip Key ( Power ON or OFF )
The key is used to turn the meter "1" ( ON ) or "O" ( off ).
5. Display
3 1/2 digit, 7 segment, 13mm high, LCD.
6. Trigger
Press the lever to open the transformer jaws. When the
lever is released, the jaws will close again.
