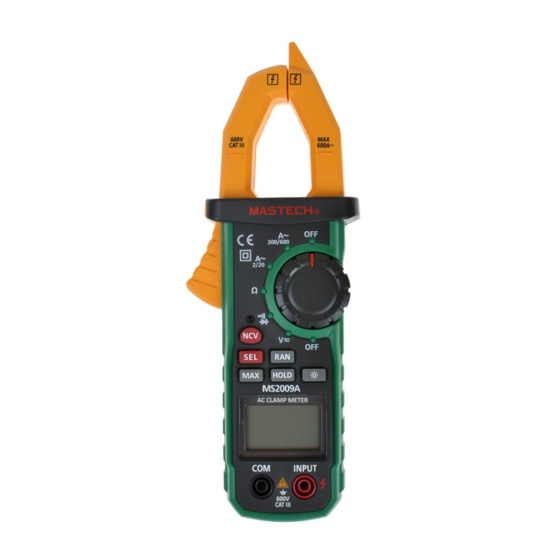

Summary of Contents for Mastech MS2009A
- Page 1 MULTIFUNCTION DIGITAL Clamp Meter User Manual 200/600 2/20 HOLD AC CLAMP METER AUTO MAX °C°F kMΩ μmVA...
- Page 2 MULTIFUNCTION DIGITAL CONTENTS Safety requirements........1 Safety signs..........1 Notes............1 Maintenance...........2 Overview..........3 Meter Indications........3 Schematic Drawing For Panel .....5 Instructions..........6 Accuracy Indicators.......10 Automatic Power-Off.......13 Replace Battery........13 Accessories...........14...
-
Page 3: Maintenance
When the meter is measuring, don't touch the unused • Safety Requirements input terminal. The MS2009A digital clamp meter has been designed Be careful when measuring voltage greater than 60V • according to Safety Standard IEC61010-1 DC and 30V AC. Don't allow fingers to touch or block IEC61010-2-032 for electronic measuring instruments part of the probe. -
Page 4: Overview
MULTIFUNCTION DIGITAL MULTIFUNCTION DIGITAL Overview 8. Clamp head center position To improve current measurement accuracy, place The meter is a safe and reliable digital clamp the conductor to be measured in the center position. meter with stable performance. Its design is based 9. -
Page 5: Schematic Drawing For Panel
MULTIFUNCTION DIGITAL MULTIFUNCTION DIGITAL Schematic Drawing For Panel Instructions DC Voltage Measurement 1. Insert red probe to “INPUT” jack and insert black probe to “COM” jack. 2. Place function measuring range switch to DC voltage measuring range. Press “SEL” key, and connect the probe to the power source or load to be tested. - Page 6 MULTIFUNCTION DIGITAL MULTIFUNCTION DIGITAL Diode Test AC Current Measurement 1. Place function measuring range switch to AC Insert red probe to “INPUT” and insert black probe to current measuring range. “COM” jack. At this time, red probe polarity is “+”. 2.
-
Page 7: Accuracy Indicators
MULTIFUNCTION DIGITAL MULTIFUNCTION DIGITAL 2: When inputting voltage on the meter input terminal, Accuracy Indicators due to the existence of the induced voltage, voltage Accuracy: ±(% of reading + digits) with one year of induction indicator also may light. warranty Environment temperature: 18°C~28°C 3: Interference sources of external environment (such Environment humidity: not more than 75% as flashlight, motor, etc.) may trigger non-contact... - Page 8 MULTIFUNCTION DIGITAL MULTIFUNCTION DIGITAL DC Voltage Resistance Measuring range Accuracy Measuring Resolution Accuracy Resolution range 200Ω 0.1Ω ±(2.0% of reading + 3 digits) 200mV 0.1mV 2kΩ 0.001kΩ ±(0.8% of rdg +4digits) 20kΩ 0.01kΩ ±(0.8% of reading + 5 digits) 10mV 200kΩ...
-
Page 9: Automatic Power-Off
MULTIFUNCTION DIGITAL MULTIFUNCTION DIGITAL Automatic Power-Off Accessories In order to extend the battery life, the meter has an User Manual 1 pc automatic shutdown function. If there is no key Probe 1 pair operation or function measuring range change Packing box 1 pc within 15 minutes, the meter power will disconnect 1.5V SIZE AAA Battery...
