- Page 3 Probe should be in good condition. Before use, please 1.1.4 check whether the probe insulation is damaged and if the metal wire is bare. Use the probe table provided with the meter to ensure 1.1.5 safety. If necessary, replace the probe with another identical probe or one with the same level ofperformance.
- Page 4 1.4.1 Don't try to open the meter bottom case to adjust or repair. Such operations can only be performed by technicians who fully understand the meter and electrical shock hazard. 1.4.2 Before opening the meter bottom case or battery cover, remove probe from the circuit to be measured. 1.4.3 To avoid wrong readings causing electric shock, 1.2.15 Measure known voltage with the meter to verify...

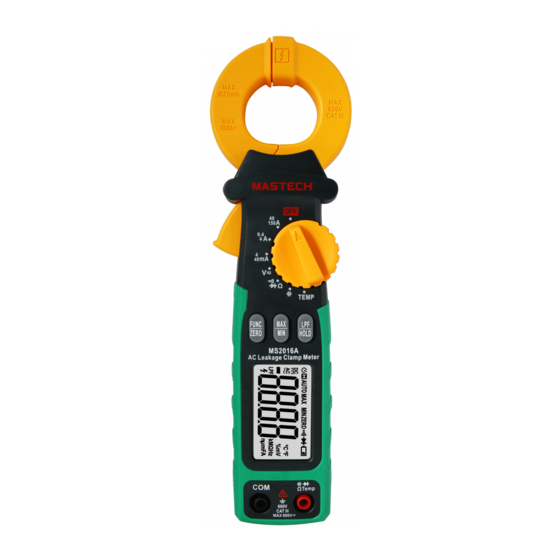

- Page 5 (1) The central of the clamp head (2) Transfer switch (3) Resistance, capacitance, voltage,diode and continuity input jack (4) Common end jack (5) LCD display (6) Function choice button (7) Trigger (8) Current clamp head: used for leakage current measurement. (9) Protective barrier HOLD/LPF button: used for reading hold and LPF(50Hz/ 60Hz)function control.
- Page 6 Automatic measuring range and manual measuring range. Full measuring range overload protection. The maximum allowable voltage between measurement end and ground: 600V DC or AC(RMS) Operational height: maximum 2000m Display: LCD. Displayed maximum value: 4000 counts. Polarity indication; automatical indication, "-" means negative polarity.
- Page 9 1) Turn the transfer switch to turn on the power. When battery voltage is low (about2.4V), LCD displays " " symbol, replace the battery. 2) " " symbol means that input voltage or current should not be more than the specified value, which is to protect the internal line from damage.
- Page 10 4) Do not touch or hand hold position over protective barrier, when measure current.
