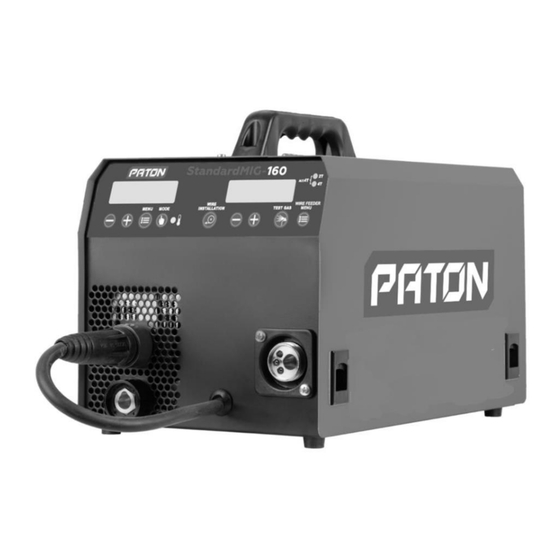

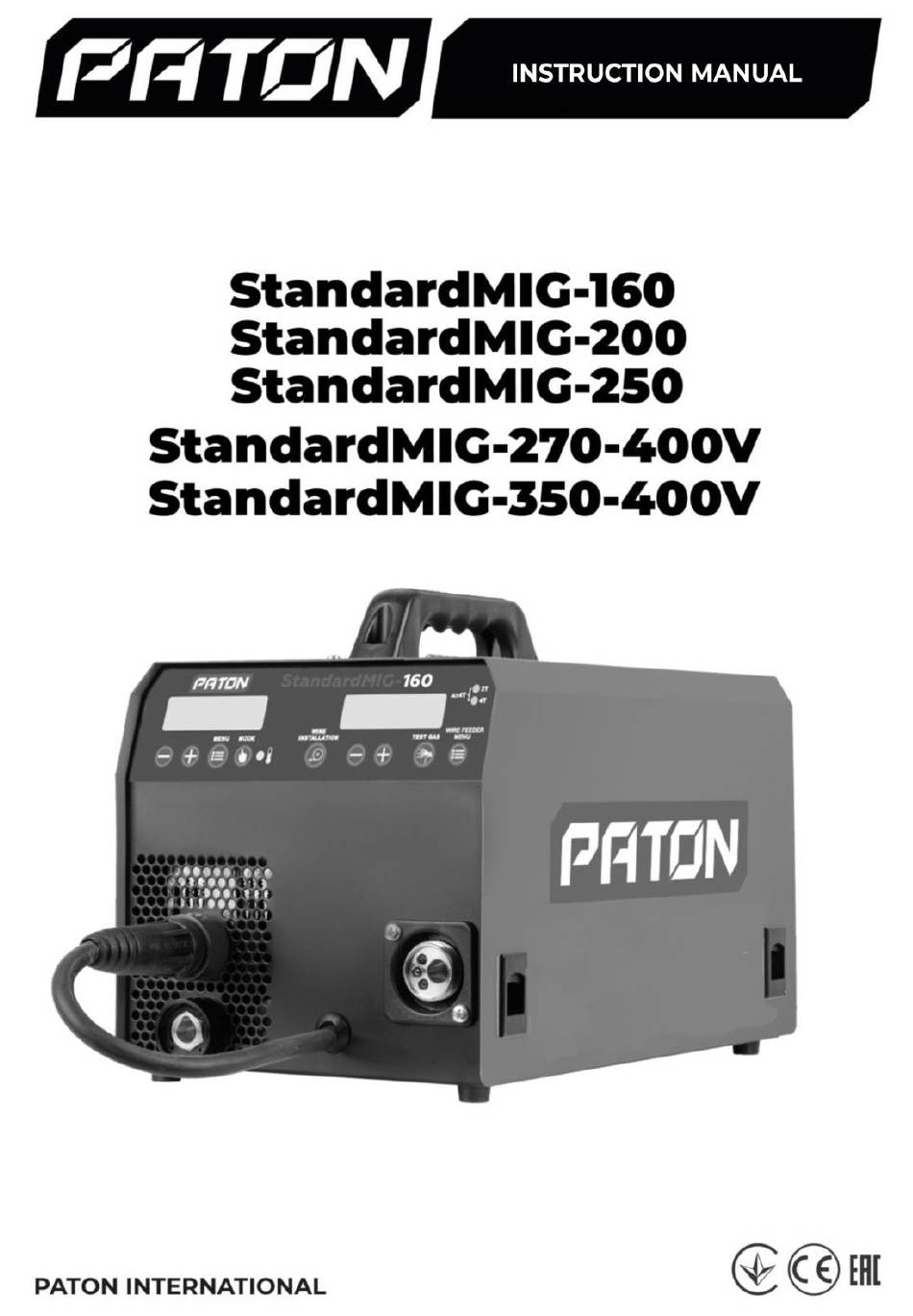

Paton StandardMIG-160 Instruction Manual
  1. Manuals
  2. Brands
  3. Paton Manuals
  4. Welding System
  5. StandardMIG-160
  6. Instruction manual

Paton StandardMIG-160 Instruction Manual

Hide thumbs Also See for StandardMIG-160:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the StandardMIG-160 and is the answer not in the manual?

Questions and answers

Related Manuals for Paton StandardMIG-160

Summary of Contents for Paton StandardMIG-160

  • Page 3 Since 1958, E.O. Paton has been a leader in arc welding technology, first for the countries of the former Soviet Union, and since 1991 for its successor states. In the time since 1991, E.O.

  • Page 4: Declaration Of Conformity

    Novopyrohivska 66, 03045 Kiev, UKRAINE We hereby declare that the DoC is issued under our sole responsibility and belongs to the following product: Product designation: PATON™ StandardMIG 160, PATON™ StandardMIG 200, PATON™ StandardMIG 250, PATON™ StandardMIG 270-400v, PATON™ StandardMIG 350 -400v...

  • Page 5: Table Of Contents

    7. GENERAL LIST AND SEQUENCE OF FUNCTIONS 8. Generator Operation Mode 9. Service And Maintenance 10. Storage Conditions 11. Transportation 12. Completion Of The Device 13. Safety Rules 14. WARRANTY OBLIGATIONS 15. Information On Disposal Of Used Equipment - 3 - PATON StandardMIG DC MMA/TIG/MIG/MAG...
  • Page 6 Maximum MIG/MAG wire Electrode diameter value for MMA extension cable, cable length, diameter and TIG 230V – StandardMIG-160, StandardMIG-200, StandardMIG-250 Not more than Ø2 mm Up to Ø0.6 mm 80А Not more than Ø3 mm Up to Ø0.8 mm 120А...
  • Page 7 4-roller feeder with full roller drive functionality, further enhancing its performance and reliability. The StandardMIG models from PATON™ incorporates have a built-in undervoltage protection, as well as short-term overvoltage protection. Upon shutdown, the unit retains all active settings and subsequently restores them upon reactivation.
  • Page 8 1.6 - 5.0 1.6 - 6.0 1.6 - 6.0 1.6 - 6.0 diameter, mm Duty cycle 100% (in A) - Duty cycle 60% (in A) - Duty cycle at max. current - DC - 6 - PATON StandardMIG DC MMA/TIG/MIG/MAG...
  • Page 9 In single-phase operation with a Schuko plug, a maximum of 160 A is recommended. *IP21 housing prevents particles with a diameter of more than 12.5 mm from entering the product, and vertically dripping water does not interfere with the unit operation. - 7 - PATON StandardMIG DC MMA/TIG/MIG/MAG...
  • Page 10 Not more than 250 A 5 … 11 m 35 mm Not more than 270 A 5 … 11 m 35 mm Not more than 350 A 6 … 14 m 35 mm - 8 - PATON StandardMIG DC MMA/TIG/MIG/MAG...

  • Page 11: Start Up Of The Device

    ATTENTION!: Before starting up the device, please read section 13 "Safety rules". 2.1 INTENDED USE The machine is designed exclusively for: MIG/MAG (Metal Inert Gas / Metal Active Gas), TIG (Tungsten Inert Gas) and Manual Metal Arc Welding (MMA). Any modification of the device - 9 - PATON StandardMIG DC MMA/TIG/MIG/MAG...

  • Page 12: Placement Requirements

    2.3 CONNECTING TO THE POWER GRID The welding machine is designed as a standard: 1. The mains voltage is 230V (-30% +13%) for StandardMIG-160/200/250 models; 2. Three-phase 3x380V or 3x400V (-15% +15%) (StandardMIG-270-400V/350-400V models), for which three wires are provided. Safety regulations for working with welding equipment require grounding the unit's housing.

  • Page 13: Connection Of The Mains Plug

    WARNING! For StandardMIG-160/200/250 models, the mains switch (14) is a signal button that blocks only the power current of the welding machine, but does not completely disconnect the internal electronics of the machine.

  • Page 14: Welding Process Cycle - Mma

    Enhanced Base Material Penetration: Achieves deeper and more consistent penetration at the ignition phase, thus mitigating potential workpiece damage.; Inhibition of Slag Inclusions: Actively counters the onset of slag inclusions during the welding process. - 12 - PATON StandardMIG DC MMA/TIG/MIG/MAG...

  • Page 15: Arc-Force" Function

    How it is achieved: If the arc voltage drops below the minimum allowable voltage for a stable arc, the welding current increases by the default level of +40%. - 13 - PATON StandardMIG DC MMA/TIG/MIG/MAG...

  • Page 16: Anti-Stick Function

    It also makes it easier for the welder to separate (tear off) the electrode from the piece without the risk of burning his eyes by accidentally igniting the arc. After separating the electrode from the piece, the welding process can continue unhindered. - 14 - PATON StandardMIG DC MMA/TIG/MIG/MAG...

  • Page 17: Current-Voltage Characteristic Slope Control Function

    Properly adjusting the pulse parameters, like pulse frequency and the balance between peak and base current, can enhance weld quality, decrease spatter, and produce a desired bead appearance. - 15 - PATON StandardMIG DC MMA/TIG/MIG/MAG...

  • Page 18: Tungsten Inert Gas (Gtaw) Welding

    ATTENTION: The most common protective gas used is pure argon "Ar", sometimes helium "He", as well as a mixture of these in various proportions. Example: argon + helium "40% Ar + 60% He". - 16 - PATON StandardMIG DC MMA/TIG/MIG/MAG...

  • Page 19: Welding Process Cycle - Tig-Lift

    ATTENTION! TIG torch must be of the valve type, with bayonet connector Ø9mm for StandardMIG-160 and Ø13mm for StandardMIG- 200/250 & 270/350-400V. The maximum torch current must be selected according to the operating requirements. WARNING! One common mistake is to sharpen the electrode on the 'needle', while the arc may 'wander' from side to side.

  • Page 20: Tig-Lift Arc Ignition Function

    (functions are switched over and over); using the 2 buttons, the current main parameter, i.e. the welding current, can be set; If necessary, additional welding process functions can be set (see Section 6.1 for the switching sequence). - 18 - PATON StandardMIG DC MMA/TIG/MIG/MAG...

  • Page 21: Current Ramp-Up Function

    By default, the pulse frequency [Fr.P] and duty cycle [dut] are at the most common values of 10.0Hz and 50%, respectively. When the "duty cycle" parameter is changed from 50%, an asymmetry is introduced between the current pulse time and the current "pause" time: - 19 - PATON StandardMIG DC MMA/TIG/MIG/MAG...

  • Page 22: Metal Inert Gas / Metal Active Gas Arc Welding (Mig/Mag)

    16 on the rear panel of the wire feeder; open gas cylinder tap, check tightness connect power supply mains cable to the power supply; - 20 - PATON StandardMIG DC MMA/TIG/MIG/MAG...
  • Page 23 1 and the wire feed speed with buttons 7 on the feeder according to the general recommendations on the welding process with semi-automatic machines. Remember, these parameters are different for each case. - 21 - PATON StandardMIG DC MMA/TIG/MIG/MAG...

  • Page 24: Welding Process Cycle - Mig/Mag - 2T

    [t.dn] is activated and the device enters idle mode. The final post gas function of the welding zone [t.Po] is then triggered (the gas valve closes with a delay). - 22 - PATON StandardMIG DC MMA/TIG/MIG/MAG...

  • Page 25: Welding Process Cycle - Mig/Mag - 4T

    [t.dn] are activated and the device moves into idle mode. When the button is released for the second time, the final post gas function of the welding zone [t.Po] is activated (the gas valve closes with a delay). - 23 - PATON StandardMIG DC MMA/TIG/MIG/MAG...

  • Page 26: Inductance Function

    2T button mode. In this case, after the first trigger, the welding process continues unchanged. This mode is supplied by PATON as an extra, to be used at your own discretion, because from the point of view of the more frequent use of the 2T mode by customers in conventional semi-automatic machines, it is more common and therefore more user- friendly.

  • Page 27: Upslope Voltage/ Wire Feed Speed Ramp-Up

    These parameters are set in different situations in different ways according to the welder's requirements. To change the value of any function in the current welding mode, see section 6.1. - 25 - PATON StandardMIG DC MMA/TIG/MIG/MAG...

  • Page 28: Feeder Motor Stop Function

    While the display shows the current function, its value can be changed up or down, using the buttons 1. Or by quickly pressing and releasing button 3 you can switch to the next function in a circle. - 26 - PATON StandardMIG DC MMA/TIG/MIG/MAG...

  • Page 29: Switching To The Required Welding Mode

    6.1, it is necessary to lock the function selection menu by holding down button 3 for more than 3.5 seconds, in the same way as when unlocking. The indicator will show the closing locks. - 27 - PATON StandardMIG DC MMA/TIG/MIG/MAG...

  • Page 30: General List And Sequence Of Functions

    MMA WELDING MODE 0) [-1-] - Main displayed parameter CURRENT = 90A (default) a) 8 ... 160А (step of change 1А) for StandardMIG-160 b) 10 ... 200А (step of change 1А) for StandardMIG-200 c) 12 ... 250А (step of change 1А) for StandardMIG-250 d) 12 ...
  • Page 31 TIG WELDING MODE 0) [-2-] Main display parameter CURRENT = 100А (default) a) 8 ... 160А (step of change 1А) for StandardMIG-160 b) 10 ... 200А (step of change 1А) for StandardMIG-200 c) 12 ... 250А (step of change 1А) for StandardMIG-250 d) 12 ...
  • Page 32 OFF - deactivated 8) [u.iP] Pulse voltage = 19V (default) a) 12.0 ... 24,0V (step of change 0,1V) for StandardMIG-160 b) 12.0 ... 26,0V (step of change 0,1V) for StandardMIG-200 c) 12.0 ... 28,0V (step of change 0,1V) for StandardMIG-250 d) 12.0 ...

  • Page 33: Generator Operation Mode

    ATTENTION!: For smooth operation, the output voltage of the generator must not exceed the permissible limits: 160-260V (for StandardMIG-160/200/250); 320-440V for all three phases (for StandardMIG-270/350). The power source can be supplied by various types of generators. However, some of these may not provide sufficient power for proper operation of the welding current source.

  • Page 34: Storage Conditions

    Packed source can be transported by all means ensuring its safety in compliance with the rules of transportation established for the relevant type of transport. 12. COMPLETION OF THE DEVICE 1. PATON™ Welding arc power source with mains cable – 1 pc; 2. Cable with ABICOR BINZEL™ electrode holder 3m –...
  • Page 35 Fire fighting equipment such as: (powder or snow extinguishers, fire blankets) should be located near the work area in a visible, easily accessible place. - 33 - PATON StandardMIG DC MMA/TIG/MIG/MAG...
  • Page 36 DANGER OF INTENSE NOISE The welding arc generated during welding can produce sound levels above 85 dB for up to 8 hours of working time. Welders working with the equipment must wear hearing protection during operation. - 34 - PATON StandardMIG DC MMA/TIG/MIG/MAG...
  • Page 37 - 35 - PATON StandardMIG DC MMA/TIG/MIG/MAG...
  • Page 38 - 36 - PATON StandardMIG DC MMA/TIG/MIG/MAG...

  • Page 39: Warranty Obligations

    StandardMIG-270-400V 3 years StandardMIG-350-400V The main warranty period starts from the date of sale of the PATON™ inverter device to the end customer. During the warranty period, the distributor undertakes, free of charge to the owner of the PATON™ inverter device: to make diagnostics and identify the cause of the malfunction;...

  • Page 40: Information On Disposal Of Used Equipment

    If you wish to recycle the device, please contact your nearest retailer or contact the importer of the equipment, who will provide additional information. IMPORTER / AUTHORIZED DISTRIBUTOR - 38 - PATON StandardMIG DC MMA/TIG/MIG/MAG...
