Summary of Contents for Paton Standard-350-400V
- Page 2 Since 1958, E.O. Paton has been a leader in arc welding technology, first for the countries of the former Soviet Union, and since 1991 for its successor states. In the time since 1991, E.O.
-
Page 3: Declaration Of Conformity
Signed on behalf of: PATON International LLC Place and Date: 03045 Kiev, UKRAINE 04.08.2022 Signature: Name, Function: Mark Tokmakov Chief Technical Officer PATON International LLC Novopyrohivska 66, 03045 Kiev Tel: +380 800 500 600 E-Mail: office@paton.ua - 3 - PATON Standard DC MMA... -
Page 4: Table Of Contents
5. Generator operation mode 6. Storage conditions 7. Transportation 8. TECHNICAL PARAMETERS 9. Completion of the device 10. Problem solving 11. Safety rules 12. Electrical scheme 13. WARRANTY OBLIGATIONS 14. Information on disposal of used equipment - 4 - PATON Standard DC MMA... - Page 5 Avoid the formation of loops or knots on the power/extension cable. (*values are indicated below) Cross section of Maximum wire Electrode diameter extension cable, Set current value length, m 3 x 380/400V – Standard-350-400V not more than Ø3 mm 120А not more than Ø4 mm 160А not more than Ø5 mm...
-
Page 6: General Information

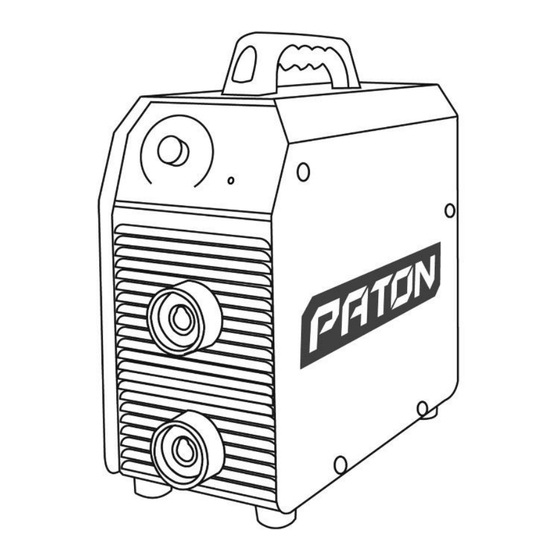

1. GENERAL INFORMATION Invertor rectifiers PATON Standard-350-400V is intended for direct-current manual metal arc (MMA) welding. Standard-350-400V is designed for demanding users who need the most compact and functional unit at its full rated current of 350A, respectively. This is enough to work with any electrodes from Ø2mm to Ø6mm, including refractory ones, while the load... - Page 7 * IP33 housing prevents particles with a diameter of more than 2.5 mm from entering the product, and also provides protection from rain when water falling down vertically or at an angle of 60º to the vertical line does not interfere with the operation of the unit - 7 - PATON Standard DC MMA...
-
Page 8: Start Up Of The Device
А – Power current socket "+" of bayonet type: B – Power current socket "‐" of bayonet type: 2. START UP OF THE DEVICE ATTENTION: Before starting up the device, please read section 11 "Safety rules". - 8 - PATON Standard DC MMA... -
Page 9: Intended Use
Pay attention to metal filings (which are generated, for example, during grinding), these should not be directly absorbed into the unit by the fan. - 9 - PATON Standard DC MMA... -
Page 10: Connecting To The Power Grid
"earth" cable into the source B "-" socket; connect the "earth" cable to the material; connect the power plug to the mains; set the power switch (5) on the rear panel to the "ON" position; - 10 - PATON Standard DC MMA... -
Page 11: Hot-Start" Function
Efficient Metal Transfer: The system facilitates superior droplet transition from the electrode to the weld pool, ensuring a smooth and flawless welding experience. - 11 - PATON Standard DC MMA... - Page 12 What helps to achieve this: When the voltage on the arc drops below the minimum allowable for stable arcing, the welding current increases by 30% of the set one (Fig. 4). Fig. 3. “HOT-START” function Fig. 4. “ARC-FORCE” function - 12 - PATON Standard DC MMA...
-
Page 13: Anti-Stick" Function
7.7 kVA Ø5 refractory not more than 250A 10 kVA Ø6 up to 350A 13 kVA ATTENTION: For trouble-free operation, the generator output voltage should not go beyond the permissible limits of 320-440V! - 13 - PATON Standard DC MMA... -
Page 14: Storage Conditions
- 1 pc; 3. Welding cable with ground terminal ABICOR BINZEL - 1 pc; 4. Shoulder strap - 1 pc; 5. User manual - 1 pc; 6. Branded corrugated box - 1 pc. - 14 - PATON Standard DC MMA... -
Page 15: Problem Solving
Wrong electrode polarity Reverse the polarity of the electrode (according to the electrode manufacturer) Poor weld quality (heavy spatter) Poor ground contact Fix the ground terminal as close as possible to the welding area - 15 - PATON Standard DC MMA... -
Page 16: Safety Rules
Ensure sufficient fresh air flow in the room. Do not allow solvent vapours to enter the welding arc area. - 16 - PATON Standard DC MMA... - Page 17 DANGER OF INTENSE NOISE The welding arc generated during welding can produce sound levels above 85 dB for up to 8 hours of working time. Welders working with the equipment must wear hearing protection during operation. - 17 - PATON Standard DC MMA...
-
Page 18: Electrical Scheme
12. ELECTRICAL SCHEME - 18 - PATON Standard DC MMA... -
Page 19: Warranty Obligations
WARRANTY PERIOD Standard-350-400V 3 years The main warranty period starts from the date of sale of the PATON™ inverter device to the end customer. During the warranty period, the distributor undertakes, free of charge to the owner of the PATON™ inverter device:... -
Page 20: Information On Disposal Of Used Equipment
If you wish to recycle the device, please contact your nearest retailer or contact the importer of the equipment, who will provide additional information. IMPORTER/AUTHORIZED DISTRIBUTOR - 20 - PATON Standard DC MMA...
