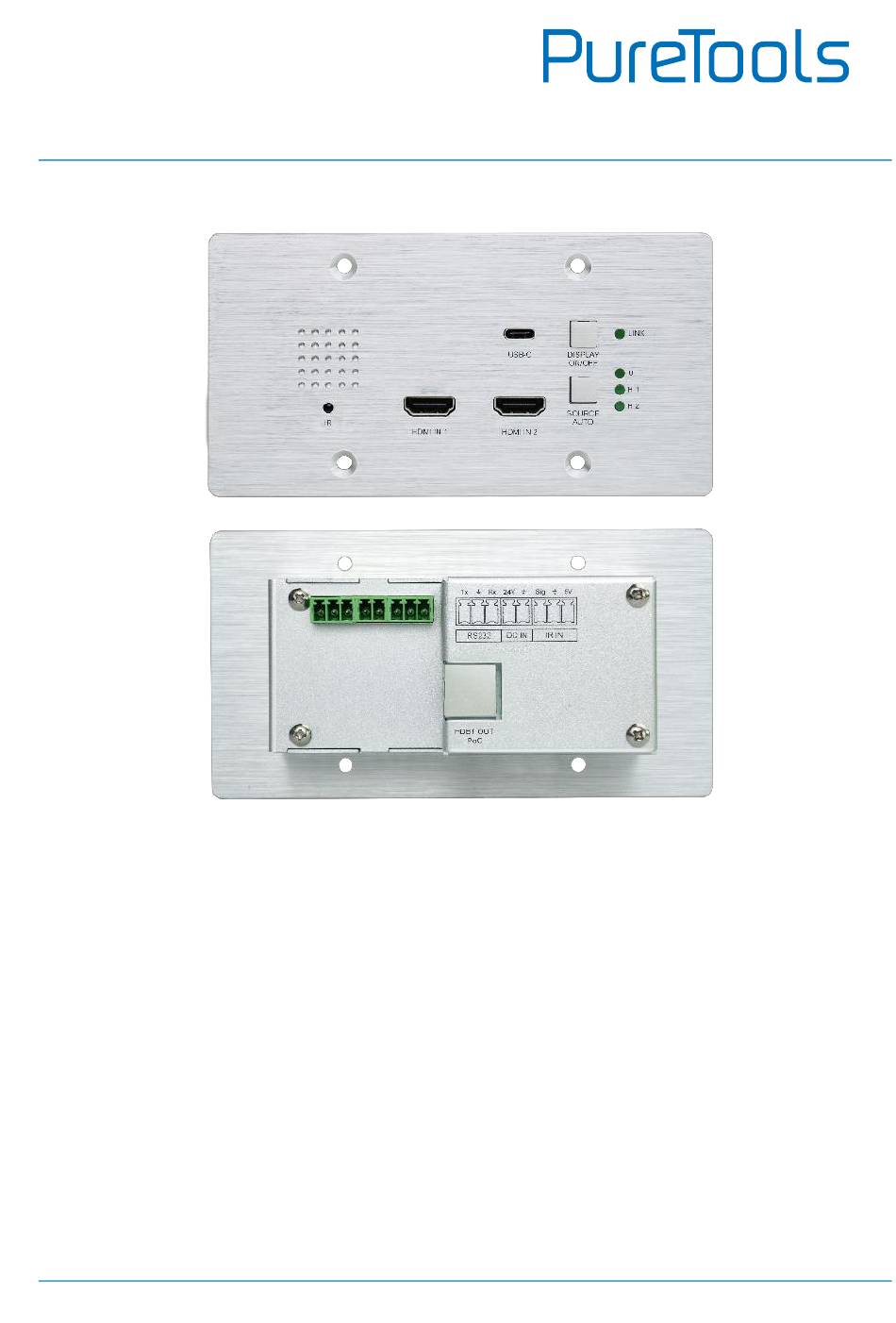

- Page 1 User Manual PT-HDBT-703-TXWP User Manual 3x1 HDBaseT Wallplate Transmitter, 2 x HDMI & 1 x USB C Inputs Model PT-HDBT-703-TXWP Designed in Germany © 2018 PureLink GmbH All rights reserved. V1.0...
- Page 2 Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment. REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-HDBT-703-TXWP complies with Directives 1907/2006/EU and 2011/65/EU.
- Page 3 EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-HDBT-703-TXWP complies with Directives 2014/30/EU and 2014/35/EU. The full text of the EU Declaration of Conformity is available at the following Internet address:...
- Page 4 User Manual PT-HDBT-703-TXWP SAFETY PRECAUTIONS To ensure the best performance from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ...
-
Page 5: Table Of Contents
User Manual PT-HDBT-703-TXWP Table of Content 1. Product Introduction ........................1 1.1 Features ..........................1 1.2 Package List ........................2 2. Specification ..........................3 3. Panel Description ........................4 3.1 Front Panel ......................... 4 3.2 Rear Panel .......................... 5 3.3 Side Panel ........................... 6 4. -
Page 6: Product Introduction
PT-HDBT-703-TXWP 1. Product Introduction Thanks for choosing the PT-HDBT-703-TXWP 3x1 Wallplate Transmitter Switcher, which is designed to switch and extend HDMI or Slimport input signal to far-end display device, and the transmission distance is up to 131ft/40m at 4K and 229ft/70m at 1080P video by using a single CATx cable. -
Page 7: Package List
User Manual PT-HDBT-703-TXWP 1.2 Package List 1x PT-HDBT-703-TXWP 1x 2-pin Terminal Block 2x 3-pin Terminal Blocks 1x Power Adapter (24V 1.25A) 1x User Manual Note: Please contact your distributor immediately if any damage or defect in the... -
Page 8: Specification
User Manual PT-HDBT-703-TXWP 2. Specification Input Input (2) HDMI, (1) USB-C (Slimport) Input Connector (2) Female type A HDMI, (1) Type-C USB HDMI Input Resolution Up to 4K/UHD@60Hz 4:2:0 Slimport Input Up to 4K/UHD@30Hz 4:4:4 Resolution Output Output (1) HDBT OUT... -
Page 9: Panel Description

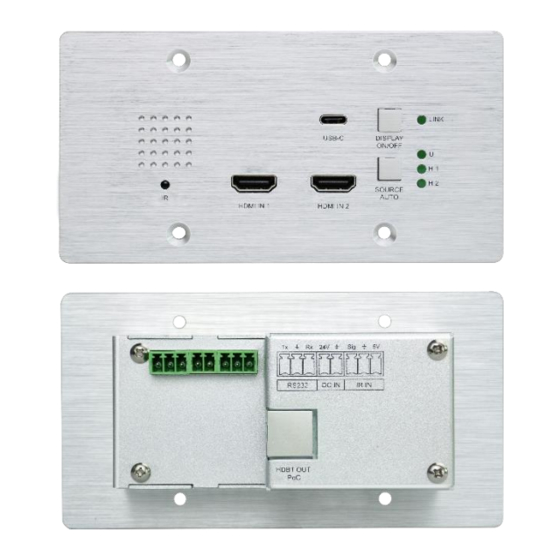

User Manual PT-HDBT-703-TXWP 3. Panel Description 3.1 Front Panel ① IR: Built-in IR sensor for IR learning feature. It doesn’t support IR pass-through. ② HDMI IN 1: Type-A HDMI port to connect HDMI source. ③ HDMI IN 2: Type-A HDMI port to connect HDMI source. -
Page 10: Rear Panel
User Manual PT-HDBT-703-TXWP ⑨ LINK LED: The LED illuminates green to indicate a successful data link with the HDBaseT receiver. 3.2 Rear Panel 2 3 4 ① HDBT (POC): RJ45 HDBaseT output port to connect to the HDBT IN port of the receiver by a CATx cable. -
Page 11: Side Panel
User Manual PT-HDBT-703-TXWP 3.3 Side Panel ① FIRMWARE: Micro-USB port for firmware upgrade. -
Page 12: System Connection
User Manual PT-HDBT-703-TXWP 4. System Connection Usage Precautions Make sure all components and accessories included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated ... -
Page 13: Button Control
User Manual PT-HDBT-703-TXWP 5. Button Control 5.1 Source Switching 1) Press the SOURCE AUTO button to switch to next source device, and then the corresponding input LED will turn green. 2) Press and hold the SOURCE AUTO button at least 3 seconds to enable auto... -
Page 14: Display Control
User Manual PT-HDBT-703-TXWP 5.2 Display Control 1) Press the DISPLAY ON/OFF button to turn on/off the display. 2) If the incompatible display device needs to be used with this switcher, the DISPLAY ON/OFF button can be programed by IR learning or RS232 command. For... -
Page 15: Rs232 Control
User Manual PT-HDBT-703-TXWP 6. RS232 Control 6.1 RS232 Connection According the RS232 control mode, there are two types of RS232 connection can be selected. ① When only control the local switcher, connect a control device (e.g. PC) to the RS232 port of the switcher, the connection diagram shown as below:... -
Page 16: Rs232 Control Software
Uninstallation: Delete all the control software files in corresponding file path. Basic Settings: Connect the PT-HDBT-703-TXWP with all input devices and output devices needed, then to connect it with a computer which is installed with RS232 control software. Double-click the software icon to run this software. - Page 17 User Manual PT-HDBT-703-TXWP The interface of the control software is showed as below: Parameter configuration area Monitoring area, show the commands and its feedback information. Command sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then you are able to send command in command sending area.
-
Page 18: Rs232 Command
User Manual PT-HDBT-703-TXWP 6.3 RS232 Command Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none 6.3.1 Device Control Command Function Feedback Example 50617% Restore factory default FACTORY RESET 50699% Get firmware version VERSION Vx.x.x... -
Page 19: Edid Management
User Manual PT-HDBT-703-TXWP 6.3.3 EDID Management The input resolution (EDID setting) can be set using RS232 commands to one of the options given in the following table. Command EDID Feedback Example 50768% 720P PCM 2CH EDID:720P, PCM 2CH EDID:720P, DOLBY/DTS PCM... -
Page 20: Cec Control
User Manual PT-HDBT-703-TXWP EDID:1920x1200, PCM 2CH EDID:3840x2160@60, 4:2:0 8BIT EDID: USER EDID: BYPASS 6.3.4 CEC Control The switcher also supports sending of a few common CEC commands using RS232 command code. Specific CEC command can also be sent from the switcher. The RS232 commands are as given in the following table. -
Page 21: Button User-Defined
User Manual PT-HDBT-703-TXWP 7. Button User-defined Press the DISPLAY ON/OFF button can turn on/off the display. If the incompatible display device needs to be used, the DISPLAY ON/OFF button can be programed by IR learning feature or RS232 command. IR learning feature: ... - Page 22 User Manual PT-HDBT-703-TXWP Programed by RS232 command: The DISPLAY ON/OFF button also can be defined to send control characters by following the below command format. Command Function Command Example Format k=0, Set the DISPLAY ON k=1, Set the DISPLAY OFF...
-
Page 23: Panel Drawing
User Manual PT-HDBT-703-TXWP 8. Panel Drawing 151.00 mm 70.00 mm 3.00 mm 39.10 mm 108.60 mm lower level 39.1mm 26.2mm... -
Page 24: Troubleshooting & Maintenance
User Manual PT-HDBT-703-TXWP 9. Troubleshooting & Maintenance Problems Potential Causes Solutions Color losing or no video signal output in HDMI display. The connecting cables No HDMI signal output in Check whether the cables may not be connected the device while local... -
Page 25: After-Sales Service
User Manual PT-HDBT-703-TXWP 10. After-Sales Service The return of a product implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. If there appear some problems when running the product, please check and deal with the problems referring to this user manual. - Page 26 User Manual PT-HDBT-703-TXWP...
- Page 27 User Manual PT-HDBT-703-TXWP...
- Page 28 User Manual PT-HDBT-703-TXWP Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
