- Page 1 User Manual PT-E-U34-D User Manual USB3 Cat Extender Hub (Device-Side) Model PT-E-U34-D Designed in Germany © 24.09.2024 PureLink GmbH All rights reserved. VersionV1.0...
-
Page 2: Fcc Statement
User Manual PT-E-U34-D Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 PT-E-U34-D REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-E-U34-D complies with Directives 1907/2006/EU and 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-E-U34-D complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-E-U34-D SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ...
-
Page 5: Table Of Contents
User Manual PT-E-U34-D Contents 1.Product Introduction ........................1 1.1 Introduction ........................1 1.2 Feature ..........................1 1.3 Package List ........................1 2. Panel Description ........................2 3. Specification ..........................4 4. System Diagram ........................... 5 5. HDBT-USB3 ........................... 6 6. After-Sales Service ........................7... -
Page 6: Product Introduction

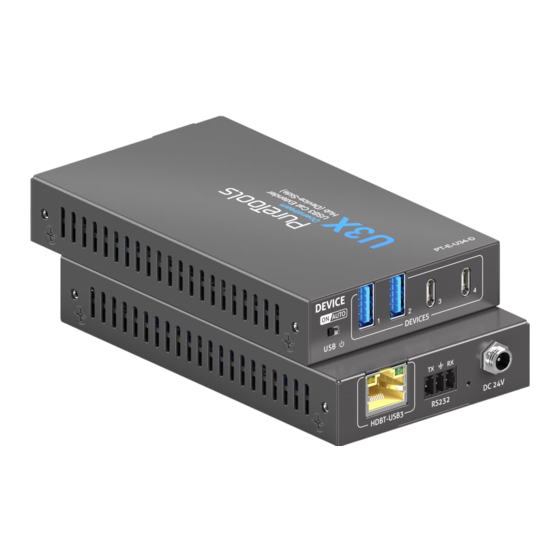

1.Product Introduction 1.1 Introduction The PT-E-U34-D is a USB3.2 Gen1 Cat extender hub (Device-Side). The extender is designed to transmit USB signal up to 100m distance. It is the device side of the extender, with USB power management and containing four USB ports. The extender also supports two-way 24V PoC power supply. -
Page 7: Panel Description
User Manual PT-E-U34-D 2. Panel Description Front Panel Name Description DIP switch for USB device ports power settings: AUTO(Default): Follow Host, USB device ports will only USB power ① output power when a host is actively connected; ON: USB device ports output power all the time. - Page 8 User Manual PT-E-U34-D Rear Panel Name Description 1x RJ45 port for connecting with the device unit of the extender; HDBT- ① USB3 The yellow light indicates the connection status of the HDBT, and the green LED is the data light.
-
Page 9: Specification
5V 3A total, limit 1.7A per port. USB Version USB 3.2 Gen1 Number of Hub chips 1 internal +1 additional for extension System example PT-E-U3CPD-H + PT-E-U34-D = 3 Hub chips total Control Control 1x USB power switch Control Connector 1x DIP switch... -
Page 10: System Diagram
User Manual PT-E-U34-D 4. System Diagram... -
Page 11: Hdbt-Usb3
User Manual PT-E-U34-D 5. HDBT-USB3 The RJ45 port is used for data transmission and supports 24V PoC power supply and 12-48V power supply. The yellow light indicates the connection status, and the green light indicates the data transmission status. Status... -
Page 12: After-Sales Service
User Manual PT-E-U34-D 6. After-Sales Service If there are some problems when running the product, please check and deal with the problems by referring to this user manual. Any transport costs are borne by the users during the warranty period. -
Page 13: Asking For Assistance
User Manual PT-E-U34-D Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
