Epilog Laser Fusion Pro 32 Manual page 2

16000 - X-Axis Replacement
X-Axis Assembly
Replacement

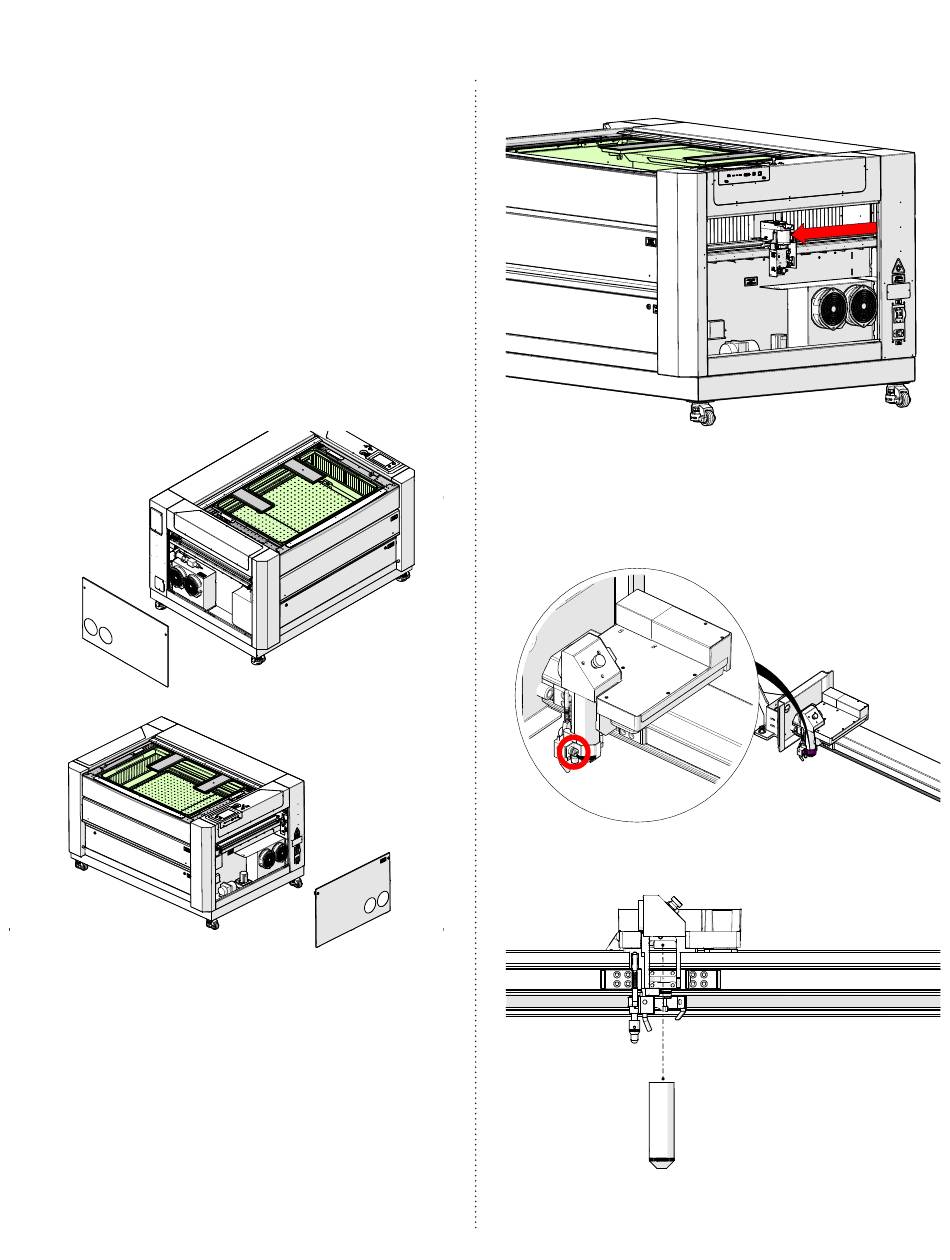

X-Axis Assembly Removal
1. Turn off the engraver.
2. Disconnect engraver from power
source.
3. Remove the left and right panels of
the engraver by loosening the 5/32"
cam locks:
4. Manually move the x-axis assembly to
the middle of the engraver:
5. Loosen the Phillips screw on the lens
tube retaining collar. Make sure to
hold the lens tube to ensure that it
does not fall:
6. Remove the lens tube:
2
