MR-2300 Series

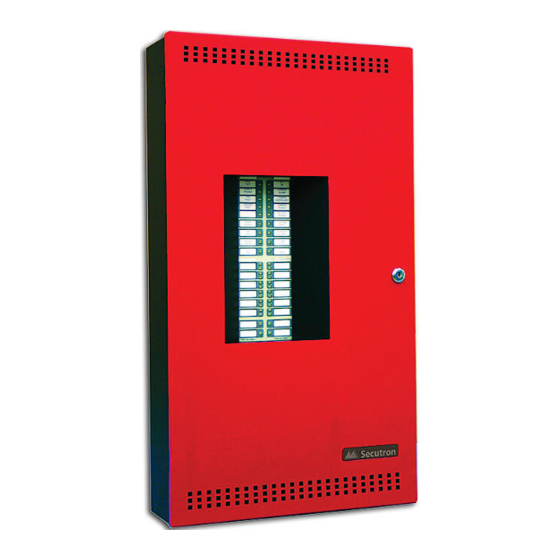

LED Fire Alarm Control Panel
Installation and Operation Manual
LT-905SEC Rev. 4
June 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MR-2300T and is the answer not in the manual?

Questions and answers

Related Manuals for Secutron MR-2300T

Summary of Contents for Secutron MR-2300T

  • Page 1 MR-2300 Series LED Fire Alarm Control Panel LT-905SEC Rev. 4 Installation and Operation Manual June 2023...

  • Page 3: Table Of Contents

    Table of Contents Industry Canada and FCC Notice Notice for all MR-2300 LED Series Built-In UDACTs Sold in Canada ......Industry Canada Notice ....................Notice for all MR-2300 LED Series Built-in UDACTs Sold in the U.S.A......Introduction Overall Features ......................Conventions Circuits ...........................
  • Page 4 MR-2300-PR Polarity Reversal and City Tie Module ............. Annunciators ........................MR-2312-SR12/MR-2312-SW12 Smart Relay Module ..........MR-2300T Remote Trouble Indicator ................Field wiring Main Fire Alarm Board Field Wiring ................Relay Adder Module Wiring ................... Connecting to a 3G4010 Interface Device for Canada ..........
  • Page 5 11.4 Config Info (Command-Menu ..................11.5 Set Time (Command-Menu) ..................11.6 Change password (Command-Menu) ................11.7 View Event Log (Command-Menu) ................11.8 Clear Event Log (Command-Menu) ................11.9 Walk Test (Command-Menu) ..................11.10 i3 Loop Test (Command-Menu) ..................11.11 Dialer Config (Command-Menu) ..................11.12 Test Dialer (Command-Menu) ..................
  • Page 6 List of Figures Figure 1 MR-2312-LDR ........................ Figure 2 Box dimensions ......................Figure 3 Box dimensions, semi-flush mounting and trim ring ............Figure 4 Flush trim detail (from above) ..................Figure 5 MMX-BBX-1024DS and MMX-BBX-1024DSR Installation Instructions and Dimensions Figure 6 Installation of Adder Modules ..................
  • Page 7 Figure 44 Logs cleared ........................Figure 45 Walk test confirmation ....................Figure 46 Walk test zones ......................Figure 47 Walk test active ......................Figure 48 i3 loop test confirmation ....................Figure 49 i3 test zones ........................Figure 50 i3 test not ready ......................Figure 51 The selected zone is not i3 type ..................
  • Page 8 List of Tables Table 1 MR-2300 LED Series Comparison Chart ............... Table 2 Power Supply Ratings ....................Table 3 Initiating Circuit Wiring ....................Table 4 Indicating Circuit Wiring ....................Table 5 RS-485 Wiring to Annunciators and other Devices ............Table 6 Alarm Circuit Indicators ....................

  • Page 9: Industry Canada And Fcc Notice

    Notice for all MR-2300 LED Series Built-In UDACTs Sold in Canada Secutron’s MR-2300 LED Series BUILT-IN UDACT Communicator described in this manual is listed by Underwriters Laboratories Canada (ULC) for use in slave applications in conjunction with a Listed Fire Alarm Control Panel under Standard ULC-S527-11 (Standard for Control Units for Fire Alarm Systems) and CAN/ULC-S561-13 (Standard for Installation and Services for Fire Signal Receiving Centres and Systems).
  • Page 10 Communicators should be installed in accordance with this manual; the National Electrical Code (NFPA 70); and/or the local Authority Having Jurisdiction (AHJ). 1.3.1 FCC Notice This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA.

  • Page 11: Introduction

    Introduction Secutron’s MR-2300 LED Series Fire Alarm Control Panel is a Digital Signal Processor (DSP)- based fire panel. The MR-2300 provides a maximum of 12 supervised Class B or A Initiating circuits, and maximum four supervised Class B or A indicating circuits. All circuits are supervised for opens and ground faults, and indicating circuits are supervised for shorts.

  • Page 12: Conventions

    Conventions Circuits Refers to an actual electrical interface for Initiating (Detection) and Indicating (Signal or NAC) or Relays. Zone Is a logical concept for a Fire Alarm Protected Area, and consists of at least one circuit. Often the terms zone and circuit are used interchangeably, but in this manual circuit refers only to a physical electrical loop.

  • Page 13: System Components

    Alarm Relay (disconnectable), an RS-485 Interface for Remote Annunciators, a Resettable Four Wire Smoke Detector Power Supply, and a non-resettable auxiliary supply. • Used with Secutron BAT-12V12A (12 Amp-hour) batteries (two required). Table 1 MR-2300 LED Series Comparison Chart Model...

  • Page 14: Relay Module: Twelve Relays

    Relay Module: Twelve Relays Model Description Twelve relay adder MR-2312-R12 module RELAY 1 RELAY 2 RELAY 4 RELAY 5 RELAY 6 RELAY 8 RELAY 9 RELAY 10 RELAY 12 RELAY 3 RELAY 7 RELAY 11 NO/NC NO/NC NO/NC NO/NC NO/NC NO/NC NO/NC NO/NC...

  • Page 15: Input Class A Converter: Six Circuits

    Input Class A Converter: Six Circuits Model Description Input Class A converter Module (six circuits). This MR-2300-A module has built in Active End-of-Line resistors. Output Class A Converter: Four Circuits Model Description MR-2300-NC4 Output Class A converter module (four circuits) Output Class A Converter: Two Circuits Model Description...

  • Page 16: Remote Annunciators

    4.10 Remote Annunciators Model Description Remote Annunciator module, LCD display, white painted MR-2300-LCDW Remote Annunciator Module, LCD display, red painted MR-2300-LCDR MR-2312-ATW 16 Zone remote annunciator, white enclosure MR-2312-ATR 16 Zone remote annunciator, red enclosure MR-2306-ATW 8 Zone remote annunciator, white enclosure MR-2306-ATR 8 Zone remote annunciator, red enclosure Model RAM-1032TZDS Main Chassis Remote...

  • Page 17: Additional Fire Alarm System Accessories

    4.12 Additional Fire Alarm System Accessories MR-2300T Remote Trouble Indicator ULC and ULI Approved MP-300 End-of-line resistor plate, 3.9K ohm ULC and ULI Approved MP-300R End-of-line resistor plate, red ULC Approved MMX-BC-160R External Battery Cabinet ULC and ULI Approved RAM-1016TZDS...

  • Page 18: Mechanical Installation

    Mechanical Installation Installing the Enclosure Install the MR-2300 LED Series Fire Alarm Panel enclosure as shown below. Mount enclosure surface mount using the four mounting holes, as shown and the screws provided. Mounting Holes for Surface Mounting Mounting Holes for Surface Mounting Figure 2 Box dimensions...

  • Page 19: Figure 3 Box Dimensions, Semi-Flush Mounting And Trim Ring

    flush mount the backbox into the wall. Peel the adhesive cover from the trim ring and stick to the wall surface around the backbox, after wall is finished. PLACE MR-2312-FT TRIM RING OVER BACKBOX Mounting Holes for Surface Mounting 17” 14.5”...

  • Page 20: Mmx-Bbx-1024Ds And Mmx-Bbx-1024Dsr Mechanical Installation

    MMX-BBX-1024DS and MMX-BBX-1024DSR Mechanical Installation The MMX-BBX-1024DS and MMX-BBX-1024DSR are suitable for flush or surface mounting, and have a built-in trim ring. Dimensions of Enclosure (minus built in trim ring) 14.5” x 4.2” x 26” Distance between horizontal mounting screws 12”...

  • Page 21: Installing The Adder Modules

    Installing the Adder Modules MR-2300 LED Series Fire Alarm panels come pre-assembled with all components and boards except for Adder Modules. Module installation locations are shown in Figure 6. Refer to Figure 7 on the next page for jumper and DIP switch settings and see section on page 37 for wiring specifications.

  • Page 22: Cable And Jumper Connections For Main Board And Adder Modules

    Cable and Jumper Connections for Main Board and Adder Modules Main Fire Alarm Board For PC programming use For PC programming use not UL-864 or ULC-S527 listed. Please refer to Main Fire Alarm Board Core Board Document LT- for details JW4 -Normally closed JW5 -Normally open Telephone line #1...

  • Page 23: Mr-2300-A Input Class A Converter Adder Module

    6.1.1 Connectors and Jumpers on the Main Fire Alarm Board Cable from P1 of the MR-2300-PR Polarity Reversal and City Tie Module connects here. Otherwise not used. Cable from connector P1 of the MR-2312-R12 or MR-2306-R6 Relay Adder Module connects here. Otherwise not used. On the Main Fire Alarm Module, this jumper must be removed if a MR-2300- PR Polarity Reversal and City Tie Module is installed.

  • Page 24: Mr-2300-Nc4/Mr-2300-Nc2 Output Class A Converter Adder Module

    There are no jumpers or cables to set on this module, just wiring from the converter (wires are fixed here) to the Main Fire Alarm Board. Initiating circuits must be wired from the MR-2300-A module to the Main Fire Alarm board. For example, Initiating circuit 1 positive (red) and negative (black) wires are connected to the positive and negative terminals (respectively) of Initiating circuit 1 on the Main Fire Alarm Board.

  • Page 25: Figure 10 Mr-2312-R12 Twelve Relay Adder Module

    relays. The jumpers located below the relays are used to select either normally open contacts or normally closed contacts. Connect to P6 on the main fire alarm board INDIVIDUAL GREEN RELAY STATUS LEDs RELAY 1 RELAY 2 RELAY 4 RELAY 5 RELAY 6 RELAY 8 RELAY 9...

  • Page 26: Mr-2300-Pr Polarity Reversal And City Tie Module

    jumpers located below the relays are used to select either normally open contacts or normally closed contacts. Connect to P6 on the INDIVIDUAL GREEN main fire alarm board RELAY STATUS LEDs RELAY 1 RELAY 2 RELAY 4 RELAY 5 RELAY 6 RELAY 3 mounting hole mounting hole...

  • Page 27: Annunciators

    MR-2312-SR12/MR-2312-SW12 Smart Relay Module Connect MR-2312-SR12/MR-2312-SW12 to the RS-485 terminals and to auxiliary power. Use class B wiring for RS-485. For instructions, see LT-1001SEC. MR-2300T Remote Trouble Indicator Connect the MR-2300T to the port labeled RTI-1. For instructions, see LT-388SEC.

  • Page 28: Field Wiring

    Field wiring Main Fire Alarm Board Field Wiring Wire devices to the terminals as shown in the figures that follow. Refer to the Wiring Tables for wire gauges and to Appendix A for specifications. Caution: Do not exceed power supply ratings. 7.1.1 Initiating Circuit Wiring Class B Wiring diagrams for the initiating circuits are shown below.

  • Page 29: Figure 15 Initiating Circuit- Class A Wiring

    7.1.2 Initiating Circuit Wiring Class A CLASS A CONVERTER MODULE CLASS A WIRING FIRE ALARM MAIN BOARD INITIATING CIRCUIT - 1 ALARM ZONE INITIATING CIRCUIT #1 INITIATING CLASS A CIRCUIT #2 WIRING INITIATING CIRCUIT - 2 SUPERVISORY 4 MORE INITIATING CIRCUITS NOT SHOWN ZONE PHOTO...

  • Page 30: Figure 16 Indicating Circuit - Class B Wiring

    FIRE ALARM MAIN BOARD CLASS B WIRING INDICATING INDICATING CIRCUIT - 1 CIRCUIT #1 INDICATING CLASS B CIRCUIT #2 WIRING INDICATING CIRCUIT - 2 BELL STROBE HORN WATT ELR Figure 16 Indicating circuit – Class B wiring CLASS A CONVERTER MODULE CLASS A FIRE ALARM MAIN BOARD WIRING...

  • Page 31: Figure 18 Four-Wire Smoke Detector - Class B Wiring

    7.1.4 Four Wire Smoke Detector Wiring FIRE ALARM MAIN BOARD POWER RESETTABLE 4-WIRE SMOKE DETECTOR POWER SUPPLY 22VDC, 200mA MAX. CURRENT - 300mA MAX. RIPPLE VOL. 5mV (POWER LIMITED) DETECTION END OF LINE RELAY 4-WIRE DETECTION DEVICE LISTED S3403 MODEL A77-716B TO INITIATING MANUFACTURED BY CIRCUIT...

  • Page 32: Relay Adder Module Wiring

    Relay Adder Module Wiring Wire relays on the relay adder modules MR-2312-R12 and MR-2306-R6 as shown in Figures 19 and 20. Figure 20 Relay per zone (MR-2312-R12) Terminal connection Figure 21 Relay per zone (MR-2306-R6) Terminal connection...

  • Page 33: Connecting To A 3G4010 Interface Device For Canada

    Connecting to a 3G4010 Interface Device for Canada A typical connection is shown in Figure 22. The PCS-100 Passive Communications Interface Board (sold separately) is required. For information on Compatible DACR Receivers see Appendix A: Compatible Receivers. MR-2300 - 3G4010 Connection - Typical Diagram To GSM/GPRS Telephone Line A...

  • Page 34: Connecting To A 3G4010Cf Interface Device Outside Canada

    Connecting to a 3G4010CF Interface Device outside Canada For information on Compatible Receivers see Appendix A: Compatible Receivers. A typical connection is shown in Figure 23. The 3G4010CF is powered separately from the PCS-100 and requires 2 DSC RM-2 relays (sold separately). The PCS-100 Passive Communications Interface Board (sold separately) is also required.

  • Page 35: Polarity Reversal And City Tie Module (Mr-2300-Pr) Wiring

    Polarity Reversal and City Tie Module (MR-2300-PR) Wiring Wire MR-2300-PR Polarity Reversal and City Tie Module (if used) as shown in Figure 24, below. See Appendix A: Compatible Receivers for module specifications. Power Limited cable type FPL, FPLR or FPLP must be used. For USA installation, the installer must use Atlantic Scientific (Tel: 407-725-8000), Model #24544 Protective Device, or similar UL-Listed QVRG secondary protector, as shown.

  • Page 36: Power Supply Connection

    Power supply connection The power supply is part of the Main Chassis. The ratings are: Table 2 Power Supply Ratings Type Rating Electrical Input rating 120VAC, 60Hz, 3A\ 240 VAC, 50 Hz, 1.5A Power supply total current 6A maximum Battery fuse on Main 10A, slow blow micro fuse module Caution:...

  • Page 37: Wiring Tables And Information

    Wiring Tables and Information The numbers in these tables represent the entire loop length. Table 3 Initiating Circuit Wiring Wire gauge Maximum wiring run to last device Feet Meters 2990 4760 1450 7560 2300 12000 3600 19000 5800 30400 9200 Notes: For Class A the maximum wiring run to the last device is divided by two.

  • Page 38: Four-Wire Smoke Power

    Table 5 RS-485 Wiring to Annunciators and other Devices Wire gauge Maximum wiring run to last device Feet Meters 2000 609.6 4000 1219.2 8000 2438.4 Notes: Use twisted shielded pair, 300mA power limited. Maximum 40 loop resistance Four-Wire Smoke Power 4-wire smoke power is provided for 4-wire smoke detectors.

  • Page 39: Turning On The Panel

    Turning on the Panel Before Connecting the Power 1. To prevent sparking, do not connect the batteries. Connect the batteries after powering the system from the main AC supply. 2. Check that all modules are installed in the proper location with the proper connections. 3.

  • Page 40: Figure 26 Battery Connections

    J W 1 blue red slow blow B ATTE RY SEC. TX brown 240 VAC 50Hz 120 VAC 60Hz blue on white green Battery Battery NOTE: TO PREVENT SPARKING, CONNECT BATTERIES AFTER THE SYSTEM MAIN A.C. POWER IS TURNED ON Figure 26 Battery connections All indicators should be off except for the green A.C.

  • Page 41: Troubleshooting

    Troubleshooting Symptoms Possible Cause Normally when a circuit trouble occurs, its designated trouble indicator is illuminated, as well as the COMMON TROUBLE indicator and trouble buzzer. To correct the fault, Circuit check for open wiring on that particular circuit loop, and check that the circuit is not Trouble disconnected or bypassed.

  • Page 42: Indicators, Controls And Operations

    Indicators, Controls and Operations Refer to Figure 27 below for LED Indicator and Control Button locations. W ALK A.C. TE S T RE MO TE CO MMO N TRO UBLE ALARM CO MMO N CP U FAULT S UP V GRO UND CO MMO N FAULT...

  • Page 43: Common Indicators

    The Main Display Panel on the Main Fire Alarm Control Board consists of: • 18 common LED Indicators (top half of display) • 8 Common Buttons (top half of display) • Up to 12 Initiating Circuit Alarm LEDs and 12 Initiating Circuit Trouble LED Indicators •...
  • Page 44 9.1.4 COMMON SUPERVISORY LED The amber COMMON SUPERVISORY LED illuminates steadily when there is a Supervisory Alarm in the panel caused by any Latching or Non-Latching Supervisory Circuit. The LED is turned of when all Non-Latching Supervisory Circuits are restored and there are no active Latching Supervisory Circuits.
  • Page 45 9.1.10 WALK TEST LED The amber WALK TEST LED illuminates steadily to indicate that the panel is in Walk Test Mode. If the panel is left in this mode for over an hour with no operator activity, the panel returns to normal and the WALK TEST LED turns off. 9.1.11 CPU FAULT LED The amber CPU FAULT LED flashes approximately ¼...

  • Page 46: Indicating Circuit Indicators

    Indicating Circuit Indicators The panel has 1 indicator for each of the 12 initiating circuits (shown in Figure 27). Each indicator has a button and 2 LEDs, shown in Figure 28. Circuit Circuit Status LED Disconnect Z O NE -1 Circuit Trouble LED DIS CO NNE CT Button...

  • Page 47: Table 8 Property And Building Safety Indicators

    Table 7 Supervisory Circuit Indicators (Continued) Activated circuit reconnected (when you Fast flash rate (red) for 5 press the Disconnect button a second seconds to indicate a time) pending alarm Event Circuit Trouble LED Configuration Flashes at the trouble rate Open circuit (Class B) (amber) Flashes at the trouble rate...

  • Page 48: Signal Circuit Indicators

    Table 9 Trouble-only Circuit Indicators Event Circuit Trouble LED Configuration Flashes at the trouble rate Open circuit (Class B) (amber) Flashes at the trouble rate Open circuit or Class A trouble (amber) Trouble Only Flashes at the trouble rate Disconnected (Class A) (amber) Flashes at the trouble rate Short Circuit...
  • Page 49 • Turns off Fire Drill • Stops and resets all timers • Processes inputs as new events • Does not affect Auxiliary Disconnect • Reset cannot be activated until the Signal Silence Inhibit timer has expired 9.4.2 SIGNAL SILENCE Button Press the SIGNAL SILENCE button when the panel is in alarm to turn on the SIGNAL SILENCE LED and deactivate any Silenceable Indicating Circuits.

  • Page 50: Circuit (Zone) Disconnect Buttons

    9.4.7 LAMP TEST Button Press the LAMP TEST button to cause all front panel LEDs (except the CPU FAULT LED) to illuminate steadily and turn the buzzer on. If Lamp Test is active for more than 10 seconds, Common Trouble is activated. Press and hold the LAMP TEST for 3 seconds to show the information about the system and the firmware version as shown below.

  • Page 51: Common Relays

    Common Relays 9.6.1 Auxiliary Alarm Relay The Auxiliary Alarm Relay functions the same way as the Common Alarm Relay in every respect except that it can be disconnected by Auxiliary Disconnect with or without other correlated relays if it is programmed to do so (see section 11.0 on page 60). When configured, the relay can also be disconnected if signal silence is active and reconnected if signal silence is de-activated.
  • Page 52 9.7.3 Verified Alarm Verified Alarms are verified by a reset and timing procedure, and may include smoke detectors, heat detectors or pull stations. Activation of pull stations or heat detectors results in an alarm condition in the Fire Alarm Control Panel within four seconds. Smoke detectors are verified for a real alarm within 60 seconds, depending upon the startup time of the devices being used.

  • Page 53: Indicating (Signal) Circuit Types

    Annunciator General Alarm button. In a single stage system, these inputs act the same as Non-Verified Alarms; however, if Correlations are enabled, General Alarm Initiating Circuits are correlated to ALL indicating circuits. 9.7.9 Property and Building Safety This is a supervised general-purpose non-latching input used mainly for correlating to a relay circuit associated with property and building safety.

  • Page 54: Single Stage Operation

    March Code 0.5 second on, 0.5 second off California Code 5 seconds on, 10 seconds off 9.9.2 Two-step codes Alert Code 0.5 second on, 2.5 seconds off General Alarm Evacuation Code as selected from above. Continuous 0.5s 1.5s Temporal Code 0.5s 0.5s March Code...

  • Page 55: Two-Stage Operation

    Silence Indicator is turned off, and the Auto Signal Silence Timer, if configured, is restarted. • Any additional non-disconnected strobes associated with the new input are activated continuously • Any additional non-disconnected signals associated with the new input are activated at the evacuation rate 9.11 Two-stage Operation...
  • Page 56 • If the panel is not already in General Alarm and if the AUTOMATIC ALARM SIGNAL CANCEL LED is on steady, indicating that the Auto General Alarm Timer has been acknowledged, the timer is restarted and the AUTOMATIC ALARM SIGNAL CANCEL LED is extinguished (or blinks if it has been configured to blink).

  • Page 57: Supported Protocols/Devices

    10.0 Supported Protocols/Devices 10.1 Synchronous Strobes A separate compatibility list is available for different supported models. Strobes can be configured as normal (not synchronized or any of the above; see section 11.0 on page 60). Any selection made is system-wide (that is, whatever is selected applies to all the circuits in the system, configured as strobes).

  • Page 58: Figure 31 Open Circuit Trouble

    • Communication trouble • Out of sensitivity: defective or dirty device • Freeze trouble 10.2.2 Open Circuit Trouble If the loop is broken the panel shows open loop trouble. The panel can still communicate with the devices depending upon where the open occurs. Z o n e - 1 O p e n T r b .

  • Page 59: Figure 35 Freeze Trouble

    10.2.6 Freeze Trouble If the device has detected a freeze condition, (e.g. the temperature is below 41F / 5 C) then the panel displays a freeze trouble. Only model 2WT-B is capable of thermal detection; model 2W-B does not indicate any freeze trouble. Z o n e - 1 F r e e z e T r b .

  • Page 60: Configuration With The Cfg-300 Lcd Service Tool

    11.0 Configuration with the CFG-300 LCD Service Tool Table 12 Settings permitted in CAN/ULCS527 NOTICE TO USERS, INSTALLERS, AUTHORITIES HAVING JURISDICTION, AND OTHER INVOLVED PARTIES This product incorporates field-programmable software. In order for the product to comply with the requirements in CAN/ULCS527, Standard for Control Units for Fire Alarm Systems, certain programming features or options must be limited to specific values or not used at all as indicated below.

  • Page 61: Table 13 Settings Permitted In Ul864

    Table 13 Settings permitted in UL864 NOTICE TO USERS, INSTALLERS, AUTHORITIES HAVING JURISDICTION, AND OTHER INVOLVED PARTIES This product incorporates field-programmable software. In order for the product to comply with the requirements in UL864, Standard for Control Units and Accessories for Fire Alarm Systems, certain programming features or options must be limited to specific values or not used at all as indicated below.

  • Page 62: Accessing Configuration Mode

    This chapter describes how to configure an MR-2300 LED Series Fire Alarm Panel with the CFG-300 LCD service tool. Figure 36 shows the function of the buttons on the front panel display. W ALK A.C. TE S T RE MO TE CO MMO N TRO UBLE ALARM...

  • Page 63: Command Menu

    4. Press the ENTER button. The main command menu appears. 5. If the passcode is wrong, the system prompts you to re-enter the passcode. After three tries the system takes you back to the normal message display. Enter passcode Figure 37 Enter passcode 11.2 Command Menu The command menu is shown in Figure 38.

  • Page 64: Mr-2300 Config (Command-Menu)

    11.2.1 Using the Keypad to Program the MR-2300 1. Access the configuration mode as described in section 11.0 above. 2. Press ENTER to select an option. The corresponding menu appears. 3. Press the up and down arrow buttons to scroll through the menu. 4.

  • Page 65: Figure 40 Feature Config Menu

    11.3.1 Command Menu/MR-2300 Config -->Features Select Features to access the Feature Config menu shown in Figure 40. - Feature Config - 1 Man. Sig. Sil. 2 Fire Drill 3 Opt. Ckt. Corr 4 Wtr/Sprk. Retd 5 Aux Disc Prog 6 Sig-Sil Inh Tm 7 Aux Dis, Alm&Sup 8 Auto Sil.
  • Page 66 Table 14 Feature Config Menu (Continued) Name in the MR-2300 Feature Default Description Configuration Utility Command Menu/MR-2300 Config/Features/ 3.Output Circuit Correlation If enabled, the programmed correlations (see section 11.3.5 on page 72) are effective. O p t . C k t . C o r r . [X] DISABLE->Default Signal correlations If disabled, the programmed...
  • Page 67 Table 14 Feature Config Menu (Continued) Name in the MR-2300 Feature Default Description Configuration Utility Command Menu/MR-2300 Config/Features/ 7. AUXILIARY DISCONNECT If enabled, the Common Alarm Relay and the Common disconnects Alarm Relay and Supervisory Relay, in addition to Supervisory Relay the Auxiliary Alarm Relay, are disconnected when you press AUXILIARY DISCONNECT (see...
  • Page 68 Table 14 Feature Config Menu (Continued) Name in the MR-2300 Feature Default Description Configuration Utility Command Menu/MR-2300 Config/Features/ 13.Signal Isolators Enable this function only when [ ] ENABLE Isolators on signal S i g - S i l . I s o l a t o r suite isolators are used (Canada circuits [X] DISABLE->Default...
  • Page 69 Table 14 Feature Config Menu (Continued) Name in the MR-2300 Feature Default Description Configuration Utility Command Menu/MR-2300 Config/Features/ 18. Auto General Alarm Timer [X] DISABLE->Default [ ] 5 Min This function is used for two- [ ] 10 Min stage systems only. This function A u t o G e n - A l a r m T i m e r General alarm Timer sets the time period for automatic...
  • Page 70 Note: Refer to section 11.2.1 on page 64 for detailed instructions on making menu selections. 11.3.2 Command Menu/MR-2300 Config -->Inp Zone I n i t i a t i n g Z o n e 1 Z o n e - 1 2 Z o n e - 2 1 2 Z o n e 1 2 This Inp Zone menu is used to program the process type for the initiating circuits.
  • Page 71 11.3.3 Command Menu/MR-2300 Config -->I3 Zone I 3 D e t e c t i o n Z o n e s [ ] Zone-1->Default [ ] Z o n e - 1 Use this menu if i devices [ ] Z o n e - 2 are present on a zone.
  • Page 72 Note: Refer to section 11.2.1 on page 64 for detailed instructions on making menu selections. 11.3.5 Command Menu/MR-2300 Config-->Correlation Command Menu/MR-2300 Config/ Correlation 1.Correlation Z o n e - 1 C o r r . Use this menu to correlate [ X ] N A C - 1 [X] NAC-1 ->Default initiating circuits to...
  • Page 73 Command Menu/MR-2300 Config/Ipt. Zone Label 1.Initiating zone label [Zone-1 ]->Default Zone-1 Label [Zone-12 ]->Default Zone-1 BYPASS SWITCH TRANSLATION KEY SEQ 1 2 3 4 KEY SEQ 1 2 3 4 -------------------------------------- Zone-1 0 Q Z Zone-2 1 Zone-3 2 A B C Zone-4 3 D E F Zone-12 Label Zone-5...
  • Page 74 1.Indicating zone label [NAC-1 ]->Default NAC-1 Label [NAC-4 ]->Default NAC-1 BYPASS SWITCH TRANSLATION KEY SEQ 1 2 3 4 KEY SEQ 1 2 3 4 -------------------------------------- Zone-1 0 Q Z Zone-2 1 Zone-3 2 A B C Zone-4 3 D E F NAC-4 Label Zone-5 4 G H I Zone-6 5 J K L...

  • Page 75: Config Info

    11.4 Config Info (Command-Menu Note: Refer to section 11.2.1 on page 64 for detailed instructions on making menu selections. Configuration type shows how the panel was configured. Configuration type: Factory default means the panel has not been configured; it is as it came from the factory. Factory default Front Panel means it was configured at the panel.
  • Page 76 1 Daylight Save 2 Time Clock 3 Compensation Command Menu/Set Time 1. Daylight saving time [X] DISABLE ->Default Use this menu to enable daylight savings time. Daylight Saving [ ] ENABLE [X] DISABLE Use this menu to set the Command Menu/Set Time time and date.

  • Page 77: Change Password (Command-Menu)

    11.6 Change password (Command-Menu) Note: Refer to section 11.2.1 on page 64 for detailed instructions on making menu selections. Enter new passcode Re-enter passcode Use this menu to change If the passcode does not match, the the passcode. The minimum following message appears: number of digits is 4 and the 1 ->...

  • Page 78: Clear Event Log (Command-Menu)

    11.8 Clear Event Log (Command-Menu) Note: Refer to section 11.2.1 on page 64 for detailed instructions on making menu selections. Use this menu to clear alarm logs, event logs, or both. -Select Log- 1 Alarm Log 2 General Log 3 All Logs Figure 42 Select Log 1.

  • Page 79: Figure 46 Walk Test Zones

    Press the ENTER button to activate the walk test and the CANCEL button to cancel the walk test. The next screen allows zones to be selected for walk test. Use the up and down arrow buttons to scroll through the zones and use the left and right arrow buttons to select a zone. Press the ENTER button when you are done with all the selections.

  • Page 80: I3 Loop Test (Command-Menu)

    11.10 Loop Test (Command-Menu) Note: Refer to section 11.2.1 on page 64 for detailed instructions on making menu selections. The i maintenance test is designed to test the devices on i zone. If there is noise on the line or if the device is too far away from the panel, the devices may not respond to the panel inquiries.

  • Page 81: Dialer Config (Command-Menu)

    make sure all the devices are working properly. The following table lists the status of the devices while in walk test. Table 15 i3 Detector Statuses Green LED Red LED Detector Condition Proper operation Double blink every 5 sec Out of sensitivity Double blink every 5 sec Freeze condition Double blink every10 sec...
  • Page 82 11.11.1 Command Menu/Dialer Config-->Account Info - A c c o u n t I n f o - 1 A c c o u n t # 1 I D 2 A c c o u n t # 1 T e l 3 A c c n t # 1 F o r m a t 4 A c c o u n t # 2 I D 5 A c c o u n t # 2 T e l...
  • Page 83 Command Menu/Dialer Config/Account Info 4. Account# 2 Identification A c c o u n t # 2 I D : Same as Account#1. 654321->Default Command Menu/Dialer Config/Account Info 5.Account# 2 Telephone Number A c c o u n t # 2 T e l n u m : Same as Account#1.
  • Page 84 Command Menu/Dialer-Config/Telephone Line 2. Line#2 Dialing Type [X] DTMF Dial->Default L i n e # 2 D i a l i n g T y p e : Same as Line#1. [ ] Pulse Dial [ X ] D T M F D i a l Command Menu/Dialer-Config/Telephone Line 3.
  • Page 85 11.11.3 Command Menu/Dialer Config-->Report Options - R e p o r t O p t i o n s - 1 A l a r m P r i o . 2 T r o u b l e P r i o . 3 S u p v .
  • Page 86 Note: Refer to section 11.2.1 on page 64 for detailed instructions on making menu selections. 11.11.4 Command Menu/Dialer Config-->Time Parameters - T i m e P a r a m e t e r - 1 A C - L o s s D e l a y 2 C e l l p h o n e D a t e 3 A u t o - T e s t T i m e Command Menu/Dialer-Config/Time Parameter...

  • Page 87: Table 16 Auto Test Time And Cellular Report Date

    Command Menu/Dialer-Config/Time Parameter 3.Auto test time Use this function to set the time for the automatic test. When this test is A u t o - T e s t T i m e performed, the test report is sent to the monitoring 0 0 : 3 0 station.
  • Page 88 Table 16 Auto Test Time and Cellular Report Date (Continued) Cellular Report Date Auto Test Time Line 1 Tested Line 2 Tested 12:00 p.m. and 12:00 a.m. 12:00 p.m. and 12:00 a.m. 12:00 every day except on the on the 15th of the month 15th of the month Note: Refer to section 11.2.1 on page 64 for detailed instructions on making menu...

  • Page 89: Test Dialer (Command-Menu)

    11.12 Test Dialer (Command-Menu) -Dialer Test- 1. L#1 Manual test 2. L#2 Manual test 3. Reset Dialer Press Enter to test Line #1. Press Cancel 1.L#1 Manual test to exit this menu. For a description of test messages, see section 11.12.1 below. Press Enter to test Line #2.

  • Page 90: Exit (Command-Menu)

    Waiting for availability of the receiver. The receiver Waiting for Acktone confirms the availability by sending an acknowledgement tone. This message indicates that either the telephone Failed No Acktone number may be wrong or the receiver is not available. When sending events to the receiver, the display Reporting Event Now toggles between this message and “Waiting for Kissoff“...

  • Page 91: Figure 53 Detection Circuit Zone Message

    11.15.1 Example 1 (detection circuit) Event 01 of 09, OPEN TRB on initiating circuit Z-01 in the EAST LOBBY ENTRANCE with process type as VERIFIED ALARM and the event occurred on 2003/02/02 at 18:01 TUESDAY. Z O N E P ro ce ss P h ysic al M essag e T yp e...

  • Page 92: Ac Power Fail

    11.16 AC Power Fail The AC power fail trouble is generated when the power drops below the UL specified value. The trouble is restored when the power returns to the normal value. T ro u b le c o d e T ro u b le In fo T ro u b le T yp e A C P o w e r F a i l...

  • Page 93: Ground Fault

    11.18 Ground Fault T ro u b le c o d e T ro u b le In fo T ro u b le T yp e G r o u n d F a u l t T r b : 0 x 0 3 I n f o : 0 x 0 0 0 1 "IN F O "...

  • Page 94: Supervised Aux. Supply

    T ro u b le co d e T ro u b le In fo T ro u b le T yp e 4 W i r e P w r . S u p p l y T r b : 0 x 0 3 I n f o : 0 x 0 0 0 1 "I N F O "...

  • Page 95: Figure 61 City Tie Module Missing

    T ro u b le co d e T ro u b le In fo T ro u b le T yp e C t y T i e / R M x x x m i s s i n g T r b : 0 x 0 3 I n f o : 0 x 0 0 0 1 "IN F O "...

  • Page 96: Appendix A: Compatible Receivers

    12.0 Appendix A: Compatible Receivers The dialers that are built into select models of the MR-2300 LED Series Fire Alarm Control Panels are compatible with the following Digital Alarm Communicator Receivers (DACR): DACR Receiver Model Protocols SurGard MLR2 Multi-Line Receiver (ULC, ULI) SIA-DCS and Ademco Contact ID SurGard SLR Single-Line Receiver (ULC, ULI) SIA-DCS and Ademco Contact ID...

  • Page 97: Appendix B: Reporting

    13.0 Appendix B: Reporting 13.1 Ademco Contact-ID 13.1.1 MR-2300 Event Codes Event Description Event Family Qualifier Code Group # Contact # Phone Line #1 trouble detected Trouble New event 1 351 Phone Line #2 trouble detected Trouble New event 1 352 Phone Line #1 trouble restored Trouble Restore...

  • Page 98: Security Industries Association Sia-Dcs

    13.2 Security Industries Association SIA-DCS SIA protocol does not define indicating zone troubles, but lists it as Untyped Zone Trouble/ Restore. 13.2.1 MR-2300 Event Codes Event Description Event Family Qualifier SIA Event Parameter Code Phone Line #1 trouble detected Trouble New event Phone Line #2 trouble detected Trouble...

  • Page 99: Appendix C: Specifications

    14.0 Appendix C: Specifications Table 17 MR-2300 LED Series Specifications MR-2300 LED Fire Control Panel Chassis General Digital Signal Processor based design. Fully configurable using front panel LCD display with Password Access. Indicating (NAC) 4 supervised Class B or Class A indicating circuits, configured as strobes or Circuits audibles.

  • Page 100: Figure 1 Mr-2312-Ldr

    Table 17 MR-2300 LED Series Specifications (Continued) MR-2300 LED Fire Control Panel Chassis Common Trouble Form C, 1 A max, 28 VDC Aux Relay Form C, 1 A max, 28 VDC Testing impedance 2 k ground fault 1 M open short Battery Type...
  • Page 101 Polarity Reversal Alarm Terminal 24VDC (normal) / 24VDC (alarm) / 0V (trouble) Current Consumption standby 50mA / alarm 300mA (city tie in use) / alarm 70mA (city tie not in use) MR-2300T Remote Trouble Indicator Standby 35mA / alarm 35mA...

  • Page 102: Appendix D: Power Supply And Battery Calculations

    MR-2300-LCDR/ Smart Remote Annunciator 0.056 0.065 MR-2300-LCDW MR-2306-ATW/MR- Remote Annunciators 0.035 0.090 2312-ATW MR-2300T Remote Trouble Indicator 0.035 0.035 Two-Wire Smoke Detectors 0.00011 * 0.090 = 0.090 Four-Wire Smoke Detectors Signal Load (bells, horns, strobes, and etc.) Auxiliary Power Supply for Annunciators, etc.

  • Page 103: Appendix E: Auxiliary Devices

    16.0 Appendix E: Auxiliary Devices Model Description MR-2300-LCDW Remote Annunciator module, LCD display, white painted box MR-2300-LCDR Remote Annunciator module, LCD display, red painted box MR-2312-SW12 Smart Relay Module (12 relays) with white enclosure MR-2312-SR12 Smart Relay Module (12 relays) with red enclosure MR-2306-ATW 8 Zone remote annunciator with white enclosure MR-2306-ATR...

  • Page 104: Warranty And Warning Information

    Please read this document CAREFULLY, as it contains important warnings, life-safety, and practical information about all products manufactured by the Mircom Group of Companies, including Mircom and Secutron branded products, which shall include without limitation all fire alarm, nurse call, building automation and access control and card access products (hereinafter individually or collectively, as applicable, referred to as “Mircom System”).
  • Page 105 The testing should include all sensing devices, keypads, consoles, alarm indicating devices and any other operational devices that are part of the system. NOTE TO USERS: All Mircom Systems have been carefully designed to be as effective as possible. However, there are circumstances where they may not provide protection.
  • Page 106 13. Wireless Devices Placement Proximity. Moreover all wireless devices must be a minimum and maximum distance away from large metal objects, such as refrigerators. You are required to consult the specific Mircom System manual and application guide for any maximum distances required between devices and suggested placement of wireless devices for optimal functioning.
  • Page 107 CANADA - Main Office U.S.A © Secutron 2023 25 Interchange Way 4575 Witmer Industrial Estates Printed in Canada Subject to change without prior notice Vaughan, ON L4K 5W3 Niagara Falls, NY 14305 Tel: (905) 660-4655 Tel: (905) 660-4655 www.secutron.com (888) 660-4655...

This manual is also suitable for:

Mr-2300-aMr-2300-nc4Mr-2300-nc2Mr-2300-prMr-2312-sr12Mr-2312-sw12 ... Show all

Table of Contents
