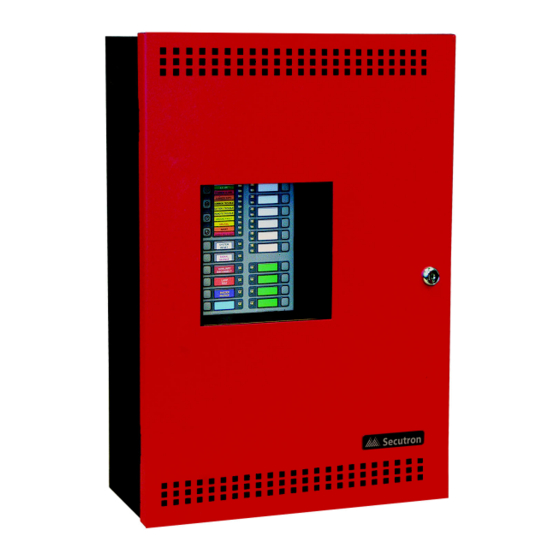

MR-2320 Series
Pre-Action/Deluge and Agent Release Control Panel
FM APPLICATIONS MUST HAVE CLASS A INITIATING CIRCUITS ONLY (FOR
RELEASING) AND 90 HOUR BATTERY STANDBY OPERATION

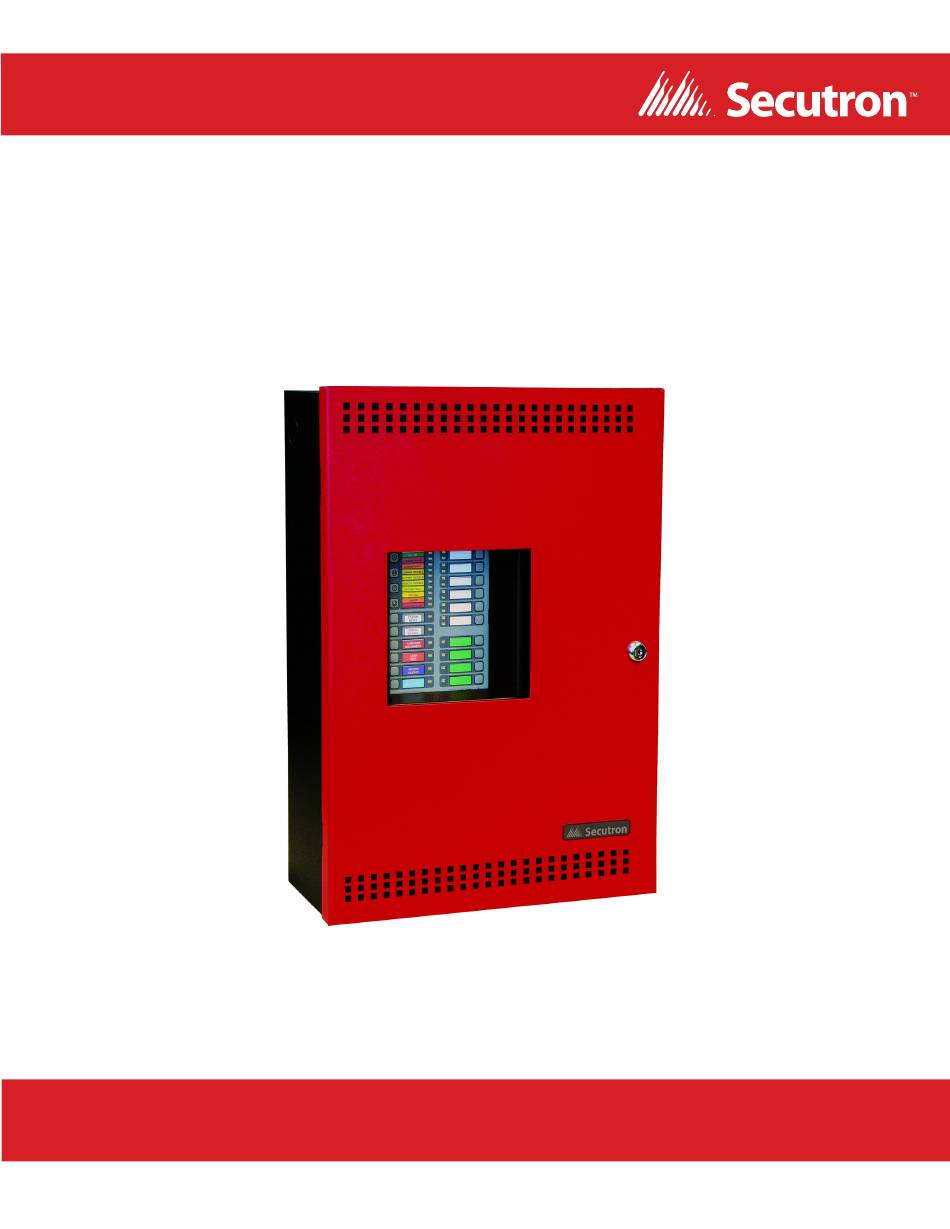

Installation and Operation Manual
LT-951SEC Rev. 6
Oct 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MR-2320 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Secutron MR-2320 Series

Summary of Contents for Secutron MR-2320 Series

  • Page 1 MR-2320 Series Pre-Action/Deluge and Agent Release Control Panel FM APPLICATIONS MUST HAVE CLASS A INITIATING CIRCUITS ONLY (FOR RELEASING) AND 90 HOUR BATTERY STANDBY OPERATION LT-951SEC Rev. 6 Installation and Operation Manual Oct 2023...

  • Page 3: Table Of Contents

    Zone ..........................Display Points ........................ Wiring Classes ....................... System Components Main Pre-Action/Deluge and Agent Release Control Panel ........... MR-2320 Series System Components ................Additional System Accessories ..................Mechanical Installation Installing the Enclosure ....................MMX-BBX-1024DS and MMX-BBX-1024DSR Mechanical Installation ......Installing the Adder Modules ..................
  • Page 4 Evacuation codes ......................Configuration Using the CFG-300 Tool ....................Entering the Passcode ....................How to Use the Keypad to Program the MR-2320 Series ..........Command Menu ......................1. Panel Config (Command-Menu) ................2. Set Time (Command-Menu) ..................3. Set Password (Command-Menu) ................
  • Page 5 10.2 General Panel Operation ....................11.0 Pre-Programmed Modes 11.1 Mode 1: Agent Release, Single Hazard, Cross-zoned, Combined Release ....11.2 Mode 2: Agent Release, Single Hazard, Not Cross-zoned, Combined Release ... 11.3 Mode 3: Agent Release, Dual Hazard, Cross-zoned, Split Release ......11.4 Mode 4: Agent Release, Dual Hazard, Not Cross-zoned, Split Release .......
  • Page 6 Figure 25 Command menu ......................Figure 26 Event log ........................Figure 27 Connect the computer to the P7 connector on the main MR-2320 Series board ... Figure 28 Tera Term New connection .................... Figure 29 Tera Term Serial port setup ...................
  • Page 7 Troubleshooting ......................Table 8 Common Relays ......................Table 9 Settings Permitted in CAN/ULCS527 ................Table 10 Settings Permitted in UL864 ..................Table 11 Access Levels ........................ Table 12 MR-2320 Series Specifications ..................Table 13 MR-2320 Series System Modules and Annunciators ............

  • Page 8: Introduction

    It supports auxiliary relays. The auxiliary relays are based on a hazard area status. The MR-2320 Series has six input zones and four output zones, allowing for flexibility in most single and dual-hazard applications for both deluge and agent releasing applications.
  • Page 9 • Four wire resettable smoke power supply, 100mA max. • Relay Contacts for Common Alarm, Common Supervisory, Common Trouble, and Auxiliary Alarm Relay (disconnectable). • RS-485 Interface for MR-2300 Series Remote Multiplex Annunciators and Smart relay Module. • Optional Modules for additional Relay Circuits. •...

  • Page 10: Conventions

    There is a display point associated with every Initiating Device Circuit and Notification Appliance Circuit of the MR-2320 Series fire panel. For an Initiating Device Circuit there are two LEDs for every display point: one single color (amber) and one dual color (red/amber). For a Notification Appliance Circuit there is only one LED: one single color (amber), for every display point.

  • Page 11: System Components

    Input Class A Converter adder module may be used for class A wiring of Initiating Device Circuits. • The MR-2320 Series contains Common Alarm, Common Supervisory & Common Trouble relays, auxiliary alarm relay (disconnectable), an RS-485 interface for remote annunciators, non-resettable auxiliary power, and a resettable four wire smoke detector power supply.

  • Page 12: Mr-2320 Series System Components

    MR-2320 Series System Components Table 1 MR-2320 Series System Components Model Description MR-2306-R6 Six-relay adder module RELAY 1 RELAY 2 RELAY 3 RELAY 4 RELAY 5 RELAY 6 NO/NC NO/NC NO/NC NO/NC NO/NC NO/NC Smart Relay Module (12 relays) with white...

  • Page 13: Additional System Accessories

    Table 1 MR-2320 Series System Components (Continued) Model Description Remote Annunciator module, LCD display, white MR-2300-LCDW painted box Remote Annunciator Module, LCD display, red MR-2300-LCDR painted box Model RAM-1032TZDS Main Chassis Remote Annunciator with 16 bi-colored LEDs and 32 trouble LEDs. Model RAM-1032TZDS-CC is the...

  • Page 14: Mechanical Installation

    Mechanical Installation Note: Installation, use and maintenance should be in accordance with the manufacturer’s documents and the National Electrical Code, ANSI/NFPA 70, and the National Fire Alarm Code ANSI/NFPA 72. Installing the Enclosure Install the MR-2320-R panel enclosure as shown in Figure 2 and Figure 3. Mount enclosure surface mount using the four mounting holes with the provided screws.

  • Page 15: Figure 3 Box Dimensions, Semi-Flush Mounting And Trim Ring

    PLACE MR-2306-FT TRIM RING OVER BACKBOX Mounting Holes for 17" Surface Mounting Adhere trim ring to 22.5" wall surface around the MR-2320-R backbox Mounting Holes for Surface Mounting 1" is the minimum depth 3.5" is the maximum above the wall required depth for semi-flush for semi-flush mounting mounting using the...

  • Page 16: Mmx-Bbx-1024Ds And Mmx-Bbx-1024Dsr Mechanical Installation

    MMX-BBX-1024DS and MMX-BBX-1024DSR Mechanical Installation The MMX-BBX-1024DS and MMX-BBX-1024DSR are suitable for flush or surface mounting, and have a built-in trim ring. Dimensions of Enclosure (minus built in trim ring) 14 1/2” x 4 1/4” x 26” Distance between horizontal mounting screws 12”...

  • Page 17: Installing The Adder Modules

    Installing the Adder Modules The MR-2320 Series panel comes pre-assembled with all components and boards except for adder modules. Module installation locations are shown below. Refer to Figure 7 on the next page for Jumper or DIP Switch settings and see Wiring Tables and Information on page 30 for wiring specifications.

  • Page 18: Cable And Jumper Connections For Main Board, Core Board And Adder Modules

    Cable and Jumper Connections for Main Board, Core Board and Adder Modules Main Pre-Action/Deluge and Agent Release Control Board For front panel programming use CFG-300 configuration tool not UL-864 or ULC-S527 listed. Connect UIMA interface module JW5 - Normally open JW4 - Normally closed Please refer to Document LT-922 for details for upgrading firmware...

  • Page 19: Mr-2300-A Input Class A Converter Adder Module

    5.1.1 Connectors and Jumpers on the Main Fire Alarm Board P1 and P2 Power supply and control interface, including AC power and battery supplies. Not Used. Cable from connector P1 of the MR-2306-R6 Relay Adder Module connects here. Otherwise not used. Connect UIMA interface module for upgrading firmware.

  • Page 20: Mr-2300-Nc2 Output Class A Converter Adder Module

    There are no jumpers or cables to set on this module, just wiring from the converter (wires are fixed here) to the Main Fire Alarm Board. Initiating Device Circuits must be wired from the MR-2300-A module to the Main Fire Alarm board.

  • Page 21: Annunciators

    Alarm Release Alert Alarm Release Annunciators Connect the annunciators to the RS-485 terminals and to auxiliary power. Use class B wiring for RS-485. For instructions, see the following Secutron documents: • MR-2306-ATW/MR-2306-ATR: LT-648SEC • MR-2312-ATW/MR-2312-ATR: LT-658SEC • MR-2300-LCDR/MR-2300-LCDW: LT-1002SEC •...

  • Page 22: Field Wiring

    Field Wiring Main Board Field Wiring Wire devices to the terminals as shown in the figures that follow. Refer to Wiring Tables and Information on page 30 for wire gauges and Appendix C: Specifications on page 90 for specifications. Caution: Do not exceed power supply ratings.

  • Page 23: Abort And Manual Release Switch Wiring

    Abort and Manual Release Switch Wiring Wiring for the abort and manual release switches is shown in Figure 13 and Figure 14. The Abort and Manual release switches must be on different circuits. DET5 is used for the Abort switch and DET6 is used for the manual release switch. Abort and Manual Release switches on separate circuits FIRE ALARM MAIN BOARD INITIATING...

  • Page 24: Figure 14 Abort And Manual Release Switch Class A Wiring

    Abort and Manual Release switches on separate circuits CLASS A FIRE ALARM MAIN BOARD CONVERTER MODULE INITIATING CIRCUIT #5 INITIATING CIRCUIT #6 Manual Release switches on separate circuits CLASS A CONVERTER FIRE ALARM MAIN BOARD MODULE INITIATING CIRCUIT #5 INITIATING CIRCUIT #6 ABORT SWITCH MANUAL RELEASE...

  • Page 25: Notification Appliance Circuit Wiring

    Notification Appliance Circuit Wiring The MR-2320 Series Fire Alarm supports class B and class A wiring for its Notification Appliance Circuits. Each circuit is supervised by a 3.9 kΩ EOL resistor or an active EOL resistor. Each Notification Appliance Circuit provides up to 1.7 A, 5 A maximum total if no auxiliaries are used.

  • Page 26: Releasing Circuit Wiring

    Releasing Circuit Wiring Attention: See Appendix A: Compatible Solenoids on page 87 for the list of compatible solenoids. Wiring for the releasing circuit is shown in Figure 17 below. SIG3 and SIG4 output circuits are reserved for the releasing circuits. Solenoid EOL module (MP-320R/W) is used to supervise the solenoid coil.

  • Page 27: Four-Wire Smoke Detector Wiring

    Four-Wire Smoke Detector Wiring FIRE ALARM MAIN BOARD POWER RESETTABLE 4-WIRE SMOKE DETECTOR POWER SUPPLY 22VDC, 200mA MAX. CURRENT - 300mA MAX. RIPPLE VOL. 5mV (POWER LIMITED) DETECTION END OF LINE RELAY 4-WIRE DETECTION DEVICE LISTED S3403 MODEL A77-716B TO INITIATING MANUFACTURED BY CIRCUIT SYSTEM SENSOR...

  • Page 28: Releasing Circuit Bypass Switch Wiring

    Releasing Circuit Bypass Switch Wiring According to UL 864 10th edition, the bypass operation must trigger a supervisory alarm. In each mode (section 11 on page 62) there is a zone designated supervisory. The circuit from the bypass switch shown in Figure 20 must be wired into a designated supervisory zone in the applicable mode.

  • Page 29: Figure 21 Power Supply Connection

    Wire the power supply as shown below using the proper wire gauge. Deluge Panel Control Board ALM/SUP/TBL/ RAC1 BLDG AUDIBLE SIL (ZONE 3) RAC2 SPARE (ZONE 4) blue Power Supply Control Board slow blow BATTERY brown 240 VAC 50Hz 120 VAC 60Hz blue on white green...

  • Page 30: Wiring Tables And Information

    Wiring Tables and Information The numbers in these tables represent the entire loop length. Table 3 Initiating Device Circuit Wiring Distances WIRE GAUGE MAXIMUM WIRING RUN TO LAST DEVICE FEET METERS 2990 4760 1450 7560 2300 12000 3600 19000 5800 30400 9200 Notes: For class A the maximum wiring run to the last device is divided by two.

  • Page 31: Releasing Circuits

    6.10 Releasing Circuits The numbers in this table represent the entire loop length Table 5 Releasing Circuits Wiring Table MAXIMUM WIRING RUN TO LAST DEVICE MAX. LOOP (ELR) RESISTANCE 16AWG 14AWG 12AWG Ohms 1231 6.11 Annunciators The numbers in this table represent the entire loop length. Table 6 RS-485 Wiring to Annunciators and other Devices Wire gauge Maximum wiring run to last device...

  • Page 32: System Checkout

    7.1.2 Take a Photo of the Circuit Board Secutron recommends taking a photo of the circuit board during each inspection. This will help confirm the state of the panel at the time of inspection. Secutron recommends sending this photo to the building owner.

  • Page 33: Power-Up Procedure

    Power-up procedure After completing the System Checkout procedures outlined above, 1. Power up the panel. The "AC ON" green LED and the “Common Trouble” LED should illuminate, and the buzzer should sound. Press the “System Reset” button. Since the batteries are not connected, the trouble buzzer should sound intermittently and the common trouble LED should flash.

  • Page 34: Indicators, Controls And Operations

    Indicators, Controls and Operations Refer to Figure 22 below for LED indicator and control button locations. Initiating Device Circuit alarm LEDs and Initiating Device Circuit trouble LED indicators Common LED indicators AC ON IDC 1 COMMON ALARM COMMON SUPV IDC 2 COMMON TROUBLE BATTERY TROUBLE Menu buttons...
  • Page 35 8.1.2 Common Alarm The common alarm LED is illuminated steady red as a result of any active alarm present in the system. 8.1.3 Common Trouble The common trouble LED is illuminated steady amber as a result of a trouble condition being detected on the system.

  • Page 36: Menu Buttons

    Cancel Button To return to previous menu in the configuration or command mode. Switches and Common Indicators The MR-2320 Series panel is a six-zone panel with four output circuits. The circuits are arranged in the following configuration: Label on Label in...

  • Page 37: Circuit (Zone) Disconnect Buttons (Bypass Switches)

    8.3.2 IDC 5 and IDC 6 • Alarm LED & Trouble LED The zone type and LED behavior varies upon the configuration. Steady when turned on. 8.3.3 NAC 1 and NAC 2 (NAC Circuits) • Trouble LED (amber) turns on at slow flash rate when in trouble or bypassed 8.3.4 RAC 3 and RAC 4 (Releasing Circuits)

  • Page 38: Common Relays

    • Processes inputs as new events • Does not affect Aux Disconnect • Reset cannot be activated until the Signal Silence Inhibit timer has expired 8.5.2 Signal Silence Button Activation of the Signal Silence button when the panel is in alarm turns on the Signal Silence indicator and deactivates any Silenceable Notification Appliance Circuits.

  • Page 39: Circuit Types

    Circuit Types 8.7.1 Initiating (Detection) Circuit Types 8.7.2 Non-Verified Alarm A Non-Verified alarm is a “normal” type of alarm that can have pull stations, smoke detectors, or heat detectors attached to it. Activation of any of these devices will immediately result in an alarm condition in the Fire Alarm Control Panel.
  • Page 40 8.7.8 Notification Appliance Circuit (Signal) Types 8.7.9 Silenceable Signal The Silenceable Signal circuit is used for audible devices such as bells and piezo mini-horns that may be silenced either manually or automatically. 8.7.10 Non-Silenceable Signal The Non-Silenceable Signal Circuit is used for audible devices such as bells and piezo mini- horns that may not be silenced either manually or automatically.

  • Page 41: Evacuation Codes

    Evacuation codes Continuous On 100% of the time Temporal Code 3 of 0.5 second on, 0.5 second off then, 1.5 second pause 20 BPM 1.5 seconds on, 1.5 seconds off 60 BPM 0.5 second on, 0.5 second off 120 BPM 0.25 second on, 0.25 second off CONTINUOUS TEMPORAL CODE...

  • Page 42: Configuration

    Configuration Table 9 Settings Permitted in CAN/ULCS527 NOTICE TO USERS, INSTALLERS, AUTHORITIES HAVING JURISDICTION, AND OTHER INVOLVED PARTIES This product incorporates field-programmable software. In order for the product to comply with the requirements in CAN/ULCS527, Standard for Control Units for Fire Alarm Systems, certain programming features or options must be limited to specific values or not used at all as indicated below.

  • Page 43: Table 10 Settings Permitted In Ul864

    Temporal, 60 BPM, 120 BPM Temporal Code (see page 51) Enabled if using an Active EOL (see Enabled, Disabled active EOL resistor page 52) MR-2300-A Configure the MR-2320 Series Panels using the CFG-300 LCD Tool (see further documentation packaged with CFG-300 for configuration information).

  • Page 44: Using The Cfg-300 Tool

    It is critical to configure these settings on the panel before operation. Annual Maintenance Requirement: Verify annually that the time, date, daylight saving time, and time compensation are correct. In addition, Secutron recommends keeping a log of when these settings were checked. See section 2. Set Time (Command-Menu) on page 52.

  • Page 45: Entering The Passcode

    Level 2 - Factory Currently not used. How to Use the Keypad to Program the MR-2320 Series 1. Press (Menu button). You will be prompted to enter your password. 2. Enter your password, then press (Enter button) to continue.

  • Page 46: Command Menu

    7. Once you have made the correct selection, press to confirm the change. The display will return to the submenu screen. 8. Press (Cancel button) to return to the previous menu. Command Menu The main command menu is shown in Figure 25. The first line of the LCD will always show “-Command Menu-”, and the second line scrolls through different selections.

  • Page 47: Panel Config (Command-Menu)

    The following is a detailed description of the MR-2320 Series configuration menu. Note: Refer to How to Use the Keypad to Program the MR-2320 Series on page 45 for detailed instructions on making menu selections. -P anel C o nfi g- 1.
  • Page 48 3. Manu al R l s D el ay 4. S o ak ti m er Note: Refer to How to Use the Keypad to Program the MR-2320 Series on page 45 for detailed instructions on making menu selections. Command Menu-->Panel Config-->...
  • Page 49 1 5. S u p v o n N A C- 2 1 6. S ig -S il N A C Note: Refer to How to Use the Keypad to Program the MR-2320 Series on page 45 for detailed instructions on making menu selections.
  • Page 50 Command Menu-->Panel Config-->Features 1. Manual Sig. Silence Use this function to enable or [X] ENABLE ->Default disable the Signal Silence operation Man. S i g. S i l. [ ] DISABLE on the panel. [X ] EN AB LE Command Menu-->Panel Config-->Features By default all the Initiating Device 2.
  • Page 51 Command Menu-->Panel Config-->Features 9. Pwr Fail Tmr Use this function to delay the [X] NONE->Default reporting of AC power fail trouble for [ ] 1 HRS a specific time period. If disabled, A C Pwr Fail Dly Tmr. the AC power fail will be reported [ ] 3 HRS immediately.

  • Page 52: Set Time (Command-Menu)

    See section 2. Set Time (Command-Menu) on page 52. Note: Refer to How to Use the Keypad to Program the MR-2320 Series on page 45 for detailed instructions on making menu selections. 1. Daylight Save 2.
  • Page 53 Command Menu/Time Clock Use this function to set the time and date. Use the “LEFT” and “RIGHT” keys to move the 2. Set time and date cursor to the desired location in the display and Default use the “UP” and “DOWN” keys to increase or HH:MM WKD YYYY-MM-DD decrease the values.

  • Page 54: Set Password (Command-Menu)

    3. Set Password (Command-Menu) Note: Refer to How to Use the Keypad to Program the MR-2320 Series on page 45 for detailed instructions on making menu selections. Attention: Secutron recommends that you change the passwords from the defaults, write them down, and store them in a safe place. If you lose the passwords, you will not be able to access the logs.

  • Page 55: Print Event Log

    Connect the computer to the P7 connector on the main MR-2320 Series board. USB connector 10 pin connector Computer USB A to B male cable UIMA4 interface FACP Figure 27 Connect the computer to the P7 connector on the main MR-2320 Series board...

  • Page 56: Figure 28 Tera Term New Connection

    Configure Tera Term 1. Start the Tera Term application. The New connection window appears. Figure 28 Tera Term New connection 2. Select Serial. 3. In the Port menu, select the COM port that the USB cable is using. 4. Click OK. 5.

  • Page 57: Figure 30 Example Event Log Printout

    The panel prints the log to the virtual terminal program. An example general log is shown in Figure 30. Figure 30 Example event log printout...

  • Page 58: Clear Event Log (Command-Menu)

    9.10 6. Clear Event Log (Command-Menu) Note: Refer to How to Use the Keypad to Program the MR-2320 Series on page 45 for detailed instructions on making menu selections. -Select Log- 1. Alarm Log 2. General Log 3. All Logs Select the type of log to clear.

  • Page 59: Operating The Panel

    10.0 Operating the Panel 10.1 Panel Operation During Various Hazard States The escalating hazard zone states include Idle, Alert, Alarm and Release. They are defined based on the status of Hazard Area input zone(s), correlated Abort Switch and Manual Release Switch. 10.1.1 Hazard Idle •...

  • Page 60: General Panel Operation

    running. The value of release timer depends on Abort Delay Type. The corresponding NAC sounds Alarm rate again. ZONE Release timer 1 Message Zone-4 RT1:44s ACTIVE EVENT EVENT type 1 of 3 Figure 31 1 release timer active Release timer 1: 44 seconds ZONE Release timer 2: 20 seconds Message...
  • Page 61 • To avoid the conflict of different NAC code on the same circuit, the priority of signals are defined as, Water-flow alarm has the highest priority, then hazard cadence. The supervisory signal has the lowest priority. • Soak Timer sets the time period how long the releasing circuits should be active. Upon the expiration of soak timer, the releasing circuits will be shut off.

  • Page 62: Pre-Programmed Modes

    11.0 Pre-Programmed Modes This section uses the following abbreviations. Initiating Device Circuits 1 to 6 (also referred to as Input Zones) Z1 - Z6 marked DET 1 to DET 6 on circuit board Notification Appliance Circuits marked SIG 1 to SIG 4 on circuit board Out1 and Out2 are equivalent to NAC 1 and NAC 2 Out1 - Out4 Out3 is equivalent to RAC 3...
  • Page 63 • Detection Zone -5: Abort Switch • Detection Zone -6: Manual Release Switch • NAC-1: Signal, will be on steady if there is any alarm zone or manual release switch active • NAC-2: Signal, indicates the cadence of hazard area 1 state or supervisory circuit (optional) •...

  • Page 64: Mode 2: Agent Release, Single Hazard, Not Cross-Zoned, Combined Release

    11.2 Mode 2: Agent Release, Single Hazard, Not Cross-zoned, Combined Release Detection Zones Phantom Zones Release Timers RT1 Exp Z1+Z2 Z3+Z4 Out1 Signal Steady Out2 Signal Escalating Out3 Rel. Releasing Out4 Rel. Releasing RLS TMR 1 Started RLS Tmr 1 Interrupted RLS Tmr 1 Cancelled RLS Tmr 2 Started RLS Tmr 2 Interrupted...
  • Page 65 11.2.4 How the Panel Works in Mode 2 • Activation of either Z-1 or Z-2 turns NAC-1 on steady. • Activation of either Z-1 or Z-2 changes the Hazard Area 1 state from Idle into Alarm directly. NAC-1 turns on steady. NAC-2 turns on Temporal. Release Timer-1 is started. •...

  • Page 66: Mode 3: Agent Release, Dual Hazard, Cross-Zoned, Split Release

    11.3 Mode 3: Agent Release, Dual Hazard, Cross-zoned, Split Release Detection Zones Phantom Zones Release Timers AB/MR AB/MR Z1+Z2 Z3+Z4 Out1 Signal Steady Out2 Signal Escalating Out3 Rel. Releasing Out4 Rel. Releasing RLS TMR 1 Started RLS Tmr 1 Interrupted RLS Tmr 1 Cancelled RLS Tmr 2 Started RLS Tmr 2 Interrupted...
  • Page 67 11.3.4 How the Panel Works in Mode 3 • Activation of either Z-1 or Z-2 changes Hazard Area1 state from Idle into Alert. NAC-1 turns on at Temporal. • Activations of both Z-1 and Z-2 change Hazard Area1 state from Alert into Alarm. NAC- 1 turns on at 120BPM.

  • Page 68: Mode 4: Agent Release, Dual Hazard, Not Cross-Zoned, Split Release

    11.4 Mode 4: Agent Release, Dual Hazard, Not Cross-zoned, Split Release Detection Zones Phantom Zones Release Timers AB/MR AB/MR Z1+Z2 Z3+Z4 Out1 Signal Steady Out2 Signal Escalating Out3 Rel. Releasing Out4 Rel. Releasing RLS TMR 1 Started RLS Tmr 1 Interrupted RLS Tmr 1 Cancelled RLS Tmr 2 Started RLS Tmr 2 Interrupted...
  • Page 69 11.4.4 How the Panel Works in Mode 4 • Activation of either Z-1 or Z-2 changes Hazard Area1 state from Idle to Alarm. NAC-1 turns on at Temporal. Release Timer-1 is started. • Upon expiration of Release Timer-1. RAC-3 is activated. NAC-1 turns on Steady. •...

  • Page 70: Mode 5: Pre-Action/Deluge, Single Hazard, Cross-Zoned, Combined Release

    11.5 Mode 5: Pre-action/Deluge, Single Hazard, Cross-zoned, Combined Release Detection Zones Phantom Zone Release Timer RT1 Exp Supv Z1+Z2+Z3+Z4 Out1 Signal Steady Out2 Signal Escalating Out3 Rel. Releasing Out4 Rel. Releasing RLS TMR 1 Started RLS Tmr 1 Interrupted RLS Tmr 1 Cancelled 11.5.1 Zone Configuration •...

  • Page 71: Mode 6: Pre-Action/Deluge, Single Hazard, Not Cross-Zoned, Combined Release

    11.6 Mode 6: Pre-action/Deluge, Single Hazard, Not Cross-zoned, Combined Release Detection Zones Phantom Zone Release Timer RT1 Exp Supv Z1+Z2+Z3+Z4 Out1 Signal Steady Out2 Signal Escalating Out3 Rel. Releasing Out4 Rel. Releasing RLS TMR 1 Started RLS Tmr 1 Interrupted RLS Tmr 1 Cancelled 11.6.1 Zone Configuration •...

  • Page 72: Mode 7: Pre-Action/Deluge, Dual Hazard, Cross-Zoned, Split Release

    11.7 Mode 7: Pre-action/Deluge, Dual Hazard, Cross-zoned, Split Release Detection Zones Phantom Zones Release Timers Supv Z1+Z2 Z3+Z4 Out1 Signal Steady Out2 Signal Escalating Out3 Rel. Releasing Out4 Rel. Releasing RLS TMR 1 Started RLS Tmr 1 Interrupted RLS Tmr 1 Cancelled RLS Tmr 2 Started RLS Tmr 2 Interrupted RLS Tmr 2 Cancelled...
  • Page 73 11.7.4 How the Panel Works in Mode 7 • Activation of either Z-1 or Z-2 changes Hazard Area 1 state into Alert. NAC-1 turns on at Temporal. • Activations of both Z-1 and Z-2 change Hazard Area 1 state into Alarm. Release Timer- 1 is started.

  • Page 74: Mode 8: Pre-Action/Deluge, Dual Hazard, Not Cross-Zoned, Split Release

    11.8 Mode 8: Pre-action/Deluge, Dual Hazard, Not Cross-zoned, Split Release Detection Zones Phantom Zones Release Timers Supv Z1+Z2 Z3+Z4 Out1 Signal Steady Out2 Signal Escalating Out3 Rel. Releasing Out4 Rel. Releasing RLS TMR 1 Started RLS Tmr 1 Interrupted RLS Tmr 1 Cancelled RLS Tmr 2 Started RLS Tmr 2 Interrupted RLS Tmr 2 Cancelled...
  • Page 75 11.8.4 How the Panel Works in Mode 8 • Activation of either Z-1 or Z-2 changes Hazard Area 1 state into Alarm. Release Timer 1 is started. NAC-1 turns on at Temporal. Upon the expiration of Release Timer 1, RAC-3 is active.

  • Page 76: Mode 9: Agent Release, Single Hazard, Cross-Zoned, Nyc Abort

    11.9 Mode 9: Agent Release, Single Hazard, Cross-zoned, NYC abort Detection Zones Phantom Zones Release Timers Supv Z1+Z2 Z3+Z4 Out1 Signal Steady Out2 Signal Escalating Out3 Rel. Releasing Out4 Strobe Steady RLS TMR 1 Started RLS Tmr 1 Interrupted RLS Tmr 1 Cancelled RLS Tmr 2 Started RLS Tmr 2 Interrupted RLS Tmr 2 Cancelled...
  • Page 77 11.9.4 How the Panel Works in Mode 9 • The activation of either Z-1 or Z-2 turns NAC-1 on steady. • The activations of both Z-1 and Z-2 turn NAC-1 off, turn NAC-2 on at 120BPM, and turn NAC-4 on steady. Hazard Area 1 state changes to Alarm. Release Timer-1 is started. Upon the expiration of Release Timer 1, RAC-3 is active, NAC-1 and NAC-2 turn on steady, and NAC-4 remains on steady.

  • Page 78: Mode 10: Agent Release, Single Hazard, Not Cross-Zoned, Combined Release

    11.10 Mode 10: Agent Release, Single Hazard, Not Cross-zoned, Combined Release Detection Zones Phantom Zones Release Timers Supv Z1+Z2 Z3+Z4 Out1 Signal Steady Out2 Signal Escalating Out3 Rel. Releasing Out4 Rel. Releasing RLS TMR 1 Started RLS Tmr 1 Interrupted RLS Tmr 1 Cancelled RLS Tmr 2 Started RLS Tmr 2 Interrupted...
  • Page 79 11.10.4 How the Panel Works in Mode 10 • Activation of either Z-1 or Z-2 turns NAC-1 on steady. • Activation of either Z-1 or Z-2 turns NAC-2 on at 60BPM. Release Timer-1 is started. • Expiration of Release Timer-1 activates both RAC-3 and RAC-4. NAC-1 and NAC-2 turn on steady.

  • Page 80: Mode 11: Agent Release, Single Hazard, Cross-Zoned, Combined Release

    11.11 Mode 11: Agent Release, Single Hazard, Cross-zoned, Combined Release Detection Zones Phantom Zones Release Timers Supv Z1+Z2 Z3+Z4 Out1 Signal Steady Out2 Signal Escalating Out3 Rel. Releasing Out4 Rel. Releasing RLS TMR 1 Started RLS Tmr 1 Interrupted RLS Tmr 1 Cancelled RLS Tmr 2 Started RLS Tmr 2 Interrupted RLS Tmr 2 Cancelled...
  • Page 81 11.11.4 How the Panel Works in Mode 11 • The activation of either Z-1 or Z-2 turns NAC-1 on at Temporal. • The activations of both Z-1 and Z-2 turn NAC-1 off and turn NAC-2 on at 60BPM. Release Timer-1 is started. •...

  • Page 82: Mode 12: Pre-Action/Deluge, Single Hazard, Cross-Zoned, Combined Release

    11.12 Mode 12: Pre-action/Deluge, Single Hazard, Cross-zoned, Combined Release Attention: This mode of operation is not FM approved. Detection Zones Phantom Zone Release Timer RT1 Exp Supv Supv Z1+Z2+Z3 Out1 Signal Steady Out2 Signal Escalating Out3 Rel. Releasing Out4 Rel. Releasing RLS TMR 1 Started RLS Tmr 1 Interrupted...
  • Page 83 11.12.4 How the Panel Works in Mode 12 • Activation of Z-1, Z-2 or Z-3 changes Hazard Area 1 state from Idle to Alert. NAC-1 turns on steady. NAC-2 sounds Temporal. • Activations of any two of Z-1, Z-2 and Z-3 change Hazard Area 1 state into Alarm. Release Timer-1 is started.

  • Page 84: Mode 13: Pre-Action/Deluge, Single Hazard, Not Cross-Zoned, Combined Release

    11.13 Mode 13: Pre-action/Deluge, Single Hazard, Not Cross-zoned, Combined Release Detection Zones Phantom Zone Release Timer RT1 Exp Supv Supv Z1+Z2+Z3 Out1 Signal Steady Out2 Signal Escalating Out3 Rel. Releasing Out4 Rel. Releasing RLS TMR 1 Started RLS Tmr 1 Interrupted RLS Tmr 1 Cancelled 11.13.1 Zone Configuration •...

  • Page 85: Mode 14: Pre-Action/Deluge, Single Hazard, Not Cross-Zoned, Combined Release

    11.14 Mode 14: Pre-action/Deluge, Single Hazard, Not Cross-zoned, Combined Release Attention: This mode of operation is neither FM nor UL approved. Detection Zones Phantom Zone Release Timer RT1 Exp Supv Z1+Z2+Z3 Out1 Signal Steady Out2 Signal Escalating Out3 Rel. Releasing Out4 Rel.
  • Page 86 Activation of Z-6 turns NAC-1 and NAC-2 steady. • For the use of the system for pre-action, deluge releasing applications. • Acceptable, Approved solenoids for the MR-2320 Series are listed in Appendix A: Compatible Solenoids on page 87. • Secondary power supply must provide for minimum of 90 hours of standby operation followed by 10 minutes of releasing and alarm operation.

  • Page 87: Appendix A: Compatible Solenoids

    12.0 Appendix A: Compatible Solenoids Manufacturer Description Safety Hi-Tech SH21006403 (S3023024SHT) Valve solenoid SH21006404 (S3023024SHT) Valve solenoid ASCO 8210 series T8210A107 24VDC R8210A107 24VDC 8210A107 24VDC AMEREX 17014 Actuator BSCO 510006 Actuator Kidde Fenwal Protection Systems 486500-01 Actuator Parker 73212 Valve Solenoid Parker Skinner Valve Division Cardox 7-061-0006 V5L 72750...

  • Page 88: Appendix B: Compatible Synchronized Modules And Horn/Strobes (Ul/Ulc)

    WW, FHS-400C-RR 15/75 Manufacturer Brand Sync. Module Horns/Strobes Maximum # of Horns/Strobes Cooper NS-24MCW-FW/-FR Cooper Wheelock DSM-12-24 Wheelock Horn/Strobes Gentex Secutron AVS44-R MRA-HS3-24 Horn/Strobe SpectrAlert System Sensor P1224 MC Horn/Strobe Amseco/Potter Mircom SDM-240 FHS-240-110 Horn/Strobe ZR-MC-R/-W, ST-MC-R-AR, MTH-MC Strobes Faraday Siemens...

  • Page 89: Compatible Bells

    13.1 Compatible Bells Brand Bells Maximum # of Bells MBDC-6, -10 Bells Siemens B10-115-R Bell B6-24AC-R Bell Note: Synchronization is on a NAC zone basis.

  • Page 90: Appendix C: Specifications

    14.0 Appendix C: Specifications Table 12 MR-2320 Series Specifications MR-2320 Series Fire Control Panel Chassis General Digital Signal Processor (DSP) based design. Fully configurable using front panel LCD display with Password Access. Notification Appliance 2 supervised class B Notification Appliance Circuits, configured as strobes or Circuits audibles.

  • Page 91: Table 13 Mr-2320 Series System Modules And Annunciators

    Less than 3.3 kΩ will generate a ground fault. Ground Fault Circuit Testing impedance: 1 MΩ open, 0.1 Ω short Compliance System Model MR-2320 Series Control Unit - Fire Alarm, for Releasing services System Type Local Type of Service A, M, WF, SS...
  • Page 92 Table 13 MR-2320 Series System Modules and Annunciators (Continued) MR-2320 Series System Modules and Annunciators MR-2312-SW12 Must be connected to a listed power-limited source of supply Smart Relay Contact rating FormC/ 28VDC per contact / 1A resistive load max, zoned...

  • Page 93: Appendix D: Power Supply And Battery Calculations

    Battery (AH) = ([STANDBY (A) ______ ] x [(24,60 or 90 Hours) ___ ]) + ([ALARM (B) ______ ] x [Alarm in Hr.] _____) = (C) ______AH Total System Current in Alarm State: Must be 5.5 amperes or less for MR-2320 Series. Battery Selection: Multiply (C) by 1.25 to derate battery.

  • Page 94: Warranty And Warning Information

    Please read this document CAREFULLY, as it contains important warnings, life-safety, and practical information about all products manufactured by the Mircom Group of Companies, including Mircom and Secutron branded products, which shall include without limitation all fire alarm, nurse call, building automation and access control and card access products (hereinafter individually or collectively, as applicable, referred to as “Mircom System”).
  • Page 95 The testing should include all sensing devices, keypads, consoles, alarm indicating devices and any other operational devices that are part of the system. NOTE TO USERS: All Mircom Systems have been carefully designed to be as effective as possible. However, there are circumstances where they may not provide protection.
  • Page 96 13. Wireless Devices Placement Proximity. Moreover all wireless devices must be a minimum and maximum distance away from large metal objects, such as refrigerators. You are required to consult the specific Mircom System manual and application guide for any maximum distances required between devices and suggested placement of wireless devices for optimal functioning.
  • Page 97 CANADA - Main Office U.S.A © Secutron 2023 25 Interchange Way 4575 Witmer Industrial Estates Printed in Canada Subject to change without prior notice Vaughan, ON L4K 5W3 Niagara Falls, NY 14305 Tel: (905) 660-4655 Tel: (905) 660-4655 www.secutron.com (888) 660-4655...
