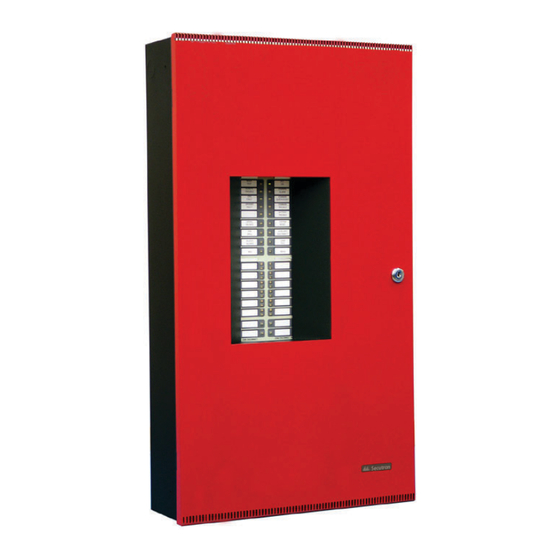

Led fire alarm control panel
Hide thumbs Also See for MR-2300 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
MR-2300 Series
LED Fire Alarm Control Panel
Installation and Operation Manual
LT-905SEC Rev. 3.3
January 2020

Advertisement

Table of Contents
loading

Related Manuals for Secutron MR-2300 Series

Summary of Contents for Secutron MR-2300 Series

  • Page 1 MR-2300 Series LED Fire Alarm Control Panel LT-905SEC Rev. 3.3 Installation and Operation Manual January 2020...

  • Page 3: Table Of Contents

    Table of Contents Industry Canada and FCC Notice Notice for all MR-2300 Series Built-In UDACTs Sold in Canada ........Industry Canada Notice ....................Introduction Overall Features ......................Conventions Circuits ........................... Zone ..........................Display Points ........................ Wiring Styles ........................System Components Main Fire Control Panel ....................
  • Page 4 Table of Contents MR-2300-A Input Class-A Converter Adder Module ............MR-2300-NC4\NC2 Output Class A Converter Adder Module ........Relay Adder Modules (Models MR-2312-R12 and MR-2306-R6) ........Polarity Reversal and City Tie Module (Model MR-2300-PR) ........Field wiring Main Fire Alarm Board Field Wiring ................Relay Adder Module Wiring ...................
  • Page 5 Table of Contents 11.4 2. Config Info (Command-Menu ..................11.5 3. Set Time (Command-Menu) ..................11.6 4. Change password (Command-Menu) ................ 11.7 5. View Event Log (Command-Menu) ................11.8 6. Clear Event Log (Command-Menu) ................11.9 7. Walk Test (Command-Menu) ..................11.10 8.
  • Page 6 List of Figures Figure 1 Box dimensions, surface mount ..................Figure 2 Box dimensions, semi-flush mounting and trim ring ............Figure 3 Flush Trim Detail ......................Figure 4 MMX-BBX-1024DS and MMX-BBX-1024DSR Installation Instructions and Dimensions Figure 5 Installation of Adder Modules ..................Figure 6 Main Fire Alarm Board cable connector and jumper settings ........
  • Page 7 List of Figures Figure 44 The selected zone is not i3 type ..................Figure 45 Dialer Config menu ......................Figure 46 Detection circuit zone message ..................Figure 47 Indicating circuit zone message ..................Figure 48 AC Power Fail ........................ Figure 49 Battery Trouble ......................Figure 50 Ground Fault ........................
  • Page 8 List of Tables Table 1 Initiating Circuit Wiring ....................Table 2 Indicating Circuit Wiring ....................Table 3 RS-485 Wiring to Annunciators and other Devices ............Table 4 Alarm Circuit Indicators ....................Table 5 Supervisory Circuit Indicators ..................Table 6 Property and Building Safety Circuit Indicators .............. Table 7 Trouble-Only Circuit Indicators ..................

  • Page 9: Industry Canada And Fcc Notice

    Industry Canada and FCC Notice Notice for all MR-2300 Series Built-In UDACTs Sold in Canada Secutron's MR-2300 SERIES BUILT-IN UDACT Communicator described in this manual is listed by Underwriters Laboratories Canada (ULC) for use in slave application in conjunction with a Listed Fire Alarm Control Panel under Standard ULC-S527-11 (Standard for Control Units for Fire Alarm Systems) and CAN/ULC-S561-13 (Standard for Installation and Services for Fire Signal Receiving Centres and Systems).
  • Page 10 Contact your telephone company if you have any questions about your phone line. In the event repairs are ever needed on the Communicator, they should be performed by Secutron Inc. or an authorized representative of Secutron Inc. For information contact Secutron Inc. at...

  • Page 11: Introduction

    Introduction Secutron's MR-2300 Series Fire Alarm Control Panel is a Digital Signal Processor (DSP)- based fire panel. The MR-2300 provides a maximum of 12 supervised Class B or A (Style B or D) Initiating circuits, and maximum four supervised Class B or A (Style Y or Z) indicating circuits.

  • Page 12: Conventions

    Conventions Circuits Refers to an actual electrical interface for Initiating (Detection) and Indicating (Signal) or Relays. Zone Is a logical concept for a Fire Alarm Protected Area, and will consist of at least one Circuit. Often the terms Zone and Circuit are used interchangeably, but in this Manual the term Circuit is used.

  • Page 13: System Components

    System Components Main Fire Control Panel Model Description 12 Zone Fire Alarm Control Panel with LED display (white door, black box). 12 Class B (Style B) Initiating circuits, and four Power Limited Class B (Style Y) Indicating circuits (up to 1.70 amperes each, 5 amperes total). Two six zone MR-2300-A Input Class A Converter adder modules may be used for Class A (Style D) wiring of Initiating circuits.

  • Page 14: Relay Module: 12 Relays

    System Components 8 Zone Fire Alarm Control Panel with LED display (white door, black box). 8 Class B (Style B) Initiating circuits, and four Power Limited Class B (Style Y) Indicating circuits (up to1.70 amperes each, 5 amperes total). Two six zone MR-2300-A Input Class A converter adder modules may be used for Class A (Style D) wiring of Initiating circuits.

  • Page 15: Polarity Reversal/City Tie

    Remote Annunciator BUZZER CANCEL MR-2300-LCDR Module, LCD display, red SILENCE LAMP painted box INFO TEST MR-2300 SERIES Remote Annunciator Smart Relay Module Model Description Smart Relay Module (12 MR-2312-SR12/ relays) with red or white MR-2312-SW12 enclosure MR-2300 SERIES REMOTE RELAY...

  • Page 16: Input Class A Converter: Six Circuits

    System Components Input Class A converter: Six Circuits Model Description Input Class A converter Module (six MR-2300-A circuits). This module has built in Active End-of-Line resistors. Output Class A converter: four circuits Model Description Output Class A converter module (four MR-2300-NC4 circuits) Output Class A converter: two circuits...

  • Page 17: 4.11 Mr-2312-At Remote Annunciator

    System Components 4.11 MR-2312-AT Remote Annunciator Model Description A.C. COMMON SIGNAL TROUBLE SILEBCE MR-2312-ATW/ 16 Zone remote annunciator BUZZER SIGNAL MR-2312-ATR SILENCE SILENCE SWITCH ENABLE LAMP SYSTEM TEST RESET FIRE ALARM ANNUNCIATOR 4.12 Additional Fire Alarm System Accessories MR-2306-ATW/R Eight Zone Remote Annunciator ULC and ULI Approved MR-2605-T Remote Trouble Indicator...

  • Page 18: Mechanical Installation

    Mechanical Installation Installing the Enclosure Install the MR-2300 Series Fire Alarm Panel enclosure as shown below for the twelve and eight-zone models. Mount enclosure surface mount using the four mounting holes, as shown and the screws provided. 11" Mounting Hole 1.5"...

  • Page 19: Figure 2 Box Dimensions, Semi-Flush Mounting And Trim Ring

    Mechanical Installation flush mount the backbox into the wall. Peel the adhesive cover from the trim ring and stick to the wall surface around the backbox, after wall is finished. PLACE MR-2312-FT TRIM RING OVER BACKBOX Adhere trim ring to wall surface around MR-2300 backbox.

  • Page 20: Mmx-Bbx-1024Ds And Mmx-Bbx-1024Dsr Mechanical Installation

    Mechanical Installation MMX-BBX-1024DS and MMX-BBX-1024DSR Mechanical Installation The MMX-BBX-1024DS and MMX-BBX-1024DSR are suitable for flush or surface mounting, and have a built-in trim ring. Dimensions of Enclosure (minus built in trim ring) 14.5” x 4.2” x 26” Distance between horizontal mounting screws 12”...

  • Page 21: Installing The Adder Modules

    Mechanical Installation Installing the Adder Modules MR-2300 Series Fire Alarm panels come pre-assembled with all components and boards except for Adder Modules. Module installation locations are shown below. Refer to Figure 6 on the next page for Jumper or DIP Switch settings and see Wiring Tables and Information on page 37 for wiring specifications.

  • Page 22: Cable And Jumper Connections For Main Board And Adder Modules

    Cable and Jumper Connections for Main Board and Adder Modules Main Fire Alarm Board For PC programming use SUIMA interface module not UL-864 or Main Fire Alarm Board Core Board ULC-S527 listed. JW4 -Normally closed JW5 -Normally open Telephone line #1 Telephone line #2 For front panel programming use SCFG-200 configuration...

  • Page 23: Mr-2300-A Input Class-A Converter Adder Module

    Cable and Jumper Connections for Main Board and Adder Modules 6.1.1 Connectors and Jumpers on the Main Fire Alarm Board Cable from P1 of the MR-2300-PR Polarity Reversal and City Tie Module connects here. Otherwise not used. Cable from connector P1 of the MR-2312-R12 or MR-2306-R6 Relay Adder Module connects here.

  • Page 24: Mr-2300-Nc4\Nc2 Output Class A Converter Adder Module

    Cable and Jumper Connections for Main Board and Adder Modules Initiating circuits must be wired from the MR-2300-A module to the Main Fire Alarm board. For example, Initiating circuit 1 positive (red) and negative (black) wires are connected to the positive and negative terminals (respectively) of Initiating circuit 1 on the Main Fire Alarm Board.

  • Page 25: Figure 9 Mr-2312-R12 Twelve Relay Adder Module

    Cable and Jumper Connections for Main Board and Adder Modules relays. The jumpers located below the relays are used to select either normally open contacts or normally closed contacts. Connect to P6 on the main fire alarm board INDIVIDUAL GREEN RELAY STATUS LEDs RELAY 1 RELAY 2...

  • Page 26: Polarity Reversal And City Tie Module (Model Mr-2300-Pr)

    Cable and Jumper Connections for Main Board and Adder Modules 6.4.3 MR-2306-R6 Six Relay Adder Module Cable from P1 of the MR-2306-R6 is connected to P6 on the Main Fire Alarm Board. The jumpers located above each relay on the MR-2306-R6 are used to configure the relays. The jumpers located below the relays are used to select either normally open contacts or normally closed contacts.
  • Page 27 Cable and Jumper Connections for Main Board and Adder Modules 6.5.1 MR-2300-PR jumper settings Cable connects to P3 on the Main Fire Alarm Board P2 & JW4 Not used. Jumper JW4 remains on board. The Alarm Transmit signal to the MR-2300-PR can be programmed to turn OFF when signal silence is active.

  • Page 28: Field Wiring

    Field wiring Main Fire Alarm Board Field Wiring Wire devices to the terminals as shown in the figures that follow. Refer to the Wiring Tables for wire gauges and to Appendix A for specifications. Caution: Do not exceed power supply ratings. 7.1.1 Initiating Circuit Wiring Class B Wiring diagrams for the initiating circuits are shown below.

  • Page 29: Figure 14 Initiating Circuit- Class A Or Style D Wiring

    Figure 14 Initiating circuit– Class A or Style D wiring 7.1.3 Indicating Circuit Wiring The MR-2300 Series Fire Alarm supports Class B or Style Y and Class A Style Z wiring for its indicating circuits. Each circuit is supervised by a 3.9K End-of-Line resistor. Each indicating circuit provides up to 1.7 A, 5 A maximum total if no auxiliaries are used.

  • Page 30: Figure 15 Indicating Circuit - Class B Or Style Y Wiring

    Field wiring FIRE ALARM MAIN BOARD STYLE Y WIRING INDICATING INDICATING CIRCUIT - 1 CIRCUIT #1 INDICATING STYLE Y CIRCUIT #2 WIRING INDICATING CIRCUIT - 2 BELL STROBE HORN 3.9K 1/2 WATT ELR Figure 15 Indicating circuit – Class B or Style Y wiring MR-2300-NC4 SOCA-204 CLASS A STYLE Z...

  • Page 31: Figure 17 Four-Wire Smoke Detector Wiring

    Field wiring 7.1.4 Four Wire Smoke Detector Wiring FIRE ALARM MAIN BOARD POWER RESETTABLE 4-WIRE SMOKE DETECTOR POWER SUPPLY 22VDC, 200mA MAX. CURRENT - 300mA MAX. RIPPLE VOL. 5mV (POWER LIMITED) DETECTION END OF LINE RELAY 4-WIRE DETECTION DEVICE LISTED S3403 MODEL A77-716B TO INITIATING MANUFACTURED BY...

  • Page 32: Relay Adder Module Wiring

    Field wiring Relay Adder Module Wiring Wire relays on the relay adder modules MR-2312-R12 and MR-2306-R6 as shown in Figures 17 and 18. Figure 19 Relay per zone (MR-2312-R12) Terminal connection Figure 20 Relay per zone (MR-2306-R6) Terminal connection...

  • Page 33: Connecting To A 3G4010 Interface Device For Canada

    Field wiring Connecting to a 3G4010 Interface Device for Canada A typical connection is shown in Figure 21. The PCS-100 Passive Communications Interface Board (sold separately) is required. For information on Compatible DACR Receivers see 12.0 Appendix A: Compatible Receivers on page 94.

  • Page 34: Connecting To A 3G4010Cf Interface Device Outside Canada

    Field wiring Connecting to a 3G4010CF Interface Device outside Canada For information on Compatible DACR Receivers see 12.0 Appendix A: Compatible Receivers on page 94. A typical connection is shown in Figure 22. The 3G4010CF is powered separately from the PCS-100 and requires 2 DSC RM-2 relays (sold separately).

  • Page 35: Polarity Reversal And City Tie Module (Mr-2300-Pr) Wiring

    Field wiring Polarity Reversal and City Tie Module (MR-2300-PR) Wiring Wire MR-2300-PR Polarity Reversal and City Tie Module (if used) as shown in Figure 23, below. See Appendix A: Compatible Receivers on page 94 for module specifications. Power Limited cable type FPL, FPLR or FPLP must be used. For USA installation, the installer must use Atlantic Scientific (Tel: 407-725-8000), Model #24544 Protective Device, or similar UL-Listed QVRG secondary protector, as shown.

  • Page 36: Power Supply Connection

    Field wiring Power supply connection The power supply is part of the Main Chassis. The ratings are: Type Rating Electrical Input rating 120VAC, 60Hz, 3A\ 240 VAC 50Hz 1.5A fuse Power supply total current 6A maximum Battery fuse on Main 10A, slow blow micro fuse module Wire the power supply as shown in Figure 24 using the proper wire gauge.

  • Page 37: Wiring Tables And Information

    Field wiring Wiring Tables and Information Table 1 Initiating Circuit Wiring Wire gauge Maximum wiring run to last device Feet Meters 2990 4760 1450 7560 2300 12000 3600 19000 5800 30400 9200 Notes: • For Class A the maximum wiring run to the last device is divided by two. •...

  • Page 38: Four-Wire Smoke Power

    Field wiring Table 3 RS-485 Wiring to Annunciators and other Devices Wire gauge Maximum wiring run to last device Feet Meters 2000 609.6 4000 1219.2 8000 2438.4 Notes: Use twisted shielded pair, 300mA power limited. Maximum 40 ohm loop resistance Four-Wire Smoke Power 4-wire smoke power is provided for 4-wire smoke detectors.

  • Page 39: Turning On The Panel

    Turning on the Panel Before Connecting the Power 1. To prevent sparking, do not connect the batteries. Connect the batteries after powering the system from the main AC supply. 2. Check that all modules are installed in the proper location with the proper connections. 3.

  • Page 40: Figure 25 Battery Connections

    Turning on the Panel J W 1 red red B ATTE RY SEC. TX yellow 240 VAC 50Hz 120 VAC 60Hz green Battery Battery NOTE: TO PREVENT SPARKING, CONNECT BATTERIES AFTER THE SYSTEM MAIN A.C. POWER IS TURNED ON Figure 25 Battery Connections All indicators should be off except for the green A.C.

  • Page 41: Troubleshooting

    Turning on the Panel Troubleshooting Symptoms Possible Cause Normally when a circuit trouble occurs, its designated trouble indicator will be illuminated, as well as the common trouble indicator and trouble buzzer. To correct the Circuit fault, check for open wiring on that particular circuit loop or that the Circuit Disconnect Trouble Switch is in the ON or CLOSED position.

  • Page 42: Indicators, Controls And Operations

    Indicators, Controls and Operations Refer to Figure 26 below for LED Indicator and Control Button locations. W ALK A.C. TE S T RE MO TE CO MMO N TRO UBLE ALARM CO MMO N CP U FAIL S UP V GRO UND CO MMO N FAULT...

  • Page 43: Common Indicators

    Indicators, Controls and Operations The Main Display Panel on the Main Fire Alarm Control Board consists of: • 18 common LED Indicators (top half of display) • Eight Common Buttons (top half of display) • up to 12 Initiating Circuit Alarm LEDs and 12 Initiating Circuit Trouble LED Indicators •...
  • Page 44 Indicators, Controls and Operations is turned OFF when all Non-Latching Supervisory Circuits are restored and there are no active Latching Supervisory Circuits. Latching Supervisory Alarms remain active until the Panel is reset. 9.1.5 Common Trouble LED The amber Common Trouble Indicator turns ON steady when the panel detects any trouble condition.

  • Page 45: Figure 27 Alarm Circuit Indicator

    Indicators, Controls and Operations 9.1.11 CPU Fault LED The amber CPU FAULT LED flashes approximately ¼ second every 2 seconds to indicate a processor failure on the main board. In addition, the buzzer sounds in time with the CPU FAULT LED until the fault is corrected. To test the CPU FAULT LED 1.

  • Page 46: Table 4 Alarm Circuit Indicators

    Indicators, Controls and Operations The Circuit Disconnect Button is described in 9.4 Circuit (zone) disconnect buttons on page 50. The LEDs are described in the 4 sections below. 9.2.1 Alarm Circuit Indicators This operation applies to Initiating Circuits configured as Verified Alarm, Non-Verified Alarm, Water flow Alarm, Sprinkler Alarm, or General Alarm Circuits.

  • Page 47: Table 6 Property And Building Safety Circuit Indicators

    Indicators, Controls and Operations Table 5 Supervisory Circuit Indicators Flashes at the trouble rate Open circuit (Class B) (amber) Flashes at the trouble rate Open circuit or Style D/Class A trouble Latching Sup. (amber) Flashes at the trouble rate Non-Latching Sup. Disconnected (Style D/Class A) (amber) Circuit in Alarm...

  • Page 48: Common Controls

    Indicators, Controls and Operations 9.2.5 Signal Circuit Indicators This operation applies to indicating circuits of any type. The Circuit Trouble Indicator flashes amber at the Trouble Rate to indicate short-circuit or open-circuit trouble, or if the circuit is Disconnected. Table 8 Signal Circuit Indicators Event Circuit Trouble LED...

  • Page 49: Figure 28 Lamp Test

    Indicators, Controls and Operations 9.3.3 Fire Drill Button The Fire Drill button activates all Non-Disconnected Indicating Circuits, but does not transmit any Alarms via the City Tie, Common Alarm Relay or Auxiliary Alarm Relay. Fire Drill activates the signals in the evacuation code programmed. For example in the Temporal Code, the signals will be pulsed ON for 0.5 seconds, OFF for 0.5 seconds in rounds of 3 and then pause for 1.5 seconds and repeat.

  • Page 50: Circuit (Zone) Disconnect Buttons

    Indicators, Controls and Operations 9.3.8 ALM/SUP/TBL/BLDG AUDIBLE SIL Button (or Menu for single stage systems) If the Panel is configured as a two-stage system, press the ALM/SUP/TBL/BLDG AUDIBLE SIL (buzzer silence) button to silence the buzzer. The buzzer resounds if there is a subsequent event.

  • Page 51: Circuit Types

    Indicators, Controls and Operations programmed (see Configuration and CFG-300 LCD Service Tool on page 60). The relay will function the same way as an alarm relay if the supervisory relay is disabled (see Configuration and CFG-300 LCD Service Tool on page 60). 9.5.3 Common Trouble Relay The Common Trouble relay is activated when the common trouble sequence is activated as the result of the trouble condition being detected on the system.
  • Page 52 Indicators, Controls and Operations processed. An alarm condition causes the associated Circuit Status LED and the Common Alarm LED to illuminate red. Note: Do not use Retard Operation with any external retarding device; maximum retard may not exceed 120 seconds. 9.6.5 Sprinkler Alarm (for Sprinkler Flow Sensors) Sprinkler Alarms are identical to normal Non-Verified Alarms unless Water flow retard operation is enabled.

  • Page 53: Evacuation Codes

    Indicators, Controls and Operations 9.6.11 Indicating (Signal) Circuits Types 9.6.12 Silenceable Signal The Silenceable Signal circuit is used for audible devices such as bells and piezo mini-horns that may be silenced either manually or automatically. While sounding, these devices follow the pattern appropriate for the condition: the configured Evacuation Code (default is Temporal Code) during Single-Stage Alarm or Two-Stage General Alarm, or the Alert Code during the alert (first) stage of a two-stage alarm.

  • Page 54: Single Stage Operation

    Indicators, Controls and Operations General AlarmEvacuation Code as selected from above. Continuous 0.5s 1.5s Temporal Code 0.5s 0.5s March Code 0.5s California Code 0.5s Alert Code 2.5s Figure 29 Evacuation and Alert Codes Single Stage Operation In a single stage system all alarm inputs are treated in a similar manner. Alarm inputs include any of the following: Non-Verified Alarm, Verified Alarm, Sprinkler Alarm, Water flow Alarm, and General Alarm Circuits.

  • Page 55: Two-Stage Operation

    Indicators, Controls and Operations Two-stage Operation In a Two-Stage System Alarm inputs are either First Stage (Alert) inputs or Second Stage (General Alarm) inputs. First Stage inputs include inputs from the following types of circuits: Non-Verified Alarm, Verified Alarm, Sprinkler Alarm, and Water flow Alarm. Second Stage inputs include Alarms on General Alarm Circuits, activation of the General Alarm button, or expiration of the Auto General Alarm Timer.
  • Page 56 Indicators, Controls and Operations • The Buzzer is sounded steady. • All non-disconnected signals are activated at the evacuation rate. • If the Signal Silence Indicator is ON, it is turned OFF and the Auto Signal Silence Timer, if configured, is restarted. For UL installations, disable the auto signal silence timer •...

  • Page 57: Supported Protocols/Devices

    10.0 Supported Protocols/Devices 10.1 Synchronous Strobes A separate compatibility list is available for different supported models. Strobes can be configures as normal (e.g. not synchronized or any of the above; see Configuration and CFG-300 LCD Service Tool on page 60). Any selection made is system- wide (e.g.
  • Page 58 Supported Protocols/Devices • Communication trouble • Out of sensitivity: defective or dirty device • Freeze trouble 10.2.2 Open circuit trouble If the loop is broken the panel shows open loop trouble. The panel can still communicate with the devices depending upon where the open occurs. Z o n e - 1 O p e n T r b .

  • Page 59: Table 9 I3 Smoke Detector Leds

    Supported Protocols/Devices distinguish between the two is to use the CFG-300 Configuration Tool and check the messages as noted above. Table 9 Smoke Detector LEDs Green LED Red LED Detector Condition Power-up Blinks every 10 sec Blinks every 10 sec Normal (Standby) Blinks every 5 sec Out of sensitivity (defective or dirty)

  • Page 60: Configuration And Cfg-300 Lcd Service Tool

    11.0 Configuration and CFG-300 LCD Service Tool Table 10 Settings permitted in CAN/ULCS527 NOTICE TO USERS, INSTALLERS, AUTHORITIES HAVING JURISDICTION, AND OTHER INVOLVED PARTIES This product incorporates field-programmable software. In order for the product to comply with the requirements in CAN/ULCS527, Standard for Control Units for Fire Alarm Systems, certain programming features or options must be limited to specific values or not used at all as indicated below.

  • Page 61: Figure 30 Mr-2300 Configuration

    Configuration and CFG-300 LCD Service Tool Figure 30 shows the function of the buttons on the front panel display. W ALK A.C. TE S T RE MO TE CO MMO N TRO UBLE ALARM CO MMO N CP U FAIL S UP V GRO UND CO MMO N...

  • Page 62: 11.2 Command Menu

    Configuration and CFG-300 LCD Service Tool The main command menu appears. If the passcode is wrong, the system prompts you to re-enter the passcode. After three tries the system takes you back to the normal message display. Enter passcode Figure 31 Enter passcode 11.2 Command Menu The command menu is shown in Figure 32.

  • Page 63: Mr-2300 Config (Command-Menu)

    Configuration and CFG-300 LCD Service Tool 11.2.1 Using the Keypad to Program the MR-2300 1. Access the configuration mode as described in 11.0 Configuration and CFG-300 LCD Service Tool above. 2. Press ENTER to select an option. The corresponding menu appears. 3.

  • Page 64: Table 12 Feature Config Menu

    Configuration and CFG-300 LCD Service Tool Table 12 describes the options in the Feature Config menu. Table 12 Feature Config Menu Name in the Feature Default Description Configuration Utility Command Menu/Panel Config/Features/ 1. Manual Signal Silence Use this menu to enable or [X] ENABLE->Default disable the SIGNAL SILENCE M a n u a l S i g .
  • Page 65 Configuration and CFG-300 LCD Service Tool Table 12 Feature Config Menu (Continued) Name in the Feature Default Description Configuration Utility Command Menu/Panel Config/Features/ 5.Aux. disconnect, disconnects If disabled, only the Auxiliary Alarm Relay is disconnected Aux Alarm relay and all when you press AUXILIARY programmed relays DISCONNECT (see 9.3.6...
  • Page 66 Configuration and CFG-300 LCD Service Tool Table 12 Feature Config Menu (Continued) Name in the Feature Default Description Configuration Utility Command Menu/Panel Config/Features/ 9. Number of Remote [X] NONE->Default Use this menu to select the Annunciators or smart relays [ ] 1 number of remote annunciators.
  • Page 67 Configuration and CFG-300 LCD Service Tool Table 12 Feature Config Menu (Continued) Name in the Feature Default Description Configuration Utility Command Menu/Panel Config/Features/ 16. Active EOL Enable this function if using an Active End-of-Line resistor. [X] DISABLE->Default Enable this function if you are Active EOL Active end-of-line using the MR-2300-A (the MR-...
  • Page 68 Configuration and CFG-300 LCD Service Tool Table 12 Feature Config Menu (Continued) Name in the Feature Default Description Configuration Utility Command Menu/Panel Config/Features/ 20. First Stage LED When disabled, the AUTOMATIC ALARM SIGNAL CANCEL LED does not illuminate during the 1 s t s t a g e L E D i n d i c .
  • Page 69 Configuration and CFG-300 LCD Service Tool This Inp Zone menu is used to program the process type for the initiating circuits. The maximum number of initiating circuits supported is 12, but only those supported by the particular model will be shown. Command Menu/MR-2300 Config/Ipt.
  • Page 70 Configuration and CFG-300 LCD Service Tool This menu is used to program the process type of the indicating circuits. The maximum number of indicating circuits is 4. Only those supported by the particular model are shown in the CFG-300 Configuration Tool. Command Menu/MR-2300 Config/Opt.
  • Page 71 Configuration and CFG-300 LCD Service Tool 11.3.6 Command Menu/MR-2300 Config-->Inp Zone Label I n i t i a t i n g Z o n e 1 Z o n e - 1 2 Z o n e - 2 1 2 Z o n e 1 2 Use the buttons described below for entering messages.

  • Page 72: Config Info

    Configuration and CFG-300 LCD Service Tool Command Menu/MR-2300 Config/Opt. Zone Lab 1.Indicating zone messages [NAC-1 ]->Default [NAC-4 ]->Default NAC-1 Label NAC-1 BYPASS SWITCH TRANSLATION KEY SEQ 1 2 3 4 KEY SEQ 1 2 3 4 -------------------------------------- Zone-1 0 Q Z Zone-2 1 Zone-3 2 A B C Zone-4 3 D E F...
  • Page 73 Configuration and CFG-300 LCD Service Tool If you upload a job configuration to the panel using the PC configuration utility, the job name will appear on this Job Name: screen. The job name can be up to a maximum of 20 characters.

  • Page 74: Set Time (Command-Menu)

    Configuration and CFG-300 LCD Service Tool 11.5 3. Set Time (Command-Menu) Note: Refer to Using the Keypad to Program the MR-2300 on page 63 for detailed instructions on making menu selections. 1 Daylight Save 2 Time Clock 3 Compensation Command Menu/Set Time 1.

  • Page 75: Change Password (Command-Menu)

    Configuration and CFG-300 LCD Service Tool 11.6 4. Change password (Command-Menu) Note: Refer to Using the Keypad to Program the MR-2300 on page 63 for detailed instructions on making menu selections. Enter new passcode Re-enter passcode Use this menu to change If the passcode does not match, the the passcode.

  • Page 76: View Event Log (Command-Menu)

    Configuration and CFG-300 LCD Service Tool 11.7 5. View Event Log (Command-Menu) The event log looks the same as the normal event queue (see 11.14.1 Zone messages on page 88). Press the INFO button to see more information about the event. Figure 34 shows an example of how the INFO button works.

  • Page 77: Walk Test (Command-Menu)

    Configuration and CFG-300 LCD Service Tool 2. Press the ENTER button to confirm or the CANCEL button to cancel the operation. L o g ( s ) c l e a r e d Figure 37 Logs cleared 11.9 7. Walk Test (Command-Menu) Note: Refer to Using the Keypad to Program the MR-2300 on page 63 for detailed instructions on making menu selections.

  • Page 78: I3 Loop Test (Command-Menu)

    Configuration and CFG-300 LCD Service Tool it is still active (in alarm) the pattern will be re-sent. Trouble on any initiating circuit selected for the walk test activates the indicating circuits continuously for five seconds. Activation of a circuit will also cause the alarm count to increase while the trouble on the initiating circuit will cause the trouble count to increase.

  • Page 79: Figure 43 I3 Loop Test Not Ready

    Configuration and CFG-300 LCD Service Tool If the i maintenance test is selected within six minutes after power-up or reset, the following information message appears. T h e s e l e c t e d z o n e i s n o t r e a d y y e t Figure 43 i loop test not ready...

  • Page 80: Dialer Config (Command-Menu)

    Configuration and CFG-300 LCD Service Tool 11.11 9. Dialer Config (Command-Menu) Note: Refer to Using the Keypad to Program the MR-2300 on page 63 for detailed instructions on making menu selections. Figure 45 shows the Dialer Config menu. -Dialer Config- 1 Account Info 2 Telephone line 3 Report Options...
  • Page 81 Configuration and CFG-300 LCD Service Tool 11.11.1Command Menu/Dialer Config-->Account Info - A c c o u n t I n f o - 1 A c c o u n t # 1 I D 2 A c c o u n t # 1 T e l 3 A c c n t # 1 F o r m a t 4 A c c o u n t # 2 I D 5 A c c o u n t # 2 T e l...
  • Page 82 Configuration and CFG-300 LCD Service Tool Command Menu/Dialer Config/Account Info 4. Account# 2 Identification Same as Account#1. 654321->Default Command Menu/Dialer Config/Account Info 5.Account# 2 Telephone Number Same as Account#1. [ 101 ]->Default Command Menu/Dialer Config/Account Info 6.Account# 2 Reporting Format [X] Contact ID-Default Same as Account#1.
  • Page 83 Configuration and CFG-300 LCD Service Tool Command Menu/Dialer-Config/Telephone Line 5.Number of retries Set the number of retries for both line#1 and line#2. This function lets the dialer retry on either line if it is busy or 06 ->Default not available. If the retry count expires, the panel reports a line trouble.
  • Page 84 Configuration and CFG-300 LCD Service Tool Command Menu/Dialer-Config/Report Options 4.Aux Disconnect, Cancels Alarm If this function is enabled, pressing AUXILIARY & Supv Reporting Thru dialer DISCONNECT (see 9.3.6 [ ] ENABLE Auxiliary Disconnect Button on page 49) blocks the [X] DISABLE ->Default alarm and supervisory events from being reported through the built-in dialer.
  • Page 85 Configuration and CFG-300 LCD Service Tool Command Menu/Dialer-Config/Time Parameter 2.Cellular report date Use this menu to set the test report date for the cell 0 ->Default phone setup. Set this menu to 0 if there is no test reporting for a cell phone, or if the phone line is a regular line.
  • Page 86 Configuration and CFG-300 LCD Service Tool 11.11.5Auto Test Time and Cellular Report Date If the Cellular report date is set to 0, then the dialer alternates between Lines 1 and 2 when performing the automatic test. If the Cellular report date is not set to 0, then the automatic test is performed on Line 1 except on the Cellular report date, when it is performed on Line 2.

  • Page 87: Test Dialer (Command-Menu)

    Configuration and CFG-300 LCD Service Tool 11.11.7Command Menu/Dialer Config-->Ring Detect Use this menu item to select the number of rings [ ] Disabled on which the panel’s [ ] 1 modem will answer. The default number of rings is [ ] 2 -Ring Detect Number - five.

  • Page 88: Exit (Command-Menu)

    Configuration and CFG-300 LCD Service Tool This message may indicate a noisy telephone Failed: No Dialtone line. Dialing Receiver Now The dial tone was received and telephone number dialing is in process. No DTMF tone This message indicates that the dialer failed to send a DTMF tone.

  • Page 89: Figure 46 Detection Circuit Zone Message

    Configuration and CFG-300 LCD Service Tool respective TROUBLE, ALARM, SUPERVISORY and BUILDING LEDs will be flashing if at least one of the given types is in the queue. The LCD service tool will only show the first alarm or trouble. If a trouble happens first and then an alarm, the alarm will be displayed.

  • Page 90: 11.15 Battery Trouble

    Configuration and CFG-300 LCD Service Tool 11.14.4AC Power Fail The AC power fail trouble is generated when the power drops below the UL specified value. The trouble is restored when the power returns to the normal value. T ro u b le c o d e T ro u b le In fo T ro u b le T yp e A C P o w e r F a i l...

  • Page 91: 11.16 Ground Fault

    Configuration and CFG-300 LCD Service Tool 11.16 Ground Fault T ro u b le c o d e T ro u b le In fo T ro u b le T yp e G r o u n d F a u l t T r b : 0 x 0 3 I n f o : 0 x 0 0 0 1 "IN F O "...

  • Page 92: 11.19 Supervised Aux. Supply

    Configuration and CFG-300 LCD Service Tool System Reset button to restore the power the system. If the short is removed, the panel will return to normal; otherwise the trouble message will stay. T ro u b le co d e T ro u b le In fo T ro u b le T yp e 4 W i r e P w r .

  • Page 93: Figure 54 City Tie Module Missing

    Configuration and CFG-300 LCD Service Tool T ro u b le c o d e T ro u b le In fo T ro u b le T yp e C t y T i e / R M 3 1 2 m i s s i n g T r b : 0 x 0 3 I n f o : 0 x 0 0 0 1 RXxxxx missing "IN F O "...

  • Page 94: Appendix A: Compatible Receivers

    12.0 Appendix A: Compatible Receivers The dialers that are built into select models of the MR-2300 Series Fire Alarm Control Panels are compatible with the following Digital Alarm Communicator Receivers (DACR): DACR Receiver Model Protocols SurGard MLR2 Multi-Line Receiver (ULC, ULI approved)

  • Page 95: Appendix B: Reporting

    13.0 Appendix B: Reporting 13.1 Ademco Contact-ID 13.1.1 MR-2300 Event Codes Event Description Event Family Qualifier Code Group # Contact # Phone Line #1 trouble detected Trouble New event 1 351 Phone Line #2 trouble detected Trouble New event 1 352 Phone Line #1 trouble restored Trouble Restore...

  • Page 96: 13.2 Security Industries Association Sia-Dcs

    Appendix B: Reporting 13.2 Security Industries Association SIA-DCS SIA protocol does not define indicating zone troubles, but lists it as Untyped Zone Trouble/ Restore. 13.2.1 MR-2300 Event Codes Event Description Event Family Qualifier Event Parameter Code Phone Line #1 trouble detected Trouble New event Phone Line #2 trouble detected...

  • Page 97: Appendix C: Specifications

    14.0 Appendix C: Specifications Table 14 MR-2300 LED Series Specifications MR-2300 LED Fire Control Panel Chassis General Digital Signal Processor based design. Fully configurable using front panel LCD display with Password Access. Indicating (NAC) 4 supervised Style Y (Class B) and Style Z (Class A) indicating circuits, Circuits configured as strobes or audibles.

  • Page 98: Table 15 Mr-2300 Led System Modules And Annunciators

    Charging capability 1.25 Amp Protection 10A on board (F1) slow blow micro fuse Compliance System Model MR-2300 Series LED Version Fire Alarm Control Panel System Type Local, Auxiliary (using MR-2300-PR), Remote Protected Premises Station (using MR-2300-PR or MR-2312-LDR, MR-2312-LDW, or MR-2308-LDW) Central Station Protected Premises (using 2312- LDR, MR-2312-LDW, or MR-2308-LDW).
  • Page 99 Appendix C: Specifications Table 15 MR-2300 LED System Modules and Annunciators (Continued) MR-2300 LED Series Modules and Annunciators MR-2300- Remote LCD Annunciator LCDW/MR- Standby 56mA / alarm 65mA 2300-LCDR MR-2306-ATW/R 8 Zone Remote Annunciator Standby 35mA / alarm 90mA MR-2300-PR Polarity Reversal and City Tie Module City Tie power limited / 24VDC unfiltered / 250mA max...

  • Page 100: Appendix D: Power Supply And Battery Calculations

    ([STANDBY (A) ______ ] X [(24 or 60 Hours) ___ ]) + ([ALARM (B) ______ ] X [Alarm in Hr.] _____) = (C) ______AH Total Alarm Current: Must be 6 amperes or less for MR-2300 Series. Indicating Circuits must not to exceed 5 amperes.

  • Page 101: Appendix E: Auxiliary Devices

    16.0 Appendix E: Auxiliary Devices Model Description MR-2300-LCDW Remote Annunciator module, LCD display, white painted box MR-2300-LCDR Remote Annunciator module, LCD display, red painted box MR-2312-SW12 Smart Relay Module (12 relays) with white enclosure MR-2312-SR12 Smart Relay Module (12 relays) with red enclosure MR-2306-AT 8 Zone remote annunciator MR-2312-AT...

  • Page 102: Warranty And Warning Information

    Please read this document CAREFULLY, as it contains important warnings, life-safety, and practical information about all products manufactured by the Mircom Group of Companies, including Mircom and Secutron branded products, which shall include without limitation all fire alarm, nurse call, building automation and access control and card access products (hereinafter individually or collectively, as applicable, referred to as “Mircom System”).
  • Page 103 Warranty and Warning Information storm, earthquake, accident, or any kind of construction activity inside or outside the premises. The testing should include all sensing devices, keypads, consoles, alarm indicating devices and any other operational devices that are part of the system. NOTE TO USERS: All Mircom Systems have been carefully designed to be as effective as possible.
  • Page 104 Warranty and Warning Information 13. Wireless Devices Placement Proximity. Moreover all wireless devices must be a minimum and maximum distance away from large metal objects, such as refrigerators. You are required to consult the specific Mircom System manual and application guide for any maximum distances required between devices and suggested placement of wireless devices for optimal functioning.
  • Page 105 U.S.A CANADA - Main Office © Secutron 2020 25 Interchange Way 4575 Witmer Industrial Estates Printed in Canada Subject to change without prior notice Niagara Falls, NY 14305 Vaughan, ON L4K 5W3 Tel: (888) 660-4655 Tel: (888) 660-4655 www.secutron.com...
