5420F-16W-32P-4Xe Switch Features - Extreme Networks ExtremeSwitching 5420 Series Installation Manual

ExtremeSwitching 5420 Series Overview

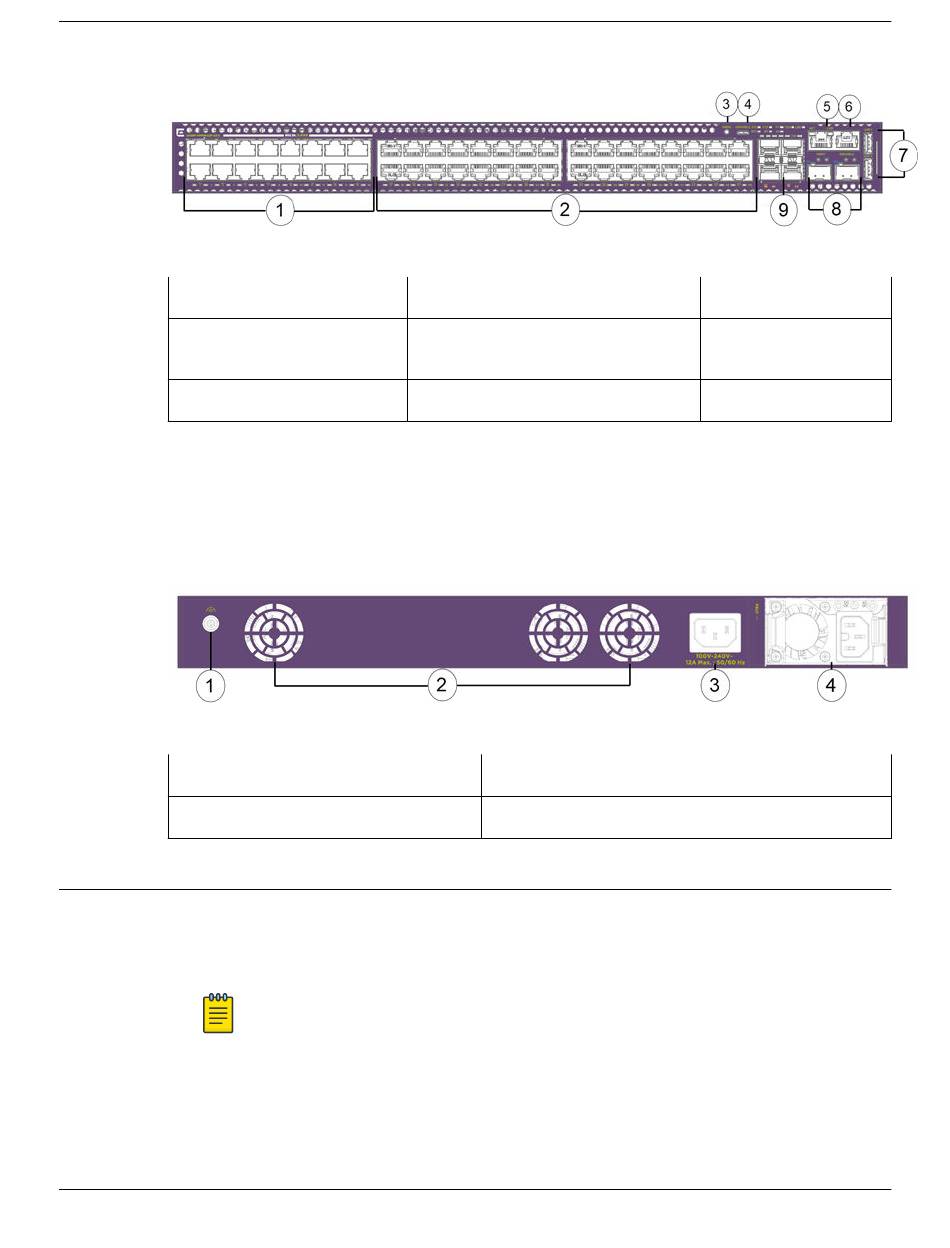

Figure 9: 5420F-16MW-32P-4XE Front Panel
1 = 100Mb/1Gb/2.5Gb ports
2 = 10/100/1000BASE-T
ports
3 = Mode button
The rear panel of the switch includes:
•
3 fixed fan modules
•
Grounding lug
•
1 AC power inlet connector
•
1 power supply slot
Figure 10: 5420F-16MW-32P-4XE Rear Panel
1 = Grounding lug
2 = Fixed fan modules

5420F-16W-32P-4XE Switch Features

The front panel of the 5420F-16W-32P-4XE switch includes:
•
16 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports with
802.3bt Type 4 PoE (90W).
•
32 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports with Type
2 PoE+ (30W).
•
4 1/10Gb SFP+ MACsec capable uplink ports (unpopulated)
•
2 Stacking/SFP-DD ports (unpopulated)
4 = USB Micro-B console port
5 = 10/100/1000BASE-T out-of-
band management port
6 = RJ-45 serial console port
Note
Half-duplex is not supported on these ports when operating at 1Gbps.
ExtremeSwitching 5420 Series Hardware Installation Guide
5420F-16W-32P-4XE Switch Features
3 = AC power inlet connector
4 = Power supply slot
7 = USB Type-A ports
8 = SFP-DD stacking
ports
9 = 1/10G SFP+ ports
