5420F-8W-16P-4XE Switch Features

For Fabric Engine licensing, see the Licensing chapter in the
for your version of the Fabric Engine operating system.
For XIQ licensing, see
5420F-8W-16P-4XE Switch Features
The front panel of the 5420F-8W-16P-4XE switch includes:
•
8 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports with
802.3bt Type 4 PoE (90W).
•
16 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports with Type
2 PoE+ (30W) ports
•
4 1/10Gb SFP+ MACsec capable uplink ports (unpopulated)
•
2 Stacking/SFP-DD ports (unpopulated)
•
1 Serial console port (RJ-45)
•
1 10/100/1000BASE-T out-of-band management port
•
2 USB Type-A ports for management or external flash
•
1 USB Micro-B console port

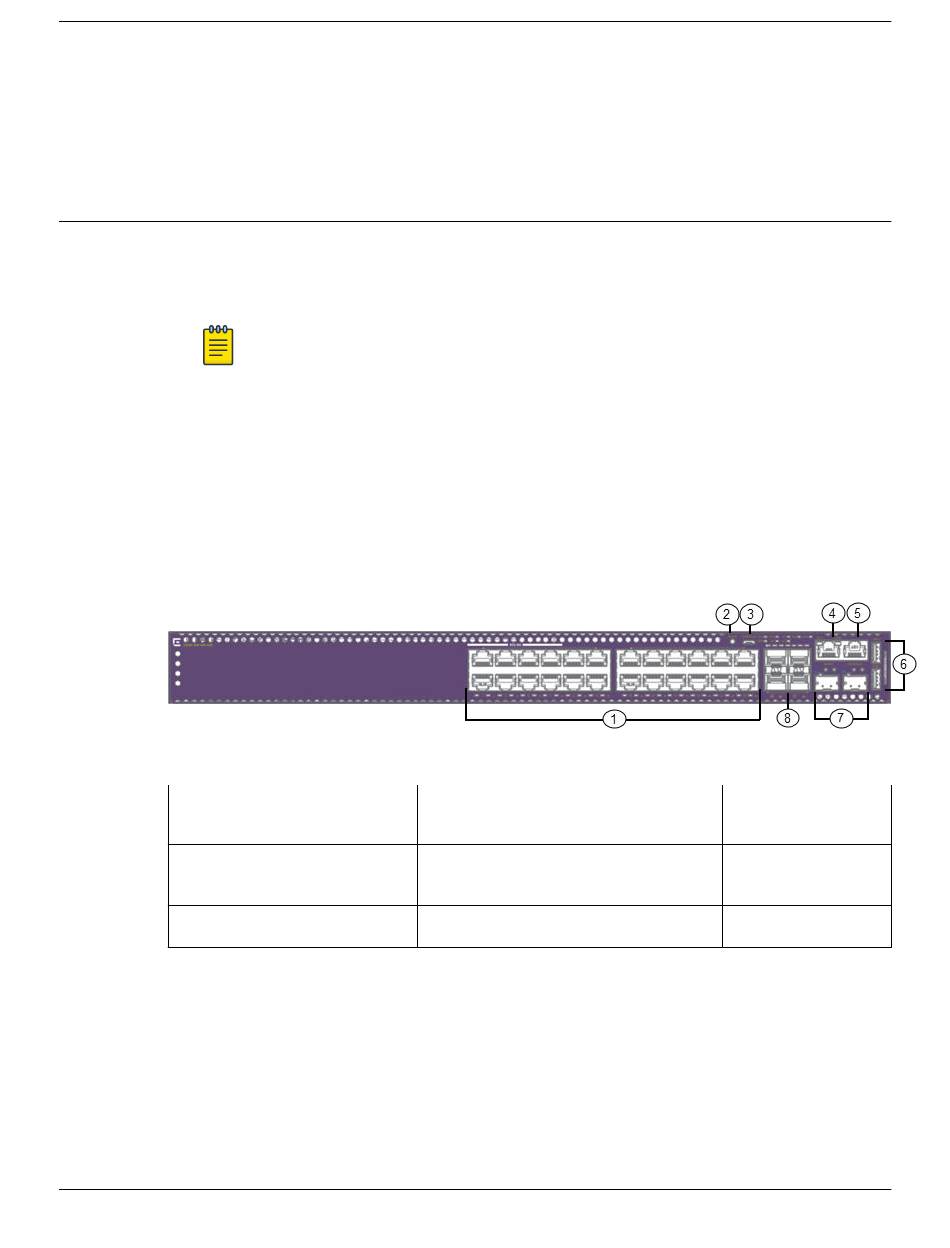

Figure 1: 5420F-8W-16P-4XE Front Panel
1 = 10/100/1000BASE-T ports
2 = Mode button
3 = USB Micro-B console port 6 = USB Type-A ports
The rear panel of the switch includes:
•
2 fixed fan modules
•
Grounding lug
•
1 AC power inlet connector
•
1 power supply slot
16 ExtremeSwitching 5420 Series Hardware Installation Guide
ExtremeCloud IQ
Note
Half-duplex is not supported on these ports when operating at 1Gbps.
4 = 10/100/1000BASE-T out-of-band
management port
5 = RJ-45 serial console port
ExtremeSwitching 5420 Series Overview
.
Fabric Engine User Guide
7 = SFP-DD
stacking ports
8 = 1/10G SFP+
ports
