SERVICE INDICATOR - *SERVICE REQUIRED
PART 2/2
12
I
L
CLEAN AND LUBRICATE / CHANGE HIGHLIGHTED SEALS AND FACES
(C) = CLEAN & INSPECT
(R) = LUBRICATE

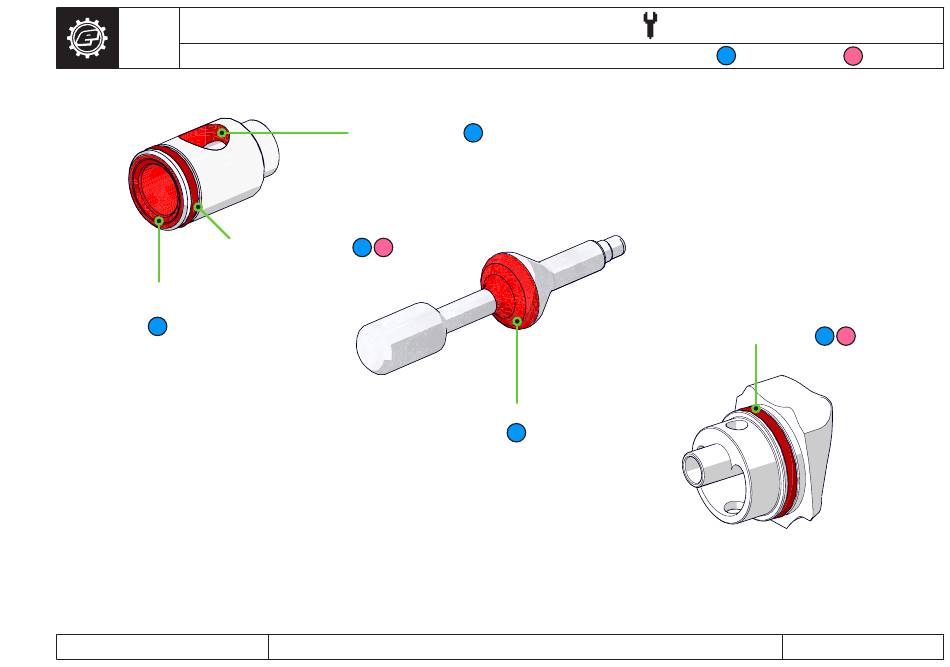

VALVE GUIDE
I
(EXHAUST PORT)
I
L
013 NBR70 O-RING
VALVE GUIDE
(SEALING FACE)
I
017 NBR70 O-RING
I
L
EXHAUST VALVE
I
*In addition to the 'lubrication' guide on page 10
