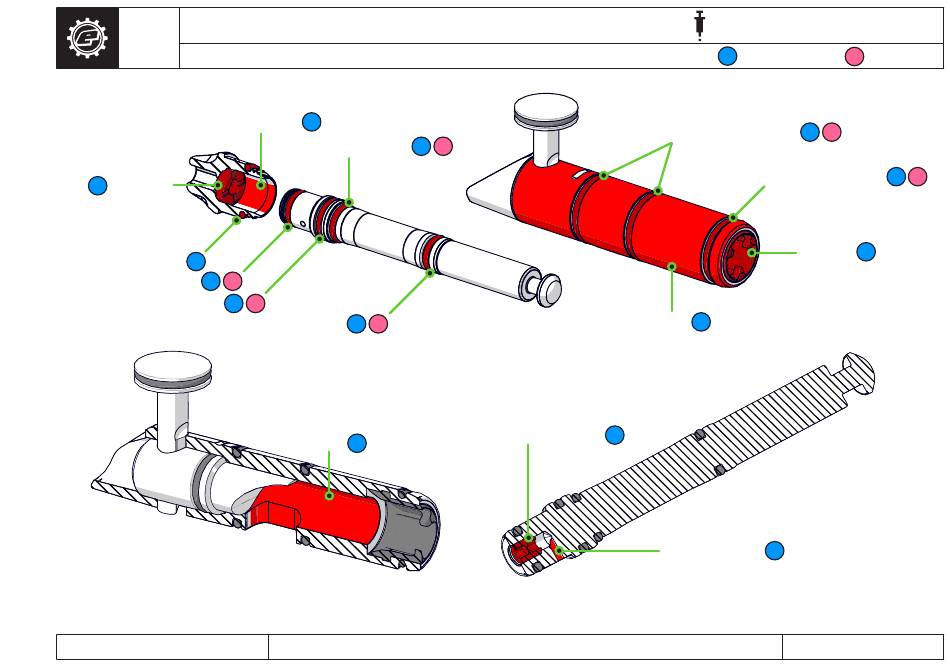

SERVICE INDICATOR - LUBRICATION REQUIRED

10

I

L

CLEAN, INSPECT & LUBRICATE / CHANGE HIGHLIGHTED SEALS AND FACES

(C) = CLEAN & INSPECT

(R) = LUBRICATE

I

RAMMER CAP

14X2 NBR70 O-RING

I

L

010 NBR70 O-RING

I

L

013 NBR70 O-RING

RAMMER

I

L

I

BUMPER

BOLT TIP

I

I

013 NBR70 O-RING

I

L

010 NBR70 O-RING

I

L

011 NBR70 O-RING

BOLT

I

I

L

010 NBR70 O-RING

RAMMER INSERT

I

BOLT

I

RAMMER BODY

I

PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL

EGO LV2
