SERVICE INDICATOR - *SERVICE REQUIRED
PART 1/2
11
I
L

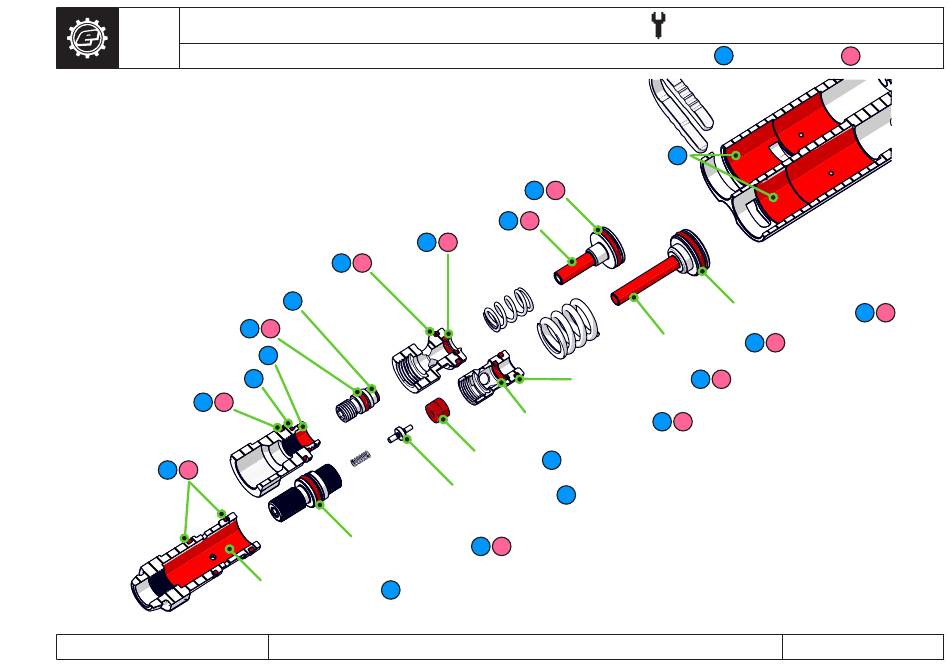

CLEAN AND LUBRICATE / CHANGE HIGHLIGHTED SEALS AND FACES
(C) = CLEAN & INSPECT
(R) = LUBRICATE
I
REGULATOR HOUSING
I
L
013 NBR70 O-RING
LPR PISTON
I
L
008 NBR70 O-RING
I
L
I
L
013 NBR70 O-RING
LPR SEAL
I
013 NBR70 O-RING
I
L
I
L
007 NBR70 O-RING
HPR PISTON
I
L
LPR CAP
I
7X1 NBR70 O-RING
I
I
L
011 NBR70 O-RING
013 NBR70 O-RING
I
L
008 NBR70 O-RING
I
L
I
HPR SEAL
014 NBR70 O-RING
I
L
PURGE POPPET
I
011 NBR70 O-RING
I
L
I
REGULATOR BODY
*In addition to the 'lubrication' guide on previous page
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL
