- Page 1 EZ 102 S-DIAS Digital Output Module Instruction Manual Date of creation: 21.07.2015 Version date: 26.07.2023 Article number: 20-051-102-E...
- Page 2 (print, photocopy, microfilm or in any other process) without the express permission. We reserve the right to make changes in the content without notice. The SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in the handbook and assumes no responsibility for damages that occur...

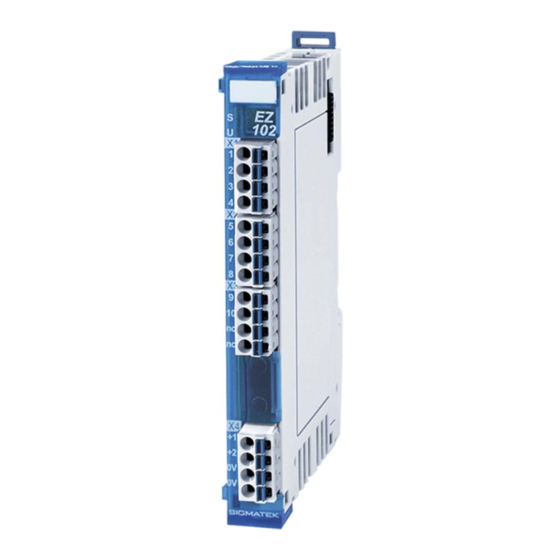

- Page 3 The S-DIAS EZ 102 digital output module has 10 short-circuit proof, galvanically isolated, digital outputs in 2 groups (+24 V/100 mA). The power supply for each group is monitored for under voltage. The EZ 102 is used for the implementation of the Euromap interface. 26.07.2023 Page 1...
-
Page 4: Table Of Contents
EZ 102 S-DIAS DIGITAL OUTPUT MODULE Contents Introduction ................5 Target Group/Purpose of this Operating Manual ...... 5 Important Reference Documentation ......... 5 Contents of Delivery ..............5 Basic Safety Directives ............6 Symbols Used ................6 Disclaimer ..................8 General Safety Directives ............ - Page 5 S-DIAS DIGITAL OUTPUT MODULE EZ 102 Connector Layout ..............17 Status LEDs ................. 18 Applicable Connectors ............... 18 Label Field ................... 19 Wiring ..................20 Wiring Example ................20 Wiring Diagram EUROMAP Interface ........21 General Information on the Digital Outputs ......22 Note ....................
- Page 6 EZ 102 S-DIAS DIGITAL OUTPUT MODULE 14 Storage ...................31 15 Maintenance ................32 15.1 Service ..................32 15.2 Repair ................... 32 16 Disposal ..................32 Page 4 26.07.2023...
-
Page 7: Introduction
General knowledge of automation technology is required. Further help and training information, as well as the appropriate accessories can be found on our website www.sigmatek-automation.com. Our support team is happily available to answer your questions. Please see our website for our hotline number and business hours. -
Page 8: Basic Safety Directives
EZ 102 S-DIAS DIGITAL OUTPUT MODULE Basic Safety Directives Symbols Used The following symbols are used in the operator documentation for warning and danger messages, as well as informational notes: DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken. - Page 9 S-DIAS DIGITAL OUTPUT MODULE EZ 102 INFORMATION Information Provides important information on the product, handling or relevant sections of the documentation, which require attention. 26.07.2023 Page 7...
-
Page 10: Disclaimer
It does not guarantee properties under the warranty. Please thoroughly read the corresponding documents and this operating manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through, non-compliance with these instructions or applicable regulations. -
Page 11: General Safety Directives
S-DIAS DIGITAL OUTPUT MODULE EZ 102 General Safety Directives The Safety Directives in the other sections of this operating manual must be observed. These instructions are visually emphasized by symbols. INFORMATION According to EU Directives, the operating manual is a component of a product. -
Page 12: Software/Training
EZ 102 S-DIAS DIGITAL OUTPUT MODULE CAUTION Handle the device with care and do not drop or let fall. Prevent foreign bodies and fluids from entering the device. The device must not be opened! Manipulez l’appareil avec précaution et ne le laissez pas tomber. -
Page 13: Standards And Directives
The product was constructed in compliance with the following European Union directives and tested for conformity. 3.1.1 EU Conformity Declaration EU Declaration of Conformity The product EZ 102 conforms to the following European directives: • 2014/35/EU Low-voltage Directive • 2014/30/EU Electromagnetic Compatibility (EMC Directive) •... -
Page 14: Type Plate
EZ 102 S-DIAS DIGITAL OUTPUT MODULE Type Plate HW: Hardware version SW: Software version Page 12 26.07.2023... -
Page 15: Technical Data
S-DIAS DIGITAL OUTPUT MODULE EZ 102 Technical Data Digital Output Specification Number Short-circuit proof, current limited Maximum continuous current 0.1 A load/channel allowed Maximum total current 1.0 A (entire module) Maximum braking energy of maximum 0.1 Joules/channel outputs (inductive load) ≤... - Page 16 EZ 102 S-DIAS DIGITAL OUTPUT MODULE Page 14 26.07.2023...
-
Page 17: Voltage Monitor
S-DIAS DIGITAL OUTPUT MODULE EZ 102 Voltage Monitor Supply voltage +24 V/1-2 supply voltage > 18 V (according DC OK-LED lights green) Miscellaneous Article number 20-051-102 Standard UL 508 (E247993) Approbations UL, cUL, CE Environmental Conditions Storage temperature -20 ... +85 °C Environmental temperature 0 ... -
Page 18: Mechanical Dimensions
EZ 102 S-DIAS DIGITAL OUTPUT MODULE Mechanical Dimensions Page 16 26.07.2023... -
Page 19: Connector Layout
S-DIAS DIGITAL OUTPUT MODULE EZ 102 Connector Layout INFORMATION The GND supply (X4: Pin 3 and Pin 4) is internally bridged. Only one GND pin (pin 3 or pin 4) is required to power the module. The bridged connections may be used for further looping of the GND supply. -
Page 20: Status Leds
EZ 102 S-DIAS DIGITAL OUTPUT MODULE Status LEDs Module Status green module active no supply available BLINKING (5 no communication User yellow can be set from the application (e.g. the module LED can be set to blinking through the visualization... -
Page 21: Label Field
S-DIAS DIGITAL OUTPUT MODULE EZ 102 Label Field Manufacturer Weidmüller Type MF 10/5 CABUR MC NE WS Weidmüller article number 1854510000 Compatible printer Weidmüller Type Printjet Advanced 230V Weidmüller article number 1324380000 26.07.2023 Page 19... -
Page 22: Wiring
EZ 102 S-DIAS DIGITAL OUTPUT MODULE Wiring Wiring Example Page 20 26.07.2023... -
Page 23: Wiring Diagram Euromap Interface
S-DIAS DIGITAL OUTPUT MODULE EZ 102 Wiring Diagram EUROMAP Interface 26.07.2023 Page 21... -
Page 24: General Information On The Digital Outputs
EZ 102 S-DIAS DIGITAL OUTPUT MODULE General Information on the Digital Outputs The cross section of the +24 V and 0 V supply must be designed for the maximum output current drawn by a group. INFORMATION When inductive loads are not equipped with a protective circuit, the high surge current flows over the 0 V line when the load is disconnected since the internal protective circuit is wired against 0 V. -
Page 25: Note
S-DIAS DIGITAL OUTPUT MODULE EZ 102 Note The following guidelines should be observed: • Avoid parallel wiring between input lines and load-bearing circuits. • Protective circuits for all relays (RC networks or free-wheeling diodes). • Correct wiring to ground. Connecting Inductive Loads... -
Page 26: Assembly/Installation
EZ 102 S-DIAS DIGITAL OUTPUT MODULE Assembly/Installation Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter 1.3 Contents of Delivery. INFORMATION On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system. -
Page 27: Mounting
S-DIAS DIGITAL OUTPUT MODULE EZ 102 Mounting The S-DIAS modules are designed for installation into the control cabinet. To mount the modules a DIN-rail is required. The DIN rail must establish a conductive connection with the back wall of the control cabinet. The individual S-DIAS modules are mounted on the DIN rail as a block and secured with latches. - Page 28 EZ 102 S-DIAS DIGITAL OUTPUT MODULE Recommended minimum distances of the S-DIAS modules to the surrounding components or control cabinet wall: a, b, c … distances in mm (inches) Page 26 26.07.2023...
-
Page 29: Addressing
S-DIAS DIGITAL OUTPUT MODULE EZ 102 10 Addressing Address Size Access Type Description Reset value (hex) (bytes) Memory Output register Bit 0 Output 1 0000 0000 Bit 1 Output 2 … Bit 15 Output 16 24 V status Bit 0... -
Page 30: Supported Cycle Times
EZ 102 S-DIAS DIGITAL OUTPUT MODULE 11 Supported Cycle Times 11.1 Cycle Times below 1 ms (in µs) x= supported 11.2 Cycle Times equal to or higher than 1 ms (in ms) x= supported x= supported Page 28 26.07.2023... -
Page 31: Hardware Class Ez102
12 Hardware Class EZ102 Hardware Class EZ102 for the S-DIAS EZ102 digital input module This hardware class is used to control the EZ 102 hardware module with 10 digital outputs. More information on the hardware can be found in the module documentation. -
Page 32: General Information
EZ 102 S-DIAS DIGITAL OUTPUT MODULE 12.1 General Information Class State State Shows the actual status of the hardware class. Device ID State Shows the Device ID of the hardware module. FPGA Version State FPGA version of the module in 16#XY (e.g. 16#10 = version 1.0). -
Page 33: Transport/Storage
S-DIAS DIGITAL OUTPUT MODULE EZ 102 13 Transport/Storage INFORMATION This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! Temperature and humidity fluctuations may occur during transport. - Page 34 EZ 102 S-DIAS DIGITAL OUTPUT MODULE 15 Maintenance INFORMATION During maintenance as well as servicing, observe the safety instructions from chapter 2 Basic Safety Directives. 15.1 Service This product was constructed for low-maintenance operation. 15.2 Repair INFORMATION In the event of a defect/repair, send the device with a detailed error description to the address listed at the beginning of this document.
- Page 35 S-DIAS DIGITAL OUTPUT MODULE EZ 102 Documentation Changes Change date Affected Chapter Note page(s) 28.04.2016 4.4 Mounting Graphics distances 09.12.2016 1.4 Miscellaneous UL added Extended “Galvanic isolation“ specification 10.02.2017 1.1 Digital Output Specification 17.08.2017 1.5 Environmental Conditions Pollution Degree 3.2 Applicable Connectors...
- Page 36 EZ 102 S-DIAS DIGITAL OUTPUT MODULE Page 34 26.07.2023...
