Summary of Contents for SIGMATEK KL 180
- Page 1 KL 180 S-DIAS 0 V Potential Distributor Module Instruction Manual Date of creation: 30.07.2013 Version date: 26.07.2023 Article number: 20-024-180-E...
- Page 2 (print, photocopy, microfilm or in any other process) without the express permission. We reserve the right to make changes in the content without notice. The SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in the handbook and assumes no responsibility for damages that occur...

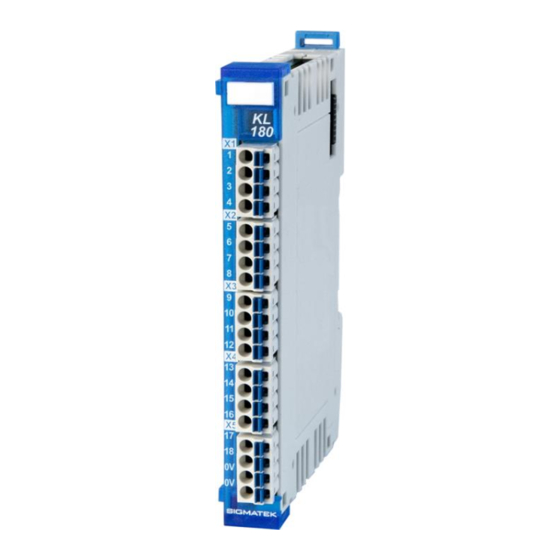

- Page 3 KL 180 S-DIAS 0 V Potential Distributor Module KL 180 with 18 0 V terminals The KL 180 S-DIAS 0 V potential distributor module has 18 terminals. The voltage tap is possible without an additional series terminal. 26.07.2023 Page 1...
-
Page 4: Table Of Contents
KL 180 S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE Contents Introduction ................4 Target Group/Purpose of this Operating Manual ...... 4 Important Reference Documentation ......... 4 Contents of Delivery ..............4 Basic Safety Directives ............5 Symbols Used ................5 Disclaimer ..................7 General Safety Directives ............ - Page 5 S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE KL 180 Applicable Connectors ............... 17 Label Field ................... 18 Wiring ..................19 Wiring Example ................19 Assembly/Installation ............20 Check Contents of Delivery ............20 Mounting ..................21 10 Transport/Storage ..............23 11 Storage ................... 23 12 Maintenance ................
-
Page 6: Introduction
General knowledge of automation technology is required. Further help and training information, as well as the appropriate accessories can be found on our website www.sigmatek-automation.com. Our support team is happily available to answer your questions. Please see our website for our hotline number and business hours. -
Page 7: Basic Safety Directives
S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE KL 180 Basic Safety Directives Symbols Used The following symbols are used in the operator documentation for warning and danger messages, as well as informational notes: DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken. - Page 8 KL 180 S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE INFORMATION Information Provides important information on the product, handling or relevant sections of the documentation, which require attention. Page 6 26.07.2023...
-
Page 9: Disclaimer
It does not guarantee properties under the warranty. Please thoroughly read the corresponding documents and this operating manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through, non-compliance with these instructions or applicable regulations. -
Page 10: General Safety Directives
KL 180 S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE General Safety Directives The Safety Directives in the other sections of this operating manual must be observed. These instructions are visually emphasized by symbols. INFORMATION According to EU Directives, the operating manual is a component of a product. -
Page 11: Software/Training
S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE KL 180 CAUTION Handle the device with care and do not drop or let fall. Prevent foreign bodies and fluids from entering the device. The device must not be opened! Manipulez l’appareil avec précaution et ne le laissez pas tomber. -
Page 12: Standards And Directives
The product was constructed in compliance with the following European Union directives and tested for conformity. 3.1.1 EU Conformity Declaration EU Declaration of Conformity The product KL 180 conforms to the following European directives: • 2014/35/EU Low-voltage Directive • 2014/30/EU Electromagnetic Compatibility (EMC Directive) •... -
Page 13: Type Plate
S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE KL 180 Type Plate HW: Hardware version SW: Software version 26.07.2023 Page 11... -
Page 14: Technical Data
KL 180 S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE Technical Data 0 V Supplies Number of 0 V supplies Short-circuit proof Internal fuse Maximum continuous current load allowed / connection Maximum total current 16 A (The incoming and outgoing supplies cannot exceed the maximum current of... - Page 15 S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE KL 180 26.07.2023 Page 13...
-
Page 16: Miscellaneous
KL 180 S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE Miscellaneous Article number 20-024-180 Standard UL 508 (E247993) Approbations UL, cUL, CE, UKCA Environmental Conditions Storage temperature -20 ... +85 °C 0 … +60 °C Environmental temperature Humidity 0-95 %, non-condensing Installation altitude above sea... -
Page 17: Mechanical Dimensions
S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE KL 180 Mechanical Dimensions 26.07.2023 Page 15... -
Page 18: Connector Layout
KL 180 S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE Connector Layout Page 16 26.07.2023... -
Page 19: Applicable Connectors
S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE KL 180 Applicable Connectors Connectors: X1-X5: Connectors with spring terminals (included in delivery) The spring terminals are suitable connecting ultrasonically compacted (ultrasonically welded) strands. Connections: Stripping length/Sleeve length: 10 mm Plug-in direction: parallel to conductor axis or to PCB Conductor cross section, rigid: 0.2-1.5 mm... -
Page 20: Label Field
KL 180 S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE Label Field Manufacturer Weidmüller Type MF 10/5 CABUR MC NE WS Weidmüller article number 1854510000 Compatible printer Weidmüller Type Printjet Advanced 230V Weidmüller article number 1324380000 Page 18 26.07.2023... -
Page 21: Wiring
S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE KL 180 Wiring Wiring Example 26.07.2023 Page 19... -
Page 22: Assembly/Installation
KL 180 S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE Assembly/Installation Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter 1.3 Contents of Delivery. INFORMATION On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system. -
Page 23: Mounting
S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE KL 180 Mounting The S-DIAS modules are designed for installation into the control cabinet. To mount the modules a DIN-rail is required. The DIN rail must establish a conductive connection with the back wall of the control cabinet. The individual S-DIAS modules are mounted on the DIN rail as a block and secured with latches. - Page 24 KL 180 S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE Recommended minimum distances of the S-DIAS modules to the surrounding components or control cabinet wall: a, b, c … distances in mm (inches) Page 22 26.07.2023...
-
Page 25: Transport/Storage
S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE KL 180 10 Transport/Storage INFORMATION This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! Temperature and humidity fluctuations may occur during transport. -
Page 26: Maintenance
KL 180 S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE 12 Maintenance INFORMATION During maintenance as well as servicing, observe the safety instructions from chapter 2 Basic Safety Directives. 12.1 Service This product was constructed for low-maintenance operation. 12.2 Repair INFORMATION In the event of a defect/repair, send the device with a detailed error description to the address listed at the beginning of this document. - Page 27 S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE KL 180 Documentation Changes Change date Affected Chapter Note page(s) 24.10.2013 Added Vibration resistance 23.12.2013 3 Connector Layout Changed image 4.1 Wiring Example Added wiring example 11.02.2014 3 Connector Layout Changed image 3.1 Applicable Connectors Connection capacity added 01.04.2014...
- Page 28 KL 180 S-DIAS 0 V POTENTIAL DISTRIBUTOR MODULE Page 26 26.07.2023...
