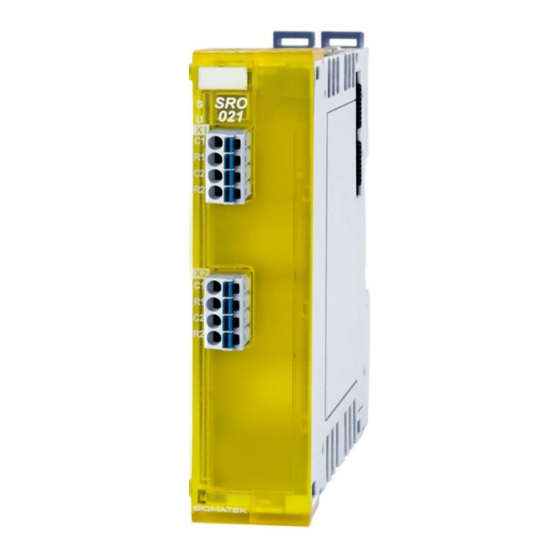

- Page 1 SRO 021 S-DIAS Safety Relay Output Module Instruction Manual Date of creation: 18.12.2013 Version date: 05.12.2023 Article number: 20-893-021-E...
- Page 2 (print, photocopy, microfilm or in any other process) without the express permission. We reserve the right to make changes in the content without notice. The SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in the handbook and assumes no responsibility for damages that occur...
- Page 3 Safety System Handbook, see homepage1. To use the SRO 021 in an application, at least one Safety CPU module that regulates the synchronized communication with the safety modules using safe bus telegrams is also required. This also includes •...
-
Page 4: Table Of Contents
SRO 021 S-DIAS SAFETY RELAY OUTPUT MODULE Contents Introduction ................5 Target Group/Purpose of this Operating Manual ...... 5 Important Reference Documentation ......... 5 Contents of Delivery ..............5 Basic Safety Guidelines ............6 Symbols Used ................6 Disclaimer ..................8 General Safety Directives ............ - Page 5 S-DIAS SAFETY RELAY OUTPUT MODULE SRO 021 Technical Data ............... 18 Relay Output Specifications ............18 Lifespan of the Relay Output Module depending on the Number of Switching Cycles Per Year........21 Relay Circuit ................22 Electrical Requirements ............. 22 Miscellaneous ................
- Page 6 SRO 021 S-DIAS SAFETY RELAY OUTPUT MODULE 12 Maintenance ................35 12.1 Service ..................35 12.2 Repair ................... 35 13 Disposal ..................35 Page 4 05.12.2023...
-
Page 7: Introduction
Please see our website for our hotline number and business hours. Important Reference Documentation • Safety System Handbook This and additional documents can be downloaded from our website or obtained through support. Contents of Delivery 1x SRO 021 05.12.2023 Page 5... -
Page 8: Basic Safety Guidelines
SRO 021 S-DIAS SAFETY RELAY OUTPUT MODULE Basic Safety Guidelines Symbols Used The following symbols are used in the operator documentation for warning and danger messages, as well as informational notes: DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken. - Page 9 S-DIAS SAFETY RELAY OUTPUT MODULE SRO 021 CAUTION Danger for ESD-sensitive components. Les signes de danger pour les composants sensibles aux décharges électrostatiques. INFORMATION Information Provides important information on the product, handling or relevant sections of the documentation, which require attention.
-
Page 10: Disclaimer
It does not guarantee properties under the warranty. Please thoroughly read the corresponding documents and this operating manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through, non-compliance with these instructions or applicable regulations. -
Page 11: General Safety Directives
S-DIAS SAFETY RELAY OUTPUT MODULE SRO 021 General Safety Directives The Safety Directives in the other sections of this operating manual must be observed. These instructions are visually emphasized by symbols. INFORMATION According to EU Directives, the operating manual is a component of a product. - Page 12 SRO 021 S-DIAS SAFETY RELAY OUTPUT MODULE CAUTION Handle the device with care and do not drop or let fall. Prevent foreign bodies and fluids from entering the device. The device must not be opened! Manipulez l’appareil avec précaution et ne le laissez pas tomber.
-
Page 13: Designated Use
The Safety functions implemented in the product are designed for use with safety applications in a SIGMATEK control and meet the required conditions for safe operation according to SIL 3, HFT 1 n compliance with EN 62061 and according to PL e, Kat. 4 in compliance with EN ISO 13849-1. -
Page 14: Software/Training
SRO 021 S-DIAS SAFETY RELAY OUTPUT MODULE Une installation CEM correcte est également incluse dans l’utilisation prévue. Non-designated use consists of: • any changes made to the module or the use of damaged modules. • use of the module inconsistent with the technical margins described in this operating manual or the specifications defined in the technical data. -
Page 15: Standards And Directives
S-DIAS SAFETY RELAY OUTPUT MODULE SRO 021 Standards and Directives Residual Risks CAUTION The following residual risks for the product must be included in the system integrator's risk assessment: • Release of non-environmentally safe substances, emissions and unusual temperatures •... -
Page 16: Functional Safety Standards
EN ISO 13849-2 - Safety of machinery — Safety-related parts of control systems — Part 2: Validation 3.3.2 EU Conformity Declaration EU Declaration of Conformity The product SRO 021 conforms to the following European directives: • 2006/42/EG Machine Directive • 2014/30/EU Electromagnetic Compatibility (EMC Directive) •... -
Page 17: Safety-Relevant Parameters
SFF)) is based on the assumption that the output relay is operated with 25.000 switching cycles per year (nop). If more switching cycles per year are required, you can request the safety parameters from SIGMATEK via the support. 3.4.2 Mounting position horizontal 0-60 °C ambient temperature... -
Page 18: Compatibility
SRO 021 S-DIAS SAFETY RELAY OUTPUT MODULE INFORMATION Time of use of the relay output module depending on the number of switching cycles per year, see chapter 5.2. Compatibility INFORMATION Compatibility For compatibility of the S-DIAS Safety modules, see section "Compatibility of S-DIAS Safety Modules"... -
Page 19: Type Plate
S-DIAS SAFETY RELAY OUTPUT MODULE SRO 021 Type Plate HW: Hardware version SW: Software version 05.12.2023 Page 17... -
Page 20: Technical Data
SRO 021 S-DIAS SAFETY RELAY OUTPUT MODULE Technical Data Relay Output Specifications Number Configuration two-channel Contact normally open Relay type SIS212 21VDC SEN Nominal voltage +24 V DC 230 V AC Switching voltage maximum +30 V DC maximum 250 V AC Maximum continuous current maximum 6 A at 55 °C... - Page 21 S-DIAS SAFETY RELAY OUTPUT MODULE SRO 021 Relays of the HW versions ≤3.00: INFORMATION The module SRO 021 is only designed for a maximum voltage range of +30 V. 05.12.2023 Page 19...
- Page 22 SRO 021 S-DIAS SAFETY RELAY OUTPUT MODULE Relays of the HW versions ≥3.00: INFORMATION The module SRO 021 is only designed for a maximum voltage range of +30 V. Page 20 05.12.2023...
-
Page 23: Lifespan Of The Relay Output Module Depending On The Number Of Switching Cycles Per Year
S-DIAS SAFETY RELAY OUTPUT MODULE SRO 021 Lifespan of the Relay Output Module depending on the Number of Switching Cycles Per Year 50000 15.6 B 10D 2 10 4 10 6 10 8 10 Switching Cycles per Year... -
Page 24: Relay Circuit
The total current of the +12 V supply cannot exceed 800 mA. The S-DIAS Safety CPU Module supports a maximum of 16 safe I/O modules. The S-DIAS Safety Relay Module SRO 021 corresponds to two safe I/O modules. Page 22... - Page 25 S-DIAS SAFETY RELAY OUTPUT MODULE SRO 021 05.12.2023 Page 23...
-
Page 26: Miscellaneous
SRO 021 S-DIAS SAFETY RELAY OUTPUT MODULE Miscellaneous Article number 20-893-021 Standard EN 62061 SIL 3 EN ISO 13849-1 PL e/Cat. 4 UL 508 (E247993) Approbations CE, TÜV EC type-examination tested, Mission time 20 years Environmental Conditions Storage temperature -20 ... +85 °C Environmental temperature 0 ... -
Page 27: Mechanical Dimensions
S-DIAS SAFETY RELAY OUTPUT MODULE SRO 021 Mechanical Dimensions 05.12.2023 Page 25... -
Page 28: Connector Layout
SRO 021 S-DIAS SAFETY RELAY OUTPUT MODULE Connector Layout Page 26 05.12.2023... -
Page 29: Status Leds
S-DIAS SAFETY RELAY OUTPUT MODULE SRO 021 Status LEDs Bus Status green bus communication OK no supply available BLINKING (5 Hz) no communication Safety-Used yellow module is used and no error module is not used or not in operational mode... -
Page 30: Label Field
SRO 021 S-DIAS SAFETY RELAY OUTPUT MODULE Label Field Manufacturer Weidmüller Type MF 10/5 CABUR MC NE WS Weidmüller article number 1854510000 Compatible printer Weidmüller Type Printjet Advanced 230V Weidmüller article number 1324380000 Page 28 05.12.2023... -
Page 31: Wiring
S-DIAS SAFETY RELAY OUTPUT MODULE SRO 021 Wiring Wiring Example 05.12.2023 Page 29... -
Page 32: Note
SRO 021 S-DIAS SAFETY RELAY OUTPUT MODULE Note The input filters, which suppress noise signals, allow operation in harsh environmental conditions. A careful wiring method is also recommended to ensure error-free function. The following installation guidelines should be observed: •... -
Page 33: Assembly/Installation
S-DIAS SAFETY RELAY OUTPUT MODULE SRO 021 Assembly/Installation Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter Contents of Delivery. INFORMATION On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system. -
Page 34: Mounting
SRO 021 S-DIAS SAFETY RELAY OUTPUT MODULE Mounting The S-DIAS modules are designed for installation into the control cabinet. To mount the modules a DIN-rail is required. The DIN rail must establish a conductive connection with the back wall of the control cabinet. The individual S-DIAS modules are mounted on the DIN rail as a block and secured with latches. - Page 35 S-DIAS SAFETY RELAY OUTPUT MODULE SRO 021 Recommended minimum distances of the S-DIAS modules to the surrounding components or control cabinet wall: a, b, c … distances in mm (inches) 05.12.2023 Page 33...
-
Page 36: 10 Transport/Storage
SRO 021 S-DIAS SAFETY RELAY OUTPUT MODULE 10 Transport/Storage INFORMATION This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! Temperature and humidity fluctuations may occur during transport. - Page 37 S-DIAS SAFETY RELAY OUTPUT MODULE SRO 021 12 Maintenance INFORMATION During maintenance as well as servicing, observe the safety instructions from chapter 2 Basic Safety Directives. 12.1 Service This product was constructed for low-maintenance operation. 12.2 Repair INFORMATION In the event of a defect/repair, send the device with a detailed error description to the address listed at the beginning of this document.
- Page 38 SRO 021 S-DIAS SAFETY RELAY OUTPUT MODULE Documentation Changes Change date Affected Chapter Note page(s) 11.02.2014 5 Connector Layout Changed image 5.2 Applicable Connectors Connection capacity added French notes added 03.03.2014 5 Connector Layout Changed image 5.1 Status LEDs Changed/expanded Status LEDs table 01.04.2014...
- Page 39 S-DIAS SAFETY RELAY OUTPUT MODULE SRO 021 16.11.2017 2 Conformity with EU SCP 111 values added Guidelines 02.04.2019 2.3 Safety-Relevant Values adjusted Parameters 3.6 Environmental Conditions Corrections Corrections due to CE 14.11.2019 8 Supported Cycle Times Chapter added 02.12.2019 2.3 Safety-Relevant...
- Page 40 SRO 021 S-DIAS SAFETY RELAY OUTPUT MODULE 5.5 Miscellaneous Mission time added 5.6 Environmental Conditions Noise emissions added 9 Hardware Class SRO021 Chapter removed Page 38 05.12.2023...
