KL 090
S-DIAS Power Supply Module
Instruction Manual
Date of creation: 28.06.2013
Version date: 26.07.2023
Article number: 20-024-090-E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KL 090 and is the answer not in the manual?

Questions and answers

Summary of Contents for SIGMATEK KL 090

  • Page 1 KL 090 S-DIAS Power Supply Module Instruction Manual Date of creation: 28.06.2013 Version date: 26.07.2023 Article number: 20-024-090-E...
  • Page 2 (print, photocopy, microfilm or in any other process) without the express permission. We reserve the right to make changes in the content without notice. The SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in the handbook and assumes no responsibility for damages that occur...

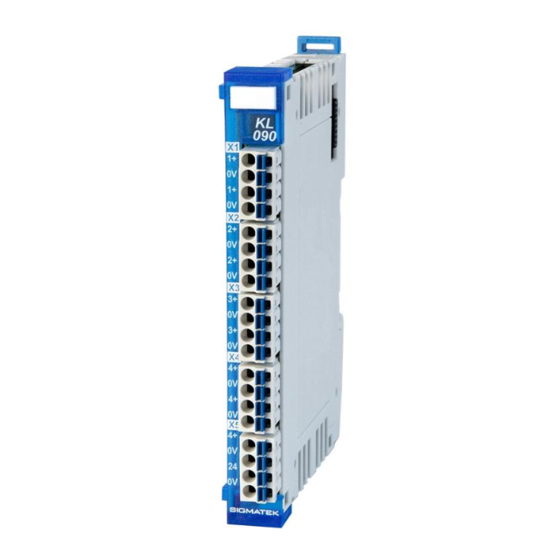

  • Page 3 KL 090 S-DIAS Power Supply Module KL 090 The S-DIAS KL 090 power supply module has a connection for a +24 V supply with GND and distributes power over nine outgoing +24 V supplies with GND, separated into four supply groups.
  • Page 4: Table Of Contents

    KL 090 S-DIAS POWER SUPPLY MODULE Contents Introduction ................4 Target Group/Purpose of this Operating Manual ...... 4 Important Reference Documentation ......... 4 Contents of Delivery ..............4 Basic Safety Directives ............5 Symbols Used ................5 Disclaimer ..................7 General Safety Directives ............
  • Page 5 S-DIAS POWER SUPPLY MODULE KL 090 Connector Layout ..............16 Status LEDs ................. 16 Applicable Connectors ............... 17 Label Field ................... 18 Wiring ..................19 Wiring Example ................19 Assembly/Installation ............20 Check Contents of Delivery ............20 Mounting ..................21 10 Transport/Storage ..............
  • Page 6: Introduction

    General knowledge of automation technology is required. Further help and training information, as well as the appropriate accessories can be found on our website www.sigmatek-automation.com. Our support team is happily available to answer your questions. Please see our website for our hotline number and business hours.
  • Page 7: Basic Safety Directives

    S-DIAS POWER SUPPLY MODULE KL 090 Basic Safety Directives Symbols Used The following symbols are used in the operator documentation for warning and danger messages, as well as informational notes: DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken.
  • Page 8 KL 090 S-DIAS POWER SUPPLY MODULE INFORMATION Information  Provides important information on the product, handling or relevant sections of the documentation, which require attention. Page 6 26.07.2023...
  • Page 9: Disclaimer

    It does not guarantee properties under the warranty. Please thoroughly read the corresponding documents and this operating manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through, non-compliance with these instructions or applicable regulations.
  • Page 10: General Safety Directives

    KL 090 S-DIAS POWER SUPPLY MODULE General Safety Directives The Safety Directives in the other sections of this operating manual must be observed. These instructions are visually emphasized by symbols. INFORMATION According to EU Directives, the operating manual is a component of a product.
  • Page 11: Software/Training

    S-DIAS POWER SUPPLY MODULE KL 090 CAUTION Handle the device with care and do not drop or let fall. Prevent foreign bodies and fluids from entering the device. The device must not be opened! Manipulez l’appareil avec précaution et ne le laissez pas tomber.
  • Page 12: Standards And Directives

    The product was constructed in compliance with the following European Union directives and tested for conformity. 3.1.1 EU Conformity Declaration EU Declaration of Conformity The product KL 090 conforms to the following European directives: • 2014/35/EU Low-voltage Directive • 2014/30/EU Electromagnetic Compatibility (EMC Directive) •...
  • Page 13: Type Plate

    S-DIAS POWER SUPPLY MODULE KL 090 Type Plate HW: Hardware version SW: Software version 26.07.2023 Page 11...
  • Page 14: Technical Data

    KL 090 S-DIAS POWER SUPPLY MODULE Technical Data +24 V Power Supplies Number of +24 V supplies (distributed over 4 supply groups) Short-circuit proof Maximum allowable continuous load current / supply connection Maximum allowable continuous load current / supply group...
  • Page 15 S-DIAS POWER SUPPLY MODULE KL 090 26.07.2023 Page 13...
  • Page 16: Voltage Monitor

    KL 090 S-DIAS POWER SUPPLY MODULE Voltage Monitor Supply voltage +24 V supply voltage > 18 V (DC OK-LED lights green) Miscellaneous Article number 20-024-090 Standard UL 508 (E247993) Approbations UL, cUL, CE, UKCA Environmental Conditions Storage temperature -20 ... +85 °C 0 …...
  • Page 17: Mechanical Dimensions

    S-DIAS POWER SUPPLY MODULE KL 090 Mechanical Dimensions 26.07.2023 Page 15...
  • Page 18: Connector Layout

    KL 090 S-DIAS POWER SUPPLY MODULE Connector Layout Status LEDs DC OK green module supplied with +24 V Page 16 26.07.2023...
  • Page 19: Applicable Connectors

    S-DIAS POWER SUPPLY MODULE KL 090 Applicable Connectors Connectors: X1-X5: Connectors with spring terminals (included in delivery) The spring terminals are suitable connecting ultrasonically compacted (ultrasonically welded) strands. Connections: Stripping length/Sleeve length: 10 mm Plug-in direction: parallel to conductor axis or to PCB Conductor cross section, rigid: 0.2-1.5 mm...
  • Page 20: Label Field

    KL 090 S-DIAS POWER SUPPLY MODULE Label Field Manufacturer Weidmüller Type MF 10/5 CABUR MC NE WS Weidmüller article number 1854510000 Compatible printer Weidmüller Type Printjet Advanced 230V Weidmüller article number 1324380000 Page 18 26.07.2023...
  • Page 21: Wiring

    S-DIAS POWER SUPPLY MODULE KL 090 Wiring Wiring Example 26.07.2023 Page 19...
  • Page 22: Assembly/Installation

    KL 090 S-DIAS POWER SUPPLY MODULE Assembly/Installation 9.1 Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter 1.3 Contents of Delivery. INFORMATION On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system.
  • Page 23: Mounting

    S-DIAS POWER SUPPLY MODULE KL 090 Mounting The S-DIAS modules are designed to be mounted in the control cabinet. To mount the modules, a DIN rail is required. The DIN rail must establish a conductive connection with the back wall of the control cabinet. The individual S-DIAS modules are mounted on the DIN rail as a block and secured with latches.
  • Page 24 KL 090 S-DIAS POWER SUPPLY MODULE Recommended minimum distances of the S-DIAS modules to the surrounding components or control cabinet wall: a, b, c … distances in mm (inches) Page 22 26.07.2023...
  • Page 25: Transport/Storage

    S-DIAS POWER SUPPLY MODULE KL 090 10 Transport/Storage INFORMATION This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! Temperature and humidity fluctuations may occur during transport.
  • Page 26: Maintenance

    KL 090 S-DIAS POWER SUPPLY MODULE 12 Maintenance INFORMATION During maintenance as well as servicing, observe the safety instructions from chapter 2 Basic Safety Directives. 12.1 Service This product was constructed for low-maintenance operation. 12.2 Repair INFORMATION In the event of a defect/repair, send the device with a detailed error description to the address listed at the beginning of this document.
  • Page 27 S-DIAS POWER SUPPLY MODULE KL 090 Documentation Changes Change date Affected Chapter Note page(s) 25.07.2013 current consumption of the supply voltage deleted 26.07.2013 operating temperature changed to 0-60 °C 29.07.2013 chapter "Mounting" added 24.10.2013 Added Vibration resistance 23.12.2013 3 Connector Layout Changed image 4.1 Wiring Example...
