- Page 1 EZ 101 S-DIAS Digital Input Module Instruction Manual Date of creation: 21.07.2015 Version date: 26.07.2023 Article number: 20-051-101-E...
- Page 2 (print, photocopy, microfilm or in any other process) without the express permission. We reserve the right to make changes in the content without notice. The SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in the handbook and assumes no responsibility for damages that occur...

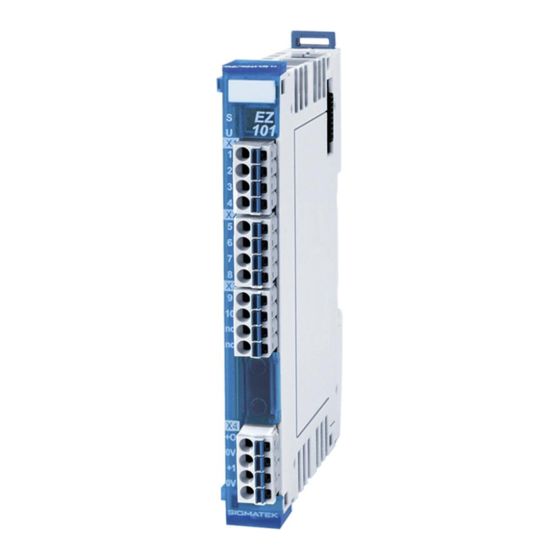

- Page 3 EZ 101 with 10 inputs The S-DIAS EZ 101 digital input module is equipped with 10 inputs and a +24 V signal for reading the signal states “0“ and “1“. To suppress noise in the signal lines, according input filters are provided.
-
Page 4: Table Of Contents
EZ 101 S-DIAS DIGITAL INPUT MODULE Contents Introduction ................5 Target Group/Purpose of this Operating Manual ...... 5 Important Reference Documentation ......... 5 Contents of Delivery ..............5 Basic Safety Directives ............6 Symbols Used ................6 Disclaimer ..................8 General Safety Directives ............ - Page 5 S-DIAS DIGITAL INPUT MODULE EZ 101 Status LEDs ................. 18 Applicable Connectors ............... 18 Label Field ................... 19 Wiring ..................20 Wiring Example ................20 Wiring Diagram EUROMAP Interface ........21 Note ....................22 Fuse Protection +24 V OUT ............22 Assembly/Installation ............
- Page 6 EZ 101 S-DIAS DIGITAL INPUT MODULE 14 Storage ...................31 15 Maintenance ................32 15.1 Service ..................32 15.2 Repair ................... 32 16 Disposal ..................32 Page 4 26.07.2023...
-
Page 7: Introduction
General knowledge of automation technology is required. Further help and training information, as well as the appropriate accessories can be found on our website www.sigmatek-automation.com. Our support team is happily available to answer your questions. Please see our website for our hotline number and business hours. -
Page 8: Basic Safety Directives
EZ 101 S-DIAS DIGITAL INPUT MODULE Basic Safety Directives Symbols Used The following symbols are used in the operator documentation for warning and danger messages, as well as informational notes: DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken. - Page 9 S-DIAS DIGITAL INPUT MODULE EZ 101 INFORMATION Information Provides important information on the product, handling or relevant sections of the documentation, which require attention. 26.07.2023 Page 7...
-
Page 10: Disclaimer
It does not guarantee properties under the warranty. Please thoroughly read the corresponding documents and this operating manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through, non-compliance with these instructions or applicable regulations. -
Page 11: General Safety Directives
S-DIAS DIGITAL INPUT MODULE EZ 101 General Safety Directives The Safety Directives in the other sections of this operating manual must be observed. These instructions are visually emphasized by symbols. INFORMATION According to EU Directives, the operating manual is a component of a product. -
Page 12: Software/Training
EZ 101 S-DIAS DIGITAL INPUT MODULE CAUTION Handle the device with care and do not drop or let fall. Prevent foreign bodies and fluids from entering the device. The device must not be opened! Manipulez l’appareil avec précaution et ne le laissez pas tomber. -
Page 13: Standards And Directives
The product was constructed in compliance with the following European Union directives and tested for conformity. 3.1.1 EU Conformity Declaration EU Declaration of Conformity The product EZ 101 conforms to the following European directives: • 2014/35/EU Low-voltage Directive • 2014/30/EU Electromagnetic Compatibility (EMC Directive) •... -
Page 14: Type Plate
EZ 101 S-DIAS DIGITAL INPUT MODULE Type Plate HW: Hardware version SW: Software version Page 12 26.07.2023... -
Page 15: Technical Data
S-DIAS DIGITAL INPUT MODULE EZ 101 Technical Data Digital Input Specifications Number Input voltage typically +24 V maximum +36 V* Signal level low: < +8 V high: > +14 V (up to HW version 1.10) Signal level low: < +5 V high: >... - Page 16 EZ 101 S-DIAS DIGITAL INPUT MODULE Page 14 26.07.2023...
-
Page 17: Miscellaneous
S-DIAS DIGITAL INPUT MODULE EZ 101 Miscellaneous Article number 20-051-101 Standard UL 508 (E247993) Approbations UL, cUL, CE Environmental Conditions Storage temperature -20 ... +85 °C Environmental temperature 0 ... +60 °C Humidity 0-95 %, non-condensing Installation altitude above sea... -
Page 18: Mechanical Dimensions
EZ 101 S-DIAS DIGITAL INPUT MODULE Mechanical Dimensions Page 16 26.07.2023... -
Page 19: Connector Layout
S-DIAS DIGITAL INPUT MODULE EZ 101 Connector Layout 26.07.2023 Page 17... -
Page 20: Status Leds
EZ 101 S-DIAS DIGITAL INPUT MODULE Status LEDs Module Status green module active no supply available BLINKING (5 Hz) no communication User yellow can be set from the application (e.g. the module LED can be set to blinking through the... -
Page 21: Label Field
S-DIAS DIGITAL INPUT MODULE EZ 101 Label Field Manufacturer Weidmüller Type MF 10/5 CABUR MC NE WS Weidmüller article number 1854510000 Compatible printer Weidmüller Type Printjet Advanced 230V Weidmüller article number 1324380000 26.07.2023 Page 19... -
Page 22: Wiring
EZ 101 S-DIAS DIGITAL INPUT MODULE Wiring Wiring Example Page 20 26.07.2023... -
Page 23: Wiring Diagram Euromap Interface
S-DIAS DIGITAL INPUT MODULE EZ 101 Wiring Diagram EUROMAP Interface 26.07.2023 Page 21... -
Page 24: Note
EZ 101 S-DIAS DIGITAL INPUT MODULE Note The input filters, which suppress noise signals, allow operation in harsh environmental conditions. A careful wiring method is also recommended to ensure error-free function. The following guidelines should be observed: • Avoid parallel connections between input lines and load-bearing circuits. -
Page 25: Assembly/Installation
S-DIAS DIGITAL INPUT MODULE EZ 101 Assembly/Installation Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter Fehler! Verweisquelle konnte nicht gefunden werden. Contents of Delivery. INFORMATION On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system. -
Page 26: Mounting
EZ 101 S-DIAS DIGITAL INPUT MODULE Mounting The S-DIAS modules are designed for installation into the control cabinet. To mount the modules a DIN-rail is required. The DIN rail must establish a conductive connection with the back wall of the control cabinet. The individual S-DIAS modules are mounted on the DIN rail as a block and secured with latches. - Page 27 S-DIAS DIGITAL INPUT MODULE EZ 101 Recommended minimum distances of the S-DIAS modules to the surrounding components or control cabinet wall: a, b, c … distances in mm (inches) 26.07.2023 Page 25...
-
Page 28: Addressing
EZ 101 S-DIAS DIGITAL INPUT MODULE 10 Addressing Address Size Access Type Description Reset value (hex) (bytes) 0000 reserve 0000 Cyclic data Digital inputs Bit 0 Input 1 0002 0000 Bit 15 Input 16 DC OK Bit 0 24 V input OK... -
Page 29: Supported Cycle Times
S-DIAS DIGITAL INPUT MODULE EZ 101 11 Supported Cycle Times 11.1 Cycle Times below 1 ms (in µs) x= supported 11.2 Cycle Times equal to or higher than 1 ms (in ms) x= supported x= supported 26.07.2023 Page 27... -
Page 30: Hardware Class Ez101
12 Hardware Class EZ101 Hardware Class EZ101 for the S-DIAS EZ101 digital input module This hardware class is used to control the EZ 101 hardware module with 10 digital outputs. More information on the hardware can be found in the module documentation. -
Page 31: General Information
S-DIAS DIGITAL INPUT MODULE EZ 101 12.1 General Information Class State State Shows the actual status of the hardware class. Device ID State Shows the Device ID of the hardware module. FPGA Version State FPGA version of the module in 16#XY (e.g. 16#10 = version 1.0). -
Page 32: Digitale Inputs 1-10
EZ 101 S-DIAS DIGITAL INPUT MODULE 12.2 Digitale Inputs 1-10 Input Input Digital input 1-10, status queried over read(). Input Word Input Shows the digital input in a 10-bit field. In this word Bits 0 to 9 are allocated to input1 to input10. -
Page 33: Transport/Storage
S-DIAS DIGITAL INPUT MODULE EZ 101 13 Transport/Storage INFORMATION This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! Temperature and humidity fluctuations may occur during transport. - Page 34 EZ 101 S-DIAS DIGITAL INPUT MODULE 15 Maintenance INFORMATION During maintenance as well as servicing, observe the safety instructions from chapter 2 Basic Safety Directives. 15.1 Service This product was constructed for low-maintenance operation. 15.2 Repair INFORMATION In the event of a defect/repair, send the device with a detailed error description to the address listed at the beginning of this document.
- Page 35 S-DIAS DIGITAL INPUT MODULE EZ 101 Documentation Changes Change date Affected Chapter Note page(s) 20.01.2016 4.3 Fuse +24 V OUT Chapter added 28.04.2016 5 Mounting Graphics distances 09.12.2016 1.3 Miscellaneous UL added 17.08.2017 1.4 Environmental Conditions Pollution Degree 3.2 Applicable connectors...
- Page 36 EZ 101 S-DIAS DIGITAL INPUT MODULE Page 34 26.07.2023...
