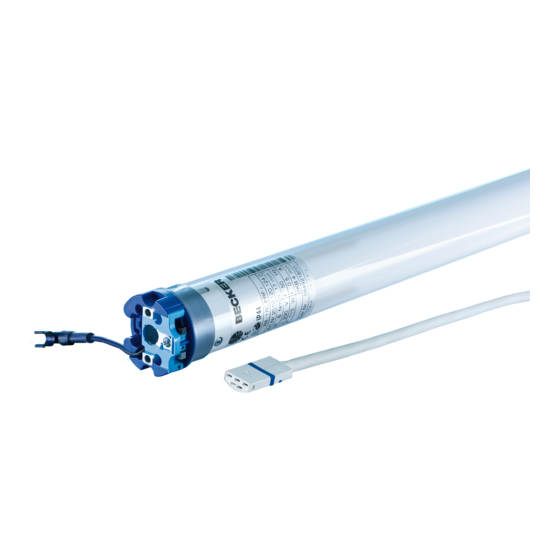

Becker R8/17C SEF I1 Assembly And Operating Instructions Manual

Becker R8/17C SEF I1 Assembly And Operating Instructions Manual

Radio controlled sun protection drives with locking system

Advertisement

Quick Links

R8/17 ... L120/11
Version: C SEF I1
Assembly and Operating Instructions
en
Radio controlled sun protection drives with locking
system
Important information for:
• Fitters / • Electricians / • Users
Please forward accordingly!
These instructions must be kept safe for future reference.
2010 300 793 0a     04/05/2018
Becker-Antriebe GmbH
Friedrich-Ebert-Straße 2-4
35764 Sinn/Germany
www.becker-antriebe.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R8/17C SEF I1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Becker R8/17C SEF I1

  • Page 1 Radio controlled sun protection drives with locking system Important information for: • Fitters / • Electricians / • Users Please forward accordingly! These instructions must be kept safe for future reference. 2010 300 793 0a     04/05/2018    Becker-Antriebe GmbH Friedrich-Ebert-Straße 2-4 35764 Sinn/Germany www.becker-antriebe.com...
  • Page 2: Table Of Contents

    Table of contents General .................................... 3 Warranty .....................................  3 Safety instructions ................................ 4 Instructions for the user.............................. 4 Instructions for installation and commissioning........................ 4 Intended use .................................. 6 Assembling and disassembling the plug-in connecting cable.................... 6 Assembling the plug-in connecting cable ..........................  6 Disassembling the plug-in connecting cable for tubular drives dia.
  • Page 3: General

    General These tubular drives are high-quality products with the following features: • Optimised for sun protection applications with locking system • Locking limit position and unlocking limit position freely programmable • Automatic detection of upper limit position • Automatic detection of lower limit position when the locking system is activated •...
  • Page 4: Safety Instructions

    Safety instructions The following safety instructions and warnings are intended to avert hazards and to prevent property damage and personal injury. Instructions for the user General information • The drive must be disconnected from its power source during cleaning and maintenance and when re- placing parts.
  • Page 5 • Hazardous moving parts of the drive must be installed at a height of over 2.5 m above floor level or any other surface from which the drive can be accessed. • To ensure safe operation of the system after commissioning, the limit positions must be correctly set/ programmed in.
  • Page 6: Intended Use

    Intended use The type of tubular drive described in these instructions is intended solely for the operation of sun protection systems with locking systems . To function properly, these tubular drives need a fixed stop in the upper limit position (retracted blind). It may only be used in networked systems if all the individual drives are exactly synchronised and reach the upper limit position at the same time.
  • Page 7: Disassembling The Plug-In Connecting Cable For Tubular Drives Dia. 45 And Dia. 58

    Disassembling the plug-in connecting cable for tubular drives dia. 45 and dia. 58 Caution Prior to disassembly, the power supply to the connecting cable must be disconnected. Insert a suitable flathead screwdriver right into the recess of the locating latch, so that the latch releases the locating lug from the plug.
  • Page 8: Installation

    Installation Assembling the drive Attention To connect the drive to the driven part, solely mechanical accessory components made by the drive manufacturer from the current product catalogue may be used. Prior to mounting, the fitter must ensure that the masonry and the system being motorised are sufficiently robust (drive torque plus weight of the shading solution).
  • Page 9: Disassembling The Drive Adapter With Safety Catch On The Drive Shaft

    Disassembling the drive adapter with safety catch on the drive shaft Disassembly with disassembly tool, Item no. 4930 300 606 0 Disassembly with long nose pliers Assembling and disassembling the drive adapter with separate drive adapter safety catch Assembling and disassembling the drive adapter with screw connection Mounting the drive in the tube For profile tubes: In the case of some drive adapters, tolerances of the groove widths in different bar-...
  • Page 10 For round shafts: Measure the lug of the thrust ring (X, Y). Then notch the tube on the motor side, so the lug of the thrust ring can also be pushed into the shaft. There must be no play between the lug of the thrust ring and the shaft. To ensure secure torque transmission for round shafts, we recommend screwing the drive adapter to the shaft (see the table below).
  • Page 11: Commissioning

    Commissioning Explanation of symbols UP button STOP button DOWN button Programming button The tubular drive clicks once to confirm The tubular drive clicks twice to confirm The tubular drive clicks three times to confirm 1 = direction switch 2 = radio switch Unlocked Locked Bolt...
  • Page 12: Programming The Master Transmitter

    If several tubular drives are to be connected in parallel, you can deactivate the program- ming mode on one tubular drive by switching the radio switch to the outside position after turning the power on. Readying the tubular drive for programming with the radio switch Switch the radio switch to the inside position.
  • Page 13: Setting The Limit Positions

    First press the programming button and, within the next 3 seconds, press both the UP and DOWN buttons for 3 seconds. ► The tubular drive acknowledges. Check the running direction again. Setting the limit positions Attention The tubular drives are designed for short-time operation (for the operating mode, please see technical data).
  • Page 14: Deleting The Limit Positions

    Deleting the limit positions Attention When the limit positions are deleted, all the other set functions (intermediate position I, in- termediate position II) are deleted as well. Once set, the limit positions can only be deleted with the master transmitter. Press the programming button and, within the next 3 seconds, press the STOP button at the same time and hold the two buttons down for 10 seconds.
  • Page 15: Programming Additional Transmitters

    Setting the intermediate position II Travel the shading solution to the desired intermediate position II . Press the STOP button and, within 3 seconds, also press the UP button and hold the two buttons down. ▻ The tubular drive acknowledges. ►...
  • Page 16: Deleting Transmitters

    Deleting transmitters Deleting individual transmitters The programmed master transmitter cannot be deleted. It can only be overwritten (see Programming the master transmitter [} 12]). Press the programming button on the master transmitter for 3 seconds. ▻ The tubular drive acknowledges. Now press the programming button of the transmitter to be deleted for 3 seconds. ▻...
  • Page 17: Overwriting The Master

    Overwriting the master There are two ways to overwrite the master: • Readying the tubular drive for programming by switching on the power • Readying the tubular drive for programming with the radio switch Readying the tubular drive for programming by switching on the power To ensure that the new master transmitter is programmed in the desired tubular drive only, all other tubular drives which are connected to the same power supply must be deactivated from the programming mode.
  • Page 18: Technical Data Dia. 45

    Technical data dia. 45 Type R8/17 R12/17 R20/17 R30/17 R40/17 C SEF I1 C SEF I1 C SEF I1 C SEF I1 C SEF I1 Rated torque [Nm] Output speed [rpm] Limit switch range 64 revolutions Supply voltage 230 V AC / 50 Hz Connected load [W] Rated current consumption [A] 0.45...
  • Page 19: What To Do If

    What to do if...? Problem Remedy Tubular drive is not functioning. Program new transmitter. Bring transmitter within range of the tubular drive. Press drive or stop button on transmitter at least 5 times. Insert batteries correctly or insert new batteries. Check electrical connection. Thermal protection switch in tubular drive has tripped.
  • Page 20: Declaration Of Conformity

    Declaration of conformity...
