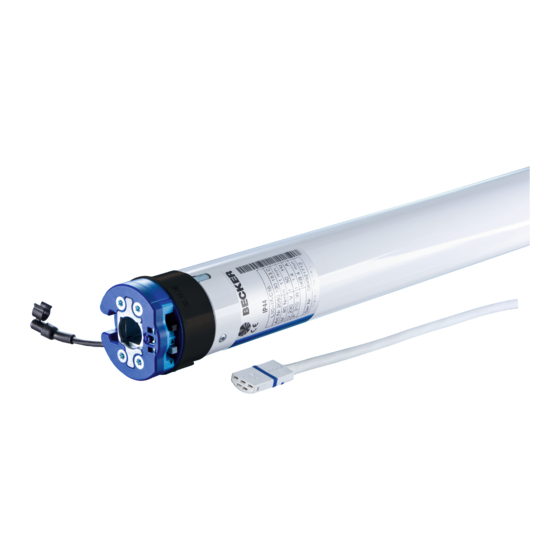

Model: C16
Assembly and Operating Instructions
en
Radio controlled sun protection drives with locking
system
Important information for:
• Fitters / • Electricians / • Users
Please forward accordingly!
These instructions must be kept safe for future reference.
2010 300 981 0 20/10/2023
Becker-Antriebe GmbH
Friedrich-Ebert-Straße 2-4
35764 Sinn/Germany
www.becker-antriebe.com
Advertisement
Table of Contents
Related Manuals for Becker L120-11-C16
Summary of Contents for Becker L120-11-C16
- Page 1 Radio controlled sun protection drives with locking system Important information for: • Fitters / • Electricians / • Users Please forward accordingly! These instructions must be kept safe for future reference. 2010 300 981 0 20/10/2023 Becker-Antriebe GmbH Friedrich-Ebert-Straße 2-4 35764 Sinn/Germany www.becker-antriebe.com...
-
Page 2: Table Of Contents
Table of contents General .................................... 3 Warranty ..................................... 3 Safety instructions ................................ 4 Instructions for the user.............................. 4 Instructions for installation and commissioning........................ 4 Intended use .................................. 6 Assembling and disassembling the plug-in connecting cable.................... 6 Assembly .................................... 7 Commissioning.................................. 9 Programming the master transmitter .......................... -
Page 3: General
General These tubular drives are high-quality products with the following features: • Optimised for sun protection applications with locking system • Locking limit position and unlocking limit position freely programmable • Automatic detection of upper limit position • Several drives can be operated in parallel •... -
Page 4: Safety Instructions
Safety instructions The following safety instructions and warnings are intended to avert hazards and to prevent property damage and personal injury. Instructions for the user General information • The drive must be disconnected from its power source during cleaning and maintenance and when re- placing parts. - Page 5 • If the drive is used for shading solutions in a specially marked area (e.g., escape routes, hazard zones, safety areas), compliance with all applicable regulations and standards must be ensured. • Once the drive has been installed, the fitter must mark the used tubular drive in the “Technical data” chapter and make a note of the installation position.
-
Page 6: Intended Use
Intended use The type of tubular drive described in these instructions is intended solely for the operation of sun protection systems with locking systems . To function properly, these tubular drives need a fixed stop in the upper limit position (retracted blind). When mounting connection parts on the drive dia. -
Page 7: Assembly
Ø45/Ø58 Insert a suitable flathead screwdriver right into the recess of the locating latch, so that the latch releases the locating lug from the plug. Now you can pull out the connecting cable along with the flat- head screwdriver. A = locating latch Assembly Assembling the drive Attention... - Page 8 Assembling and disassembling the drive adapter with drive adapter safety catch or screw connection Assembling and disassembling the drive Assembling and disassembling the drive adapter with separate drive adapter adapter with screw connection safety catch Mounting the drive in the tube For profile shafts: In the case of some drive adapters, tolerances of the groove widths in different barrels can be offset by rotating the drive adapter into a different groove recess.
-
Page 9: Commissioning
Commissioning Explanation of symbols UP button STOP button DOWN button Programming button Receiver confirms once or multiple times by “clicking” or “shifting” 1 = direction switch 2 = radio switch Unlocked Locked Locking bolt Moving part of the locking system on the front section of the sun protection system Bolt mechanism Fixed part of the locking system in the guide track of the sun protection sys-... -
Page 10: Programming The Master Transmitter
Readying the tubular drive for programming with the radio switch Switch the radio switch to the inside position. If the radio switch is already in this posi- tion, switch it to the outside and back to the inside position. ► The tubular drive is ready to programme for 3 minutes Programming the master transmitter Press the programming button for 3 seconds when it is ready to programme. -
Page 11: Setting The Limit Positions
Setting the limit positions Limit position status indicator A brief stopping and restarting indicates that no limit position has been set in that direction of movement. Attention The tubular drives are designed for short-time operation (for the operating mode, please see technical data). -
Page 12: Deleting The Limit Positions
Deleting the limit positions Attention When the limit positions are deleted, all the other set functions (intermediate position I, in- termediate position II) are deleted as well. Once set, the limit positions can only be deleted with the master transmitter. Press the programming button and, within the next 3 seconds, press the STOP button at the same time and hold the two buttons down for 10 seconds. -
Page 13: Intermediate Position Ii In The Up Direction
Intermediate position II in the up direction The intermediate position II is any shading solution position of your choosing. It is not pos- sible to set an intermediate position II in the area of the limit position. Both limit positions must be set before the intermediate position II is set. -
Page 14: Deleting Transmitters
Deleting transmitters Deleting individual transmitters The programmed master transmitter cannot be deleted. It can only be overwritten (see Programming the master transmitter [} 10]). Press the programming button on the master transmitter for 3 seconds. ▻ The tubular drive acknowledges. Now press the programming button of the transmitter to be deleted for 3 seconds. ▻... -
Page 15: Local Operation With A Single Button
Now press the programming button of the new master transmitter for 10 seconds. ▻ The tubular drive acknowledges. ► The new master transmitter has now been programmed and the old master trans- mitter overwritten. Readying the tubular drive for programming with the radio switch Switch the radio switch to the inside position. -
Page 16: Programming And Deleting The Run Times
Programming and deleting the run times Programming the run times This function is only available with MemoControl transmitters from the Becker Centronic range of control units. This tubular drive can save one switching time for one retraction and one extension cycle. -
Page 17: Technical Data Dia. 35
Technical data dia. 35 Tubular drive P5-20 P9-16 Model Type C SEF I2 Rated torque [Nm] Output speed [rpm] Limit switch range 64 revolutions Supply voltage 230 V AC / 50 Hz Connected load [W] Rated current consumption [A] 0.47 0.47 Operating mode S2 4 min Degree of protection IP 44 Min. -
Page 18: Technical Data Dia. 58
Technical data dia. 58 Tubular drive L50-17 L70-17 L80-11 L80-17* L100-11 L120-11 Model Type C SEF I2 Rated torque [Nm] Output speed [rpm] Limit switch range 64 revolutions Supply voltage 230 V AC / 50 Hz Connected load [W] Rated current consumption [A] 1.40 1.90 1.40 2.10... -
Page 19: Declaration Of Conformity
Declaration of conformity 19 - en...
