R12/17...L120/11
Version: C SE I1; C SE T1
Assembly and Operating Instructions
en

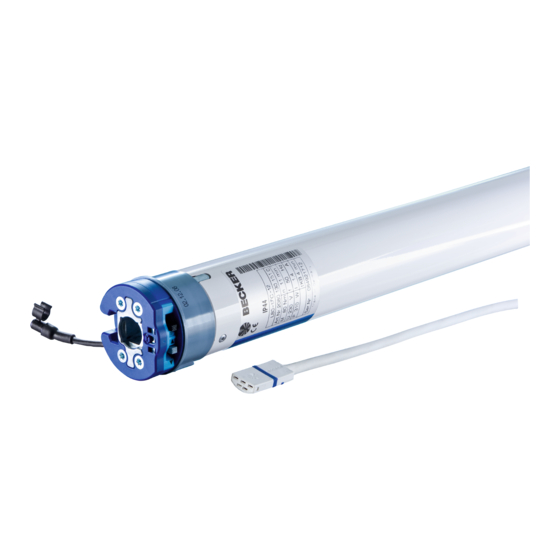

Sun protection drives with locking system
Important information for:
• Fitters / • Electricians / • Users
Please forward accordingly!
These instructions must be kept safe for future reference.
2010 300 601 0d 05/10/2016
Becker-Antriebe GmbH
Friedrich-Ebert-Straße 2-4
35764 Sinn/Germany
www.becker-antriebe.com
Advertisement
Table of Contents
Related Manuals for Becker R30/17C SE I1
Summary of Contents for Becker R30/17C SE I1
- Page 1 Sun protection drives with locking system Important information for: • Fitters / • Electricians / • Users Please forward accordingly! These instructions must be kept safe for future reference. 2010 300 601 0d 05/10/2016 Becker-Antriebe GmbH Friedrich-Ebert-Straße 2-4 35764 Sinn/Germany www.becker-antriebe.com...
-
Page 2: Table Of Contents
Table of contents General .................................... 3 Warranty ..................................... 3 Safety instructions ................................ 4 Instructions for the user.............................. 4 Instructions for installation and commissioning........................ 4 Intended use .................................. 6 Assembling and disassembling the plug-in connecting cable.................... 6 Assembling the plug-in connecting cable .......................... 6 Disassembling the plug-in connecting cable for tubular drives dia. -
Page 3: General
General These tubular drives are high-quality products with the following features: • Optimised for sun protection applications with locking system • Automatic detection of upper limit position • Automatic detection of lower limit position when the locking system is activated •... -
Page 4: Safety Instructions
Safety instructions The following safety instructions and warnings are intended to avert hazards and to prevent property damage and personal injury. Instructions for the user General information • All work, including maintenance and cleaning, on electrical installations as well as other system parts must always be performed by authorised specialists, in particular qualified electricians. - Page 5 • Moving parts of drives must be installed at a height of over 2.5 m above floor level or any other surface from which access to the drive is gained. • To ensure safe operation of the system after commissioning, the limit positions must be correctly set/ programmed in.
-
Page 6: Intended Use
Intended use The type of tubular drive described in these instructions is intended solely for the operation of sun protection systems with locking system. To function properly, these tubular drives need a fixed stop in the upper limit position (retracted sun protection). It may only be used in networked systems if all the individual drives are exactly synchronised and reach the limit positions at the same time. -
Page 7: Disassembling The Plug-In Connecting Cable For Tubular Drives Dia. 45 And Dia. 58
Disassembling the plug-in connecting cable for tubular drives dia. 45 and dia. 58 Caution Prior to disassembly, the power supply to the connecting cable must be disconnected. Insert a suitable flathead screwdriver right into the recess of the locating latch, so that the latch releases the locating lug from the plug. -
Page 8: Installation
Installation Assembling the drive Attention To connect the drive to the driven part, solely mechanical accessory components made by the drive manufacturer from the current product catalogue may be used. Prior to mounting, the fitter must ensure that the masonry and the system being motorised are sufficiently robust (drive torque plus weight of the shading solution). -
Page 9: Assembling The Drive Adapter With Screw Connection
Assembling the drive adapter with screw connection Put the drive adapter (1) onto the drive shaft of the tubular drive. For the assembly, use an M6 x 12 screw (3) with appropriate washer (2) and suitable screw retainer. Threaded hole (4) Securing the drive against axial displacement In order to secure the drive against axial displacement, we recommend screwing the drive adapter to the tube. -
Page 10: Setting The Limit Positions
For round tubes: First notch the tube on the motor side, so the lug of the thrust ring can also be pushed into the tube. There must be no play between the lug of the thrust ring and the tube. 4,5mm Assemble the tubular drive with the relevant ring (1) and drive adapter (2). - Page 11 Avoid a situation where the thermal protection switch cuts in repeatedly. To remove the drive or to clear the internal memory, you will again need the Becker programming unit for drives with electronic limit switching. You can then reset the tubular drive to its factory default settings, for example, in order to: •...
-
Page 12: Deleting The Limit Positions Using The Programming Unit
Deleting the limit positions using the programming unit Connect the wires of the tubular drive to those of the same colour in the programming unit and switch on the power supply. Please pause for 1 sec after the last drive command before beginning the deletion se- quence. -
Page 13: Information For The Electrician
Information for the electrician Tubular drives with electronic limit switching can be connected in parallel. The maximum switching contact load of the switching equipment (timer, relay control, switch, etc.) must be observed. To operate drives with electronic limit switching, only use switch- ing elements (timers) that are not earthed via the drive. -
Page 14: Technical Data Dia. 58
Technical data dia. 58 Type L50/17 L70/17 C SE I1 C SE I1 Rated torque [Nm] Output speed [rpm] Limit switch range 64 revolutions Supply voltage 230 V AC / 50 Hz Connected load [W] Rated current consumption [A] 1.40 1.90 Mode S2 4 min... -
Page 15: What To Do If
What to do if...? Problem Cause Remedy Tubular drive overruns the limit position or Limit positions have been deleted (tubular does not reach the set limit position. drive clicks twice when switched on) or reset (tubular drive clicks once when switched on). -
Page 16: Sample Wiring Diagram
Sample wiring diagram The assignment of the black and brown wires according to the direction of travel is de- pendant on how the drive is installed (mounted to the right or to the left). Controlling one/several drive(s) via a single switch/button... -
Page 17: Declaration Of Conformity
Declaration of conformity...
