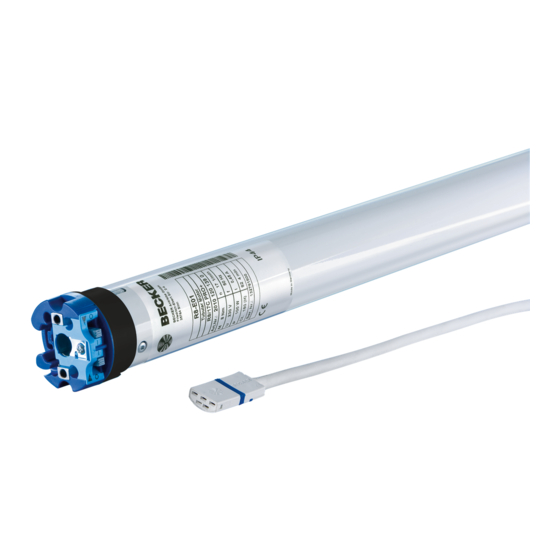

Becker R20-17 Assembly And Operating Instructions Manual

Tubular drives for roller shutters
Hide thumbs Also See for R20-17:
Table of Contents

Advertisement

Quick Links

Download this manual
R20-17...R40-17
Model: E01a
Assembly and Operating Instructions
en
Tubular drives for roller shutters
Important information for:
• Fitters / • Electricians / • Users
Please forward accordingly!
These instructions must be kept safe for future reference.
2010 301 102 0     14/08/2018
Becker-Antriebe GmbH
Friedrich-Ebert-Straße 2-4
35764 Sinn/Germany
www.becker-antriebe.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R20-17 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Becker R20-17

Summary of Contents for Becker R20-17

  • Page 1 R20-17...R40-17 Model: E01a Assembly and Operating Instructions Tubular drives for roller shutters Important information for: • Fitters / • Electricians / • Users Please forward accordingly! These instructions must be kept safe for future reference. 2010 301 102 0     14/08/2018    Becker-Antriebe GmbH Friedrich-Ebert-Straße 2-4...

  • Page 2: Table Of Contents

    Table of contents General .................................... 3 Warranty .....................................  3 Safety instructions ................................ 4 Instructions for the user.............................. 4 Instructions for installation and commissioning........................ 4 Intended use .................................. 6 Assembling and disassembling the plug-in connecting cable.................... 6 Assembling the plug-in connecting cable ..........................  6 Disassembling the plug-in connecting cable for tubular drives dia.

  • Page 3: General

    General These tubular drives are high-quality products with the following features: • Optimised for roller shutter operation • Installation without stops possible (from lower point to upper point) • Automatic detection of the lower limit position when using springs in conjunction with the "drive adapter for obstacle detec- tion"...

  • Page 4: Safety Instructions

    Safety instructions The following safety instructions and warnings are intended to avert hazards and to prevent property damage and personal injury. Instructions for the user General information • The drive must be disconnected from its power source during cleaning and maintenance and when re- placing parts.
  • Page 5 • Hazardous moving parts of the drive must be installed at a height of over 2.5 m above floor level or any other surface from which the drive can be accessed. • To ensure safe operation of the system after commissioning, the limit positions must be correctly set/ programmed in.

  • Page 6: Intended Use

    Intended use The type of tubular drive described in these instructions is intended solely for the operation of roller shutters. This type of tubular drive supports not only curtain attachment by means of springs but also rigid shaft connectors, such as mech- anical anti-lifting devices manufactured by Zurfluh-Feller, Simu, GAH Alberts and Deprat.

  • Page 7: Disassembling The Plug-In Connecting Cable For Tubular Drives Dia. 45 And Dia. 58

    Disassembling the plug-in connecting cable for tubular drives dia. 45 and dia. 58 Caution Prior to disassembly, the power supply to the connecting cable must be disconnected. Insert a suitable flathead screwdriver right into the recess of the locating latch, so that the latch releases the locating lug from the plug.

  • Page 8: Installation

    Installation Assembling the drive Attention To connect the drive to the driven part, solely mechanical accessory components made by the drive manufacturer from the current product catalogue may be used. Prior to mounting, the fitter must ensure that the masonry and the system being motorised are sufficiently robust (drive torque plus weight of the shading solution).

  • Page 9: Disassembling The Drive Adapter With Safety Catch On The Drive Shaft

    Disassembling the drive adapter with safety catch on the drive shaft Disassembly with disassembly tool, Item no. 4930 300 606 0 Disassembly with long nose pliers Assembling and disassembling the drive adapter with separate drive adapter safety catch Assembling and disassembling the drive adapter with screw connection Mounting the drive in the tube For profile tubes: In the case of some drive adapters, tolerances of the groove widths in different bar-...
  • Page 10 For round shafts: Measure the lug of the thrust ring (X, Y). Then notch the tube on the motor side, so the lug of the thrust ring can also be pushed into the shaft. There must be no play between the lug of the thrust ring and the shaft. To ensure secure torque transmission for round shafts, we recommend screwing the drive adapter to the shaft (see the table below).

  • Page 11: Setting The Limit Positions With The Switches On The Drive Head

    Setting the limit positions with the switches on the drive head Programming setting Switch Delete setting Direction arrows Connect the wires of the tubular drive to those of the same col- our in the cord switch set or operator control and switch on the power supply.
  • Page 12 Upper stop to lower stop Set both switches to the delete setting. Execute a short drive command. Set both switches to the programming setting. Open to the permanent upper stop until the tubular drive switches off automatically. Then close to the lower limit position until the tubular drive switches off automatically. ►...

  • Page 13: Deleting The Limit Positions Using The Switches

    Upper point to lower stop There is no shading solution length adjustment with this limit position setting. Set both switches to the delete setting. Execute a short drive command. Open to the desired upper limit position. Now reset the switch of the UP direction of rotation from the delete setting to the pro- gramming setting.

  • Page 14: Setting The Limit Positions Using The Programming Unit

    Setting the limit positions using the programming unit Programming setting Switch Delete setting Direction arrows Connect the wires of the tubular drive to those of the same col- our in the programming unit for drives with electronic limit Programming button Travel button switching and switch on the power supply.
  • Page 15 Upper stop to lower stop Set both switches to the programming setting. Open as far as the permanent upper stop. ▻ The tubular drive switches off automatically. Move down to the lower limit position. ▻ The tubular drive switches off automatically. ►...
  • Page 16 Upper point to lower stop Set both switches to the programming setting. Open to the desired upper limit position. Press the programming button of the programming unit for 3 seconds. ▻ The tubular drive makes a "click" sound to confirm. Then move down to the lower limit position.

  • Page 17: Deleting The Limit Positions Using The Programming Unit

    Deleting the limit positions using the programming unit Connect the wires of the tubular drive to those of the same colour in the programming unit and switch on the power supply. Please pause for 1 sec after the last drive command before beginning the deletion se- quence.
  • Page 18 Deleting both limit positions Open/close the shading solution to a point between the limit positions. Press the programming button and keep it pressed. Then press down the travel button and keep it pressed. Now release the programming button, but continue to keep the travel button pressed. Next press the programming button again.

  • Page 19: Adjusting The Limit Positions With A Rotary Switch Or A Locking Button

    Adjusting the limit positions with a rotary switch or a locking button Programming setting Switch Delete setting Direction arrows Intelligent installation management Limit position status indicator A brief stopping and restarting indicates that no limit position has been set in that direction of movement. Completion of installation following automatic setting of limit position "Stop"...
  • Page 20 Upper stop to lower point Set both switches to the programming setting. Open to the permanent upper stop. ▻ The tubular drive switches off automatically. Then close to the desired lower limit position. Carry out the following sequence without interruption between the individual drive commands. ▻...

  • Page 21: Deleting The Limit Positions With A Rotary Switch Or A Locking Button

    Upper point to lower point There is no shading solution length adjustment with this limit position setting. Set both switches to the programming setting. Open to the desired upper limit position. Carry out the following sequence without interruption between the individual drive commands. ▻...

  • Page 22: Additional Upper Anti-Freeze Mechanism

    Additional upper anti-freeze mechanism The upper anti-freeze mechanism helps to prevent the roller shutter from freezing in the upper limit position, as the roller shutter stops just before the upper stop. The distance from the upper stop is automatically cyclically checked and, if necessary, correc- ted.

  • Page 23: Fly Screen Protection Function

    Fly screen protection function If the fly screen protection function is activated, obstacle detection is activated after a revolution of the barrel of approx. 140° from the upper limit position. If the roller shutter curtain meets an opened fly screen door, the drive stops and returns to the upper limit position.

  • Page 24: Technical Data Dia. 45

    Technical data dia. 45 Tubular drive R20-17 R30-17 R40-17 Model E01a Type CPRO+ A Rated torque [Nm] Output speed [rpm] Limit switch range 64 revolutions Supply voltage 240 V AC / 50 Hz Connected load [W] Rated current consumption [A] 0.70...

  • Page 25: What To Do If

    What to do if...? Problem Remedy The roller shutter curtain is raised unevenly or not at all. Repair system; then re-program limit positions. Tubular drive overruns the limit position or does not reach the Repair electrical installation; re-program limit positions. set limit position.

  • Page 26: Sample Wiring Diagrams

    Sample wiring diagrams The assignment of the black and brown wires according to the direction of travel is de- pendant on how the drive is installed (mounted to the right or to the left). Controlling one/several drive(s) via a single switch/button...
  • Page 27 Central, group and individual control using Centronic UnitControl UC42 Central Control unit Mains 230 V / 50 Hz Central cable 230 V / 50 Hz (connection to further control units) Group 230 V / 50 Hz Individual Individual 230 V / 50 Hz 230 V / 50 Hz...
