INSTRUCTION MANUAL
6 OPERATION
6.1 INITIAL OPERATION
6.1.1 ELECTRIC DRIVE SYSTEM
SWITCHING ON THE ELECTRIC DRIVE SYSTEM The system can only be switched on if a sufficiently charged battery
and the display are inserted.
Press the On-Off button for at least one second to switch on the system. The «Drive» menu is shown on the display
screen.
SWITCHING OFF THE ELECTRIC DRIVE SYSTEM The drive system switches off automatically to save energy if no
rider activity is detected for a longer period of time. (The rider can adjust the time interval until switch-off in the
settings menu -> MyBike -> Auto Power Off.) The display is operated using the rocker switch on the operating element
so that your hands can remain on the handlebars while you are riding.
Press the On-Off button for at least a second to switch off the electric system by hand.
OPERATION You can access the different main screens using the rocker switch (left / right). The settings menu can
only be accessed when the e-bike is stationary. An overview of all main screens is displayed each time the rocker
switch is used to make operation simpler. This allows you to select the required screen directly without needing to
go through all the different screens first. Either press the rocker switch or wait briefly to enter the required screen
(if the rocker switch is not moved for more than 1 sec., you enter the selected screen automatically). You can press
the rocker switch while in any screen except the Drive screens or the settings menu to enter the main Drive screen
directly. In the drive screens, you can use the rocker switch to scroll through the individual screens.
You can use plus / minus to scroll up and down a list you have accessed, such as the Settings menu. If the light button
and the rocker switch (press) have a new function (OK, Back), this is shown on the display.
6.1.2 PAIRING / COUPLING THE FIT KEY CARD WITH THE FIT E-BIKE CONTROL APP
The FIT Key Card is your ticket to the digital FIT world for every e-bike with FIT 2.0 integration. The individual ID is
based on the SmartX technology from ABUS and ensures a secure connection to the e-bike with a unique key.
INFO-CIR
NOTICE
Keep the card in a safe place as it serves as the e-bike's ID.
Can be reordered subject to payment in the e-shop if lost.
FIT_Manual_Remote_Display_Pinion_V3_en | Version 03 | 24.10.2023
Select the menu E-bikes in the navigation bar

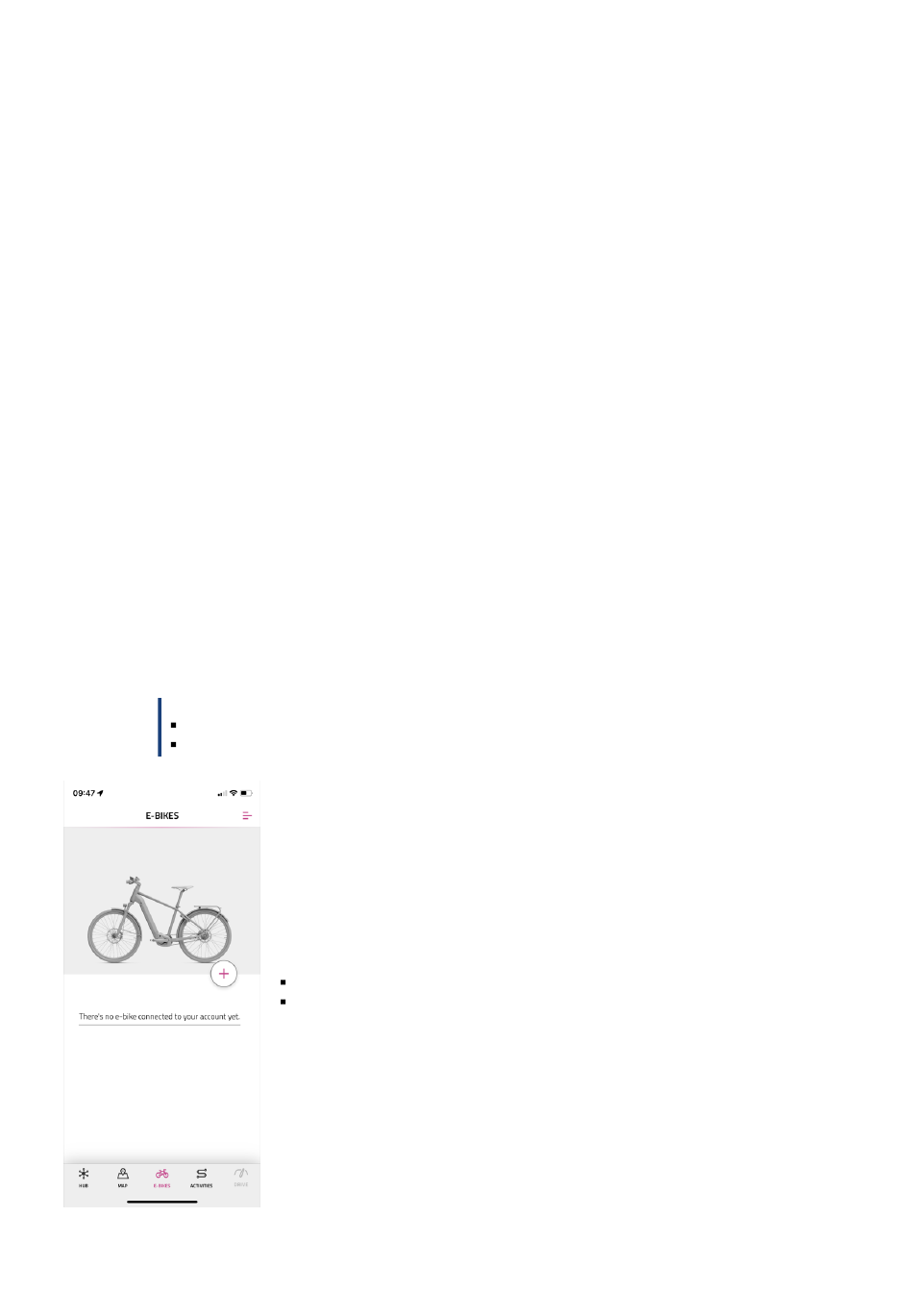

Press the + icon to add your e-bike in the FIT E-Bike Control app
FIT REMOTE DISPLAY PINION
12
