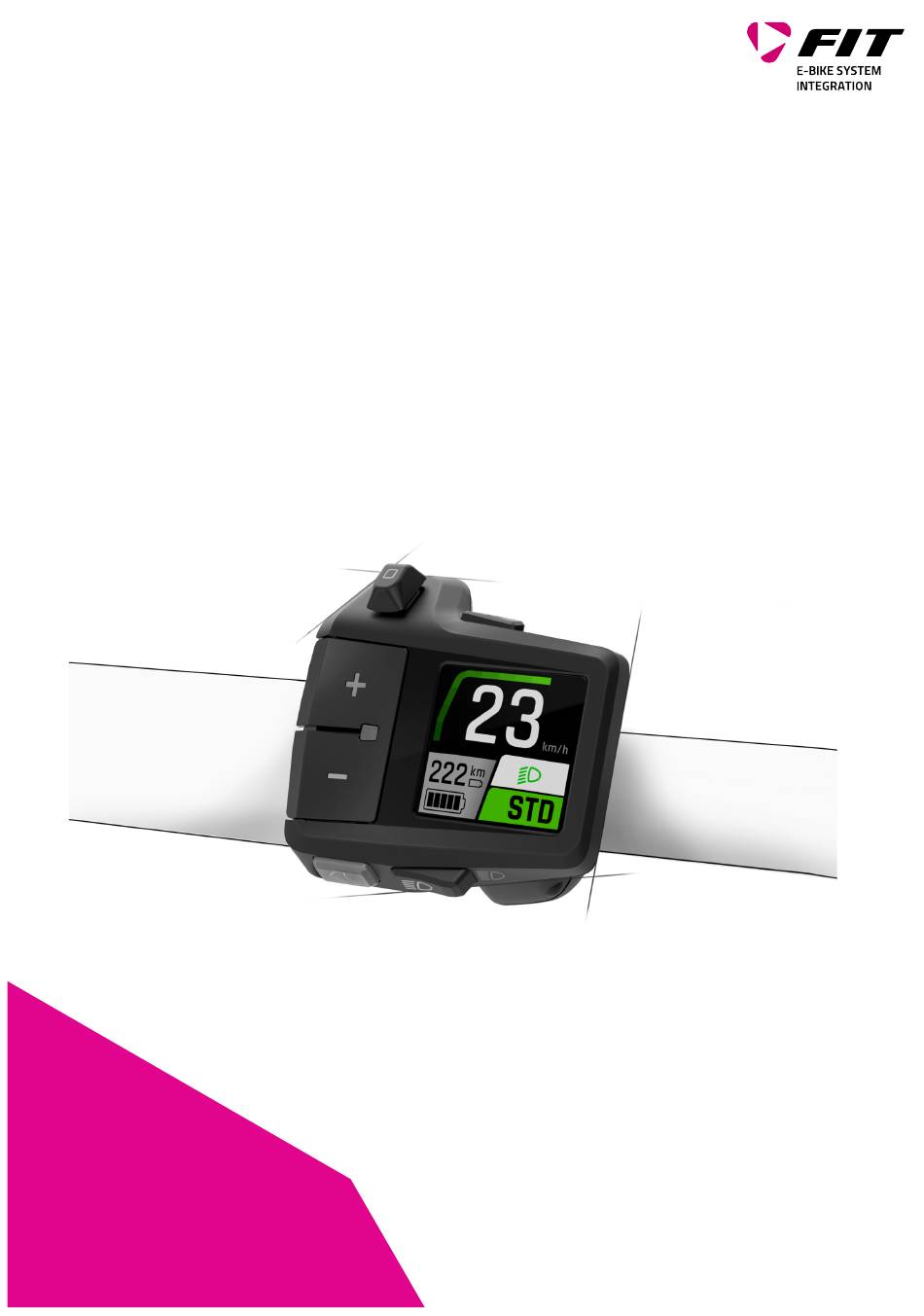

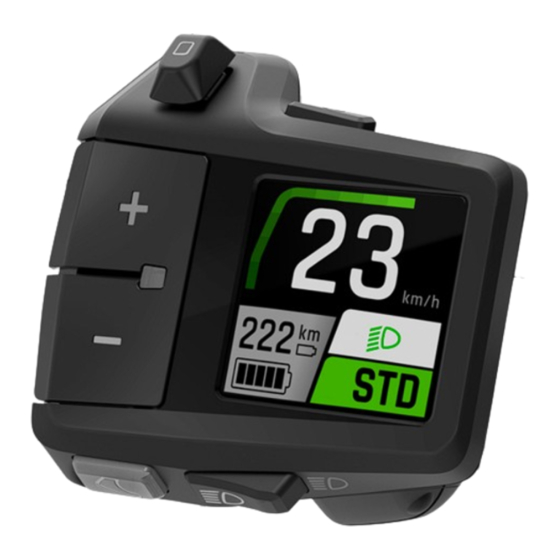

INSTRUCTION MANUAL
FIT REMOTE DISPLAY
500093 | 501103 | 501263 | 501264
NETWORKED
CUSTOMISED
INTELLIGENT
Biketec GmbH
Luzernstrasse 84
CH-4950 Huttwil
T +41 62 959 53 00
info@biketec.ch
fit-ebike.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500093 and is the answer not in the manual?

Questions and answers

Related Manuals for FiT 500093

Summary of Contents for FiT 500093

  • Page 1 INSTRUCTION MANUAL FIT REMOTE DISPLAY 500093 | 501103 | 501263 | 501264 Biketec GmbH Luzernstrasse 84 NETWORKED CH-4950 Huttwil CUSTOMISED T +41 62 959 53 00 INTELLIGENT info@biketec.ch fit-ebike.com...

  • Page 2: Table Of Contents

    FIT REMOTE DISPLAY ........
  • Page 3 INSTRUCTION MANUAL FIT REMOTE DISPLAY 10 TROUBLESHOOTING, FAULT CLEARANCE AND REPAIR 10.1 TROUBLESHOOTING AND FAULT CLEARANCE ....... . . 45 10.1.1 DRIVE SYSTEM OR DISPLAY DOES NOT START UP .

  • Page 4: Preface

    1 PREFACE Dear FIT customer, The FIT system offers many useful functions and options and we are pleased that you have decided to choose our system. Please read through the operating instructions carefully to ensure you use the system safely and get off to a quick start.

  • Page 5: About These Operating Instructions

    INSTRUCTION MANUAL FIT REMOTE DISPLAY 2 ABOUT THESE OPERATING INSTRUCTIONS 2.1 MANUFACTURER Biketec GmbH Luzernstrasse 84 CH-4950 Huttwil fit-ebike.com/en-en/ 2.2 LANGUAGE The original operating instructions are written in German. A translation is invalid without the original operating in- structions. 2.3 DECLARATION OF CONFORMITY Biketec GmbH hereby declares that the products described in these operating instructions comply with EU directives.

  • Page 6: Safety Instructions

    The generic names used in these operating instructions, such as motor, battery and operating element, all refer to original FIT e-bike components. 3.2 OPERATING ELEMENT AND DISPLAY Do not let the messages on the display screen distract you. If you do not focus solely on traffic on the road, you risk being involved in an accident.

  • Page 7: Product And Technical Specifications

    The combination of control unit and display shows the same content as the FIT displays and is easy to use without taking your hands off the handlebars. The FIT Drive Screen can be conveniently controlled via the FIT Remote Display.

  • Page 8: Operating Element

    INSTRUCTION MANUAL FIT REMOTE DISPLAY 4.2 OPERATING ELEMENT Operating Description element On-Off button Rocker switch (right, left and press) Plus / minus button Push assist / boost button Light button FIT_Manual_Remote_Display_V2_en | Version 02 | 02.05.2023...

  • Page 9: Proper Use

    FIT REMOTE DISPLAY 4.3 PROPER USE The operating element and the display are designed to control a FIT e-bike system and display trip data. 4.4 IMPROPER USE Improper use refers to use which is not described under proper use or goes beyond proper use.

  • Page 10: Transportation And Storage

    INSTRUCTION MANUAL FIT REMOTE DISPLAY 5 TRANSPORTATION AND STORAGE 5.1 TRANSPORTATION Exclamat CAUTION Remove battery before transportation. There is a risk of injury if the drive system is switched on unintentionally. 5.1.1 TRANSPORTING E-BIKES Protect the electrical components and connections on the e-bike from the elements with suitable protective covers.

  • Page 11: Operation

    6.1.2 PAIRING / COUPLING THE FIT KEY CARD WITH THE FIT E-BIKE CONTROL APP The FIT Key Card is your ticket to the digital FIT world for every e-bike with FIT 2.0 integration. The individual ID is based on the SmartX technology from ABUS and ensures a secure connection to the e-bike with a unique key.

  • Page 12: Support Modes

    INSTRUCTION MANUAL FIT REMOTE DISPLAY Follow the instructions in the FIT E-Bike Control app 6.2 SUPPORT MODES You can set the assistance levels using the + and – buttons on the control unit. Symbol Description Maximum motor assistance for active riding up to high pedaling frequencies.

  • Page 13: Push Assist

    INSTRUCTION MANUAL FIT REMOTE DISPLAY 6.2.1 PUSH ASSIST Assistance mode icon: Push assist makes it easier to push an e-bike. Do not use the push assist system to ride your e-bike. If you activate the push assist system, you can push your e-bike more comfortably out of an underground garage or up a steep section.

  • Page 14: Notice / Error Icon

    Warning / error Action: Re-start the system. Contact your FIT specialist dealer if the problem persists. You need to take your e-bike to your FIT specialist dealer for Service is due maintenance as soon as possible. Reduced power for riding assistance. (This is not an error; it is...

  • Page 15: Main / Sub-Screens

    INSTRUCTION MANUAL FIT REMOTE DISPLAY 6.6 MAIN / SUB-SCREENS DRIVE MAIN DISPLAY 1. Notice / danger alert messages 2. Current speed 3. Current motor assistance 4. Range (in current assistance setting / level of assistance) 5. Battery level 6. Light (main beam / dimmed headlight / off) 7.
  • Page 16 INSTRUCTION MANUAL FIT REMOTE DISPLAY TRIP HEIGHT 1. Difference in altitude ridden during the current trip TOTAL 1. Odometer (total number of kilometres that the e-bike has covered. This value cannot be reset.) HEIGHT 1. Current altitude Since the indicated altitude depends on the air pressure, the incorrect altitude may be displayed if the altimeter is not calibrated on a regular basis.

  • Page 17: Navigation

    2. Current tire pressure, front. (only available with an optional tire pressure sensor) 6.6.1 NAVIGATION Navigation is only available in conjunction with the FIT E-Bike Control app. To use the FIT E-Bike Control app, the smartphone must be connected to the e-bike using the FIT Key Card (see section 6.1.2).
  • Page 18 INSTRUCTION MANUAL FIT REMOTE DISPLAY Navigate to: Enter the desired navigation destination. After entering the start and end point, information about the selected route is dis- played: 1. Distance to the target. 2. The red battery symbol indicates that the current charging status is not sufficient to reach the destination in any assistance level.
  • Page 19 INSTRUCTION MANUAL FIT REMOTE DISPLAY In the ACTIVITIES menu, you can choose between recorded and planned routes from the linked komoot account. The last route is also available as a speed dial. INFO-CIR NOTICE After linking your komoot account for the first time, it will take a while for all planned routes to be synchronized.
  • Page 20 INSTRUCTION MANUAL FIT REMOTE DISPLAY After selecting a tour, the details of the tour are displayed again in detail. Navigation can be started using START TOUR. NAVI MAIN DISPLAY If navigation on the smartphone has not been started, the following message appears.
  • Page 21 2. The distance to the next navigation point DISPLAY CALLS The call display is only available in conjunction with the FIT E-Bike Control app. To use the FIT E-Bike Control app, the smartphone must be connected to the e-bike using the FIT Key Card (see Section 6.1.2).

  • Page 22: Charge Indicator

    INSTRUCTION MANUAL FIT REMOTE DISPLAY 6.7 CHARGE INDICATOR Menu – Charge The charge indicator appears as soon as the charger is connected to the e-bike. Use the plus / minus button to select the charging mode (NORM, FAST, STORE) and save it by pressing the select rocker switch. The Long Life Mode can be switched on or off with the light button.

  • Page 23: Settings Menu

    INSTRUCTION MANUAL FIT REMOTE DISPLAY CHARGING IN STORAGE MODE 1. Current charging mode 2. Long Life mode (grayed out = switched off) 3. Current battery charge level 4. As the battery is not fully charged in storage mode, the rest is gray-hatched 5.

  • Page 24: Menu Structure

    INSTRUCTION MANUAL FIT REMOTE DISPLAY 7.2 MENU STRUCTURE 1. Reset values (a) Reset trip i. Reset manually ii. Automatic reset (b) Factory settings 2. Basic settings (a) Language (b) Date and time i. Time ii. Time zone (only after activation by the specialist dealer. Coming soon.) iii.
  • Page 25 INSTRUCTION MANUAL FIT REMOTE DISPLAY Reset trip Resets the trip data. You can choose between resetting manually (one-time) or resetting automatically according to the following criteria: Selection Description Automatic reset disabled After rebooting Reset automatically when the e-bike is switched off and on again...
  • Page 26 «ECO» assistance level. The setting can be secured by pressing the selection rocker switch. If Expert mode is activated via the FIT E-Bike Control app, the e-bike’s assistance is set via the app and cannot be changed on the e-bike.
  • Page 27 INSTRUCTION MANUAL FIT REMOTE DISPLAY Vibration feedback The vibration can be set as feedback from the control unit in the vibration feedback menu. The following setting options are available: Selection Description No vibration feedback Every button press / active message generates vibration feedback...

  • Page 28: Error Messages

    INSTRUCTION MANUAL FIT REMOTE DISPLAY 8 ERROR MESSAGES 8.1 GENERAL INFORMATION The parts of the e-bike system are permanently monitored during use and charging. The error code is shown on the display when an error is detected. Press on the rocker switch to acknowledge the error and switch back to the default screen on the display.
  • Page 29 INSTRUCTION MANUAL FIT REMOTE DISPLAY INFORMATION 1. Error message 2. Current speed 3. Error code NOTE 1. Notification 2. Current speed WARNING 1. Error message 2. Current speed 3. Error code ERROR / CRITICAL ERROR 1. Error code 2. Error message...

  • Page 30: Error Table

    INSTRUCTION MANUAL FIT REMOTE DISPLAY 8.3.1 ERROR TABLE If the last two digits are listed with ”xx” as a placeholder, this provides the specialist dealer with additional information for error analysis. Error code Displayed error message Action/limitation 0A-01, 0B-01 Remote-Motor Communication 1.
  • Page 31 INSTRUCTION MANUAL FIT REMOTE DISPLAY Error code Displayed error message Action/limitation 0C-02 Remote-Display Identification 1. Re-start the system. Error 2. Switch off system. 3. Remove display from the mount, check contacts and clean if necessary. 4. Re-insert display and start system.
  • Page 32 INSTRUCTION MANUAL FIT REMOTE DISPLAY Error code Displayed error message Action/limitation 0D-08 Gear Switch Authentication Error 1. Re-start the system. 2. Contact your specialist dealer if the problem persists. 0D-0A Charger Authentication Error 1. Re-start the system. 2. Switch off system.
  • Page 33 INSTRUCTION MANUAL FIT REMOTE DISPLAY Error code Displayed error message Action/limitation 0F-0A Charger Update Error 1. Re-start the system. 2. Switch off system. 3. Disconnect charger from system and socket. 4. Wait until the status LED goes out. 5. Check plug contacts on the e-bike and charger and clean if necessary.
  • Page 34 INSTRUCTION MANUAL FIT REMOTE DISPLAY Error code Displayed error message Action/limitation 12-0B Remote-Lock Pairing Error 1. Re-start the system. 2. Contact your specialist dealer if the problem persists. 13-xx Remote Internal Error 1. Re-start the system. 2. Contact your specialist dealer if the problem persists.
  • Page 35 INSTRUCTION MANUAL FIT REMOTE DISPLAY Error code Displayed error message Action/limitation 16-02 Display Theft Detection 1. Re-start the system. 2. Switch off system. 3. Remove display from the mount, check contacts and clean if necessary. 4. Re-insert display and start system.
  • Page 36 INSTRUCTION MANUAL FIT REMOTE DISPLAY Error code Displayed error message Action/limitation 17-07 Speednode Defective Components 1. Re-start the system. 2. Contact your specialist dealer if the problem persists. 17-08 Gear Shift Defective Components 1. Re-start the system. 2. Contact your specialist dealer if the problem persists.
  • Page 37 2. Re-start the system. 3. Contact your specialist dealer if the problem persists. 1C-xx Bluetooth Module Error 1. Re-start the system. 2. Re-start FIT E-Bike Control (app); update if necessary. 3. Contact your specialist dealer if the problem persists. 1D-xx EMS mode active 1.
  • Page 38 INSTRUCTION MANUAL FIT REMOTE DISPLAY Error code Displayed error message Action/limitation 22-xx Full load cycle active (info text) Info: battery is charged 100% for the purposes of calibration despite LONG LIFE mode. 23-09 Tire pressure sensor error Sensor must be replaced soon, please contact your Low front battery specialist dealer.
  • Page 39 INSTRUCTION MANUAL FIT REMOTE DISPLAY Error code Displayed error message Action/limitation 4A-xx Motor Overheat 1. Switch off system. 2. Allow motor to cool and clean motor ventilation slots if necessary. 3. Switch on system. 4. Contact your specialist dealer if the problem persists.
  • Page 40 INSTRUCTION MANUAL FIT REMOTE DISPLAY Error code Displayed error message Action/limitation 68-01, 68-05, Battery current error 1. Switch the system off. 68-06, 68-07, Discharge error 2. Remove the battery. 68-09, 68-16, 3. Re-insert battery. 68-17, 68-18, 4. Start the system.
  • Page 41 INSTRUCTION MANUAL FIT REMOTE DISPLAY Error code Displayed error message Action/limitation 69-04, 69-0D Battery Temperature Error 1. System is operated below the permitted temperature. 2. Allow battery to warm up in a warm environment (> 30 minutes). 3. Start system.
  • Page 42 3. Start the charging process again. 4. Contact your specialist dealer if the problem persists. 9A-xx Lock Authentication Error 1. Check that an original FIT lock is installed. 2. Restart system. 3. Contact your specialist dealer if the problem persists. 9B-xx Lock blocked 1.
  • Page 43 INSTRUCTION MANUAL FIT REMOTE DISPLAY Error code Displayed error message Action/limitation 9C-xx Lock Hardware Error 1. Restart system. 2. Check lock for damage. 3. Contact your specialist dealer if the problem persists. 9D-xx Lock movement detected 1. Restart system. 2. Check lock for damage.

  • Page 44: Cleaning And Servicing

    INSTRUCTION MANUAL FIT REMOTE DISPLAY 9 CLEANING AND SERVICING 9.1 BASIC CLEANING 9.1.1 CLEANING THE DISPLAY AND OPERATING ELEMENT INFO-CIR NOTICE The display and operating element will be permanently damaged if water enters them. Never immerse the display or operating element in water.
  • Page 45 INSTRUCTION MANUAL FIT REMOTE DISPLAY 10 TROUBLESHOOTING, FAULT CLEARANCE AND REPAIR 10.1 TROUBLESHOOTING AND FAULT CLEARANCE 10.1.1 DRIVE SYSTEM OR DISPLAY DOES NOT START UP If the display and / or the drive system do not start up, proceed as follows: 1.
  • Page 46 INSTRUCTION MANUAL FIT REMOTE DISPLAY Symptom Cause Remedy The assisted The battery does not perform as This does not indicate a problem. journey distance well in winter weather. is too short. The journey distance can be 1. Check battery is charged.
  • Page 47 INSTRUCTION MANUAL FIT REMOTE DISPLAY 11 RECYCLING AND DISPOSAL 11.1 DISPOSAL Mechanical and electrical equipment, accessories and packaging should be recycled in an environmentally sound manner. Don’t throw them in the garbage! Only for EU countries: According to European Directives 2012/19/EU, 2006/66/EC and their transposition into national law, defective or unusable waste electrical and electronic equipment, rechargeable batteries and batteries must be collected separately and recycled in an environmentally sound manner.
