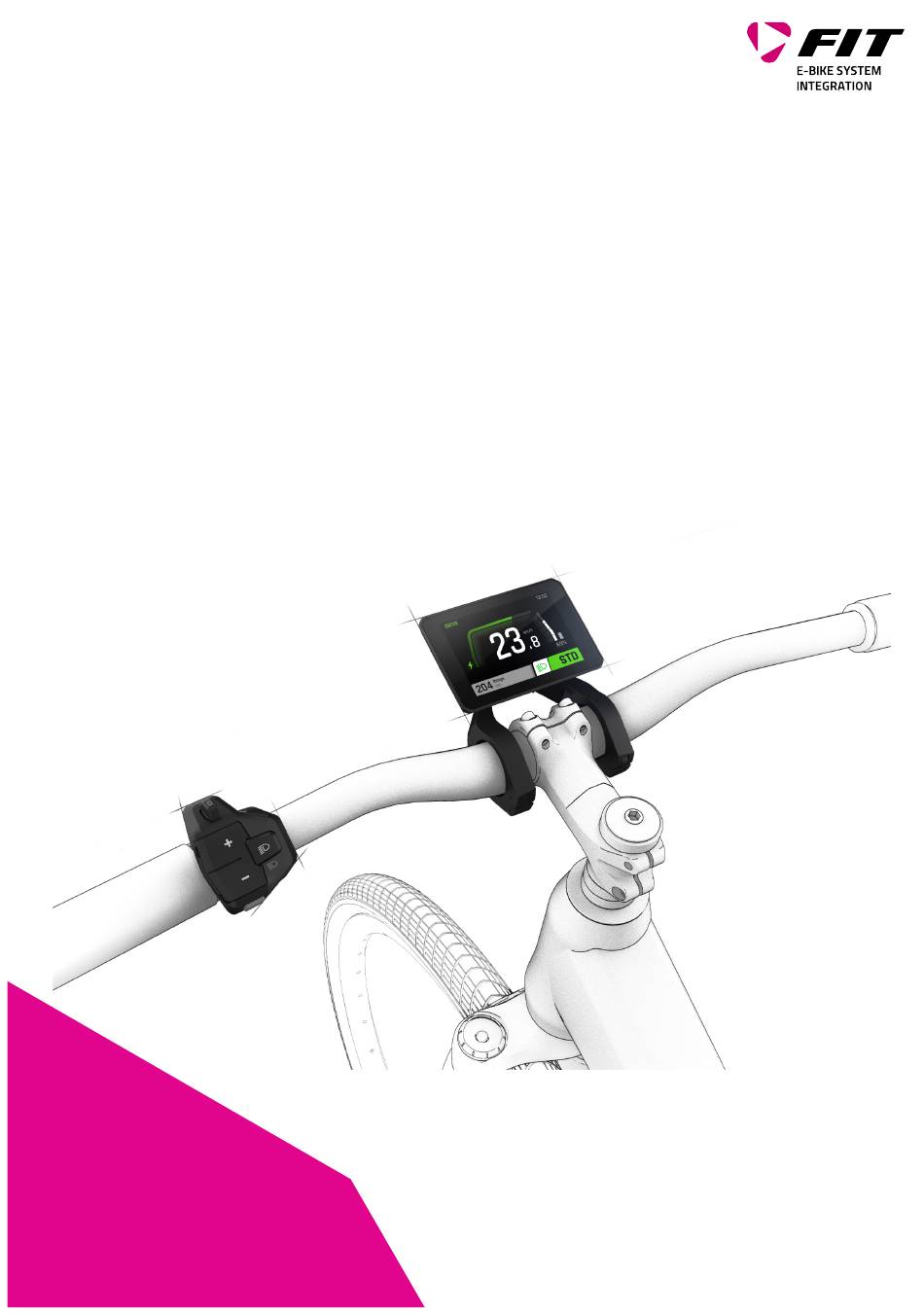

- Page 1 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION 500084 | 500092 | 501262 | 500429 Biketec GmbH Luzernstrasse 84 NETWORKED CH-4950 Huttwil CUSTOMISED T +41 62 959 53 00 INTELLIGENT info@biketec.ch fit-ebike.com...
-
Page 2: Table Of Contents
FIT DISPLAY COMFORT ........ - Page 3 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION 9 ERROR MESSAGES 9.1 GENERAL INFORMATION ..........34 9.2 STATUS LED ON OPERATING ELEMENT AND DISPLAY .
-
Page 4: Preface
1 PREFACE Dear FIT customer, The FIT system offers many useful functions and options and we are pleased that you have decided to choose our system. Please read through the operating instructions carefully to ensure you use the system safely and get off to a quick start. -
Page 5: About These Operating Instructions
INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION 2 ABOUT THESE OPERATING INSTRUCTIONS 2.1 MANUFACTURER Biketec GmbH Luzernstrasse 84 CH-4950 Huttwil fit-ebike.com/en-en/ 2.2 LANGUAGE The original operating instructions are written in German. A translation is invalid without the original operating in- structions. -
Page 6: Safety Instructions
INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION 3 SAFETY INSTRUCTIONS 3.1 GENERAL INFORMATION Please read all safety instructions carefully. Failure to comply with the warnings or take residual risks into account may result in electric shock, fire and / or serious injury. -
Page 7: Product And Technical Specifications
4.1 FIT COMFORT DISPLAY With the FIT Comfort Display, you always have an overview of all important riding information. The color display with its large font provides the highest level of visibility for any kind of weather and guarantees complete control. -
Page 8: Operating Element
4.2.1 FIT REMOTE BASIC The ergonomic operating element FIT Remote Basic allows you to control the FIT Display easily and safely, even while riding. The button backlit by LEDs and the vibration feedback ensure optimum usability, even in the dark or while wearing gloves. -
Page 9: Fit Remote Eshift
4.2.2 FIT REMOTE ESHIFT The ergonomic FIT Remote eShift control unit allows the FIT display to be controlled easily and safely, even while riding. The LED-backlit buttons and vibration feedback guarantee ease of operation even when wearing gloves or in the dark. -
Page 10: Pinion Te1 E-Trigger
INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION 4.2.3 PINION TE1 E-TRIGGER The compact Pinion TE1 e-trigger gear lever has been specially developed for shifting with Pinion Smart.Shift shift technology. The goal was to provide clear haptic feedback. With a defined lever path and sophisticated micro button tuning, you can precisely initiate each shifting process. -
Page 11: Proper Use
FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION 4.3 PROPER USE The operating element and the display are designed to control a FIT e-bike system and display trip data. 4.4 IMPROPER USE Improper use refers to use which is not described under proper use or goes beyond proper use. -
Page 12: Transportation And Storage
INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION 5 TRANSPORTATION AND STORAGE 5.1 TRANSPORTATION Exclamat CAUTION Remove battery before transportation. There is a risk of injury if the drive system is switched on unintentionally. 5.1.1 TRANSPORTING E-BIKES Protect the electrical components and connections on the e-bike from the elements with suitable protective covers. -
Page 13: Fitting
6.1 FITTING THE FIT DISPLAY COMFORT As the mount docks available to hold the display are identical, the FIT Universal Mount is used as an example to show how the display is fitted into place. The display is fitted in the same way on the FIT Display Center Mount. - Page 14 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION Removing the FIT Display Comfort 1. Remove the anti-theft securing screw if you have one fitted. 2. Press the unlocking mechanism. 3. Remove display, pulling it upwards. FIT_Manual_Display_Comfort_Remote_Basic_EShift_Pinion_V3_en | Version 03 | 24.10.2023...
-
Page 15: Operation
7.1.2 PAIRING / COUPLING THE FIT KEY CARD WITH THE FIT E-BIKE CONTROL APP The FIT Key Card is your ticket to the digital FIT world for every e-bike with FIT 2.0 integration. The individual ID is based on the SmartX technology from ABUS and ensures a secure connection to the e-bike with a unique key. -
Page 16: Assistance Modes
INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION Follow the instructions in the FIT E-Bike Control app 7.1.3 ASSISTANCE MODES You can set the assistance levels using the + and – buttons on the control unit. -
Page 17: Pushing Aid
INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION 7.1.4 PUSHING AID Assistance mode icon: The pushing aid makes it easier to push the e-bike. The e-bike can be moved out of underground parking or along steep paths comfortably by activating the pushing aid. -
Page 18: Eshift
Action / Limitation Ice hazard Drive carefully. (temperature 4 °C) Your e-bike should be taken to the FIT specialist dealer for Maintenance request maintenance as soon as possible. Reduced ride assistance performance. (This is not an error, but is Motor overheat meant to protect the motor.) -
Page 19: Main / Sub-Displays
2. Odometer (total kilometers ridden with the e-bike. This value cannot be re- set) 3. Connected devices (pulse monitor, FIT E-Bike Tracker, smartphone incl. bat- tery charge level from smartphone) DRIVE SUB-DISPLAY 2 (only available with installed FIT tire pressure sensors) 1. - Page 20 3. Current altitude AREA SUB-DISPLAY The weather forecast is only available in conjunction with the FIT E-Bike Control app. To use the FIT E-Bike Control app, the smartphone must be connected to the e-bike using the FIT Key Card (see section 7.1.2).
-
Page 21: Navigation
FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION 7.5.1 NAVIGATION Navigation is only available in conjunction with the FIT E-Bike Control app. To use the FIT E-Bike Control app, the smartphone must be connected to the e-bike using the FIT Key Card (see section 7.1.2). - Page 22 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION After entering the start and end point, information about the selected route is dis- played: 1. Distance to the target. 2. The red battery symbol indicates that the current charging status is not sufficient to reach the destination in any assistance level.
- Page 23 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION The PLANNED TOURS menu displays the planned tours of the linked komoot account with information on duration, route length, highest and lowest points. Here you can select a tour for navigation.
- Page 24 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION If navigation has been started on the smartphone, the following display appears. 1. The distance to the next navigation point 2. Road ahead 3. Navigation direction at next navigation point From 100m before a navigation point, the distance is also indicated by a bar.
-
Page 25: Charge Indicator
FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION DISPLAY CALLS The call display is only available in conjunction with the FIT E-Bike Control app. To use the FIT E-Bike Control app, the smartphone must be connected to the e-bike using the FIT Key Card (see section 7.1.2). - Page 26 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION NORMAL CHARGING OF SINGLE BATTERY 1. Current charging mode 2. Current battery charge level 3. Shows battery is currently being charged 4. Long Life mode (grayed out = switched off) NORMAL CHARGING OF MULTIPLE BATTERIES 1.
-
Page 27: Settings Menu
INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION 8 SETTINGS MENU The settings menu is the last screen, which can be accessed by pressing the rocker switch to the right. It can only be accessed when the e-bike is stationary. -
Page 28: Menu Structure
INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION 8.2 MENU STRUCTURE 1. Reset values (a) Reset trip i. Reset manually ii. Reset automatically (b) Factory settings 2. Basic settings (a) Language (b) Date and time i. Time ii. -
Page 29: Setting Options
INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION 8.3 SETTING OPTIONS Menu – Reset values The tour data and the system can be reset to the factory settings in this menu. Reset trip Resets the trip data. You can choose between resetting manually (one-time) or resetting automatically according to... - Page 30 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION Date You can set the current date in the date menu. The current digit can be changed by pressing the plus / minus button. Select the number to be changed with the selection rocker switch. Press the selection rocker switch to save the date and quit the menu.
- Page 31 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION Vibration feedback The vibration can be set as feedback from the control unit in the vibration feedback menu. The following setting options are available: Selection Description No vibration feedback...
-
Page 32: Eshift Settings
INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION 8.4 ESHIFT SETTINGS 8.4.1 PINION MGU / ESHIFT Gear assignment – Select the gear direction for the up- / down button on the FIT remote EShift or Pinion TE1 gear lever or similar. - Page 33 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION Calibration is ongoing. Calibration completed successfully. Calibration could not be performed. An error occurred during calibration. FIT_Manual_Display_Comfort_Remote_Basic_EShift_Pinion_V3_en | Version 03 | 24.10.2023...
-
Page 34: Error Messages
The operating element and the display each feature a status LED to indicate error statuses. The operating element’s LED is located in the rocker switch. It is in the top left-hand corner in Display Compact and in the top right-hand corner in Display Comfort. - Page 35 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION INFORMATION 1. Error message 2. Error code WARNING 1. Error message 2. Error code ERROR / CRITICAL ERROR 1. Error code 2. Error message FIT_Manual_Display_Comfort_Remote_Basic_EShift_Pinion_V3_en | Version 03 | 24.10.2023...
-
Page 36: Error Table
INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION 9.3.1 ERROR TABLE If the last two digits are listed with ”xx” as a placeholder, this provides the specialist dealer with additional information for error analysis. 0A-xx up to 28-xx... - Page 37 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION Error code Error message displayed Action / Restriction 0C-02 Remote display identification error 1. Restart the system. 2. Switch the system off. 3. Remove display from holder, check contacts and clean if necessary.
- Page 38 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION Error code Error message displayed Action / Restriction 0D-07 Speed node authentication error 1. Restart the system. 2. If the problem persists, please contact your specialist dealer. 0D-08 Gears authentication error 1.
- Page 39 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION Error code Error message displayed Action / Restriction 0F-0A Charger update error 1. Restart the system. 2. Switch the system off. 3. Disconnect the charger from the system and socket.
- Page 40 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION Error code Error message displayed Action / Restriction 12-0A Remote charger pairing error 1. Restart the system. 2. Switch the system off. 3. Disconnect the charger from the system and socket.
- Page 41 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION Error code Error message displayed Action / Restriction 15-0A Remote charger pairing error 1. Restart the system. 2. Switch the system off. 3. Disconnect the charger from the system and socket.
- Page 42 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION Error code Error message displayed Action / Restriction 16-0B Lock theft detection 1. Restart the system. 2. If the problem persists, please contact your specialist dealer. 17-00 Remote defective component 1.
- Page 43 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION Error code Error message displayed Action / Restriction 18-02 Display start error 1. Restart the system. 2. Switch the system off. 3. Remove display from holder, check contacts and clean if necessary.
- Page 44 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION Error code Error message displayed Action / Restriction 1C-xx Bluetooth module error 1. Restart the system. 2. Restart FIT E-Bike Control (app), update if necessary. 3. If the problem persists, please contact your specialist dealer.
- Page 45 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION 29-xx up to 47-xx Error code Error message displayed Action / Restriction 29-xx Display communication error 1. Restart the system. 2. If the problem persists, please contact your specialist dealer.
- Page 46 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION Error code Error message displayed Action / Restriction 49-09, 49-0A Motor error 1. Check if one or both trigger buttons are pressed constantly, if so: Release buttons. 2. Restart the system.
- Page 47 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION Error code Error message displayed Action / Restriction 4D-08 Gear error 1. Stop the bike, release the pedals, wait 3 seconds. Stop, release pedals 2. Restart the system with no pressure on the pedals.
- Page 48 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION Error code Error message displayed Action / Restriction 68-01, 68-05, Battery current error 1. Switch the system off. 68-06, 68-07, Discharging error 2. Remove the battery. 68-09, 68-16, 3.
- Page 49 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION Error code Error message displayed Action / Restriction 69-04, 69-0D Battery temperature error 1. System operating below the permissible temperature. 2. Allow the battery to warm up in a warm environment (>...
- Page 50 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION Error code Error message displayed Action / Restriction FF-xx Battery start error 1. Restart the system. 2. If the problem persists, please contact your specialist dealer. 86-xx up to 8A-xx...
- Page 51 INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION 8B-xx up to 92-xx Error code Error message displayed Action / Restriction 8B-xx Gears authentication error 1. Restart the system. 2. If the problem persists, please contact your specialist dealer.
-
Page 52: Cleaning And Servicing
INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION 10 CLEANING AND SERVICING 10.1 BASIC CLEANING 10.1.1 CLEANING THE DISPLAY AND OPERATING ELEMENT INFO-CIR NOTICE The display and operating element will be permanently damaged if water enters them. -
Page 53: Troubleshooting, Fault Clearance And Repair
INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION 11 TROUBLESHOOTING, FAULT CLEARANCE AND REPAIR 11.1 TROUBLESHOOTING AND FAULT CLEARANCE 11.1.1 DRIVE SYSTEM OR DISPLAY DOES NOT START UP If the display and / or the drive system do not start up, proceed as follows: 1. -
Page 54: Repair
INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION Symptom Cause Remedy The assisted The battery does not perform as This does not indicate a problem. journey distance well in winter weather. is too short. The journey distance can be 1. -
Page 55: Recycling And Disposal
INSTRUCTION MANUAL FIT DISPLAY COMFORT + FIT REMOTE BASIC / ESHIFT PINION 12 RECYCLING AND DISPOSAL 12.1 DISPOSAL Mechanical and electrical equipment, accessories and packaging should be recycled in an environmentally sound manner. Don’t throw them in the garbage! Only for EU countries: According to European Directives 2012/19/EU, 2006/66/EC and their transposition into national law, defective or unusable waste electrical and electronic equipment, rechargeable batteries and batteries must be collected separately and recycled in an environmentally sound manner.
