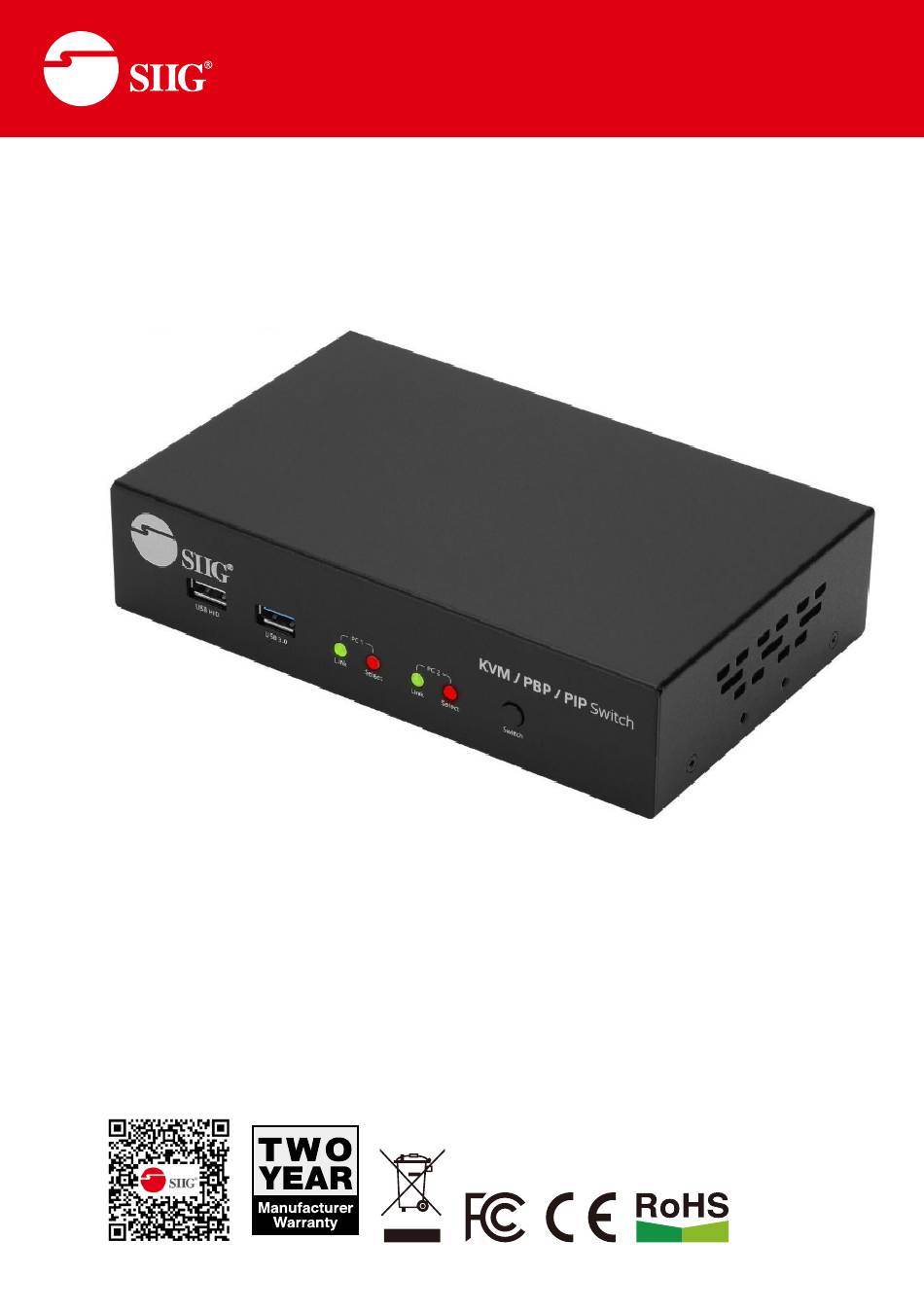

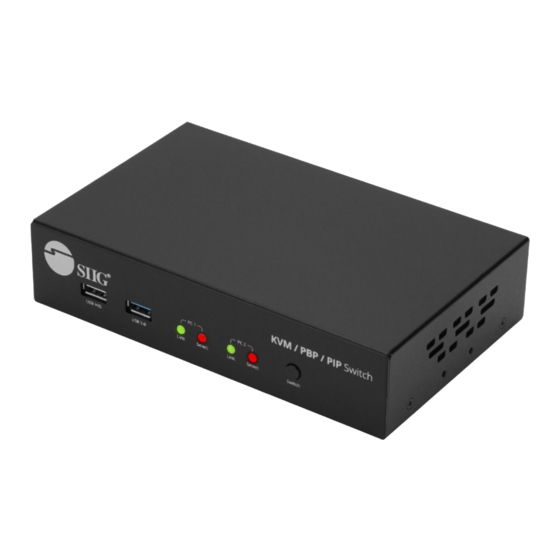

- Page 1 2-Port 4K HDMI KVM Switch with PBP Roaming Mouse & PIP P/N: CE-KV0G11-S1 User's Manual Ver. 04-1383C...
-
Page 2: Table Of Contents
CE-KV0G11-S1 Table of Contents 1. KVM Switch ..................4 1.1. Features ..................4 1.2. Package Contents ............... 4 1.3. Specifications ................5 1.4. Front Panel ................. 6 1.5. Rear Panel .................. 6 2. Basic Operation ................7 2.1. Hotkey Control ................7 3. - Page 3 CE-KV0G11-S1 Table of Contents 4.10. Previous/Next Switch Control ............. 13 5. Mouse Roaming ................14 5.1. Turn On Mouse Roaming ............14 5.2. Turn Off Mouse Roaming ............14 5.3. Setting Lower DPI ..............14 5.4. Setting Higher DPI ..............14 5.5.
-
Page 4: Kvm Switch
CE-KV0G11-S1 KVM Switch 1.1. Features • Supports Video Scaler & PIP (Picture-in-Picture) / PBP (Picture-by-Picture) video mixer up to 4K@30Hz (4:4:4). * Suitable for general displays with no Top-Bottom or Left-Right PBP function. • Unique full-frame function doesn't sacrifice any display area in PBP mode. • Image stays unstretched in PBP mode. -
Page 5: Specifications
CE-KV0G11-S1 1.3. Specifications Video Resolution (Max.) 3840 x 2160 @30Hz (4:4:4) USB Ports 2x USB 3.2 Gen 1 -B Computer Video Input Ports 2x HDMI Ports 3.5mm Audio Inputs 2x Speaker Ports 1x USB 3.2 Gen 1 - A (Rear) 1x USB 3.2 Gen 1 - A (Front) -
Page 6: Front Panel
CE-KV0G11-S1 1.4. Front Panel USB HID USB HID Console Port Connect to keyboard or mouse only. USB 3.2 Gen 1 Connect to USB 3.2 Gen 1 device. USB 3.0 Console Port 5Gbps, 5V/900mA. Link Green: This PC is connected (Power On). -
Page 7: Basic Operation
CE-KV0G11-S1 Basic Operation 2.1. Hotkey Control The operation of KVM switch is mainly controlled by hotkey sequence. A hotkey command is a short keyboard sequence for selecting among PCs, activating PC scan, etc. The KVM Switch interprets keystrokes for hotkeys all the time. A hotkey sequence starts with HK_LCode followed by one or two more keystrokes. -
Page 8: Display Screen Layout Control
CE-KV0G11-S1 Display Screen Layout Control Use hotkey command to control screen layout modes. • Switching between modes or resolutions might take 10~12 seconds depending on display's response time. • Switching between screen layout modes might require image fine-tuning. User can save fine-tunned setting to user's presets. 3.1. Top-Bottom PBP Layout (Mode 1) Mode 1 features Vertical PBP mode, The KVM Switch sends proper EDID to both video sources. Mouse Roaming is configured as Top-Bottom & no boundry. -
Page 9: Vertical Pbp Layout (Mode 2 Portrait)
CE-KV0G11-S1 3.3. Vertical PBP Layout (Mode 2 Portrait) Mode 2 Portrait features Top-Bottom PBP mode, The KVM switch sends proper EDID to both video sources. Mouse Roaming is configured as Top-Bottom & no boundry. 1. Turn the display 90° 2. Configure 2 PCs to display 90° views 3840x2160@30Hz 2560x1440@60Hz 1920x1080@60Hz (Click) (Click) (Hold) -
Page 10: Pip Layout (Mode 7)
CE-KV0G11-S1 3.5. PIP Layout (Mode 7) Mode 7 features PIP mode. The selected PC's contents are showed on display as PIP image. (Click) (Click) (Hold) (Click) (Click) 3840x2160@30Hz 2560x1440@60Hz 1920x1080@60Hz 3440x1440@50Hz 2560x1080@60Hz 2560x1440@60Hz input 3840x2160@30Hz output 1920x1080@60Hz input ... -
Page 11: Main Screen Size Control
CE-KV0G11-S1 Set PIP screen to Top-Left position. (Click) (Click) (Hold) (Click) Set PIP screen to Bottom-Left position. (Click) (Click) (Hold) (Click) Set PIP screen to Bottom-Right position. (Click) -
Page 12: Pip Transparency Control
CE-KV0G11-S1 3.11. PIP Transparency Control [Increase] (Click) (Click) (Hold) (Click) [Decrease] (Click) (Click) (Hold) (Click) Other Control 4.1. Port Selection Select (Click) (Click) (Click) 4.2. Audio Switch Audio follow port ... -
Page 13: Change L-Ctrl To R-Ctrl
CE-KV0G11-S1 4.4. Change L-Ctrl to R-Ctrl Change (Click) (Click) (Click) (Click) (Hold) (Click) (Release) 4.5. Change from R-Ctrl to L-Ctrl Change from (Click) (Click) (Click) (Click) (Hold) (Click) (Release) 4.6. Return to Factory Default Setting ... - Page 14 CE-KV0G11-S1 Mouse Roaming Use hotkey command to control mouse roaming ONLY in PBP screen layout mode. Mouse works in the screen where it positioned. No further command required. Top-Bottom PBP Left-Right PBP Vertical PBP 5.1. Turn On Mouse Roaming Turn on mouse roaming ...
- Page 15 CE-KV0G11-S1 Image Fine-tuning 6.1. Image Re-Synchronize If the image engine doesn't work properly, image re-synchronization should be proceed to resume normal operation. (Click) (Click) (Hold) (Hold) (Click) 6.2. Video Compensation Adjustment In different resolution & layouts (Full Screen/PBP/PIP), there might be slight differences in compensation requirement which might result in image fliker. Adjusting video...
- Page 16 2 Year Warranty About SIIG SIIG, Inc. offers a 2-year manufacturer warranty Since 1985, SIIG Inc. has led the way in creating with this product. This warranty covers the IT and AV connectivity solutions you can trust. original purchaser and guarantees the product...
