Introduction
The 4x1 USB HDMI KVM Switch with 4Kx2K &
PIP controls up to 4 HDMI computers or HDMI
devices via a single keyboard, mouse and monitor.
Key Features and Benefits
•
Supports video resolutions of 720p HD,
1080p Full HD and up to 3840x2160@30Hz
•
High-quality circuit design with external
power adapter provide smooth and reliable
performance
•
PIP feature allows up to 4 sources to display
simultaneously on the single screen
•
Premium metal housing eliminates
interference and enhances stability
•
Built-in USB port allows the sharing of USB
peripheral such as pen drives or printers
04-1008A
4x1 USB HDMI KVM
Switch with 4Kx2K & PIP
User Reference Guide
1
Advertisement
Related Manuals for SIIG CE-KV0612-S1
Summary of Contents for SIIG CE-KV0612-S1
- Page 1 4x1 USB HDMI KVM Switch with 4Kx2K & PIP User Reference Guide Introduction The 4x1 USB HDMI KVM Switch with 4Kx2K & PIP controls up to 4 HDMI computers or HDMI devices via a single keyboard, mouse and monitor. Key Features and Benefits •...
-
Page 2: Specifications
Specifications Chipset Silicon Image Sil9687 Housing Material Metal (Aluminum) Input: HDMI Type-A, Female x4 & USB Type B, Female x4 & Microphone jack x4 Connectors Output: HDMI Type-A, Female x1 & USB Type A, Female x3 & Microphone jack x1 KVM Ports Video Type HDMI (v1.4) -
Page 3: Package Contents

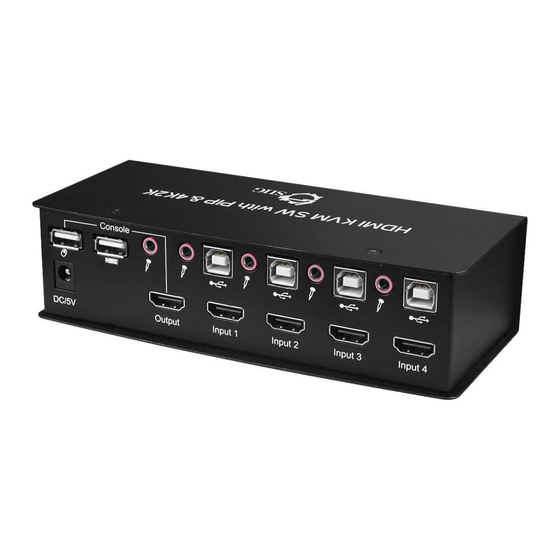

Package Contents • 4x1 USB HDMI KVM Switch with 4Kx2K & • Power adapter • Remote control & 2 KVM cables • User Reference Guide Compatibility • Windows and Mac computers with HDMI ouput • HDMI enabled game consoles, Blu-Ray DVD players and other HDMI devices Layout Select... - Page 4 PC / HDMI device Input Console Setup MIC IN USB Type-B Port USB Port HDMI IN HDMI OUT Power Jack USB Keyboard & Mouse Ports Figure 2: Rear Panel Layout Console Setup: • USB Keyboard & Mouse Ports: Connects to USB keyboard and mouse •...
- Page 5 PC / HDMI Source Device: • MIC IN: Connects to source device's MIC input (optional) • HDMI IN: Connects to source device's HDMI putput • USB Type-B Port: Connects to source device's USB port Power Adapter: Refer to the table below for the specifications of the power plug.
-
Page 6: Hardware Installation
Hardware Installation Power off all devices you plan to connect to the Switch. Connect an HDMI monitor/display to the Switch's HDMI Output connector using an HDMI cable (cable not included). Connect a USB keyboard and USB mouse to the dedicated USB keyboard and mouse ports on the Switch. - Page 7 Repeat steps 4 to 6 to connect additional computers/source devices to the Switch. Optional: Connect a USB peripheral you wish to share between the connected computers/devices to the extra USB port on the Switch. Connect the power adapter to the Switch, then plug it into a reliable wall outlet.
- Page 8 Instructions For Use Switch the PC / HDMI Device Select button Press the Select button on the front panel of the Switch Keyboard hotkey Twice Ctrl + Number (1~4) + Enter Remote control Press the number you're going to use toward IR receiver of the Switch Start /Close PIP feature Keyboard hotkey...
- Page 9 Start / Stop Auto Scan (Default Interval - 10 sec) Keyboard hotkey Twice Ctrl + S + Enter Remote control Press Auto Scan button Increase Auto Scan Interval (+5 sec/per) Keyboard hotkey Twice Ctrl + "+" Decrease Auto Scan Interval (-5 sec/per) Keyboard hotkey Twice Ctrl + "-"...
- Page 10 Application Control up to 4 computers / HDMI devices and share one USB peripheral. PIP Monitor HD TV Computer HDMI Device Remote Control Figure 3: Application...
-
Page 11: Technical Support And Warranty
(2) years from the date of purchase of the product. SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality) the product if defective in materials or workmanship. - Page 12 Fremont, CA 94538-3152, USA Phone: 510-657-8688 4x1 USB HDMI KVM Switch with 4Kx2K & PIP is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.
