Introduction

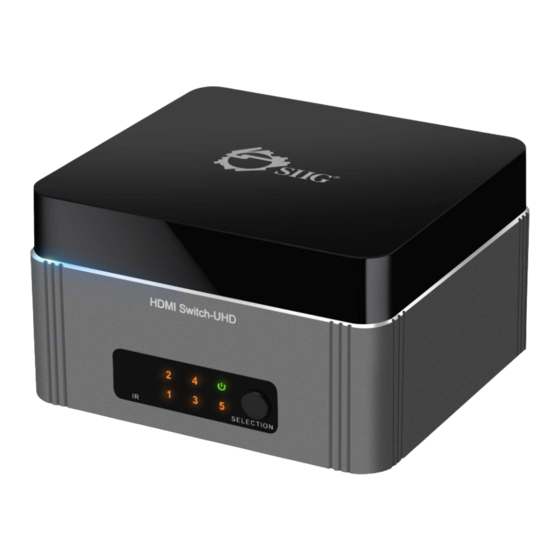

The Premium 5-Port HDMI 2.0 Switch with IR Remote
Control - 4Kx2K 60Hz connects up to 5 HDMI sources
from one HDMI display which allows you to easily
switch between multiple devices.
Key Features and Benefits
• Supports video resolutions up to 4Kx2K @60Hz and
delivers crystal clear picture quality
• Supports 3D, HDMI 2.0 and HDCP 2.2. Backwards
compatible with previous versions
• Built-in power and signal indicators make the status
easy to recognize at a glance
• The included remote control provides added
convenience and lets you control it from afar
• Aluminum construction improves overall durability
and reliability
04-1093A
Premium 5-Port HDMI 2.0
Switch with IR Remote
Control - 4Kx2K 60Hz
User Reference Guide
Advertisement
Table of Contents
Related Manuals for SIIG CE-H22S11-S1
Summary of Contents for SIIG CE-H22S11-S1
- Page 1 Premium 5-Port HDMI 2.0 Switch with IR Remote Control - 4Kx2K 60Hz User Reference Guide Introduction The Premium 5-Port HDMI 2.0 Switch with IR Remote Control - 4Kx2K 60Hz connects up to 5 HDMI sources from one HDMI display which allows you to easily switch between multiple devices.
-
Page 2: Package Contents
Package Contents • Premium 5-Port HDMI 2.0 Switch - 4Kx2K 60Hz • Power adapter • IR remote control • User Reference Guide Specifications Version HDMI 2.0 Supported resolution 2160p / 1080p / 1080i / 720p / 480p Input: 5 x 19-pin, HDMI Type-A, Female Connectors Output: 1x 19-pin, HDMI Type-A, Female HDMI cable range... - Page 3 Layout Source Selection IR Receiver Input LEDs Power LED Figure 1: Premium 5-Port HDMI 2.0 Switch (front) • IR Receiver: Receive IR signal from the remote control • Input LEDs: On when input signals are detected • Power LED: On when the unit is powered •...
-
Page 4: Ir Remote Control
IR Remote Control Standby Previous Next Input Select Button Figure 3: IR Remote Control • Standby: Press and the input signal won't be detected (Standby mode). Press again to disable the standby mode. • Previous: Select the previous input source •... -
Page 5: Hardware Installation
Hardware Installation 1. Power off all source devices and displays. 2. Connect up to 5 HDMI source devices to the switch's HDMI Inputs using HDMI cables (cables not included). 3. Connect your HDMI display to the switch's HDMI Output with an HDMl cable (cable not included). 4. - Page 6 FAQ & Solutions Q: There is no picture on the TV: A: 1) Make sure the power adapter is firmly connected to the Switch and the power LED is on. 2) Make sure all HDMI cables are connected well. 3) Check whether the correct TV input is selected. 4) When connected to the computer, please make sure the display mode is mirror or extended.
-
Page 7: Technical Support And Warranty
Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued. -
Page 8: Product Name
Premium 5-Port HDMI 2.0 Switch with IR Remote Control - 4Kx2K 60Hz is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.
