Introduction

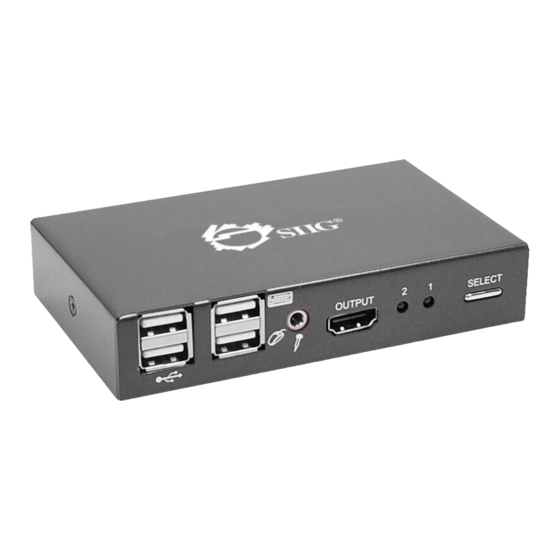

The 2x1 USB HDMI KVM Switch shares one
HDMI display between two HDMI sources.
Key Features and Benefits
•
Share an HDTV or display, USB keyboard
& mouse, and microphone between 2 USB/
HDMI computers and devices
•
Provides 2 additional USB 2.0 sharing ports
with over-current detection and protection
•
Switch between devices via front push
button or hotkey
•
Supports 4Kx2K with 36-bit Deep Color
and PC's WUXGA 1920x1200 resolutions
•
Supports Dolby True HD and DTS HD
Master Audio formats
•
HDMI v1.4 and HDCP compliant
•
Video bandwidth: up to 3Gb/s
•
Metal housing for better RF shielding
04-0747C
2x1 USB HDMI KVM Switch
Installation Guide
1
Advertisement
Related Manuals for SIIG CE-KV0011-S2
Summary of Contents for SIIG CE-KV0011-S2
- Page 1 2x1 USB HDMI KVM Switch Installation Guide Introduction The 2x1 USB HDMI KVM Switch shares one HDMI display between two HDMI sources. Key Features and Benefits • Share an HDTV or display, USB keyboard & mouse, and microphone between 2 USB/ HDMI computers and devices •...
-
Page 2: Package Contents
Package Contents • 2x1 USB HDMI KVM Switch • Power adapter • 2 cable sets • Installation guide Compatibility • Windows, Mac, Linux computers • Game consoles, Blu-Ray DVD players, and other CE devices Layout Select HDMI USB Ports USB Keyboard OUTPUT &... - Page 3 • USB Ports: Connect to other USB devices • USB Keyboard & Mouse Ports: Connect to USB keyboard and mouse devices • MIC: Connect to microphone • HDMI OUTPUT: Connect to HDMI display • LED: Indicate which HDMI source is selected •...
-
Page 4: Hardware Installation
Hardware Installation Power off all devices you plan to connect to the 2x1 USB HDMI KVM Switch. Connect a monitor/display to HDMI OUTPUT of the switch by an HDMI cable (not included). Connect a USB keyboard and a USB mouse to USB keyboard and Mouse Ports of the switch. - Page 5 Optional: Connect other USB peripherals you wish to share between the connected computers/devices to the extra USB ports on the switch. Connect the power adapter into the switch's Power Jack. Power up the first computer/device and wait until it is fully booted up. Make sure the keyboard and mouse work properly.
- Page 6 Hotkey Default setting, all of the following commands begin by pressing the [Scroll Lock] key twice. Please Follow the hotkey command listed below for selected operating functions: Hot key Definition Change [Scroll Lock] [Scroll Lock] to [Ctrl][Ctrl] [Scroll Lock] + [Scroll Lock] + [Ctrl] + [Enter] (Note 1) [Ctrl] + [Ctrl] + [Scroll Lock] + [Enter] Change[Ctrl] [Ctrl]to [Scroll Lock] [Scroll Lock]...
-
Page 7: Technical Support And Warranty
Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued. - Page 8 Fremont, CA 94538-3152, USA Phone: 510-657-8688 2x1 USB HDMI KVM Switch is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective owners.
