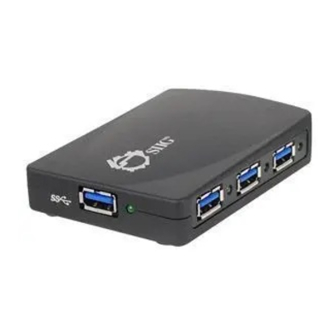

Introducing the SuperSpeed USB 4-Port Hub

The SuperSpeed USB 4-Port Hub is designed to support USB
3.0 equipped PC computers. This SuperSpeed USB hub
expands USB 3.0 connectivity to your computer.

Key Features and Benefits

•
Compliant with Universal Serial Bus 3.0
Specification, Revision 1.0
•
Adds 4 more SuperSpeed USB (3.0) ports for all
your USB 3.0 & 2.0 devices
•
Supports ultra fast data rate up to 5 Gb/s (10 times
faster than USB 2.0) and is backward compatible
with USB 2.0 & 1.1 devices
•
Over current protection built into each port to
protect both connected devices and the hub itself
from unforeseen power surges

System Requirements

•
Desktop or notebook PC with an available USB
port (USB 3.0 recommended)
•
Windows
(32-/64-bit) / Server 2003 & 2008 (32-/64-bit)
04-0625A
SuperSpeed USB 4-Port Hub
Quick Installation Guide
7 (32-/64-bit) / Vista (32-/64-bit) / XP
®
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SuperSpeed USB 4-Port Hub and is the answer not in the manual?

Questions and answers

Related Manuals for SIIG SuperSpeed USB 4-Port Hub

Summary of Contents for SIIG SuperSpeed USB 4-Port Hub

  • Page 1: Quick Installation Guide

    SuperSpeed USB 4-Port Hub Quick Installation Guide Introducing the SuperSpeed USB 4-Port Hub The SuperSpeed USB 4-Port Hub is designed to support USB 3.0 equipped PC computers. This SuperSpeed USB hub expands USB 3.0 connectivity to your computer. Key Features and Benefits •...

  • Page 2: Package Contents

    Package Contents • SuperSpeed USB 4-Port Hub • USB 3.0 cable • Switching power adapter • Quick installation guide Layout Downstream Port (Type-A) Power Jack Downstream Port Upstream Port (Root port, (Type-A) Device LED Type-B) Figure 1: Layout • Device LED: Lit when a USB device is connected, there is a Device LED for each downstream port...
  • Page 3 USB 3.0 Cable Connectors Type-A connector Type-B connector Figure 2: USB 3.0 Connectors Installation Important: The SuperSpeed USB 4-Port Hub only works at USB 3.0 speed when connected to a USB 3.0 controller. Otherwise it will work as a USB 2.0 or USB 1.1 hub when connected to USB 2.0 or USB 1.1 controller respectively.
  • Page 4 Plug the Type-A connector of the included USB 3.0 cable into an available USB port (USB 3.0 recommended), and the driver will install automatically. The SuperSpeed USB 4-Port Hub is ready for use. To Verify Successful Installation Check in Device Manager to verify installation. For Windows 7: Right click Computer, click Manage, click Device Manager.
  • Page 5 Blank Page...
  • Page 6 Blank Page...
  • Page 7 Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued.
  • Page 8 Fremont, CA 94538-3152, USA Phone: 510-657-8688 SuperSpeed USB 4-Port Hub is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective owners.
