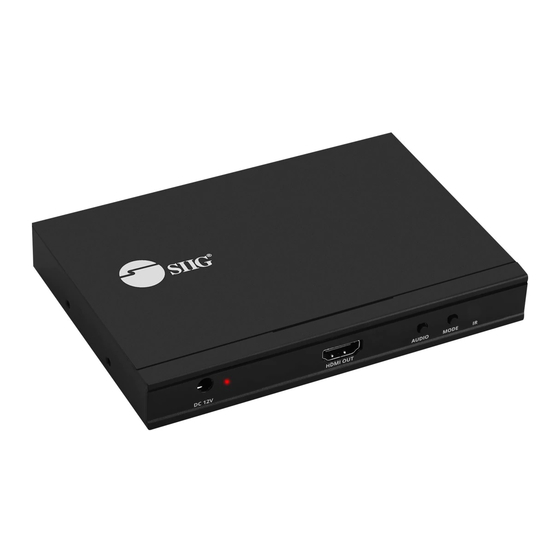

SIIG CE-H24H11-S1 Quick Start Manual
Full hd hdmi quad-split multi-viewer switch
Hide thumbs
1
2
page
of
2
Go
/
2
Bookmarks
Advertisement
Quick Links
Download this manual
Dear Valued Customer
(JUST WANTED YOU TO KNOW)
WE REALLY
APPRECIATE
YOUR PURCHASE
~thank you~
Features
• HDMI 1.3 & HDCP 1.2 compliant
• HDMI resolution up to 1080p@60Hz
• Support 2.0 stereo audio
• Support quad mode, full screen mode and
dual mode
• Support switch mode by remote control or
button on the front of panel
Package contents
1. Multi-Viewer switch
2. Power adapter 12V/2A
3. Remote controller
4. Quick start guide
Layout
Front Panel
Rear Panel
INPUT
1 Power input
Connect with power adapter DC 12V/2A
2 HDMI output
Connect with HDMI display
3 Audio button
Switch audio source of HDMI input
4 Mode button
Switch display mode
5 IR sensor
Receive IR signal
6 HDMI input
Connect with HDMI source
