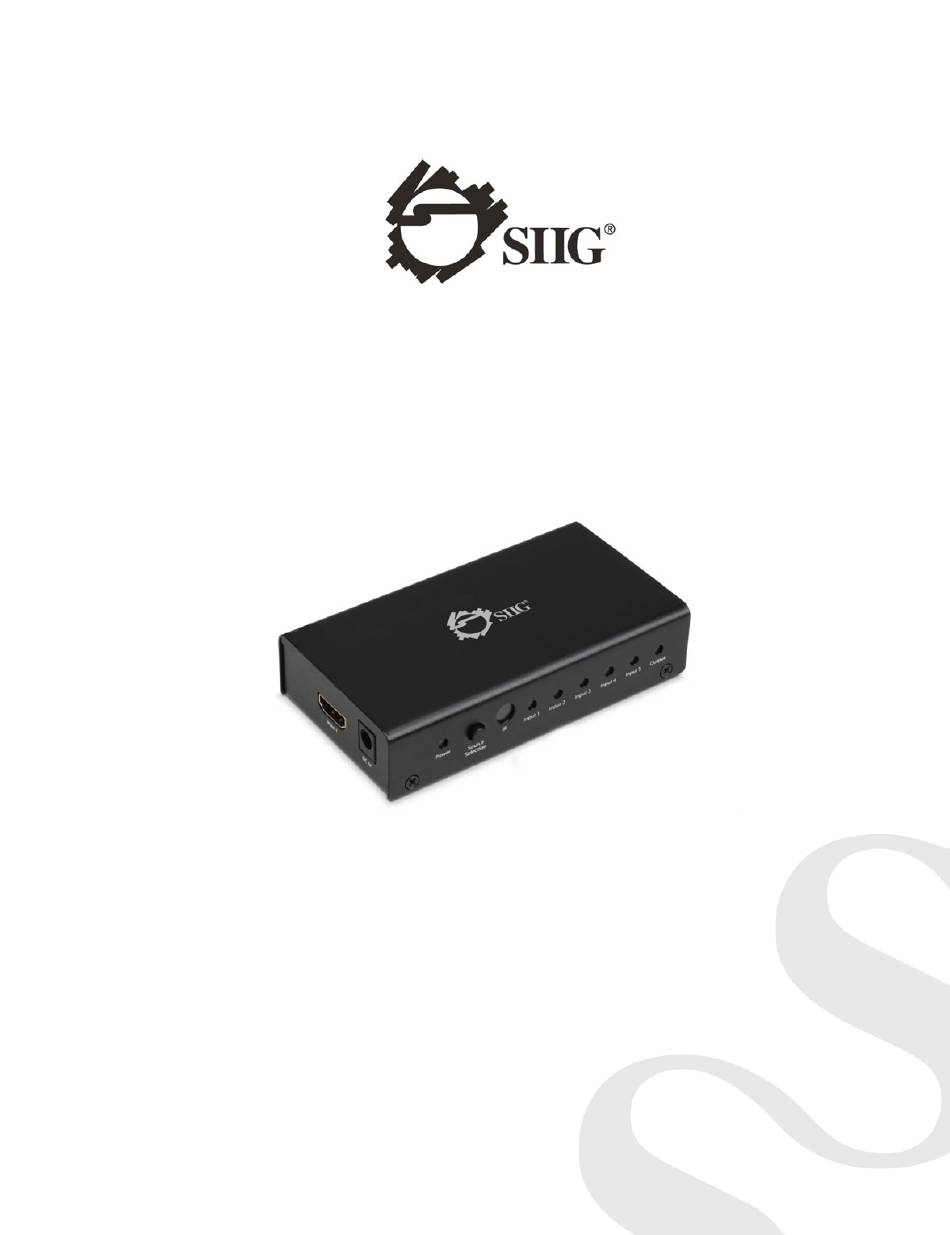

- Page 1 5x1 HDMI Switch 4K User Reference Guide P/N: CE-H23012-S1 04-1119A...
- Page 2 Introduction 5x1 HDMI Switch 4K allows any of the 5 HDMI sources to be displayed on one HDMI display and supports ultra-high resolution up to 4K. Key Features and Benefits Connects up to 5 HDMI sources to one • HDMI display for seamless transitions Delivers astonishing picture quality by •...
-
Page 3: Specifications

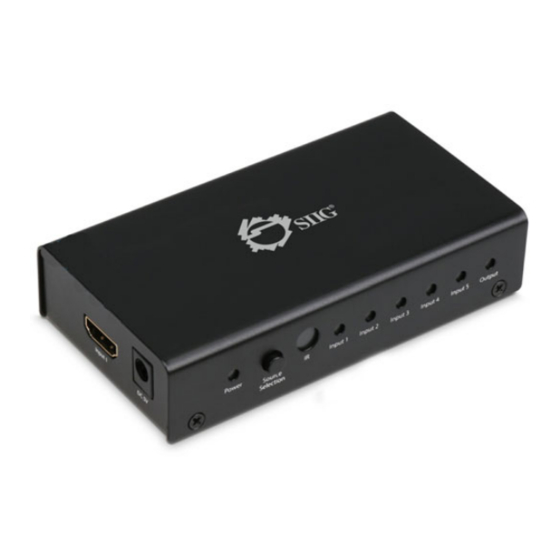

Specifications Compliance HDMI 1.4 / HDCP 1.4 480p / 720p / 1080i / 1080p / 4K (3840x2160 @60Hz, Resolution YUV 4:2:0) Audio Dolby TrueHD, DTS-HD master audio Video bandwidth Up to 10.2Gbps Input: 5 x 19-pin, HDMI Type-A, Female Connectors Output: 1x 19-pin, HDMI Type-A, Female Input up to 5m HDMI cable range... - Page 4 Layout Power LED HDMI Output Source Selection IR Receiver Input LEDs Output LED Figure 1: Front side • Power LED: On when the unit is powered • Source Selection: Press to select the input source (Input 1, 2, 3, 4 or 5) •...
- Page 5 Power plug HDMI input HDMl inputs Figure 2: Rear side • HDMI Inputs (x5): Connects to HDMI source devices by HDMI cables (cable not included) • Power plug: Power adapter plug IR Remote Control Previous Next Input Select Button Figure 3: IR Remote Control •...
-
Page 6: Hardware Installation
Hardware Installation Power off all source devices and displays. Connect up to 5 HDMI source devices to the switch's HDMI input ports using HDMI cables (cables not included). Connect your HDMI display to the switch's HDMI Output with an HDMl cable (cable not included). -
Page 7: Technical Support And Warranty
Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued. - Page 8 Fremont, CA 94538-3152, USA Phone: 510-657-8688 5x1 HDMI Switch 4K is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.
