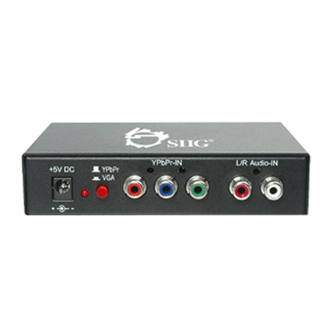

Introducing the YPbPr/VGA to VGA with Audio
The YPbPr/VGA to VGA with Audio Converter/Switch takes
two video and audio sources and displays them on one
VGA monitor, plasma, LCD or projector in high resolution
formats. With a press of a button, you can select between
your PC, game console or DVD player.
Features and Benefits
•
Automatic conversion between YPbPr and VGA
•
Supports PC video display resolutions up to UXGA
(1600x1200 @75Hz)
•
YPbPr supports 480p, 576p and 720p
•
Fully compatible with DVD players and game
consoles
•
Handy stereo audio switch
Technical Specifications
•
Video bandwidth: 400MHz for VGA, 70MHz for
YPbPr
•
Input connectors: 1 x VGA, 1 x YPbPr In, 2 x Audio
In
•
Output connectors: 1 x VGA Out, 1 x Audio Out
•
Power supply: 5V, 2A DC
•
Dimensions: 5" x 3.7" x 1" (L x W x H)
•
Weight: 11oz
04-0509A
YPbPr/VGA to VGA with
Audio Converter / Switch
Quick Installation Guide
1
Advertisement
Related Manuals for SIIG CE-CM0011-S1
Summary of Contents for SIIG CE-CM0011-S1
- Page 1 Audio Converter / Switch Quick Installation Guide Introducing the YPbPr/VGA to VGA with Audio The YPbPr/VGA to VGA with Audio Converter/Switch takes two video and audio sources and displays them on one VGA monitor, plasma, LCD or projector in high resolution formats.
-
Page 2: Package Contents
Package Contents YPb/VGA to VGA with Audio Converter / Switch • • 4 rubber pads Power supply (5V, 2A) • Quick Installation Guide • Layout Power Jack Power VGA/YPbPr Switching Button • Power Jack: Plug in the included power adapter •... - Page 3 Audio Audio • Audio In: Connects to your PC's audio out • Audio Out: Connects to your PC's audio in or stereo speakers • VGA In: Connects to your PC's video card • VGA Out: Connects to your VGA monitor VGA Input Figure 3: Device Connection VGA In...
-
Page 4: Hardware Installation
Hardware Installation Please read and follow the safety guidelines to protect yourself from possible injury and to minimize the risk of damage to your equipment. • Do not attempt to service the unit yourself. • Provide proper ventilation and air circulation, do not use near water •... - Page 5 Xbox or PS2/3, output resolution to progressive 720p for the best compatibility. Some LCD monitors do not recognize 480p, 576p and 720p resolutions. Please read the monitor's specifications before connecting to the YPbPr/VGA to VGA with Audio Converter/Switch.
- Page 6 Blank Page...
-
Page 7: Technical Support And Warranty
Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. If the product is determined to be defective, an RMA number will be issued. Step 2: After obtaining an RMA number, ship the product. - Page 8 Fremont, CA 94538-3152, USA Ph: 510-657-8688 YPbPr/VGA to VGA with Audio Converter/Switch is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Other names used in this publication are for identification only and may be trademarks of their respective companies.
