Introduction

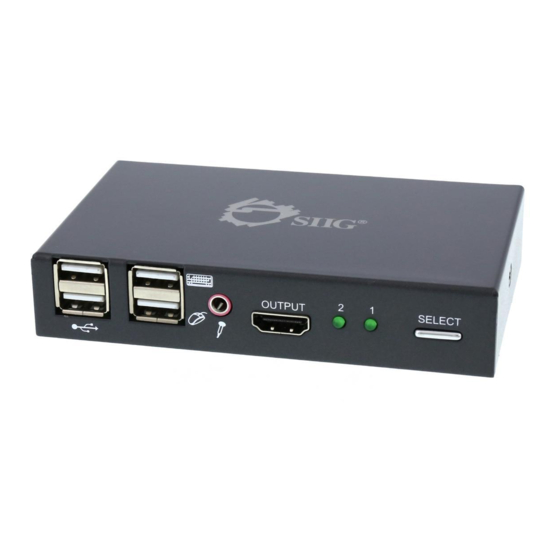

The 2x1 USB HDMI KVM Switch shares one
HDMI display between two HDMI sources.
Key Features and Benefits
•
Share an HDTV or display, USB keyboard
& mouse, and microphone between 2 USB/
HDMI computers and devices
•
Provides 2 additional USB 2.0 sharing ports
with over-current detection and protection
•
Switch between devices via front push
button or hotkey
•
Supports 1080p with 36-bit Deep Color
and PC's UXGA 1920x1200 resolutions
•
Supports Dolby True HD and DTS HD
Master Audio formats
•
HDMI v1.3 & HDCP compliant
•
Video bandwidth: up to 2.25Gb/s
•
Metal housing for better RF shielding
04-0747A
2x1 USB HDMI KVM Switch
Quick Installation Guide
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIIG CE-KV0011-S1
Summary of Contents for SIIG CE-KV0011-S1
- Page 1 2x1 USB HDMI KVM Switch Quick Installation Guide Introduction The 2x1 USB HDMI KVM Switch shares one HDMI display between two HDMI sources. Key Features and Benefits • Share an HDTV or display, USB keyboard & mouse, and microphone between 2 USB/ HDMI computers and devices •...
-
Page 2: Package Contents
Package Contents • 2x1 USB HDMI KVM Switch • Power adapter • 2 cable sets • Quick installation guide Compatibility • Windows, Mac, Linux computers • Game consoles, Blu-Ray DVD players, and other CE devices Layout Select HDMI USB Ports USB Keyboard OUTPUT &... - Page 3 • USB Ports: Connect to other USB devices • USB Keyboard & Mouse Ports: Connect to USB keyboard and mouse devices • MIC: Connect to microphone • HDMI OUTPUT: Connect to HDMI display • LED: Indicate which HDMI source is selected •...
-
Page 4: Hardware Installation
Hardware Installation Power off all devices you plan to connect to this switch. Connect a monitor/display to the switch's OUTPUT HDMI connector using a HDMI cable (not included). Connect a USB keyboard and a USB mouse to the dedicated USB keyboard and mouse ports on the switch. - Page 5 Optional: Connect other USB peripherals you wish to share between the connected computers/devices to the extra USB ports on the switch. Connect the power adapter into the switch's Power Jack. Power up the first computer/device and wait until it is fully booted up, verify the keyboard and mouse to make sure they function properly.
- Page 6 Hotkey Follow the hotkey command listed below for selected operating functions:...
-
Page 7: Technical Support And Warranty
(3) years from the date of purchase of the product. SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality) the product if defective in materials or workmanship. - Page 8 Fremont, CA 94538-3152, USA Phone: 510-657-8688 2x1 USB HDMI KVM Switch is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.
